Analog Cameras
Discontinued

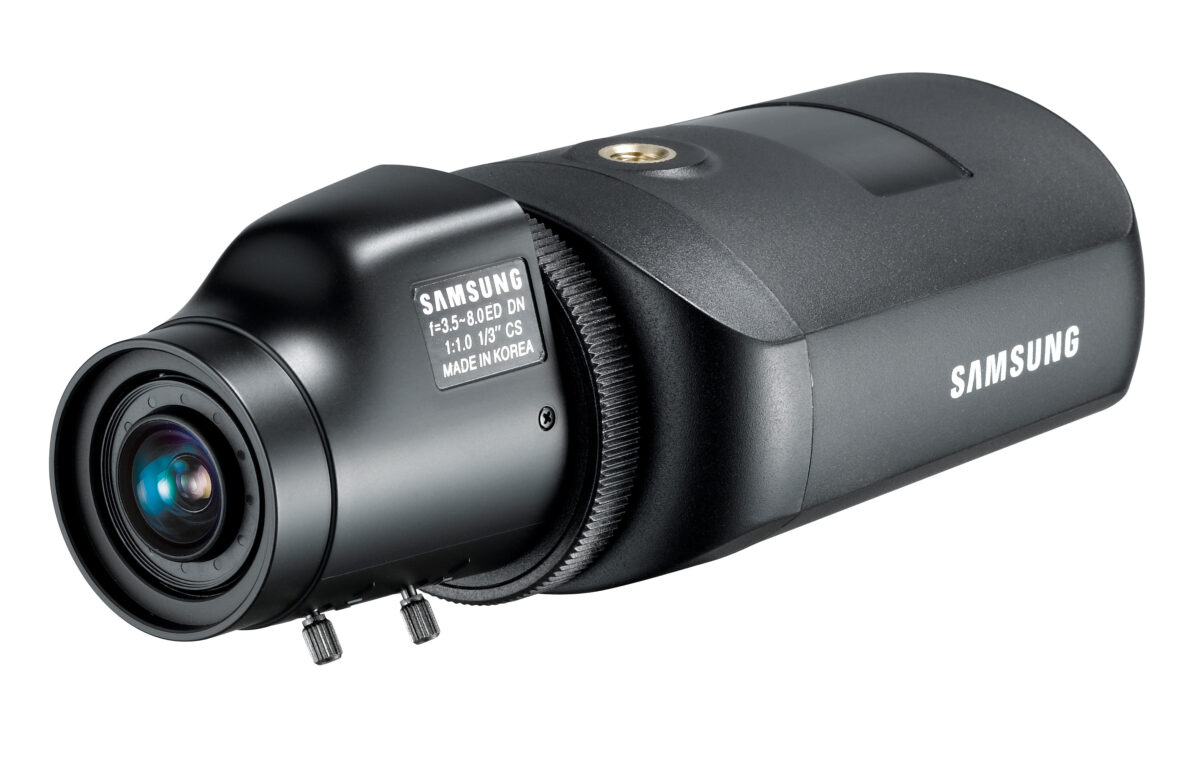

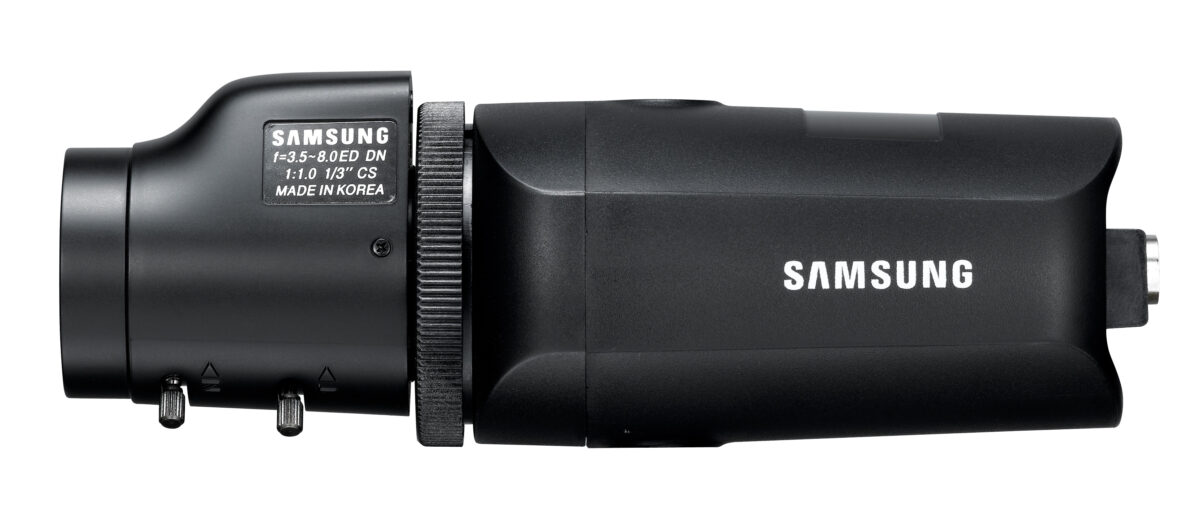

SCB-1001
High Resolution Box Camera * Asia, Europe region sales only
Key Features
• High Resolution of 600TV Lines (Color)
• Min. Illumination 0.1Lux, 50IRE @F1.2
• 2D DNR(Digital Noise Reduction), Defog
• Day & Night (Software)
• SSDR, BLC
• Coax : Pelco-C (Coaxitron), Dual power
• Min. Illumination 0.1Lux, 50IRE @F1.2
• 2D DNR(Digital Noise Reduction), Defog
• Day & Night (Software)
• SSDR, BLC
• Coax : Pelco-C (Coaxitron), Dual power
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/3" Super HAD CCD II |
| NETD | 2 : 1 Interlace |
| Pixel Size | Color : 600TV lines |
| Min. Illumination | 0.1Lux@F1.2 (50IRE) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
| Lens | |
| Lens type | Manual / Auto iris (DC) |
| Mount Type | C / CS |
| Operational | |
| Privacy Masking | Pelco-C (Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
| Storage Temperature / Humidity | Less than 90% RH |

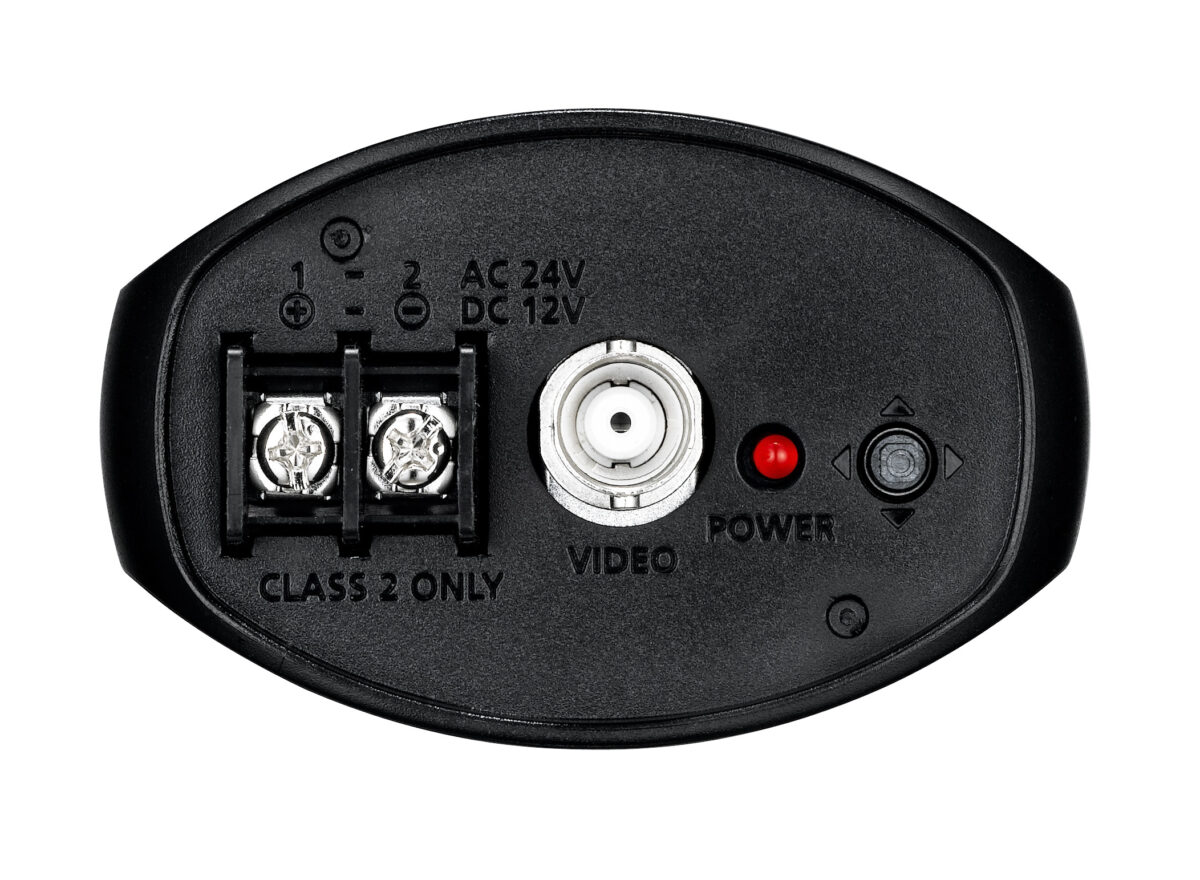

| Input Voltage | Dual (24V AC & 12V DC ±10%) |
| Mechanical | |
| Color / Material | Black |
| RAL Code | Plastic |
