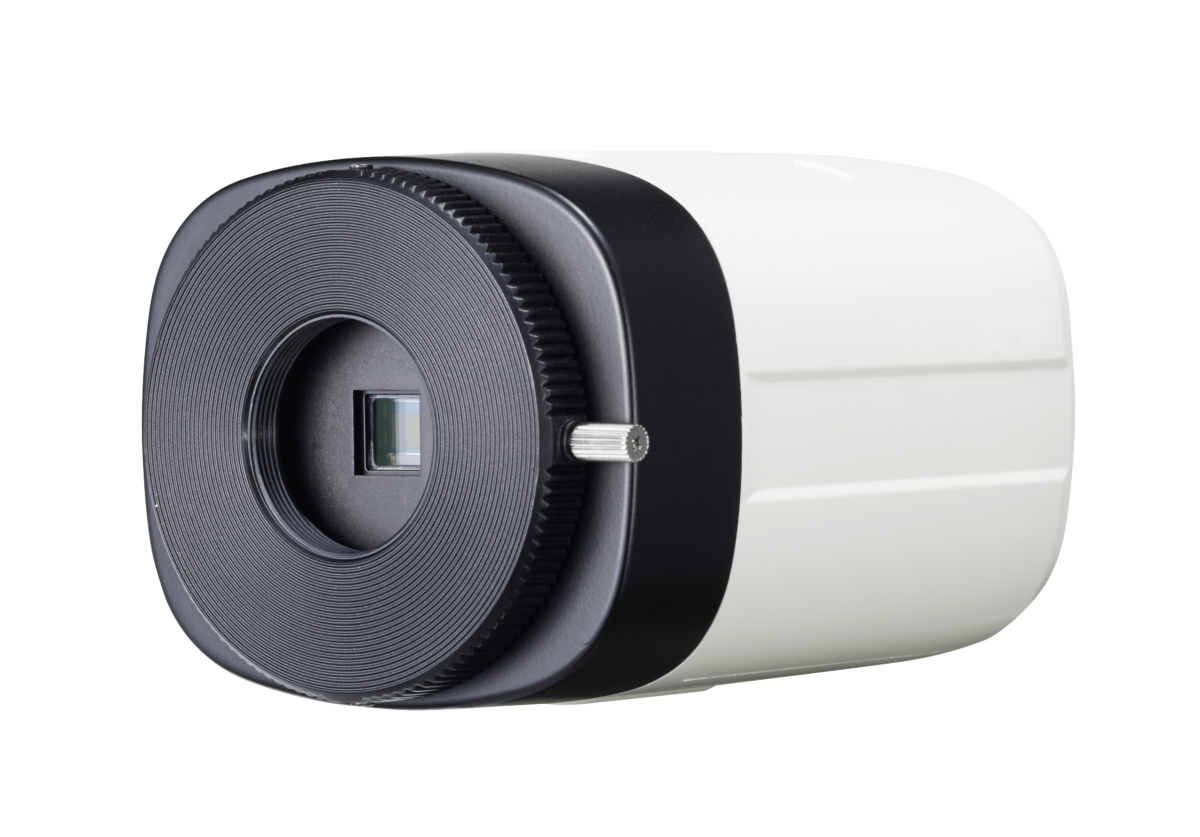

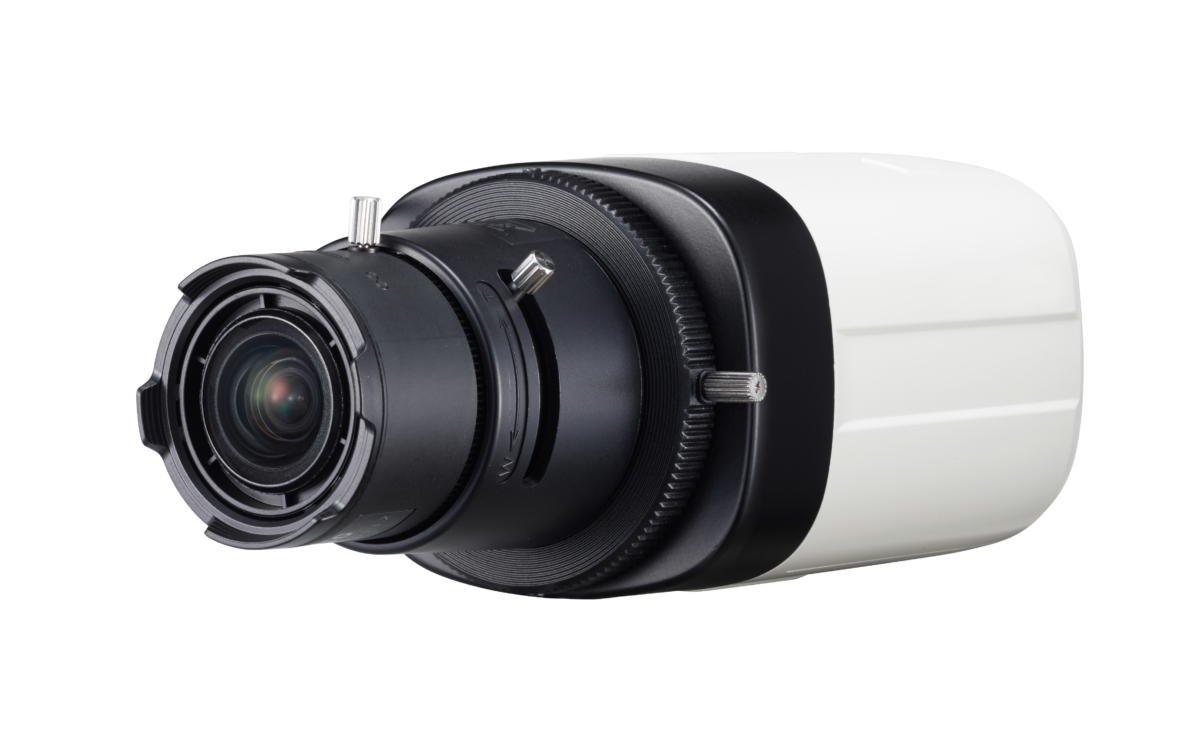

SCB-6003

1080p Analog HD Camera

Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.04Lux@F1.2 (Color), 0.004Lux@F1.2 (B/W)
• Day & Night (ICR), DWDR, SSNRIV, Motion detection
• Transmission distance max. 500m
• Easy installation (Plug & play), Dual power, RS-485
Contact Sales Datasheet

["camera","analog","analog-box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" 2MP CMOS
Resolution 1920x1080
Max. Framerate 30fps
Min. Illumination Color: 0.04Lux(F1.2)
BW: 0.004Lux(F1.2)
Video Out BNC(AHD / CVBS selectable)
Video Transmission Distance 500m(75-5 coaxial cable)
Lens
Mount Type C/CS mount
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 4ea, rectangular zones
Gain Control Low / Midel / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
Serial Interface RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Alarm I/O (MD)Output 1ea, External D/N 1ea
Alarm Triggers Analytics
Alarm Events Alarm out
Coaxial Protocol ACP(AHD Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Certification Safety(UL), EMC(FCC, CE)
Input Voltage 12VDC, 24VAC
Power Consumption Max 4.2W
Mechanical
Color / Material Black, Ivory / Aluminum, Plastic
