Analog Cameras
Discontinued

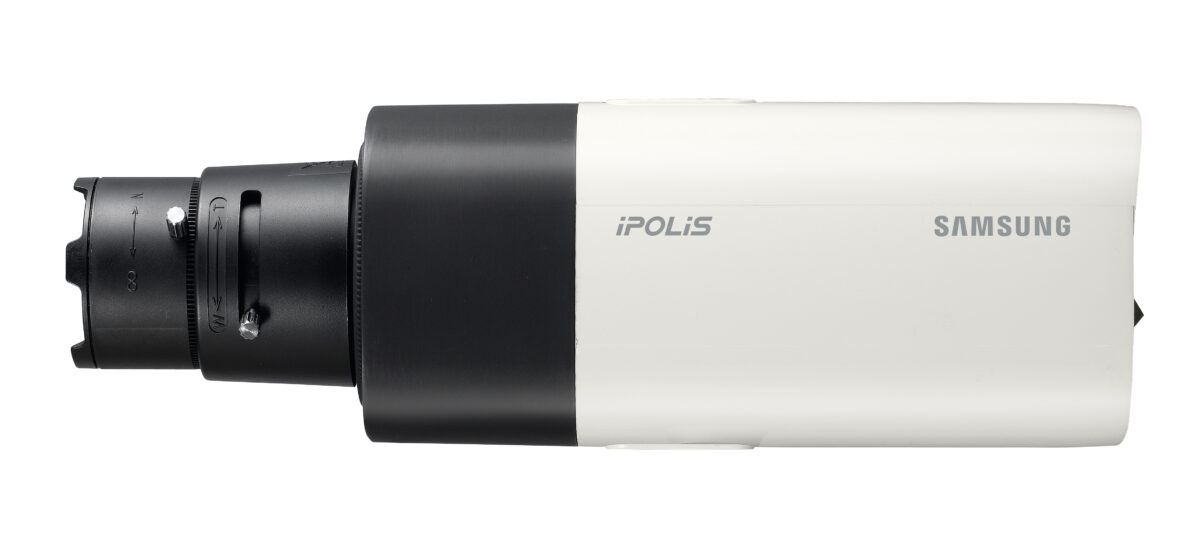

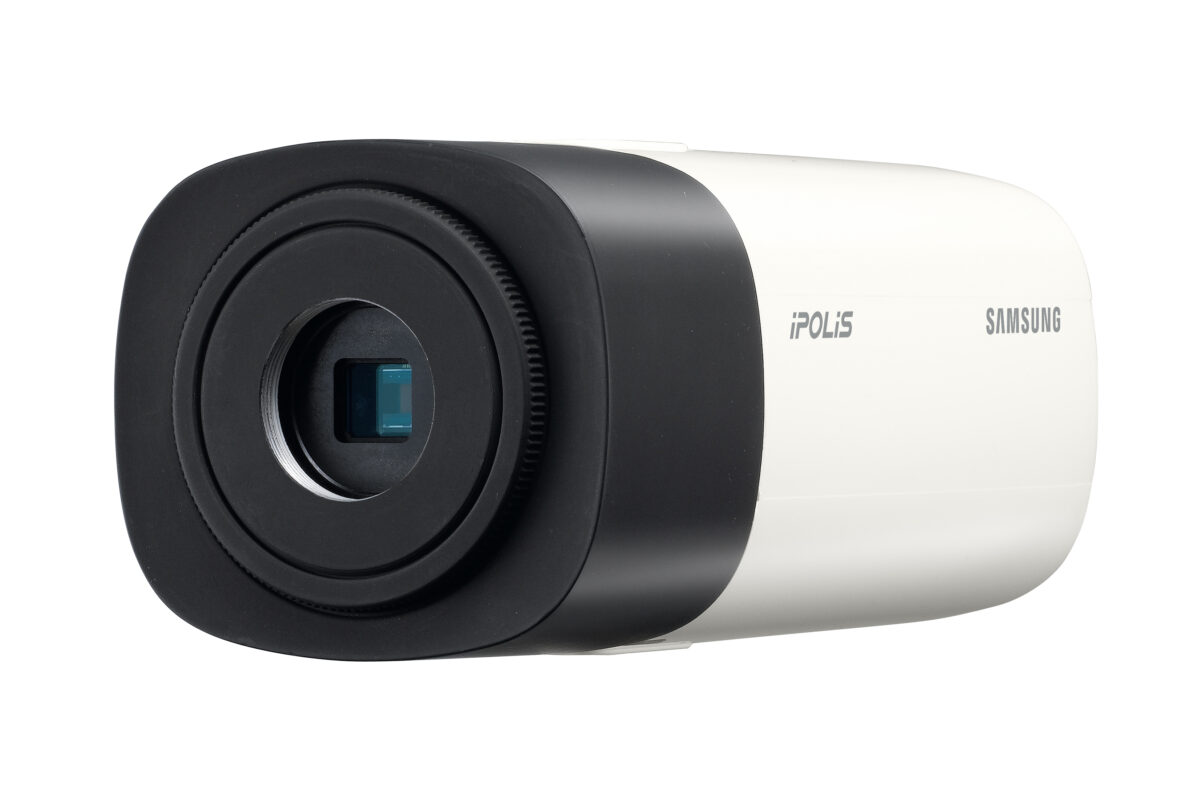

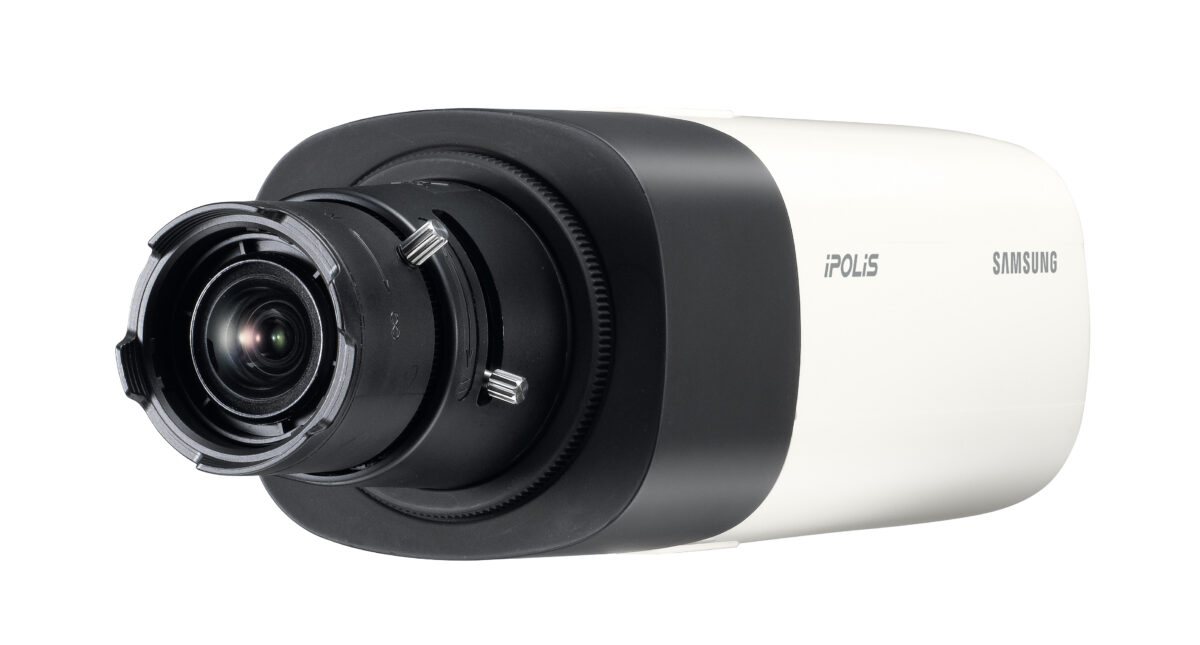

SCB-6001
2Megapixel HD-SDI Camera
Key Features
• Max 2M (1920 x 1080), Full HD(1080p) resolution
• HD-SDI (High Definition Serial Digital Interface)
• Enhanced WDR (100dB)
• Tampering, Face/Motion Detection
• Simple focus
• Defog, P-Iris, DIS, Day & Night(ICR) support
• RS-485, 24V AC, 12V DC supports
• HD-SDI (High Definition Serial Digital Interface)
• Enhanced WDR (100dB)
• Tampering, Face/Motion Detection
• Simple focus
• Defog, P-Iris, DIS, Day & Night(ICR) support
• RS-485, 24V AC, 12V DC supports
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/3" Progressive scan CMOS |
| NETD | Progressive |
| Min. Illumination | 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up, 60x) |
| Video Out | SMPTE292M (HD-SDI), Monitoring CVBS |
| Lens | |
| Lens type | Manual / DC auto iris / P-iris |
| Mount Type | C / CS |
| Operational | |
| Motion Detection | Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE |
| Gain Control | Tampering, Virtual line, Enter/Exit, Appear / Disappear |
| White Balance | Off / On |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
| Storage Temperature / Humidity | Less than 90% RH |
| Input Voltage | Dual (24V AC & 12V DC ±10%) |
| Mechanical | |
| Color / Material | Ivory |
| RAL Code | Plastic |
Download
| Category | File Name | Last Updated | |||
|---|---|---|---|---|---|
| Datasheet | Datasheet_SCB-6001_AR.pdf | 2016-06-24 | Download |
