Network Cameras

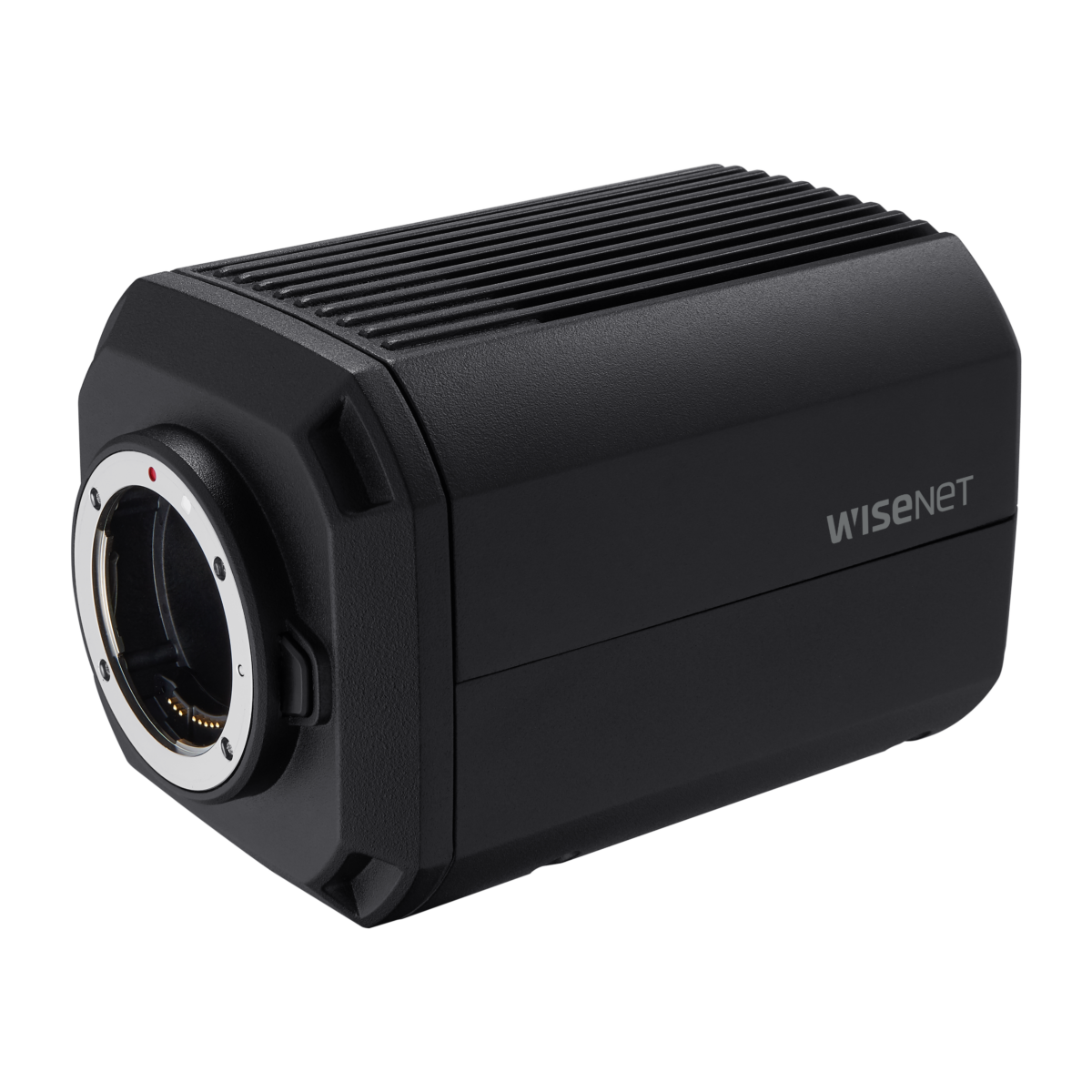

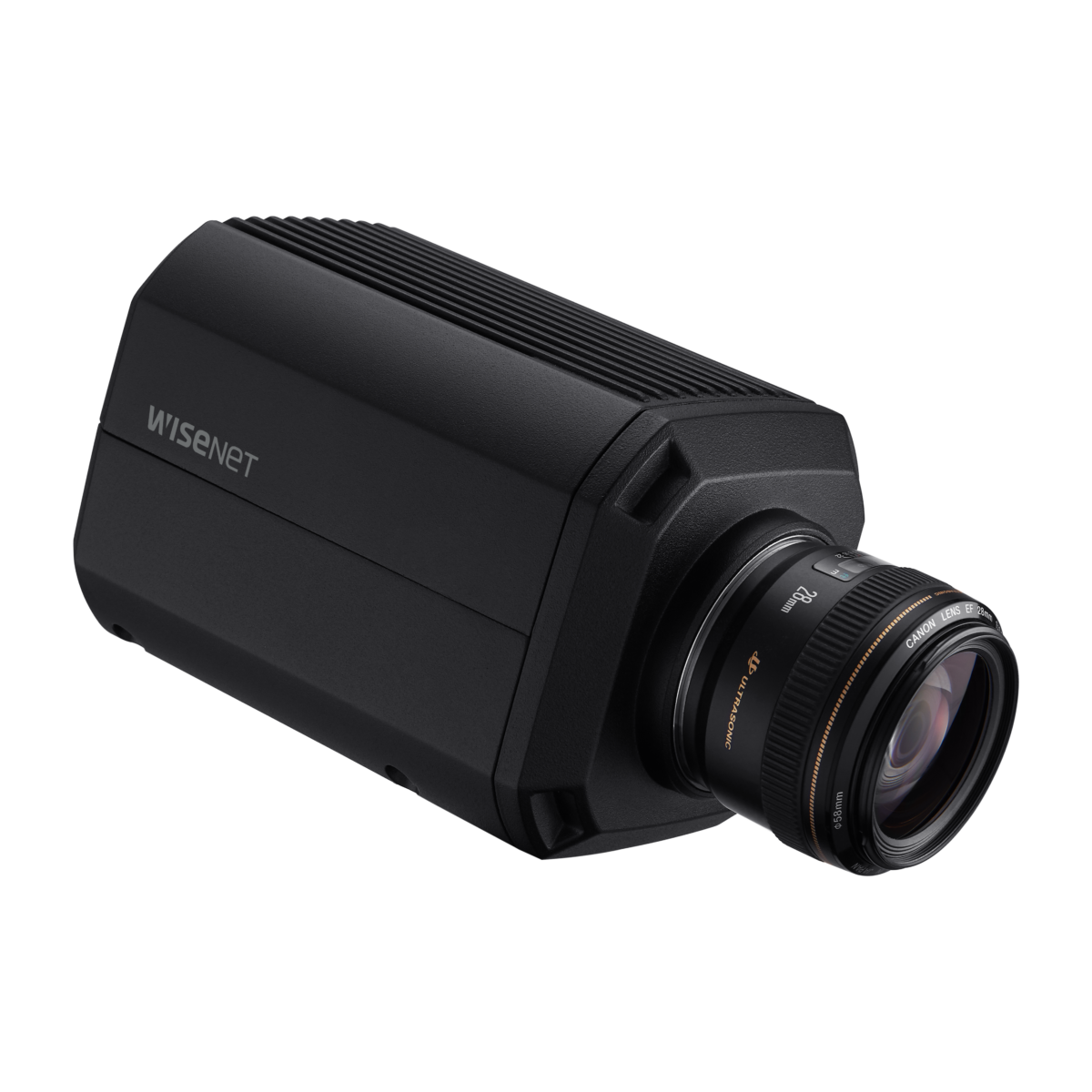

TNB-9000
8K Box Camera
Key Features
• 43.3mm full-frame CMOS Image Sensor
• Max.15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K
• Compatible with Canon EF mount Lens
• Intelligent video analytics based on AI (Object detection/classification, Attribute, BestShot)
• HDMI (1080p 30fps) Video Output
• H.265/H.264 : Main/High, MJPEG
• Single Micro SD slot (Up to 256GB)
• WiseStreamⅡ support
• RJ-45, SFP slot(100/1000Mbps)
• HPoE(IEEE802.3bt, Class5), 12VDC
• Max.15fps@8K, 20fps@24MP, 30fps@15MP, 60fps@4K
• Compatible with Canon EF mount Lens
• Intelligent video analytics based on AI (Object detection/classification, Attribute, BestShot)
• HDMI (1080p 30fps) Video Output
• H.265/H.264 : Main/High, MJPEG
• Single Micro SD slot (Up to 256GB)
• WiseStreamⅡ support
• RJ-45, SFP slot(100/1000Mbps)
• HPoE(IEEE802.3bt, Class5), 12VDC
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
8K resolution Camera
TNB-9000 represents the highest performing, highest resolution camera to date of Wisenet lineup. The ability to digitally zoom in to any area of an image without losing detail provides a powerful alternative to traditional multi-camera installations.
Suited for stadiums
TNB-9000 utilizes a full size 36mm CMOS sensor to deliver true 8K performance at up to 15fps. The camera is ideally suited for stadiums, airports and similar large spaces where installing multiple cameras may be impractical or cost prohibitive. It supports EF (Electro Focus) mount lenses, with remote focus, gives customers exceptional flexibility in lens options and low light performance.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | Diagonal 43.3mm Full-frame CMOS | |
| Resolution | 7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, \n1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264: 32MP(8K) @ Max. 15fps (Mode 0)\nH.265/H.264: 24MP @ Max. 20fps (Mode 1)\nH.265/H.264: 15MP @ Max. 30fps (Mode 2)\nH.265/H.264: 8MP(4K) @ Max. 60fps (Mode 3) | |
| Min. Illumination | Color : 0.015Lux(F1.4, 1/30sec)\nB/W : 0.0015Lux(F1.4, 1/30sec) | |
| Video Out | HDMI: 1080p@30/25fps (60/50Hz) | |
| Lens | ||
| Angular Field of View | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1°\nCanon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5°\nCanon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6°\nCanon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2°\nCanon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1°\nCanon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70?200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3° | |
| Focus Control | Simple focus | |
| Lens Type | Canon EF mount Lens | |
| Mount Type | Canon EF mount | |
| Optional Lens | Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM)\nCanon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM)\nCanon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM)\nCanon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM)\nCanon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM)\nCanon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) | |
| Operational | ||
| Camera Title | Displayed up to 75 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, DWDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | 8ea, 8point polygonal zones (in 32MP(8K) resolution only) | |
| Privacy Masking | 6ea, Rectangular\n - Color: Grey/Black/White | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) | |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object\n- Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line\n- Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P) | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm events | File upload via FTP and e-mail\nNotification via e-mail \nSD/SDHC/SDXC or NAS recording at event triggers\nAlarm output\nHandover | |
| Audio In | Selectable(mic in/line in)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps\nAAC-LC: 48Kbps at 16KHz | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR\nMJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast\nMultiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP)\nDevice Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | ONVIF Profile S/G/T\nSUNAPI(HTTP API) | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256MB | |
| Memory | 4096MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | 0°C ~ +45°C(32°F ~ +122°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -40°C ~ +65°C(-40°F ~ +140°F) / Less than 90% RH | |
| Certification | Safety(UL 60950-1), \nEMC(FCC, CE, KC)\nEN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2, \nEN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A,\nIC ICES-003 Class A | |
| Input Voltage | HPoE(IEEE802.3bt, Class5), 12VDC | |
| Power Consumption | PoE: Max 30W, typical 20W \n12VDC: Max 26W, typical 18W | |
| Mechanical | ||
| Color / Material | Black / Aluminum | |
| Product Dimensions / Weight | 120(W)x118.1(H)x179(D)mm, 2.1Kg(4.55 lb) | |
