Network Cameras

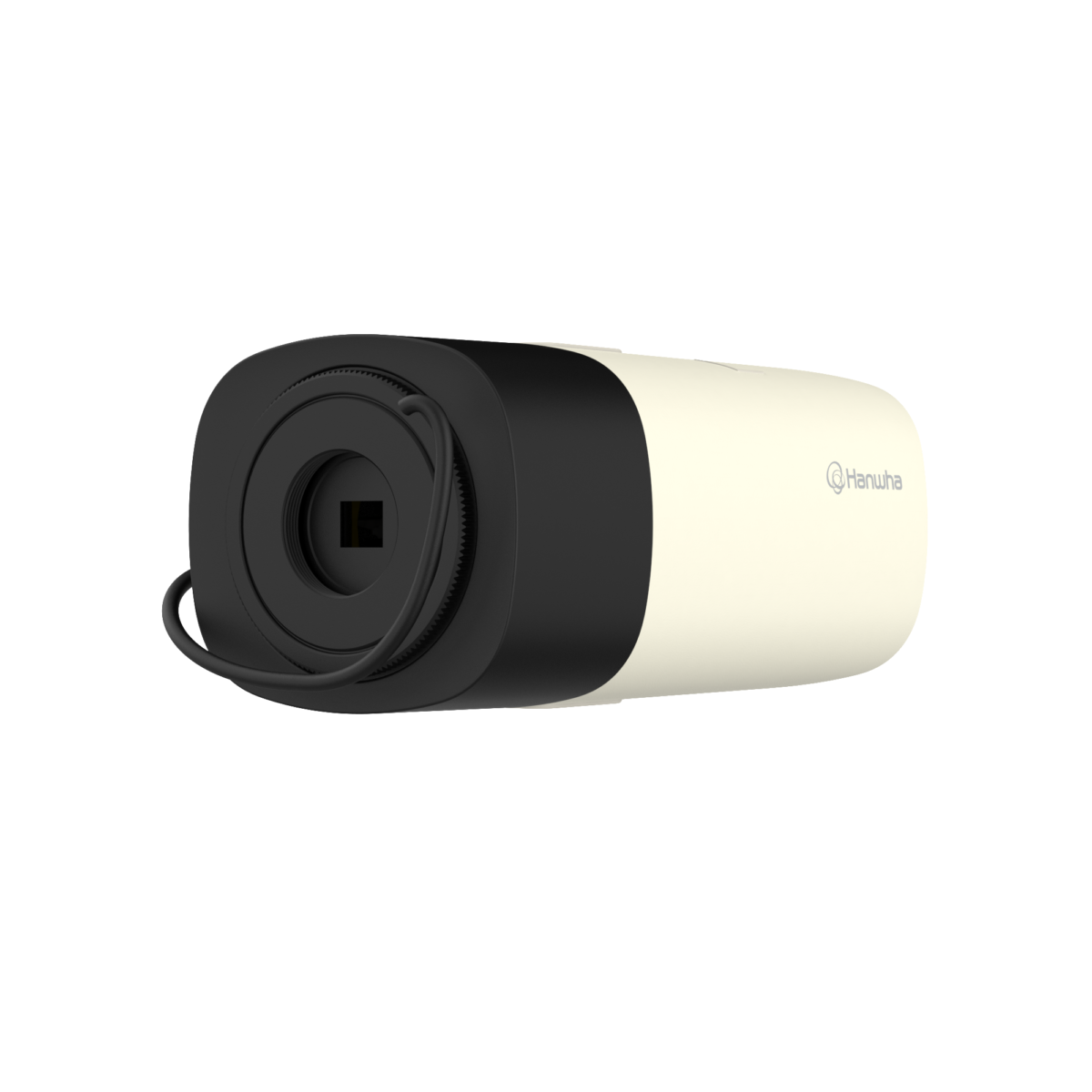

XNB-6000

2M H.265 Box Camera

Key Features
• 0.01Lux@F1.2 (Color), 0.001Lux@F1.2 (B/W)
• Max. 60fps@all resolutions (H.265/H.264)
• DIS with built-in Gyro sensor
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support

*Available in Hanwha Techwin Middle east and Africa Only - XNB-6000/KME
Contact Sales Datasheet

["camera","network","box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps
Min. Illumination Color: 0.01Lux(F1.2, 1/30sec, 30IRE)
BW: 0.001Lux(F1.2, 1/30sec, 30IRE)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual, I-CS
Mount Type C mount, CS mount
Optional Lens SLA-M2890DN(2MP 2.8~9mm), SLA-M2890PN(2MP 2.8~9mm P iris)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Analytics events
- Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Serial Interface RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
Audio In Selectable(mic in/line in/Built-in mic)
Audio Out Line out
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 512GB(256GBx2)
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(-14°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Input Voltage PoE(IEEE802.3af, class3), 12VDC, 24VAC
Power Consumption PoE: Max. 7.5W
12VDC: Max. 6.5W
24VAC: Max. 9W
Mechanical
Color / Material Black, Ivory / Plastic
Product Dimensions / Weight 73.1(W)x66.6(H)x147.8(D)mm(2.88x2.62x5.82"), 420g(0.93 lb)
