Network Cameras

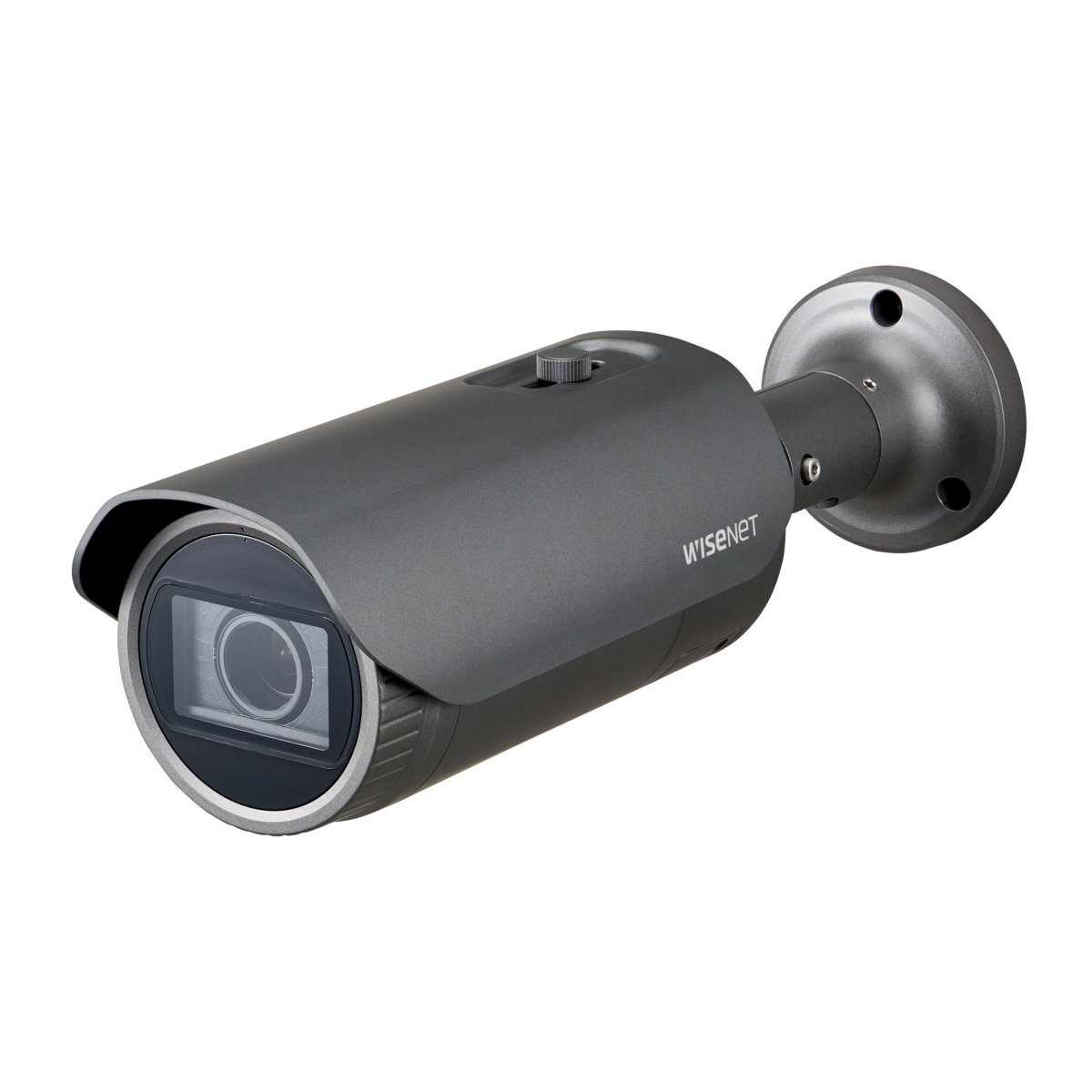

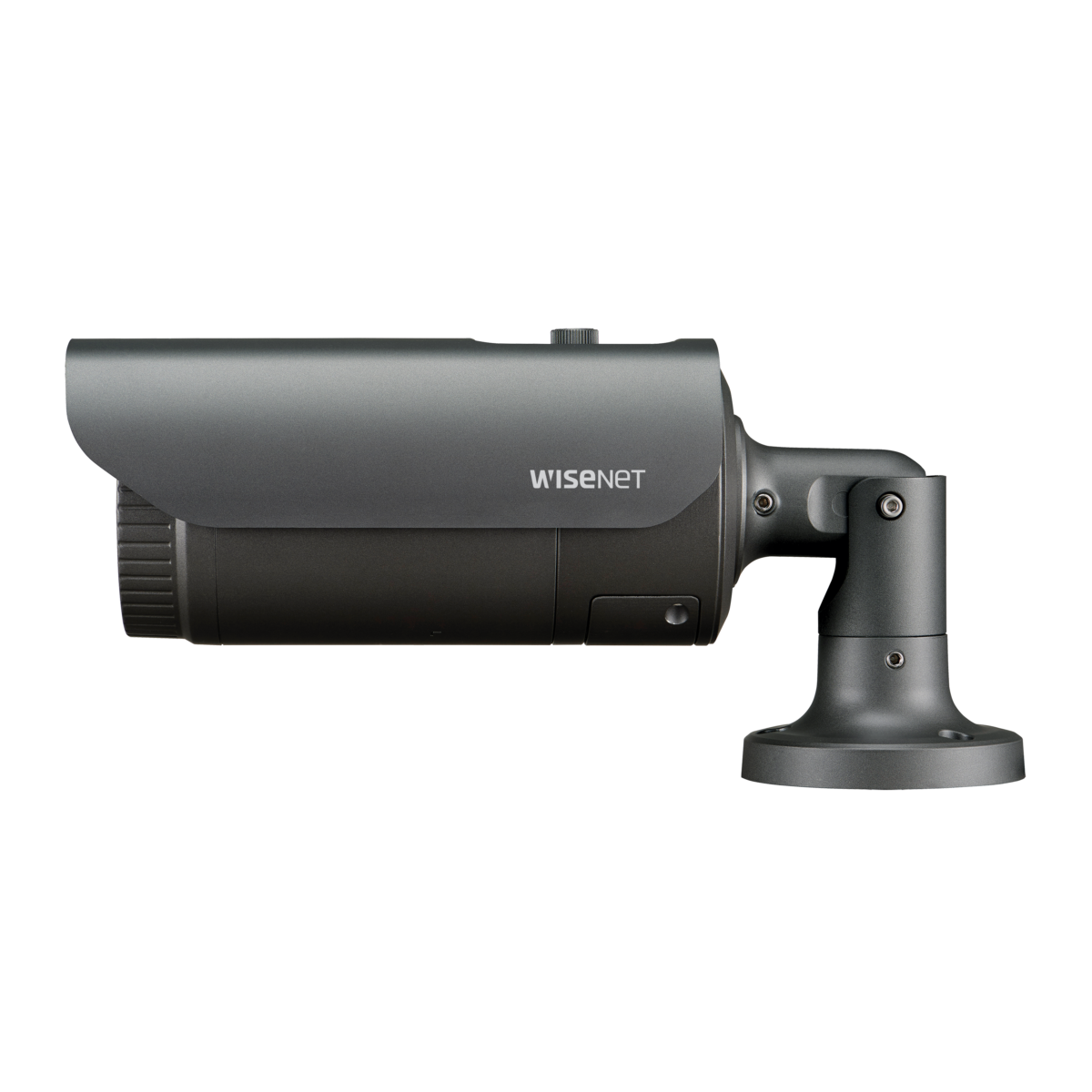

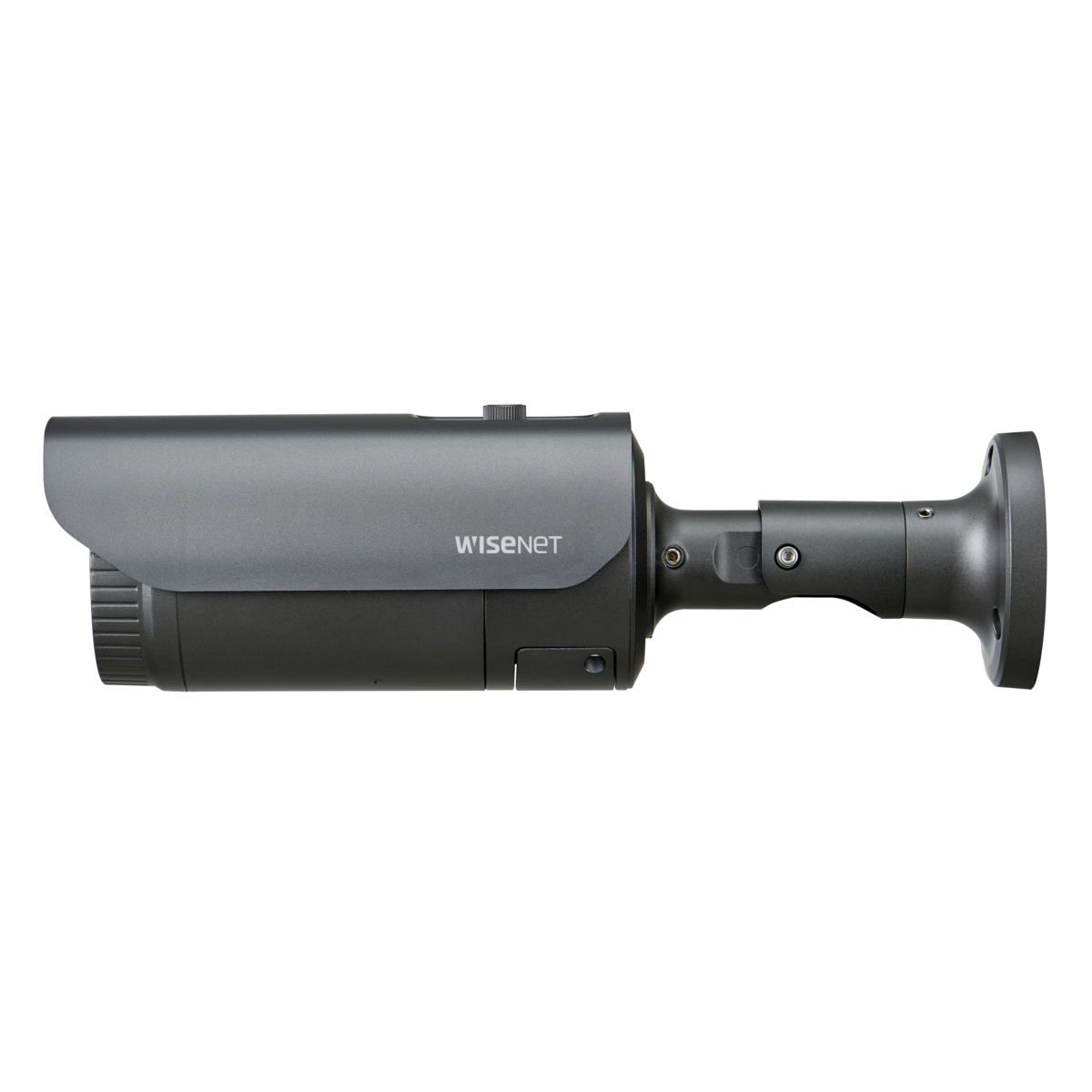

XNO-L6080RA

2M H.265 IR Bullet Camera

Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Defocus detection
• Motion Detection, Handover
• SD/SDHC/SDXC memory slot (Max. 256GB)
• Hallway view, WiseStreamII support
• IR viewable length 30m
• IP66, IK10, NEMA4X, PoE support
Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps at all resolutions
Motion JPEG: Max. 30fps
Min. Illumination Color: 0.1Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide) ~ F2.9(Tele)
Angular Field of View H: 109.0°(Wide) ~ 33.2°(Tele) / V: 57.4°(Wide) ~ 18.7°(Tele) / D: 132.0°(Wide) ~ 38.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple Focus
Lens Type DC auto iris
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Handover
IR Viewable Length 30m(98.42ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 8.1, 10, Mac OS X 10.13
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 11W, typical 5W
Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight Ø91x322.9mm(Ø3.58”x12.71”), 1,298g(2.86lb)
Compatible Conduit hole / Gangbox 3/4"
Backbox SBO-126B
