Network Cameras

TNO-C8083E

5MP Compact Explosion-proof AI Camera

Key Features
• Compact and Light-weight (4.78Kg) Explosion proof bullet
• Up to 30fps@5MP resolution with 3.2x motorized vari-focal lens
• AI based Object classification and reduced false alarm
• 1/2” cable gland type for easy installation
• IECEx, ATEX, KCs, JPEx Explosion-proof certificated
• IP66/IK10 with SUS316L stainless

["camera","network","explosion-proof"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

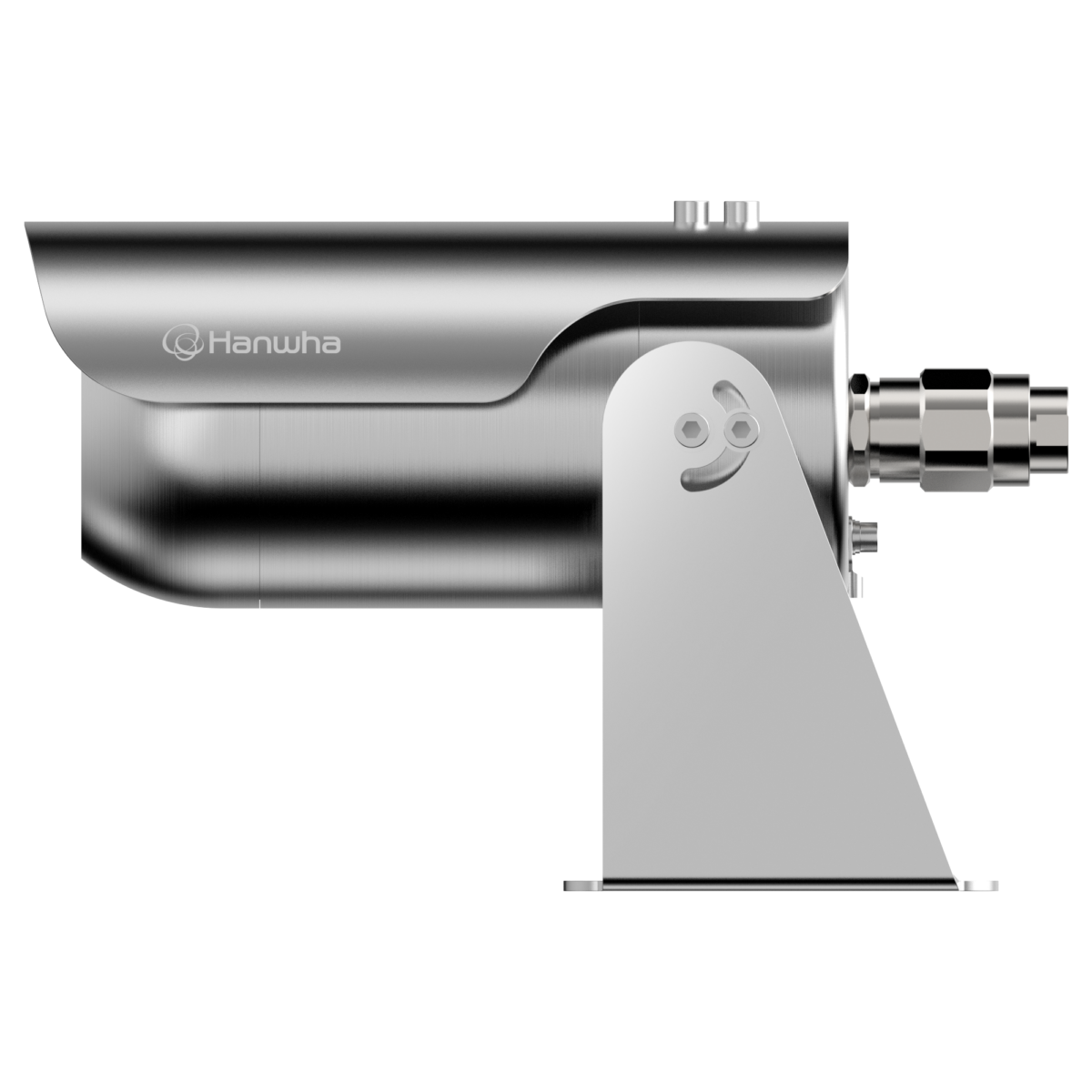

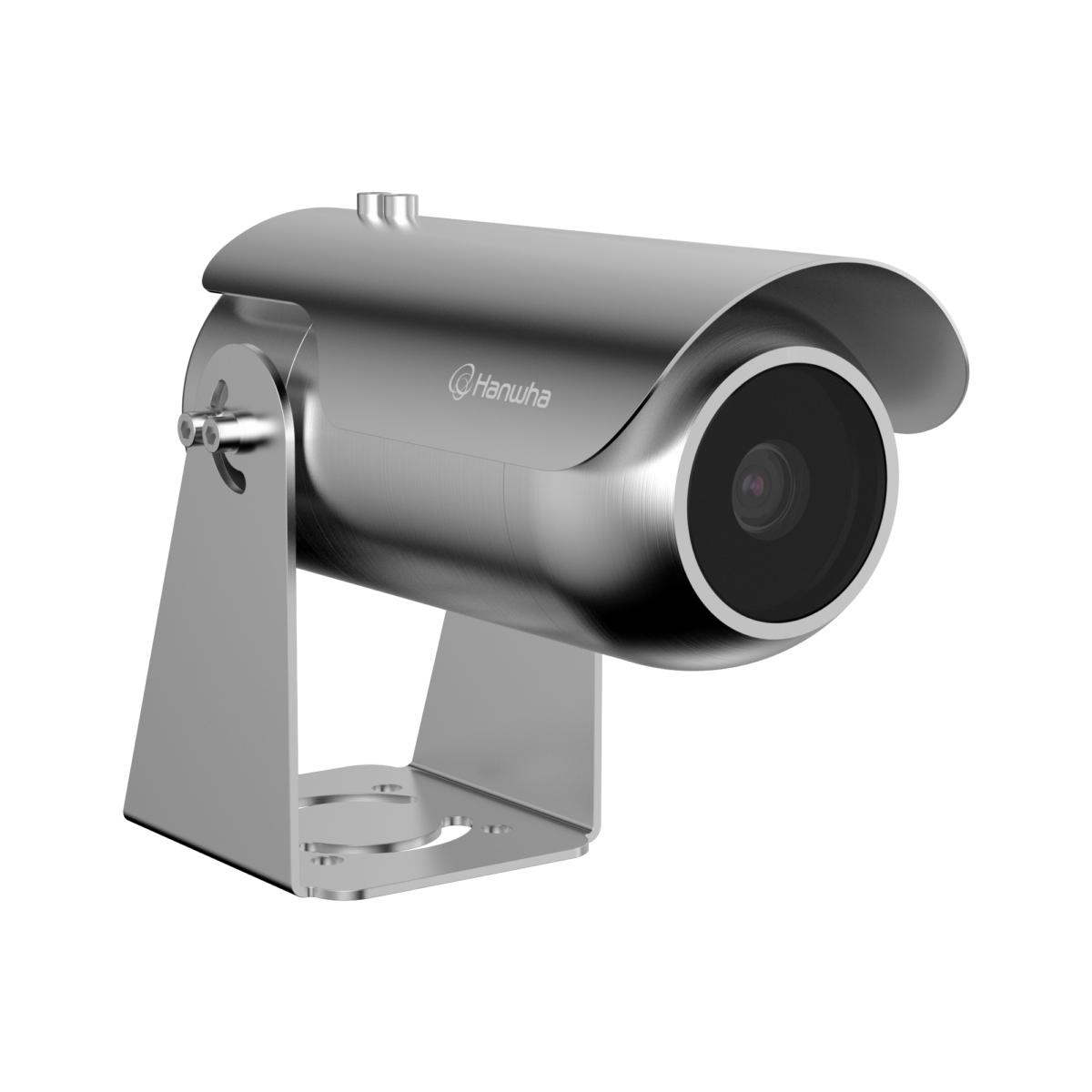

Compact Explosion-Proof Bullet Camera

Traditional explosion-proof cameras feature large, heavy housings, making installations challenging in complex and confined spaces.
The new compact explosion-proof cameras have reduced size and weight, dramatically improving ease of installation.

Explosion-Proof Certifications

Despite its compact design, the TNO-C8083E has received explosion-proof certifications, including IECEx, ATEX, KCs (Korea), and JPEx (Japan).

Can be Installed Without the Need for Glue or Bonding

By applying the explosion-proof cable gland, the camera can be installed without the need for glue or bonding. Installers can adjust the cable length as needed for the installation environment. *It is important to note that the camera’s default cable is not explosion-proof and requires the use of separate piping when exposed.

Versatile Applications for Explosion-Proof Cameras

Explosion-proof cameras are vital for maintaining safety in industrial facilities, perfect for monitoring high-risk environments like chemical plants, oil and gas refineries, and pharmaceutical manufacturing sites, where fires, explosions, and toxic chemical leaks are potential hazards. Providing robust, real-time surveillance, these cameras help protect employees, assets, and the surrounding community from industrial incidents.

Product Specification

Video
Imaging Device 1/2.8" 5MP CMOS
Resolution 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@5MP Max. 5fps)
Min. Illumination Color: 0.07Lux (F1.6, 1/30sec)
B/W: 0.007Lux (F1.6, 1/30sec, 30IRE)
Lens
Focal Length (Zoom Ratio) 3.2~10.2mm(3.2x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F3.1(Tele)
Angular Field of View H: 95°(Wide)~29°(Tele)
V: 69°(Wide)~21°(Tele)
D: 126°(Wide)~36°(Tele)
Min. Object Distance 1.2m (3.93ft)
Focus Control Simple focus
Lens Type DC auto iris(IR corrected)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Classified object type: Person/Vehicle
Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Motion detection, Defocus detection, Tampering, Virtual area(Appear/Disappear)

* Some of the video analytics only works with people and vehicle detection
Business Intelligence Based on AI engine: People/Vehicle counting, Queue management, Heatmap
Alarm Triggers Analytics, Network disconnect
Alarm events File upload via FTP and e-mail
Notification via e-mail
Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast)
Application Programming Interface ONVIF Profile S/T/M
SUNAPI(HTTP API)
Security
OS / Firmware Protect Secure boot, Signed firmware, Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Memory 2GB RAM, 1GB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH(non-condensing)
* Start up should be done at above -30°C
Storage Temperature / Humidity -50°C~+60°C(-58°F ~ +140°F) / 0~95% RH
Certification CE, KC, IP66, IK10,
ATEX,
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db
IECEx,
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 9.50W, typical 5.30W
Mechanical
Color / Material Silver / stainless (SUS316L)
Product Dimensions / Weight ø110.5 x 316.2mm(ø4.35x12.44"), 4770g(10.51 Ib)
Hanging Mount (Dome) SBE-100WM, SBE-100PM
Wall Mount SBE-100WM
Pole Mount SBE-100PM
Certifications & Standards
EMC CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
KS C 9832:2023, KS C 9835:2019
Environment EC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 42.7m(140.20ft) / Tele: 186.9m(613.28ft)
Observe (63PPM/ 19PPF) Wide: 17.2m(56.08ft) / Tele: 75.4m(245.31ft)
Recognize (125PPM/ 38PPF) Wide: 8.5m(28.04ft) / Tele: 37.4m(122.66ft)
Identify (250PPM/ 76PPF) Wide: 4.3m(14.02ft) / Tele: 18.7m(61.33ft)
