Network Cameras
Discontinued
PNF-9010R
4K H.265 Fisheye Camera
Key Features
• Max.12M (4000 x 3000) resolution
• H.265, H.264, MJPEG codec
• Variable view mode (Fishyeye, Single panorama, Double panorama, Quad view etc)
• On board dewarping, Digital PTZ (16x)
• True WDR (120dB), WiseStream
• People counting, Heatmap, Defocus detection
• H.265, H.264, MJPEG codec
• Variable view mode (Fishyeye, Single panorama, Double panorama, Quad view etc)
• On board dewarping, Digital PTZ (16x)
• True WDR (120dB), WiseStream
• People counting, Heatmap, Defocus detection
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
PNF-9010R / 9010RV / 9010RVM
- Max. 9Megapixel resolution
- H.265, H.264, MJPEG codec
- Max. 25fps@ 9M(H.265, H.264), Max. 20fps@ 12M
- IR viewable distance 15m
- WiseStream support
- Variable view modes, Simple focus support
- People counting, Heat mapping
- IK10(Indoor/Outdoor), IP66(Outdoor)
360˚/180˚ panoramic view without blind spots
Equipped with a fisheye lens for 180° panoramic view or 360° surround view without blind spots, the camera is able to provide coverage of wide, open areas, such as retail stores, shopping malls, offices, railways and more.
Variable display modes
The new fisheye cameras in the Wisenet P series offer more than six display modes including single fisheye, single panorama, double panorama, 1 panorama + 2 PTZ, 1 fisheye + 3 PTZ and quad view mode.
* Variable display modes support in SSM
Improved Bandwidth with our new WiseStream technology
Wisenet P series camera’s streaming performance is greatly enhanced by applying an advanced compression technology called WiseStream. WiseStream can reduce bandwidth by 50% by using dynamic technology, and when combined with high efficiency video coding (H.265), the bandwidth efficiency can be improved by up to 75% compared to current H.264 technology.
Easy to install with Simple Focus feature
The Simple Focus feature is able to auto-focus with the touch of a button during the installation process.
People Counting and Heat Mapping
Premium fisheye cameras have a business intelligence function that offers retailers the opportunity to measure store efficiency. People Counting and Heat Mapping Applications display hotspots within a store, which allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and understand buying patterns.
Durable in any extreme environmental conditions with Built-in MIC
PNF-9010RV and PNR-9010RVM are designed to function even in the most extreme environmental condition. With the Built-in MIC, it can fully operate in a temperature range between -40˚ and 55˚, as well as in wet or very humid conditions.

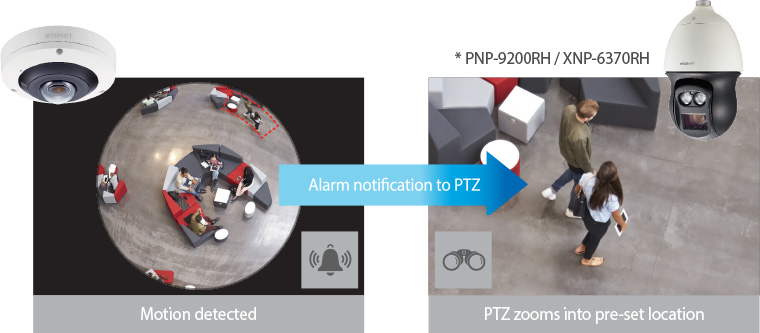

Handover to PTZ
Wisenet PTZ hand-over feature allows a PTZ camera* to receive an alarm(motion detection) from a fisheye camera on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. This feature improves the efficiency of the surveillance system by decreasing the reliance on the system operator on tracking events, and by increasing the likelihood that critical events in a surveillance area will be captured and recorded.
* Variable display modes support in SSM
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/1.7" 12M CMOS | |
| Resolution | Double panorama: 2560x1280, 1920x960, 1280x640, 704x352, 640x320\nSingle panorama: 2560x640, 1920x480, 1280x320, 704x176, 640x160\nQuad view: 2944x2208, 2560x1920, 2048x1536, 1600x1200, 1280x960,\n1024x768, 800x600, 704x576, 640x480 | |
| Max. Framerate | H.265/H.264: Max. 20fps@4000x3000, 20fps@2992x2992(60Hz/50Hz) \nMJPEG: Max. 15fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on) | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 2.1mm fixed focal | |
| Max. Aperture Ratio | F2.2 | |
| Angular Field of View | H: 180° / V: 180° / D: 180° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Operational | ||
| Camera Title | Displayed up to 60 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 8ea, polygonal zones\n - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker | |
| Video Rotation | Flip, Mirror | |
| Analytics | Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection | |
| Business Intelligence | People counting, Heatmap | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm events | File upload via FTP and e-mail \nNotification via e-mail \nSD/SDHC/SDXC or NAS recording at event triggers\nAlarm output | |
| Audio In | Selectable(mic in/line in/built-in mic)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms | |
| IR Viewable Length | 15m(49.21ft) | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps\nAAC-LC: 48Kbps at 16KHz | |
| Smart Codec | Manual(5ea area), WiseStreamⅠ | |
| Bitrate Control | H.264/H.265: CBR or VBR\nMJPEG: VBR | |
| Streaming | Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G\nSUNAPI(HTTP API)\nWisenet open platform | |
| General | ||
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11\nRecommended Browser: Google Chrome\nSupported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Certification | IK10\nEN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009,\nEN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014,\nEN61000-4-6:2009 | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 12W\n12VDC: Max 11W | |
| Mechanical | ||
| Color / Material | Ivory / Aluminum | |
| Product Dimensions / Weight | Ø146x63.4mm(Ø5.75x2.5"), 805g(1.77 lb) | |
