Network Cameras
NEW

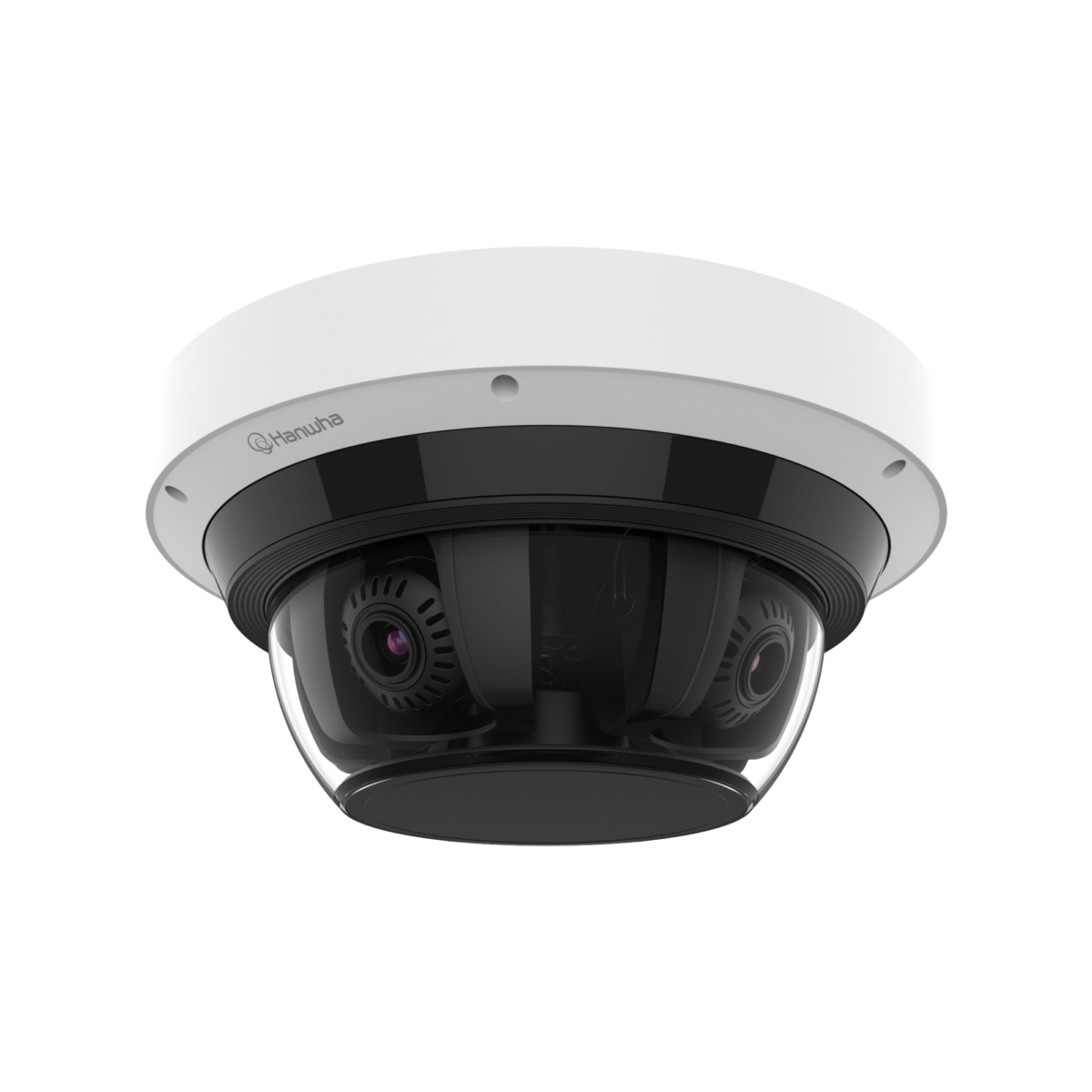

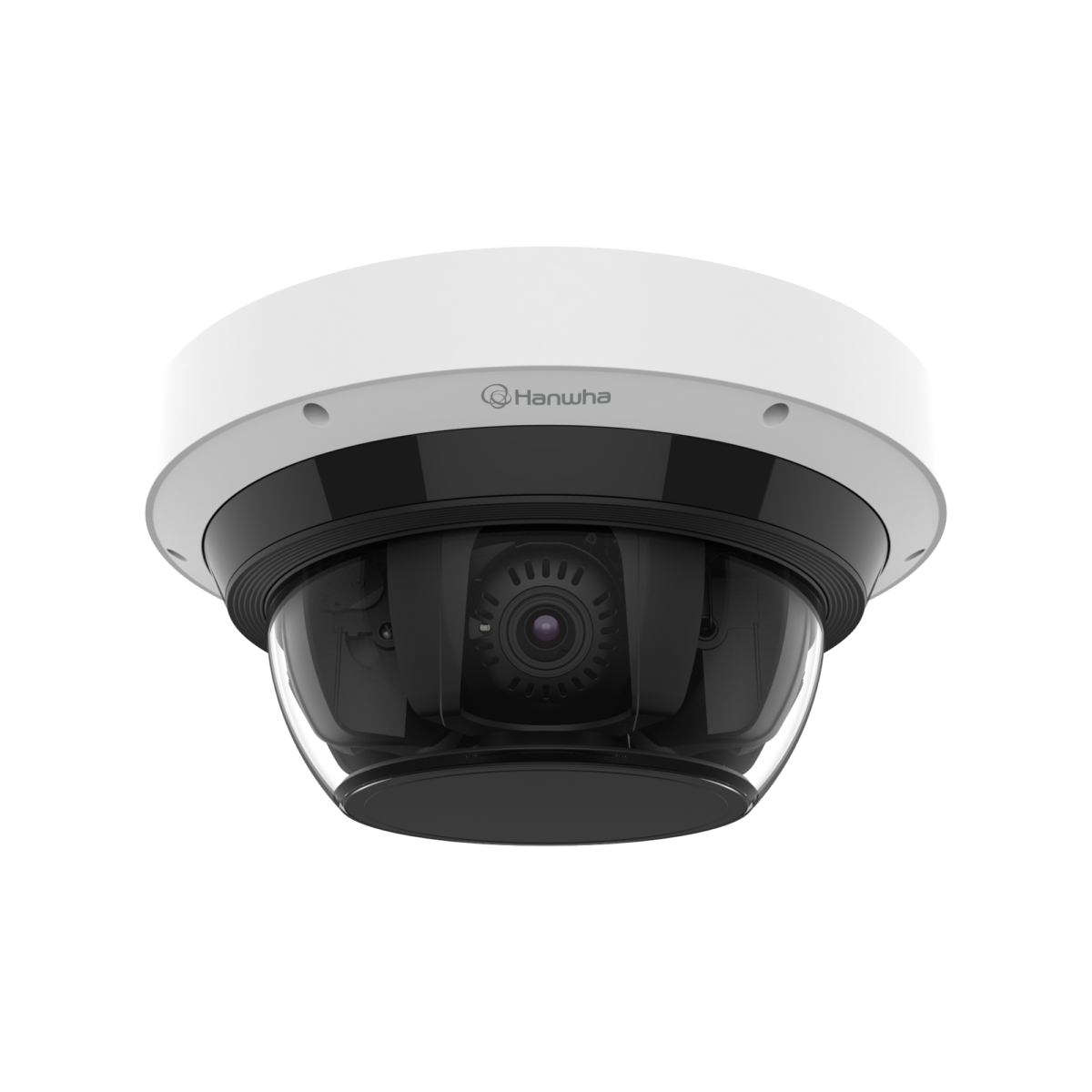

PNM-C16083RQZ
4MP x 4CH Multi-directional Camera
Key Features
• AI engine-based analysis events:
Object detection (people/faces/vehicles/license plates),
virtual lines (passing/direction),
virtual areas (Loitering/intrusion/entering/exiting)
• Attributes:
Vehicles (Type: car/bus/truck/motorcycle/bicycle, color),
people (clothing color)
• BestShot support
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• PTRZ control: Remotely set lens position/angle
• IR visibility: Up to 20m
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)
Object detection (people/faces/vehicles/license plates),
virtual lines (passing/direction),
virtual areas (Loitering/intrusion/entering/exiting)
• Attributes:
Vehicles (Type: car/bus/truck/motorcycle/bicycle, color),
people (clothing color)
• BestShot support
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• PTRZ control: Remotely set lens position/angle
• IR visibility: Up to 20m
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more
Remote motorized PTRZ control for easy installation
The PNM-C16083RQZ has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-C32083RQZ and PNM-C16083RQZ support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
See bright in low light
The new 4CH AI IR PTRZ Multi-directional camera has four independent IR zones. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby obstructions.
Monitoring 360° areas, Reduce Total Cost of Ownership
The new 4CH AI IR PTRZ Multi-directional camera can simultaneously monitor 360° areas with different FoVs, which reduces installation costs, network runs, switch ports, and accessories to reduce the Total Cost of Ownership.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS x 4CH |
| Resolution | 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps MJPEG: Max. 30fps(@4MP Max. 5fps) |
| Min. Illumination | Color: 0.1Lux(F1.6, 1/30sec, 30IRE) BW: 0.01Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10.2mm(3.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F3.1(Tele) |
| Angular Field of View | H: 93°(Wide)~29°(Tele) V: 53°(Wide)~17°(Tele) D: 111°(Wide)~34°(Tele) |
| Min. Object Distance | 1.2m(3.93ft) |
| Focus Control | Simple focus |
| Lens Type | P-Iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment(Max. 200cycles) 0°~360° / 30°~90° / 0°~90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, 4point quadrangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / prefer shutter / Anti flicker(1/5~1/12,000sec) Prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - each CH separately |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) * Audio detection, Sound classification(with NW I/O box SPM-4210) |
| Alarm I/O | 2 configurable I/O ports * Support Alarm via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Tampering |
| Alarm events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - MQTT: publication |
| Audio In | * Support Audio via optional SPM-4210 I/O box |
| Audio Out | * Support Audio via optional SPM-4210 I/O box |
| Light Type | IR LED |
| IR Viewable Length | WiseIR: PoE++ 20m(65.62ft) / PoE+ 15m(49.21ft) |
| IR Wavelength | 850nm |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅢ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per CH) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/T/G/M SUNAPI(HTTP API) Hanwha vision open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM, SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 8GB RAM, 8GB eMMC |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / 0~100% RH(condensing) * Start up should be done at above -35°C Humidity control /w AIR vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| EPA(Effective Projected Area) | 0.035㎡ |
| Certification | IP66, NEMA4X, IK10 |
| Input Voltage | Wisepower(PoE++(IEEE802.3bt type3, Class6) / PoE+(IEEE802.3at type2, Class4)) |
| Power Consumption | PoE++: Max 41.0W, Typical 22.0W PoE+: Max 25.5W, Typical 22.0W |
| Mechanical | |
| Color / Material | White / Aluminum + PC Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø312.7x145.9mm(ø12.31x5.74") / 4400g(9.7lb) |
| Compatible Conduit hole / Gangbox | 19.1mm(3/4")(M25) Single, double, 4" octagon, 4" square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| Compatible Models | |
| Hanging Adaptor | SBP-315HMW, SBP-317HMWP |
| Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
| Ceiling Mount (Single Unit) | SBP-180CMB/140CMB, SBP-180CMS, SBP-900CMP/300CMP/150CMP, SBP-C15P, SBP-C15H |
| Wall Mount | SBP-400WMW/250WMW, SBP-300WMW |
| Wall Mount Adaptor | SBP-300BW1, SBP-115PFA |
| Pole Mount | SBP-300PMW2 |
| Corner Mount | SBP-300KMW1, SBP-156KMW |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Cabinet | SBP-300NBW, SBP-150NBW |
| Interface Box | SPM-4210 |
| Other Compatible Models | SBP-315C, SPO-8315 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 49.2m(161.40ft) / Tele: 200.5m(657.65ft) |
| Observe (63PPM/ 19PPF) | Wide: 19.7m(64.56ft) / Tele: 80.2m(263.06ft) |
| Recognize (125PPM/ 38PPF) | Wide: 9.8m(32.28ft) / Tele: 40.1m(131.53ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.9m(16.14ft) / Tele: 20.0m(65.76ft) |
