Network Cameras

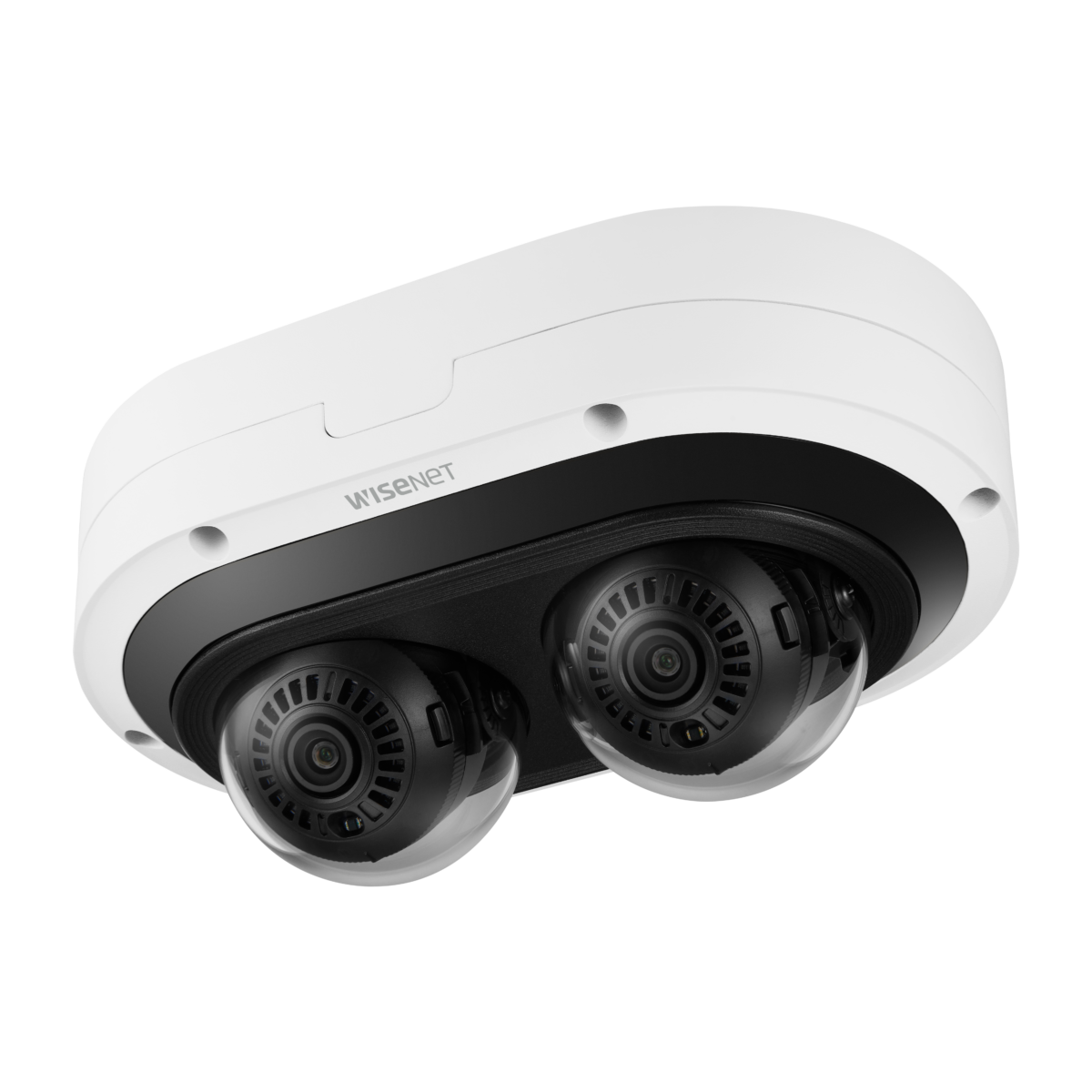

PNM-C7083RVD

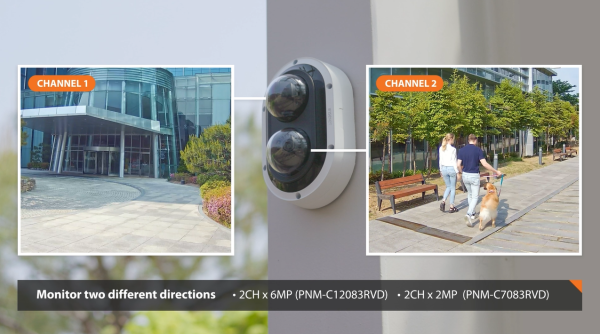

2MP x 2CH AI Multi-directional Camera

Key Features
• Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
Support BestShot
• WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
• Maximum 1920x1080 resolution
• Maximum 30fps/25fps@2MP
• Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3~6mm(2x) motorized varifocal, 75° tilt angle
• IR viewable length: IR 25m(82ft)
• TPM 2.0(FIPS 140-2 certified)
• IP66, NEMA4X, IK10
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS x 2CH
Resolution 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.035lux(F2.2, 1/30sec, 30IRE)
BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on)
Video Out USB: micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
Max. Aperture Ratio F2.2(Wide)~F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56˚(Tele)
V: 57˚(Wide)~31˚(Tele)
D: 126˚(Wide)~64˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed IRIS
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~355° / 0~78° / 0~180°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 6ea, 4point Quadrangle zones
- Color : Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Auto prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view (90°/270°) - Each channel separately
Analytics Classified object type : Person/Face/Vehicle/License plate
Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support Bestshot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events*
- Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)

* Support Audio detection, Sound classification via optional SPM-4210 I/O box
Alarm I/O * Support Alarm via optional SPM-4210 I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
Alarm events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- * Alarm output via optional SPM-4210 I/O box
Audio In * Audio in via optional SPM-4210 I/O box
Audio Out * Audio out via optional SPM-4210 I/O box
IR Viewable Length 15m(49ft)
25m(82ft) based on scene
Network
Ethernet Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
5 profiles per channel
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure by default certificate
Secure OS/Boot/Storage, Verify firmware forgery
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66/IP67, NEMA4X, IK10
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 20W, typical 15.5W
Mechanical
Color / Material White / Aluminum
Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g
Compatible Conduit hole / Gangbox 1/2" (M20)
single, double, 4" octagon, 4" square
Hanging Mount (Dome) SBP-215HMW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(93.22ft) / Tele: 72.2m(236.94ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(37.29ft) / Tele: 28.9m(94.78ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(18.64ft) / Tele: 14.4m(47.39ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(9.32ft) / Tele: 7.2m(23.69ft)
