Network Cameras

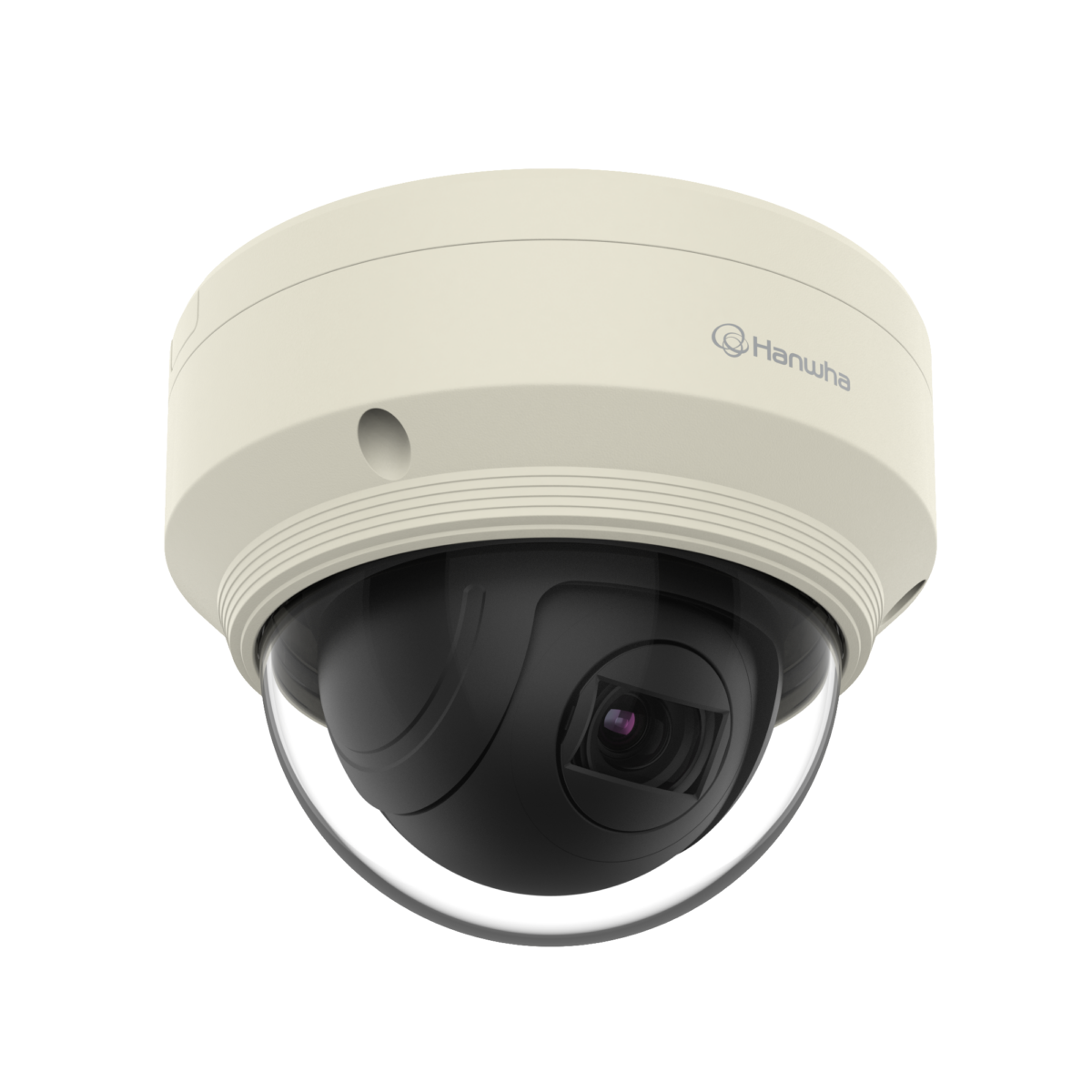

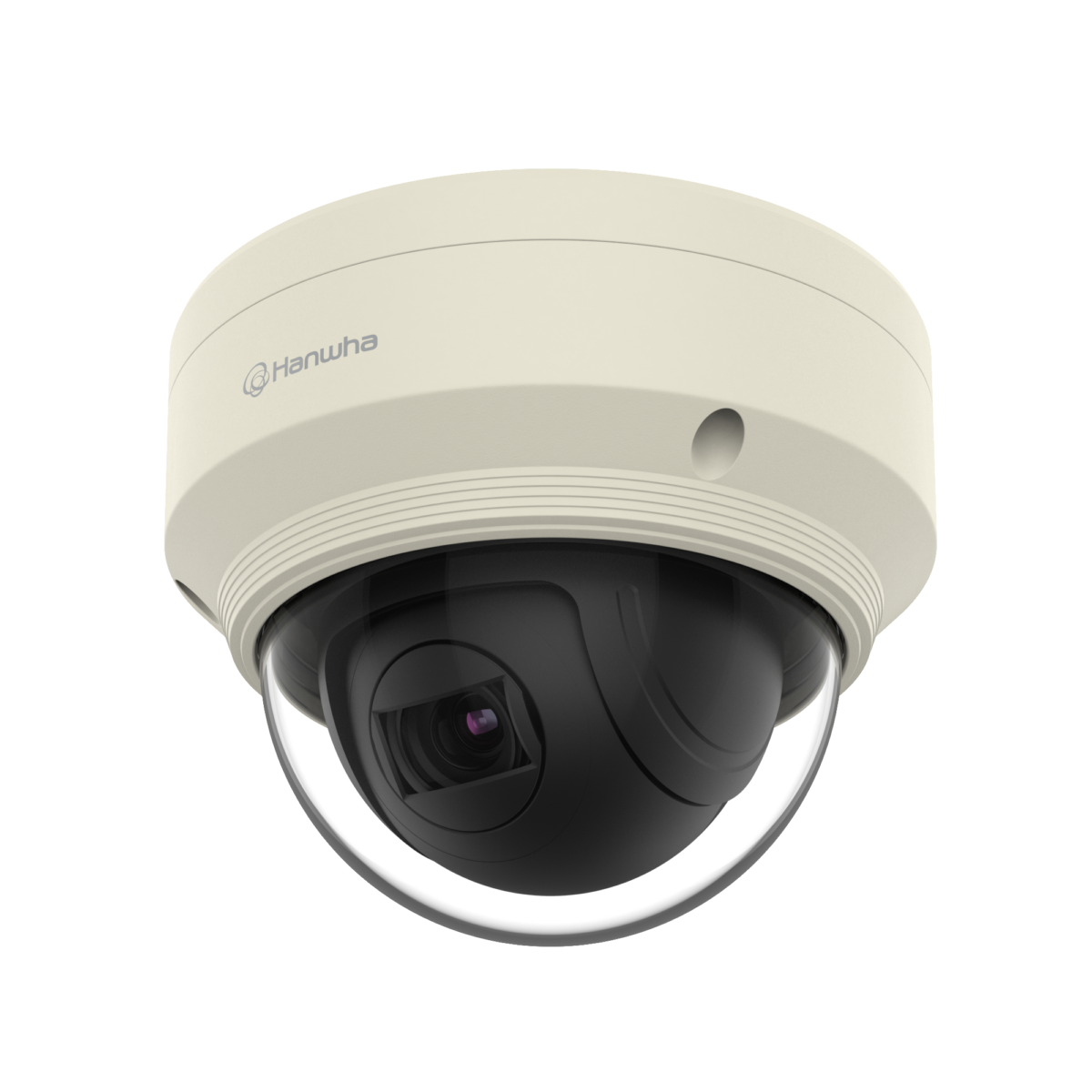

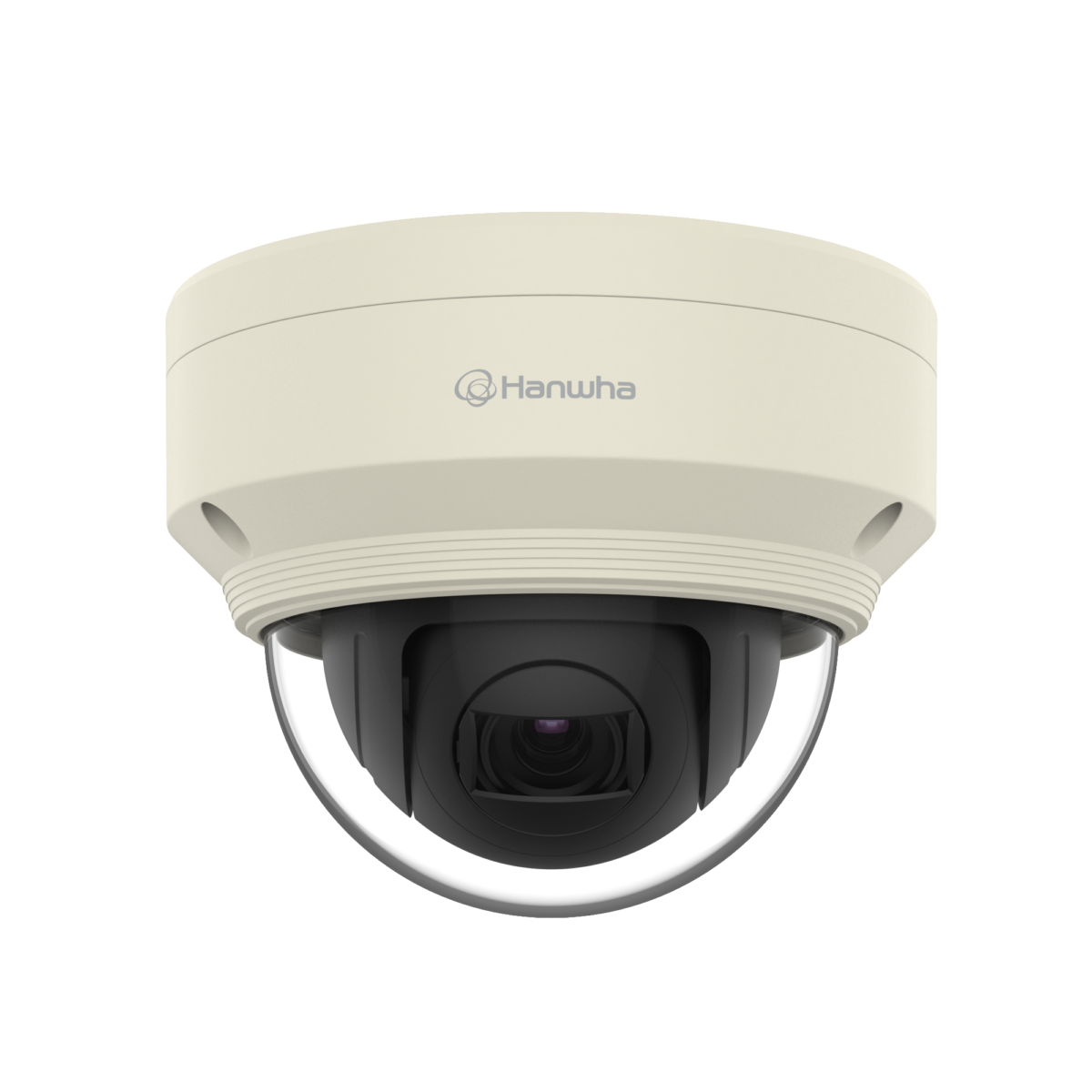

XNP-6040H

2M H.265 4.3x PTZ Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x), 24x digital zoom
• H.265, H.264, MJPEG codec
• WiseStreamII/IP66, IK10 Support, Multiple streaming
• Day & Night (ICR), WDR (150dB)
• Digital image stabilization with Built-in Gyro sensor
• Motion/Direction/Fog/Audio detection
• SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
BW: 0.0015Lux(F1.4, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) zoom (digital 32x, total 137.6x zoom)
Optical Zoom 4x
Max. Aperture Ratio F1.4
Angular Field of View H: 119.5˚(Wide)~27.9˚(Tele)
V: 62.8˚(Wide)~15.7˚(Tele)
D: 142.1˚(Wide)~32.0˚(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control AF / One-Shot AF / Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 0˚ ~ 350˚
Pan Speed 0.1˚/sec ~60˚/sec
Tilt Range 0˚ ~90˚
Tilt Speed 0.1˚/sec ~60˚/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.5˚
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- Solid/Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Auto Tracking Support
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), NTCIP 1205
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1GB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C~+55°C (-22°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage DC12V, PoE(IEEE802.3af, Class3)
Power Consumption DC12V: Max. 8.6W
PoE : Max. 9.6W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight ø136x106mm(5.35x4.17"), 780g(1.72 lb)
Hanging Mount (Dome) SBP-301HM5
Backbox SBV-136B
Ceiling Mount (Assy) SBP-300CM
Wall Mount SBP-300WM1, SBP-300WM
Pole Mount SBP-300PM1
In-ceiling Mount SHD-3000F3
Parapet Mount SBP-300LM
Corner Mount SBP-300KM1

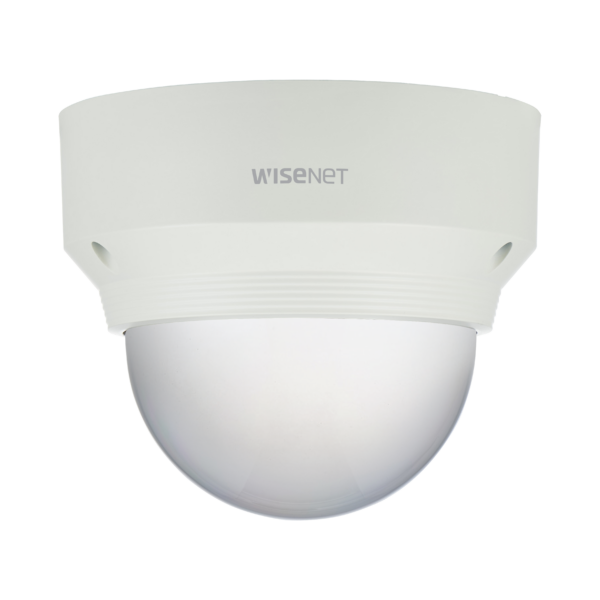

Other Compatible Models SPB-PTZ71(Smoked Dome Cover)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
Observe (63PPM/ 19PPF) Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
Recognize (125PPM/ 38PPF) Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
Identify (250PPM/ 76PPF) Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)
