Appliance

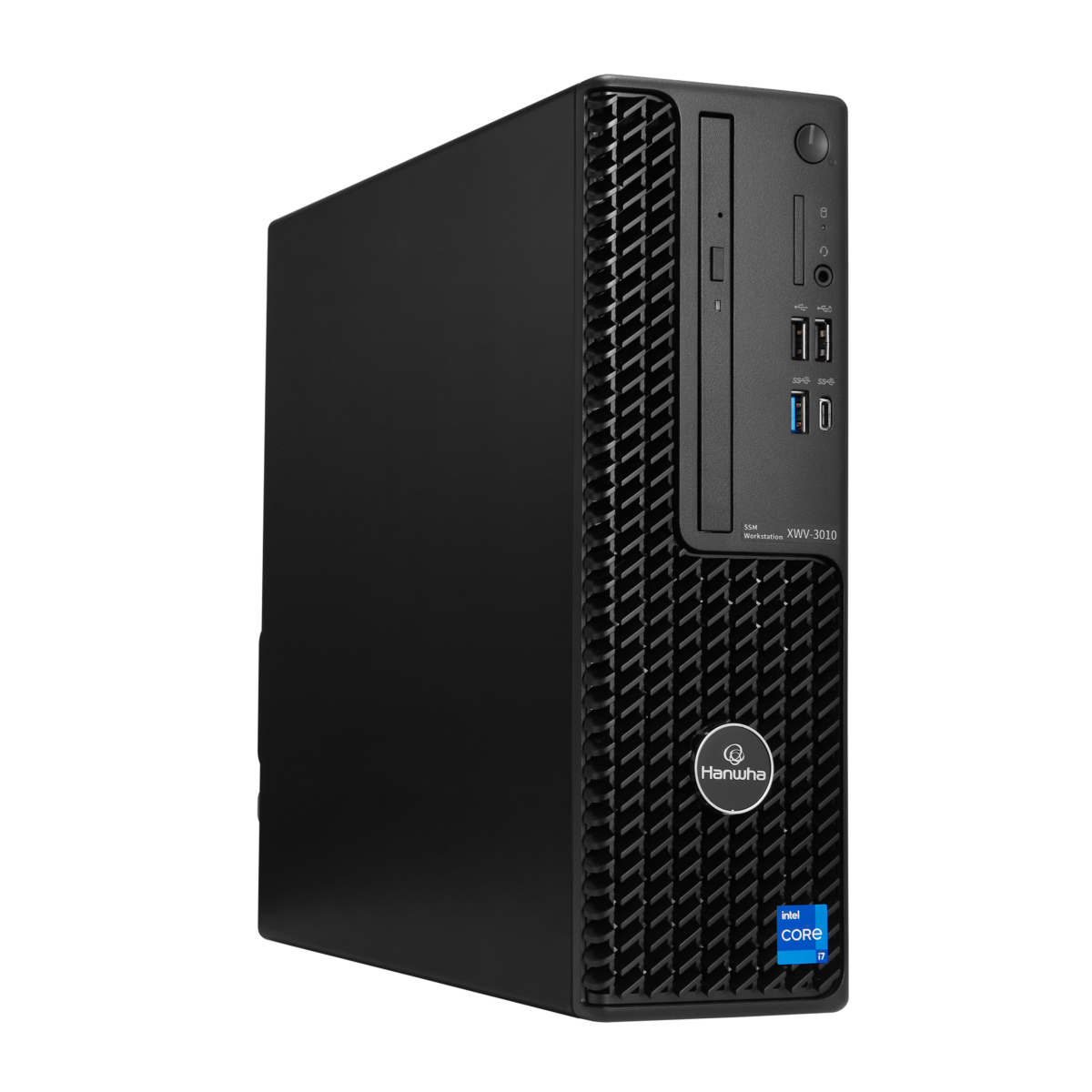

XWV-3010
SSM Workstation
Key Features
• Wisenet SSM Console Client loaded
• 256 channels live/play
- Up to 128 divisions per each display equipment,
up to 4 256 divisions when using 4 display equipments
- SSM Server supports recording
• Intel® Core™ i7-11700 Processor
• NVIDIA T600 Graphic Card
• Supports up to 4 mDP(mini Display Port)
• 256 channels live/play
- Up to 128 divisions per each display equipment,
up to 4 256 divisions when using 4 display equipments
- SSM Server supports recording
• Intel® Core™ i7-11700 Processor
• NVIDIA T600 Graphic Card
• Supports up to 4 mDP(mini Display Port)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Network Camera | ||
| Inputs | Max. 256CH | |
| Resolution | CIF ~ 12MP | |
| Protocols | Wisenet, ONVIF Profile S | |
| Decoding | ||
| Local Display | Up to 4x 3840 x 2160 @ 120Hz 4x 5120 x 2880 @ 60Hz 2x 7680 x 4320 @ 60Hz simultaneous output |
|
| Multi Screen Display | 1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode | |
| Resolution | Supports decoding resolution up to 256 divisions (64x4 devices) 1920fps@640x360 (128 Division) 2160fps@720p (72 Division) 1080fps@1080p (36 Division) |
|
| Live | ||
| Local Display | Supports up to 4 mini-display ports | |
| Multi Screen Display | 1/4/9/16/25/36/49/64/72/81/100/121/132/Custom/Auto Mode | |
| Performance | ||
| Operating System | Windows 10 Professtional | |
| Record | ||
| Event Trigger | SSM Appliance, Supported through a dedicated recording server such as the PRO series | |
| Event Action | SSM Appliance, Supported through a dedicated recording server such as the PRO series | |
| Search & Play | ||
| Playback Bandwidth | Max. 150Mbps | |
| Simultaneous Playback | Upto 256CH | |
| Fisheye Dewarping | Console | |
| Storage | ||
| Supported HDD | SSM Workstation compatible, 4TB 5400rpm SATA 3.5 inch HDD | |
| Backup | ||
| File backup | AVI, SEC | |
| Function | Manual Backup, Onetime Schedule Backup | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, SNMP(Client), HTTPS, ONVIF (Profile-S), SUNAPI(Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Speed | Gigabit | |
| Transmission Bandwidth | 10/100/1,000 Mbps | |
| Wired(LAN) | Ethernet RJ-45, Wifi 5 (Wifi 802.11 ac), Bluetooth 5.0, Wi-Fi 6 (Wifi 802.11ax), Bluetooth 5.1 | |
| Wireless | ||
| WiFi | Qualcomm QCA61x4A, 867 Mbps, 2.40 Ghz/5 GHz, Wi-Fi 5 (WiFi 802.11ac), Bluetooth 5.0 Intel® AX201, 2.40 Gbps, 2.40 Ghz/5 GHz, Wi-Fi 6 (WiFi 802.11ax), Bluetooth 5.1 |
|
| Audio | ||
| Compression | G.711 u-law(PCM), G723, G726(ADPCM), AAC | |
| Audio Communication | Supported | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log Device Certificate (Hanwha Techwin Root CA) |
|
| Viewer Software | SSM Client, Wisenet Mobile | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Controller (SPC-2000, SPC-7000) | |
| Preset | 255 | |
| Redundancy | ||
| Failover | Active&Active | |
| ARB | Support | |

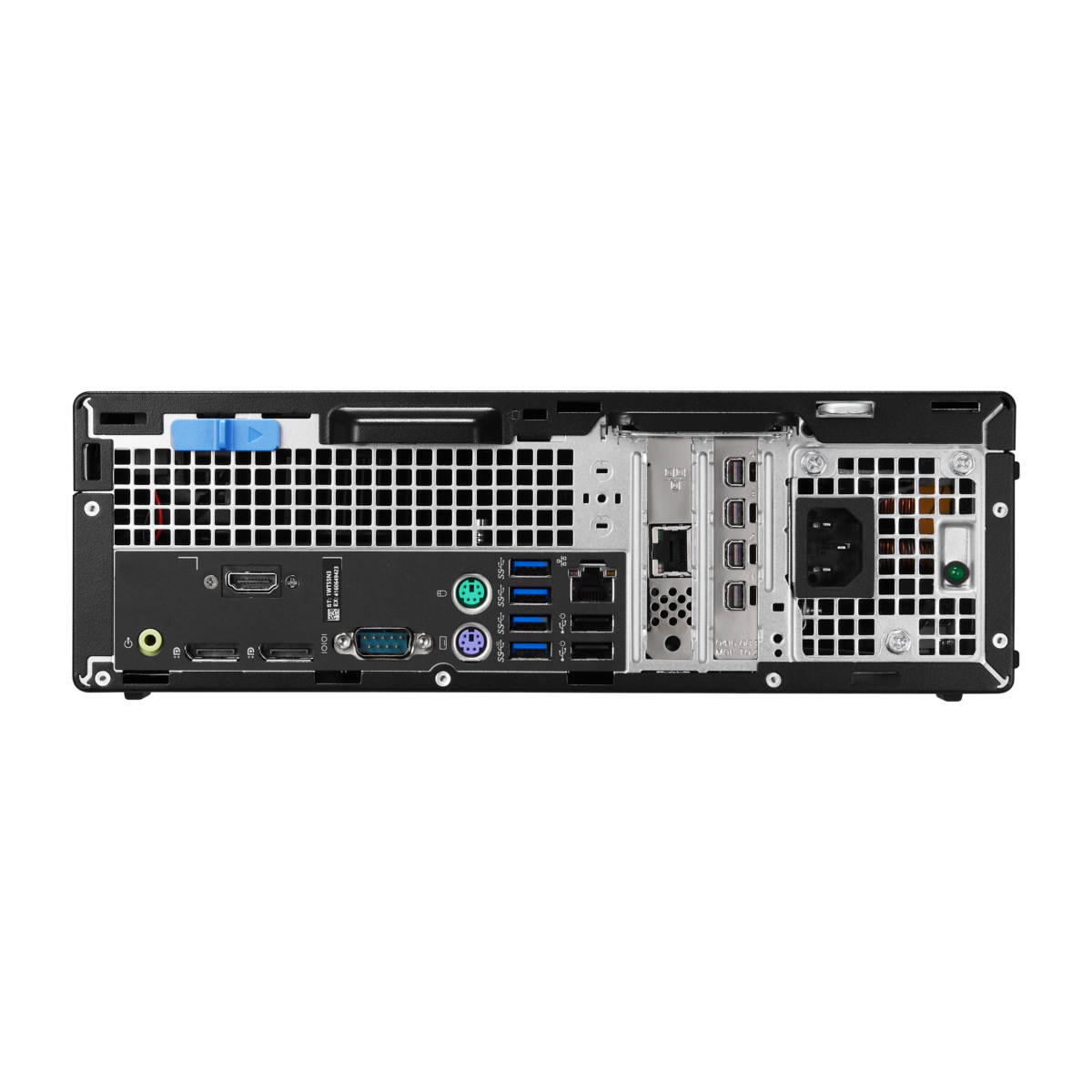

| Interface | ||

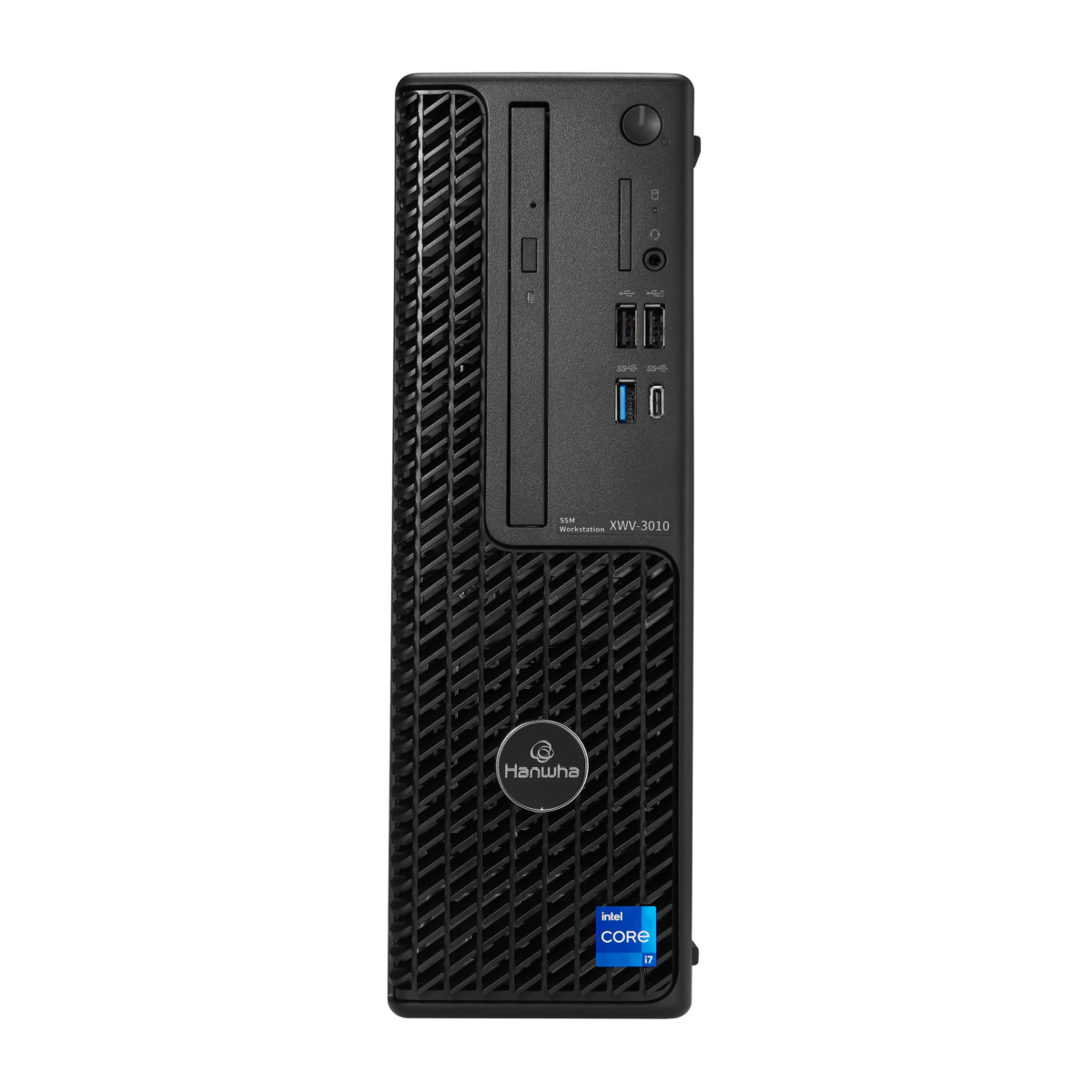

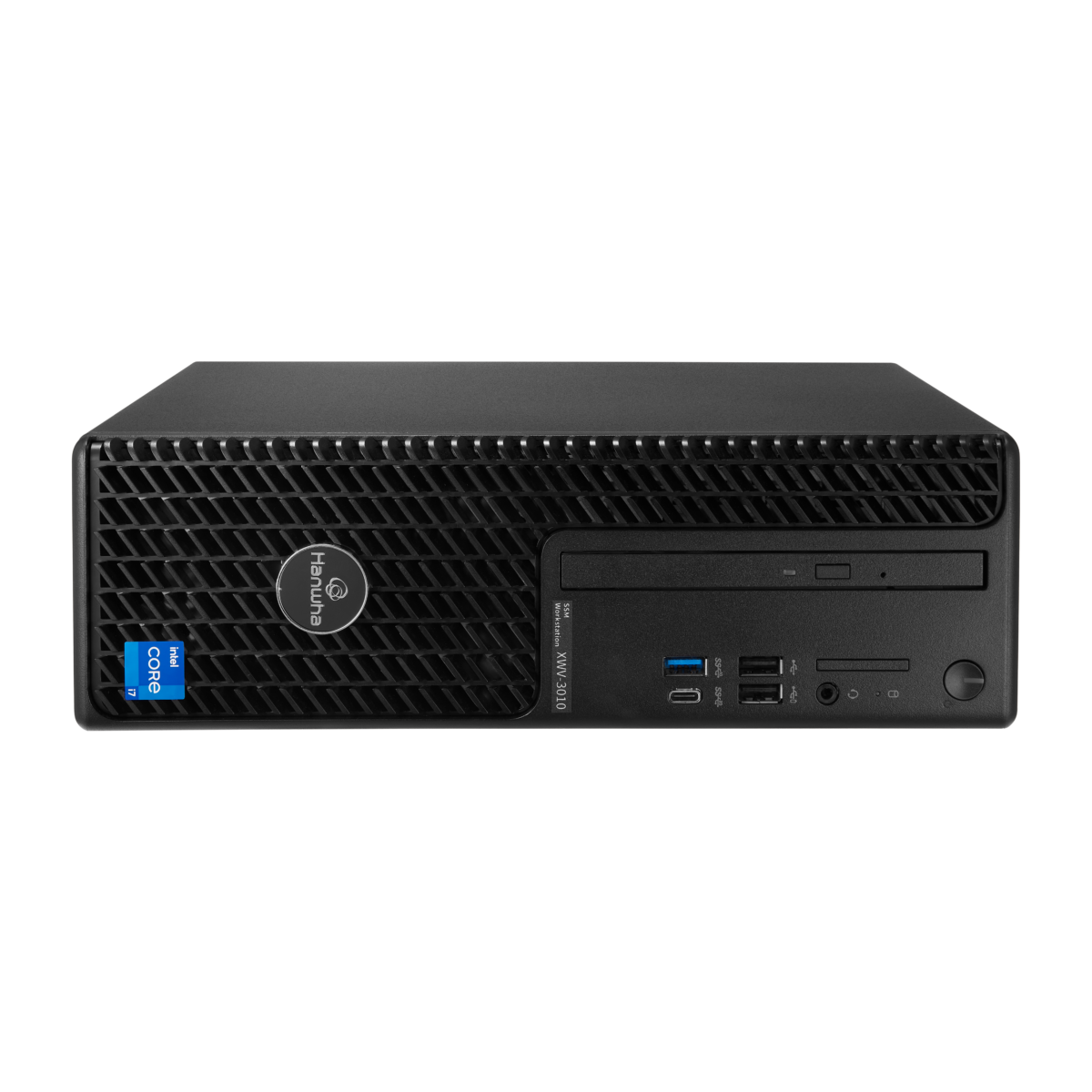

| Front | ||
| Indicator | LED (Status display, etc) Power, Network, HDD, |
|
| Storage | 4TB 5400rpm SATA 3.5inch HDD, 256GB PCIe NVMe Class 40 M.2 SSD, 8x DVD+/-RW 9.5mm Optical Disk Drive |
|
| HDMI | 1 EA | |
| VGA | 1 EA | |
| DP | mDP x 4 Nvidia T600, 4GB, 4 mDP to DP Adaptor |
|
| USB | 10 EA ( C type: 1 EA, 3.0: 5 EA, 2.0: 4EA ) | |
| WiFi | 1 RJ-45: Intel Ethernet Connection I219-LM 10/100/1000 Mbps, Qualcomm QCA61x4A, 867 Mbps, 2.40 Ghz/5 GHz, Wi-Fi 5 (WiFi 802.11ac), Bluetooth 5.0 Intel® AX201, 2.40 Gbps, 2.40 Ghz/5 GHz, Wi-Fi 6 (WiFi 802.11ax), Bluetooth 5.1 |
|
| Power inlet | AC 1EA | |
| System | ||
| System Control | Mouse, Keyboard | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese. | |
| Environmental | ||
| CPU | Intel® Core™ i7-11700 (8 Core, 16MB Cache, Max. 4.9GHz) |
|
| Memory | 16GB( 2 x 8GB DDR4 UDIMM ) | |
| OS HDD | 256GB PCIe NVMe Class 40 M.2 SSD | |
| Operating Temperature | +5°C to +40°C(+41℉ to +104℉) | |
| Operating Humidity | Less or equal to 80% | |
| Electrical | ||
| Power Input | 100 ~ 240V AC, 50 ~ 60Hz | |
| Power Consumption | 260W, 4A(100V), 2A(240V) | |
| Mechanical | ||
| Color / Material | Black | |
| Dimension (WxHxD) | 29cmx9.26cmx29.28cm | |
| Weight | Default Weight: 4.48kg (with additional equipments, up to 5.956 kg) |
|
