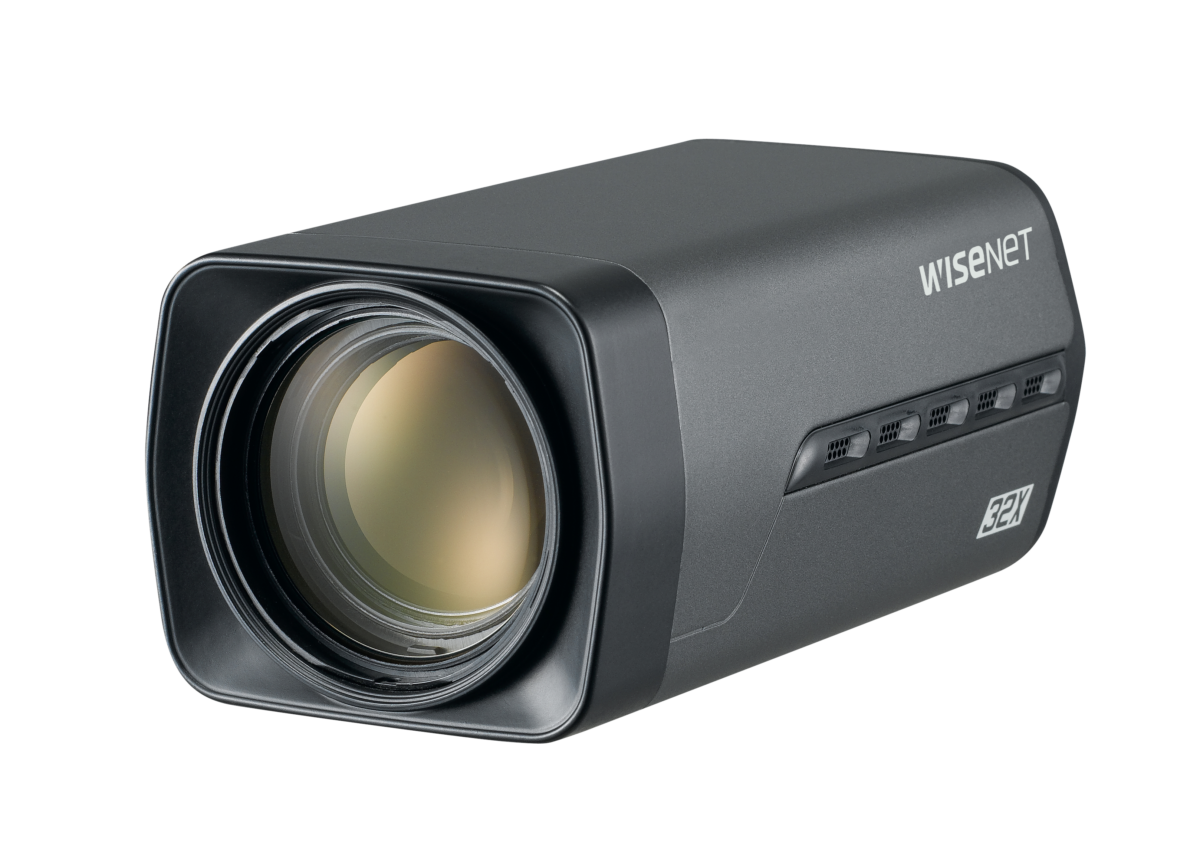

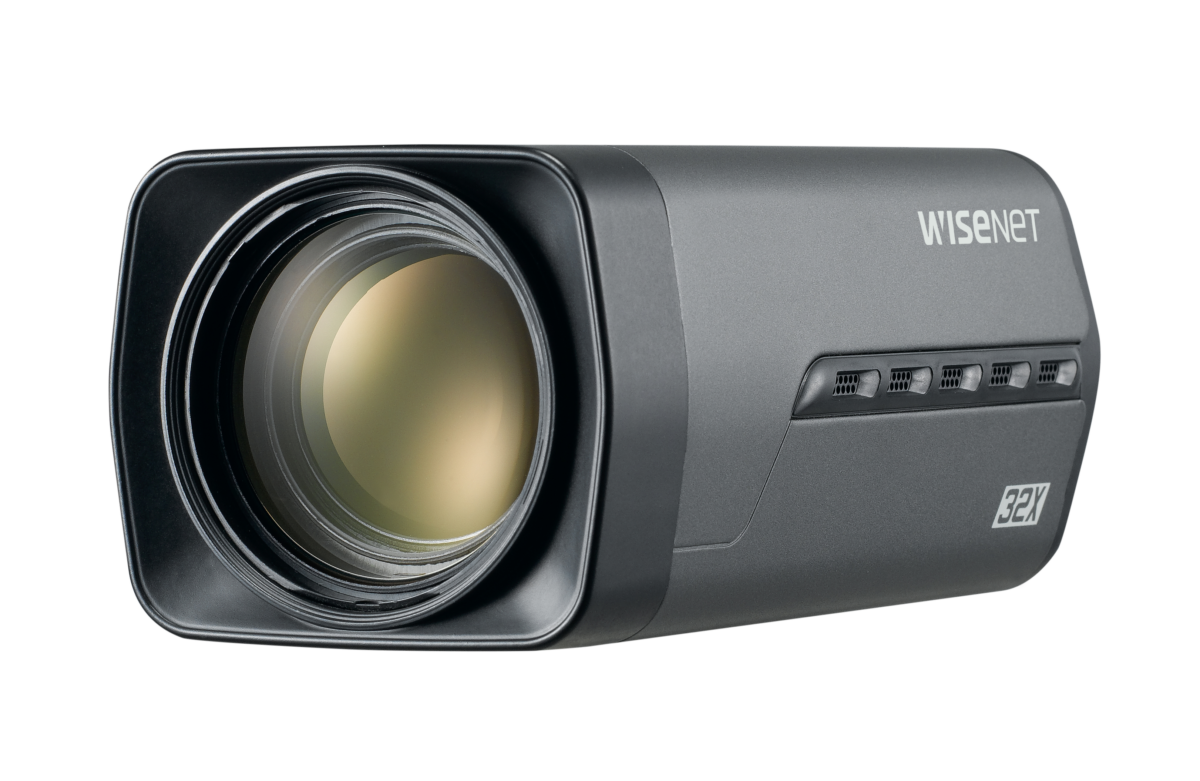

HCZ-6320

2M 32x AHD Zoom Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 0.2 Lux@F1.6 (Color), 0.01 Lux@F1.6 (B/W)
• 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
• Day & Night (ICR), WDR (120dB)
• Detection, Tracking, Fixed Moved, Tampering support
Contact Sales Datasheet

["camera","analog","analog-box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2.38MP CMOS
Resolution 1920x1080
Min. Illumination Color: 0.2 Lux (1/30sec, F1.6, 30IRE), 0.003 Lux(2sec, F1.6, 30IRE)\nB/W: 0.01 Lux (1/30sec, F1.6, 30IRE), 0.0001 Lux(2sec, F1.6, 30IRE)
Video Out BNC(AHD), CVBS(SD, DIP connector type)
Lens
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm(32x) motorized varifocal
Max. Aperture Ratio F1.6(Wide) ~ F4.4(Tele)
Angular Field of View H: 62.8°(Wide) ~ 2.23°(Tele) / V: 36.8°(Wide) ~ 1.26°(Tele)
Min. Object Distance Wide 1.5m(4.92ft), Tele 2.0m(6.56ft)
Focus Control Auto / Manual / One push
Lens Type DC Auto Iris
Operational
Camera Title Displayed up to 12 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅢ
Digital Image Stabilization Support
Defog Support
Motion Detection 4ea, rectangular zone
Privacy Masking 12ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 2 ~ 1/33,000sec
Video Rotation H-Rev, V-Rev
Analytics Motion detection, Tracking, Fixed Moved, Tampering
Serial Interface RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell
Coaxial Protocol ACP(AHD Coax Protocol), CVBS : Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
Input Voltage 12VDC
Power Consumption Max 6W
Mechanical
Color / Material Dark Gray / Metal
Product Dimensions / Weight 72.0(W)×60.0(H)×137.0(D)mm(2.83×2.36×5.39"), 476g(1.05 lb)
