Analog Cameras

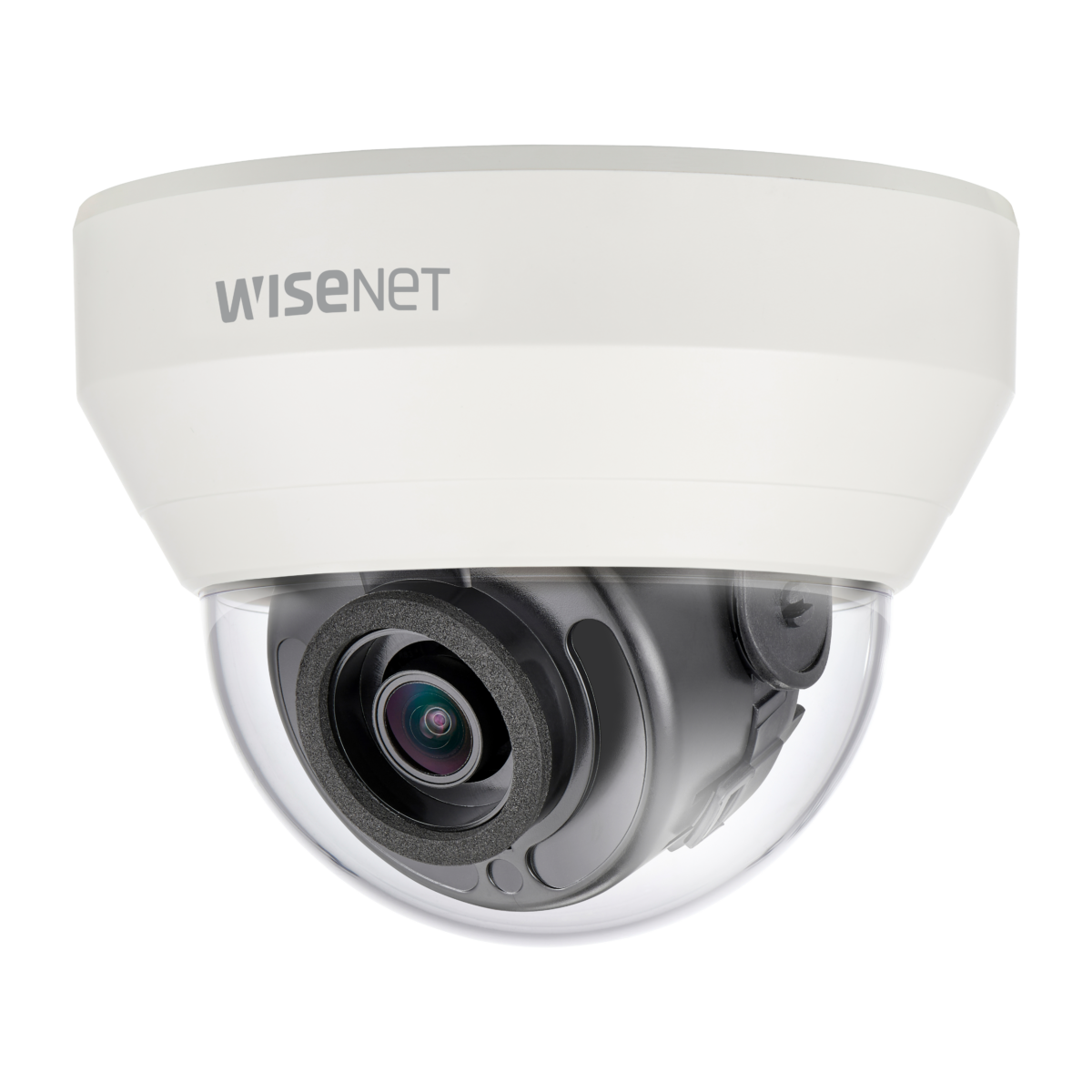

HCD-6010

2MP Analog Dome Camera

Key Features
• Full HD (1,920 x 1,080) Resolution
• 0.27Lux@F2.0 (Color), 0.017Lux (B/W)
• Built-in 2.8mm fixed lens
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
Contact Sales Datasheet

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2M CMOS
Resolution 1920 x 1080
Max. Framerate 30fps @1080p(N), 25fps @ 1080p(P)
Min. Illumination Color : 0.27Lux (F2.0, 1/30sec)
B/W : 0.017Lux
Video Out BNC(AHD / TVI / CVI / CVBS Selectable)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 113.7° / V: 61.5° / D: 134.5°
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
Coaxial Protocol ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol)
CVBS : Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
Input Voltage 12VDC
Power Consumption Max 3.6W
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø110 x 86mm(4.33 x 3.39"), 221g(0.49 lb)
