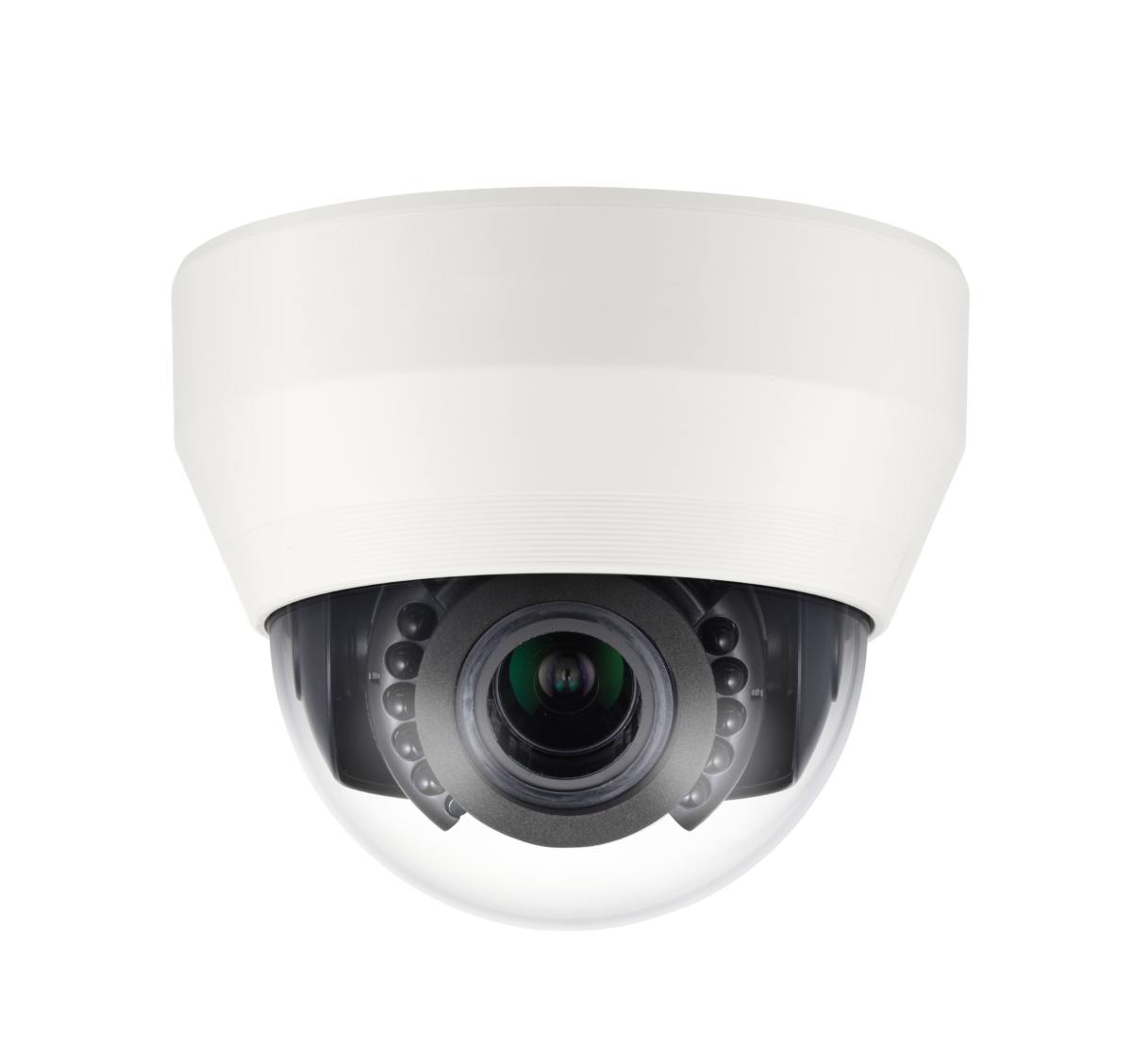

SCD-6083R

1080p Analog HD IR Dome Camera

Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.11Lux@F1.4 (Color), 0Lux@F1.4 (B/W : IR LED on)
• 2.8 ~ 12mm (4.3x) varifocal lens
• Day & Night (ICR), DWDR, Motion detection
• IR viewable length 20m, Dual Power
• Transmission distance max. 500m
Contact Sales Datasheet

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" 2MP CMOS
Resolution 1920x1080
Max. Framerate 30fps
Min. Illumination Color: 0.11Lux(F1.4)\nBW: 0.0Lux(IR LED on)
Video Out BNC(AHD / CVBS selectable)
Video Transmission Distance 500m(75-5 coaxial cable)
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) varifocal
Max. Aperture Ratio F1.4
Angular Field of View H: 102°(Wide)~32.2°(Tele) / V: 54°(Wide)~18.2°(Tele) / D: 121°(Wide)~38°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC Auto Iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 4ea, rectangular zones
Gain Control Low / Midel / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-Rev / V-Rev
Analytics Motion detection
Alarm I/O (MD)Output 1ea
Alarm Triggers Anaytics
Alarm Events Alarm out
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol)\nCVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Certification Safety(UL), EMC(FCC, CE)
Input Voltage 12VDC, 24VAC
Power Consumption Max 4.2W
Mechanical
Color / Material Ivory / Plastic
