Network Cameras

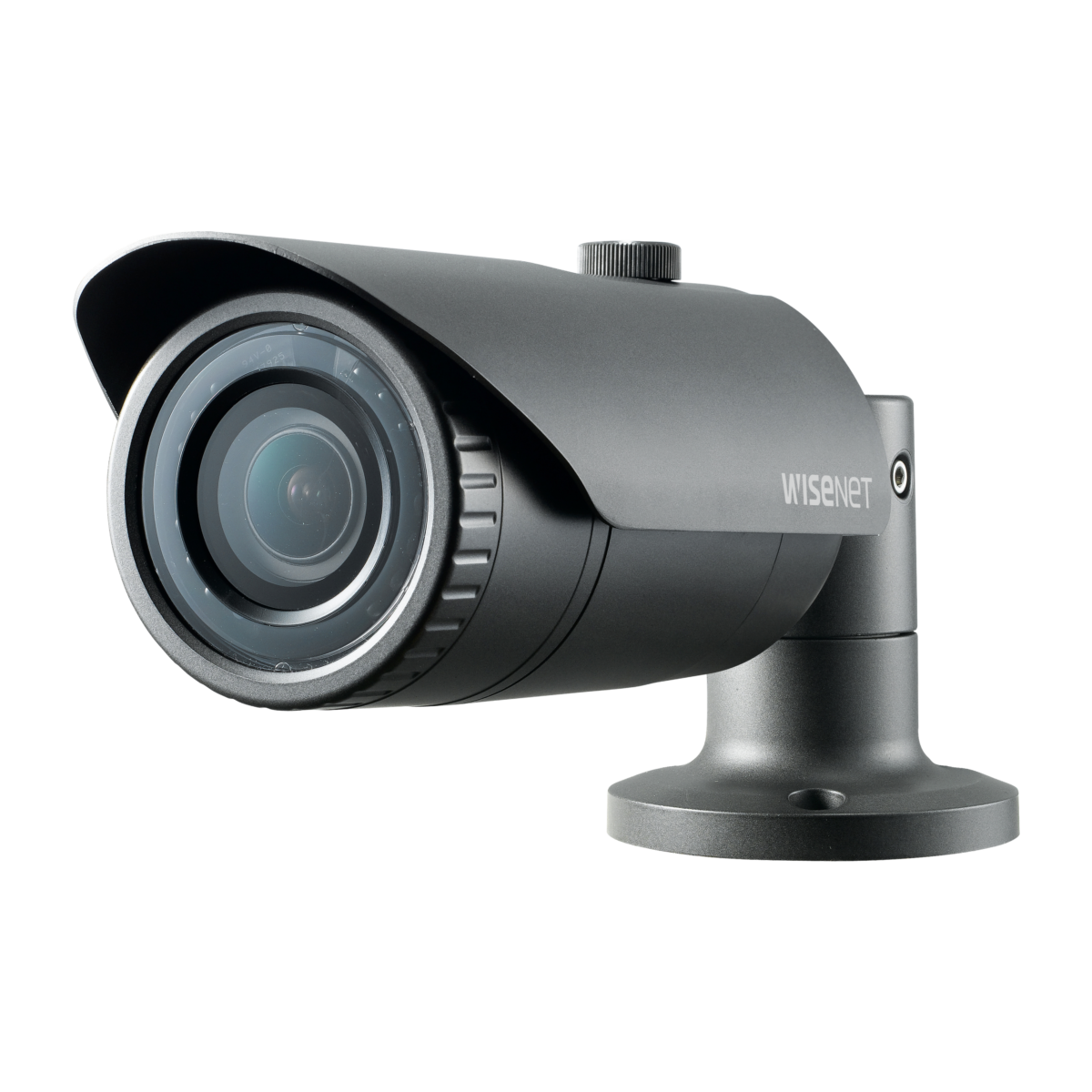

QNO-6073R

2M H.265 IR Bullet Camera

Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03Lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)\nMJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.03Lux(F1.6, 1/30sec) \nBW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele)
Focus Control Manual
Lens Type DC auto iris
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail \nNotification via e-mail \nSD/SDHC/SDXC or NAS recording at event triggers\nAlarm output
Audio In Selectable(mic in/line in)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 30m(98.42ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR\nMJPEG: VBR
Streaming Unicast(6 users) / Multicast\nMultiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T\nSUNAPI(HTTP API)\nWisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14\nRecommended Browser: Google Chrome\nSupported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH\n* Start up should be done at above -20°C
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 7.40W, typical 5.40W \n12VDC: Max 6.50W, typical 4.80W
Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight Ø70.0x246.0mm(Ø2.76x9.69"), 730g(1.61 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 27.4m(89.86ft) / Tele: 128.8m(422.61ft)
Observe (63PPM/ 19PPF) Wide: 11.0m(35.95ft) / Tele: 51.5m(169.04ft)
Recognize (125PPM/ 38PPF) Wide: 5.5m(17.97ft) / Tele: 25.8m(84.52ft)
Identify (250PPM/ 76PPF) Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)
