Network Cameras

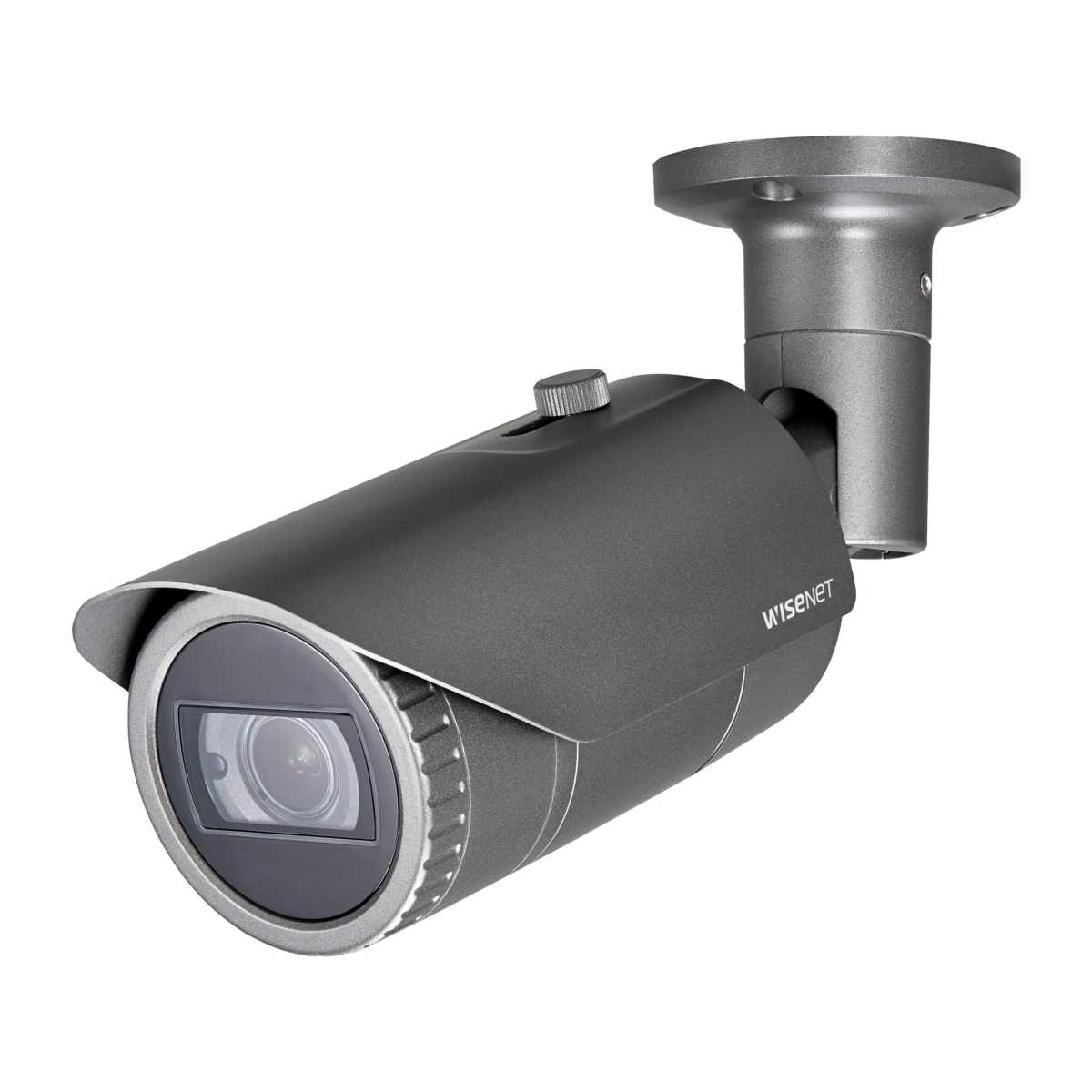

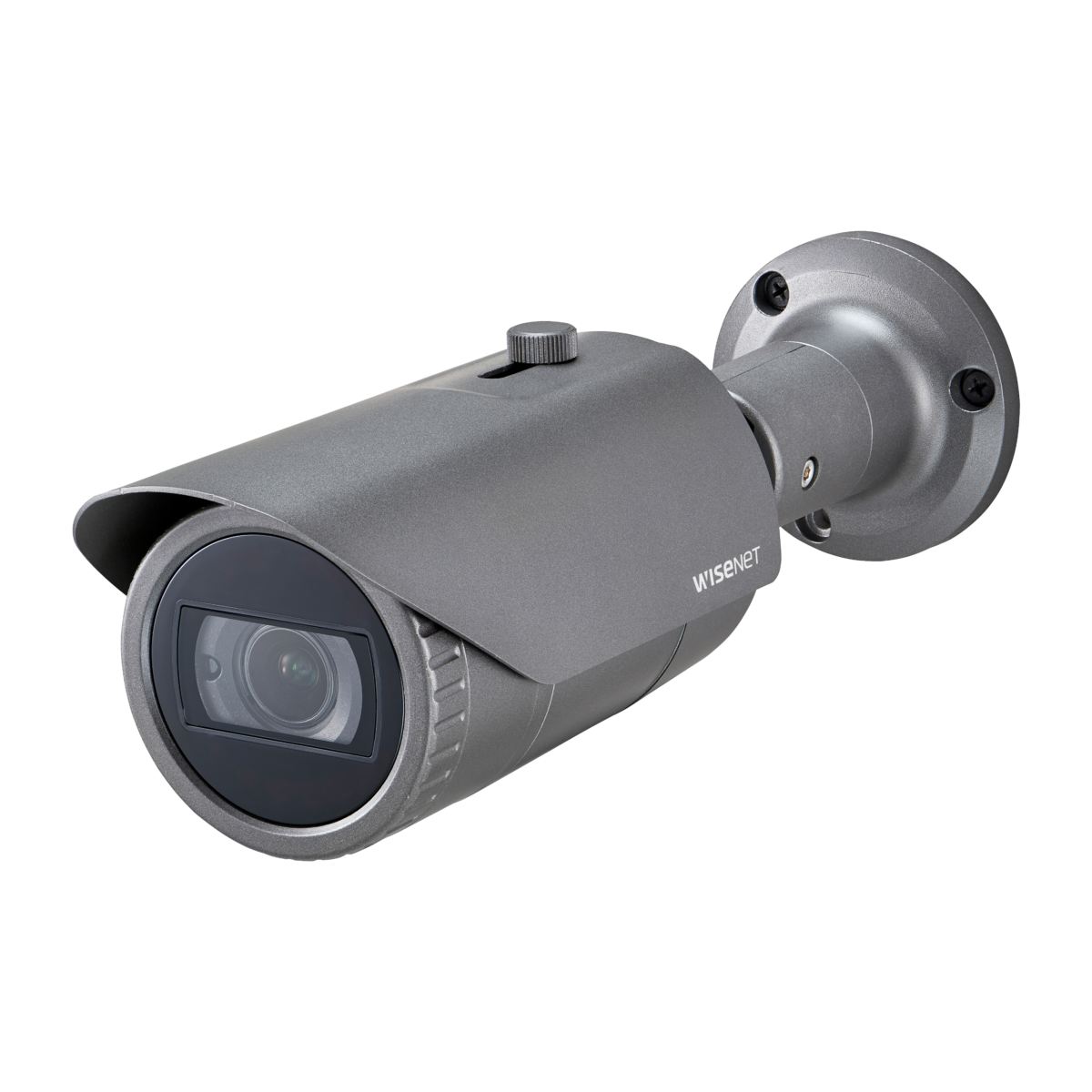

QNO-6083R
2M H.265 IR Bullet Camera
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
• 0.03lux (Color), 0Lux (B/W, IR LED on)
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 30fps@2M all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (Max. 128GB)
• IR viewable length 30m
• IP66, IK10, PoE/12VDC
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)\nMJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) \nBW: 0Lux(IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal | |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) | |
| Angular Field of View | H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | 4ea, polygonal zones | |
| Privacy Masking | 6ea, rectangular zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail \nNotification via e-mail \nSD/SDHC/SDXC or NAS recording at event triggers\nAlarm output | |
| Audio In | Selectable(mic in/line in)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms | |
| IR Viewable Length | 30m(98.42ft) | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR\nMJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast\nMultiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T\nSUNAPI(HTTP API)\nWisenet open platform | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB | |
| Memory | 512MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH\n* Start up should be done at above -20°C | |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 7.40W, typical 5.40W \n12VDC: Max 6.50W, typical 4.80W | |
| Mechanical | ||
| Color / Material | Dark grey / Aluminum | |
| Product Dimensions / Weight | Ø78.0x259.8mm(Ø3.07x10.23"), 900g(1.98 lb) | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 27.4m(89.86ft) / Tele: 128.8m(422.61ft) | |
| Observe (63PPM/ 19PPF) | Wide: 11.0m(35.95ft) / Tele: 51.5m(169.04ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 5.5m(17.97ft) / Tele: 25.8m(84.52ft) | |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) | |
