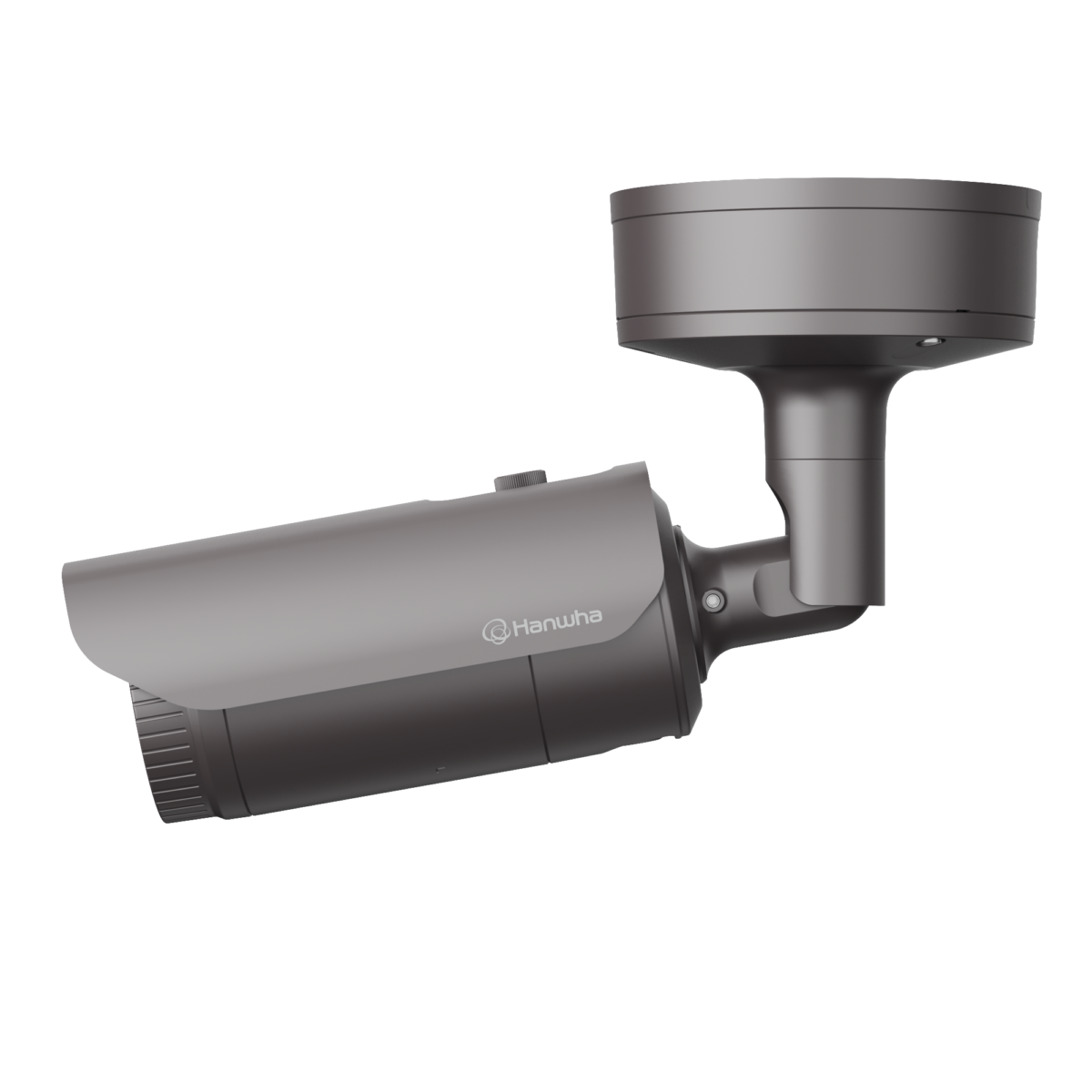

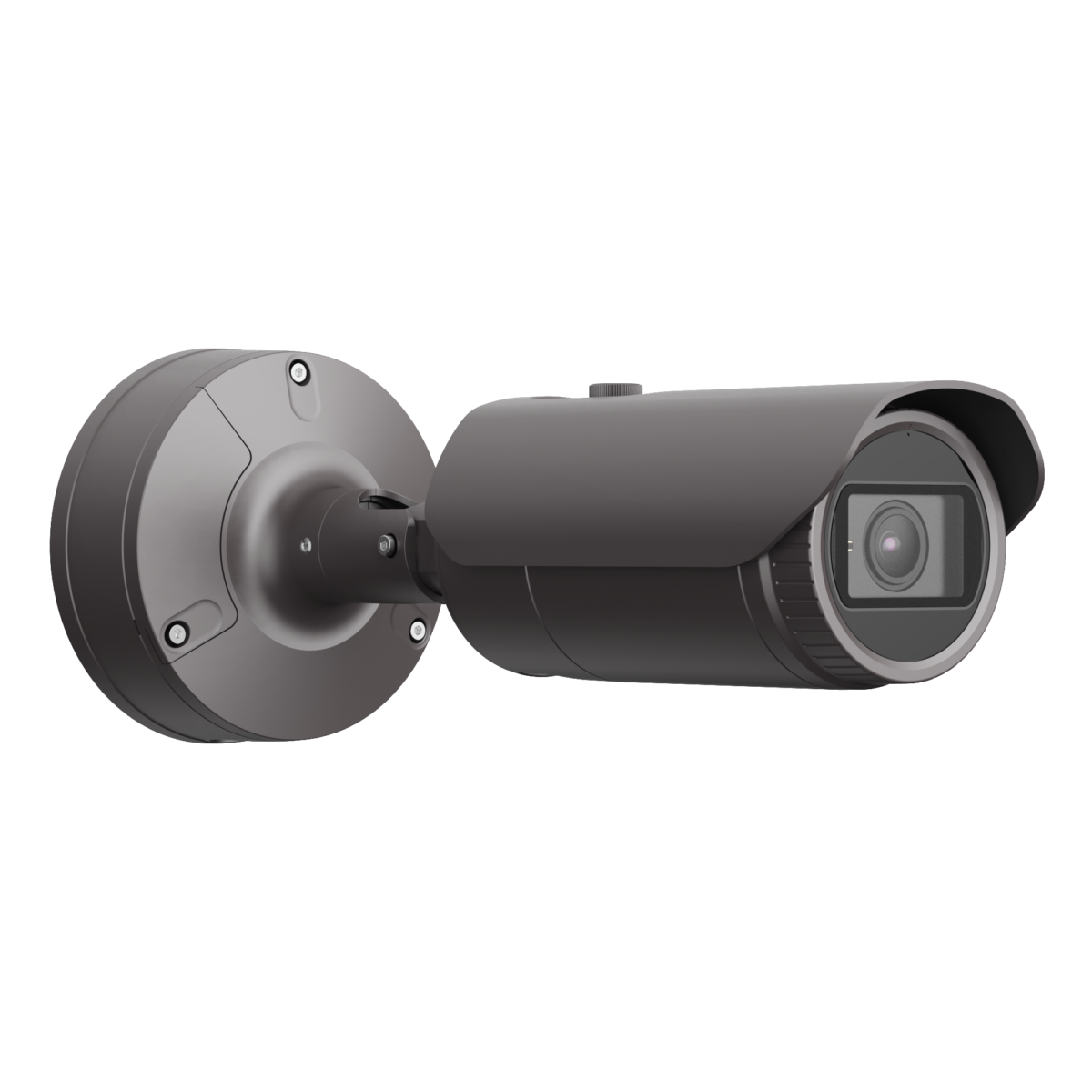

XNO-8080R
5M H.265 IR Bullet Camera
• Maximum 30fps@all resolutions (H.265/H.264)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification
• Motion detection, Handover,Tampering
• Dual SD slots (512GB)
• WiseStream II support
• IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
Video | ||
---|---|---|
Imaging Device | 1/1.8" 6MP CMOS | |
Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
Max. Framerate | H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz)\nMJPEG: Max. 30fps/25fps(60Hz/50Hz) | |
Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec, 30IRE)\nBW: 0.007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on) | |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation\nUSB: Micro USB Type B, 1280x720, for installation | |
Lens | ||
Focal Length (Zoom Ratio) | 3.7~9.4mm(2.5x) motorized varifocal | |
Max. Aperture Ratio | F1.2 | |
Angular Field of View | H: 100.2°(Wide)~38.7°(Tele)\nV: 72.2°(Wide)~29.0°(Tele)\nD: 132.0°(Wide)~48.6°(Tele) | |
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Simple focus | |
Lens Type | DC auto iris, P iris(IR corrected) | |
Operational | ||
Camera Title | Displayed up to 85 characters | |
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR | |
Wide Dynamic Range | 120dB | |
Digital Noise Reduction | SSNRⅤ | |
Digital Image Stabilization | Support | |
Defog | Support | |
Motion Detection | 8ea, 8point Polygonal zones | |
Privacy Masking | 32ea, Quadrangle zones\n- Color : Gray, Green, Red, Blue, Black, White\n- Mosaic | |
Gain Control | Low / Middle / High | |
White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
LDC | Support | |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification | |
Alarm I/O | Input 1ea / Output 1ea | |
Alarm Triggers | Analytics, Network disconnect, Alarm input | |
Alarm Events | When alarm trigger occurred\n - File upload(image) : e-mail/FTP\n - Notification : e-mail\n - Recording : SD/SDHC/SDXC or NAS recording at event triggers\n - Alarm output\n - Handover | |
Audio In | Selectable(mic in/line in)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
Audio Out | Line out, Max.output level: 1Vrms | |
IR Viewable Length | 50m(164.04ft) | |
Network | ||
Ethernet | RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps\nAAC-LC: 48Kbps at 16KHz | |
Smart Codec | Manual(5ea area), WiseStreamⅡ | |
Bitrate Control | H.264/H.265: CBR or VBR\nMJPEG: VBR | |
Streaming | Unicast(20 users) / Multicast\nMultiple streaming(Up to 10 profiles) | |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP | |
Security | HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access Log\n802.1X Authentication(EAP-TLS, EAP-LEAP) | |
Application Programming Interface | ONVIF Profile S/G/T\nSUNAPI(HTTP API)\nWisenet open platform | |
General | ||
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian | |
Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB | |
Memory | 1024MB RAM, 256MB Flash | |
Environmental & Electrical | ||
Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH | |
Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH | |
Certification | IP67/IP66/NEMA4X, IK10 | |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
Power Consumption | PoE: Max 12.95W\n12VDC: Max 12.5W\n24VAC: Max 14.5W | |
Mechanical | ||
Color / Material | Dark grey / Aluminum | |
Product Dimensions / Weight | Ø91x368.6mm(Ø6.3x4.67"), 2180g(4.8 lb) |
