Network Cameras
Discontinued

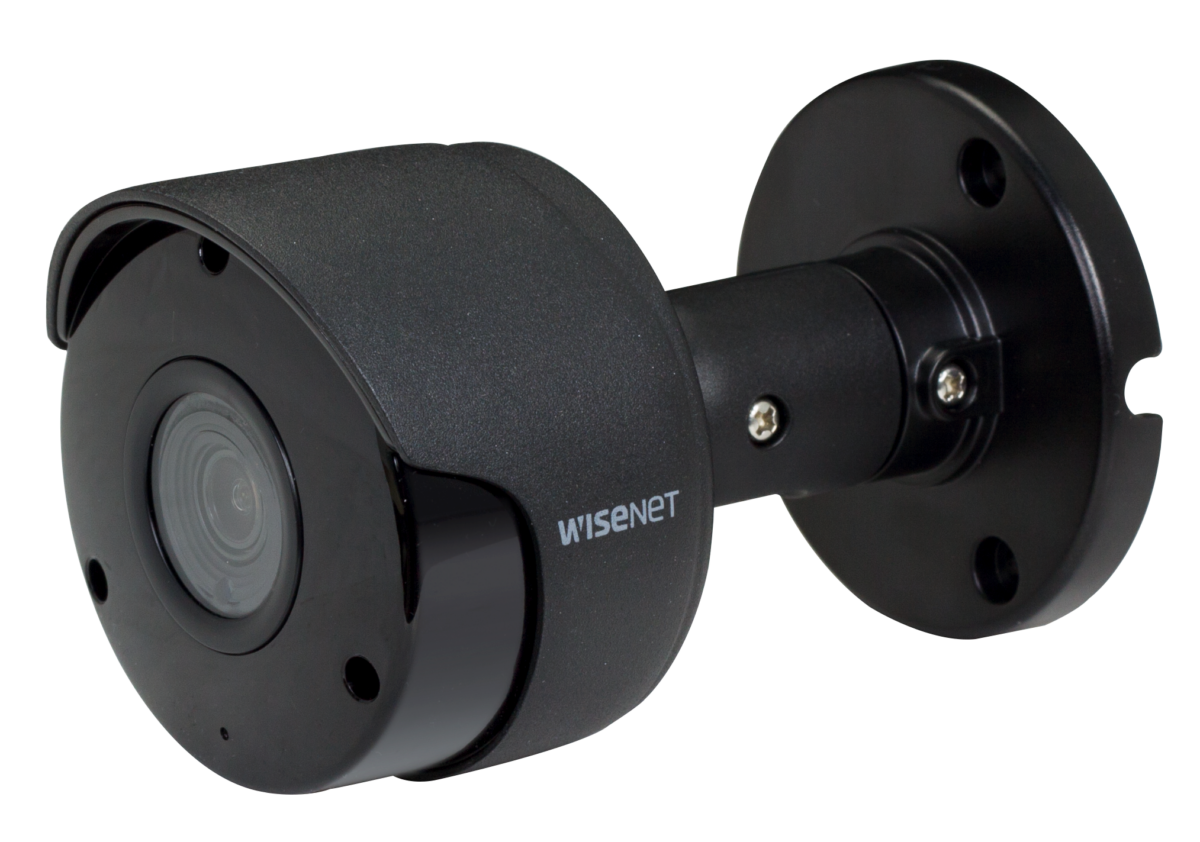

ZNO-8020RV
5M H.265 IR Bullet Camera
Key Features
• Max. 5Megapixel (2592 x 1944) resolution
• 4mm fixed lens
• 0 Lux (B/W : IR LED On)
• Max. 15fps@5MP, 25fps@2MP
• H.265, H.264 codec support
• Day & Night (ICR), D-WDR, BLC
• Motion detection, Privacy masking
• IR viewable length 25m
• IP66
※India Only, Marketed by Compuage Infocom Ltd
• 4mm fixed lens
• 0 Lux (B/W : IR LED On)
• Max. 15fps@5MP, 25fps@2MP
• H.265, H.264 codec support
• Day & Night (ICR), D-WDR, BLC
• Motion detection, Privacy masking
• IR viewable length 25m
• IP66
※India Only, Marketed by Compuage Infocom Ltd
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.7" CMOS |
| Resolution | 5MP (2592x1944), 4MP (2592x1520), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960),720P(1280x720), VGA(640x480) |
| Max. Framerate | 5MP mode : 5MP / 4MP / 3MP / 2MP / VGA (1 ~ 15fps) 2MP mode : 2MP / VGA (1~25fps) |
| Min. Illumination | 0Lux (IR LED ON) |
| Lens | |
| Focal Length (Zoom Ratio) | Fixed 4mm |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | D:100 / H:76° / V:57° |
| Min. Object Distance | 0.2mm |
| Lens Type | Fixed |
| Operational | |
| Camera Title | Off / On |
| Day & Night | Auto / Color / B/W |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Zone, Rectangle) |
| Gain Control | Low / Middle / High |
| White Balance | ATW / Manual |
| Electronic Shutter Speed | Auto / Manual |
| Video Rotation | Flip / Mirror |
| IR Viewable Length | 25m |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.264/H.265 |
| Bitrate Control | H.264/H.265 : CBR or VBR |
| Streaming | 2 Streams |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, FTP |
| Security | Digest login authentication, IP address filtering, User access Log |
| Application Programming Interface | ONVIF Profile S, CGI |
| General | |
| Web Viewer | Supported Browser : Microsoft Internet Explorer (Ver. 11,10,9,8), Mozilla Firefox Ver 51.x or lower, Google Chrome Ver 44.x or lower, Safari 11.1.1 or lower |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C / Less than 90% RH |
| Certification | IP66 |
| Input Voltage | DC12V, PoE(IEEE802.3af, Class0) |
| Power Consumption | 2.3W(IR off), 5.08W(IR on) |
| Mechanical | |
| Color / Material | White / Metal |
| Product Dimensions / Weight | Ø68 x 114.3mm / 180g |
