Network Cameras

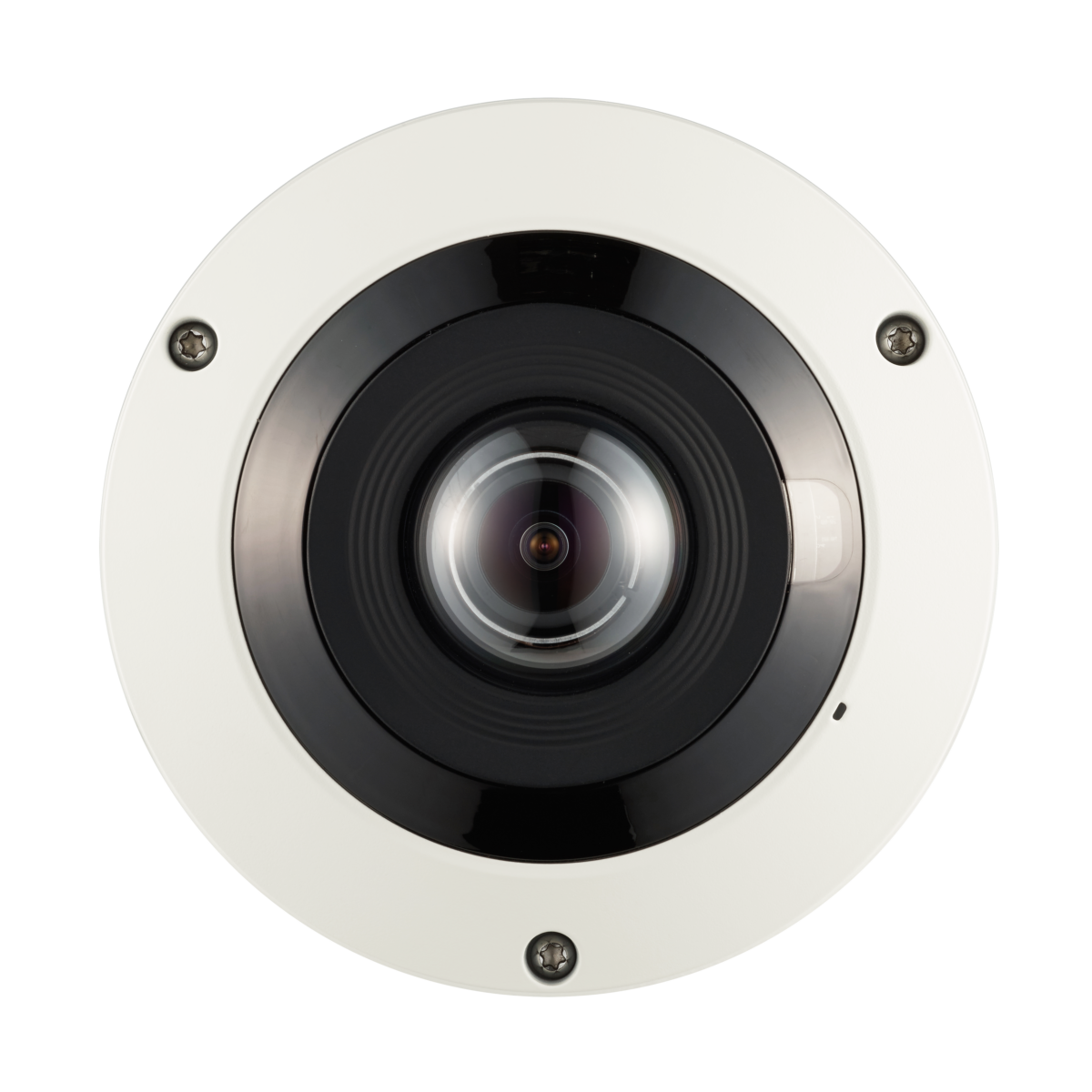

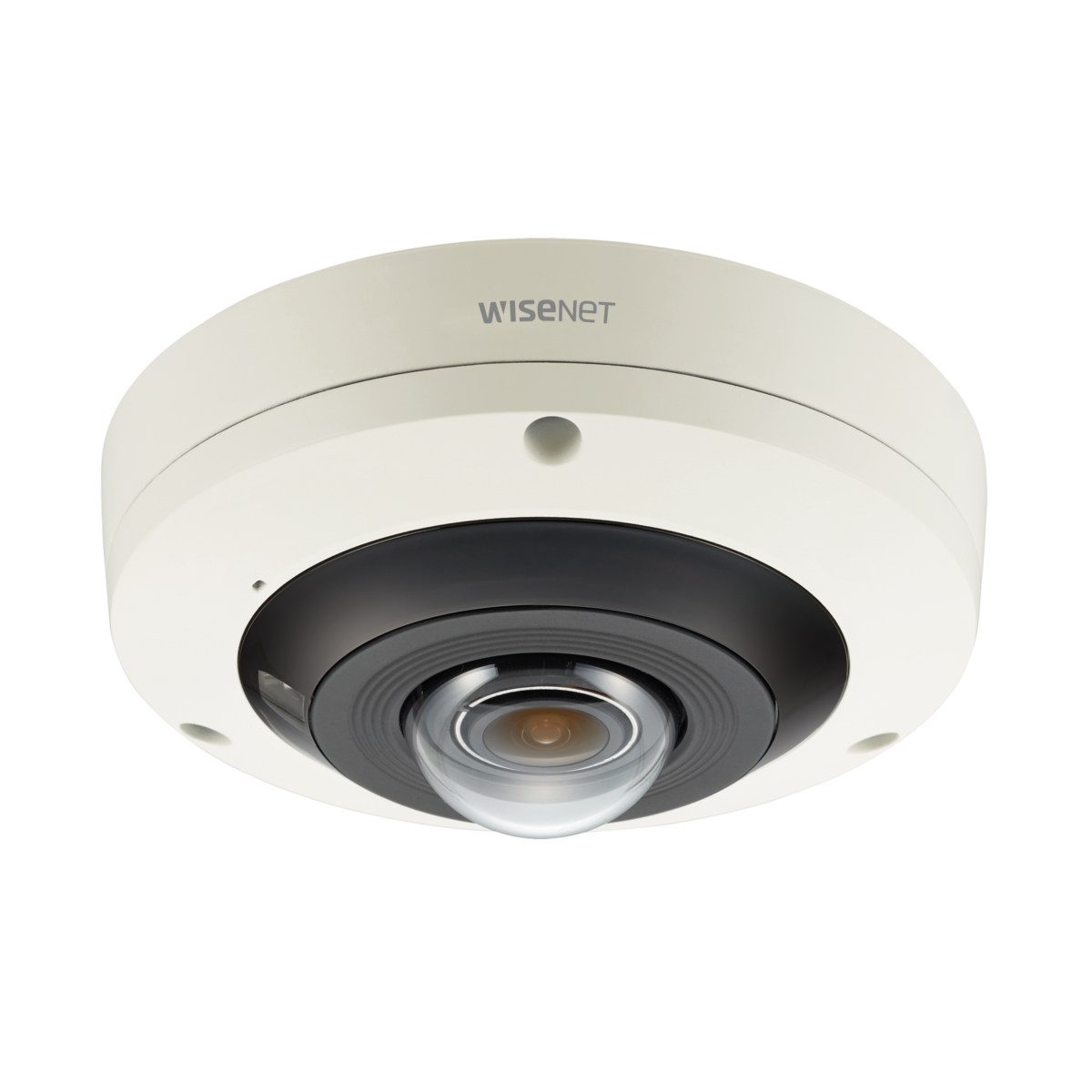

PNF-9010RV

4K H.265 Fisheye Camera

Key Features
• Max.12megapixel (4000 x 3000) resolution
• H.265, H.264, MJPEG codec
• On board dewarping, Digital PTZ (16x)
• True WDR (120dB), WiseStream
• People counting, Heatmap, Defocus detection
• IK10, IP66
• Variable view mode (Fishyeye, Single panorama, Double panorama, Quad view etc)
Contact Sales Datasheet

["camera","network","fisheye"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

PNF-9010R / 9010RV / 9010RVM
  • Max. 9Megapixel resolution
  • H.265, H.264, MJPEG codec
  • Max. 25fps@ 9M(H.265, H.264), Max. 20fps@ 12M
  • IR viewable distance 15m
  • WiseStream support
  • Variable view modes, Simple focus support
  • People counting, Heat mapping
  • IK10(Indoor/Outdoor), IP66(Outdoor)

360˚/180˚ panoramic view without blind spots
Equipped with a fisheye lens for 180° panoramic view or 360° surround view without blind spots, the camera is able to provide coverage of wide, open areas, such as retail stores, shopping malls, offices, railways and more.

Variable display modes
The new fisheye cameras in the Wisenet P series offer more than six display modes including single fisheye, single panorama, double panorama, 1 panorama + 2 PTZ, 1 fisheye + 3 PTZ and quad view mode.

* Variable display modes support in SSM

Improved Bandwidth with our new WiseStream technology
Wisenet P series camera’s streaming performance is greatly enhanced by applying an advanced compression technology called WiseStream. WiseStream can reduce bandwidth by 50% by using dynamic technology, and when combined with high efficiency video coding (H.265), the bandwidth efficiency can be improved by up to 75% compared to current H.264 technology.
Demo Video

Easy to install with Simple Focus feature
The Simple Focus feature is able to auto-focus with the touch of a button during the installation process.

People Counting and Heat Mapping
Premium fisheye cameras have a business intelligence function that offers retailers the opportunity to measure store efficiency. People Counting and Heat Mapping Applications display hotspots within a store, which allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and understand buying patterns.

Durable in any extreme environmental conditions with Built-in MIC
PNF-9010RV and PNR-9010RVM are designed to function even in the most extreme environmental condition. With the Built-in MIC, it can fully operate in a temperature range between -40˚ and 55˚, as well as in wet or very humid conditions.

Handover to PTZ
Wisenet PTZ hand-over feature allows a PTZ camera* to receive an alarm(motion detection) from a fisheye camera on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. This feature improves the efficiency of the surveillance system by decreasing the reliance on the system operator on tracking events, and by increasing the likelihood that critical events in a surveillance area will be captured and recorded.

* Variable display modes support in SSM

Product Specification

Video
Imaging Device 1/1.7" 12M CMOS
Resolution Double panorama: 2560x1280, 1920x960, 1280x640, 704x352, 640x320
Single panorama: 2560x640, 1920x480, 1280x320, 704x176, 640x160
Quad view: 2944x2208, 2560x1920, 2048x1536, 1600x1200, 1280x960,
1024x768, 800x600, 704x576, 640x480
Max. Framerate H.265/H.264: Max. 20fps@4000x3000, 20fps@2992x2992(60Hz/50Hz)
MJPEG: Max. 15fps(60Hz/50Hz)
Min. Illumination Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation
Lens
Focal Length (Zoom Ratio) 2.1mm fixed focal
Max. Aperture Ratio F2.2
Angular Field of View H: 180° / V: 180° / D: 180°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Operational
Camera Title Displayed up to 60 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 8ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Video Rotation Flip, Mirror
Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
Business Intelligence People counting, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 15m(49.21ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅠ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014,
EN61000-4-6:2009
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W
12VDC: Max 12W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø146x63.4mm(Ø5.75x2.5"), 810g(1.79 lb)
