Multi-sensor

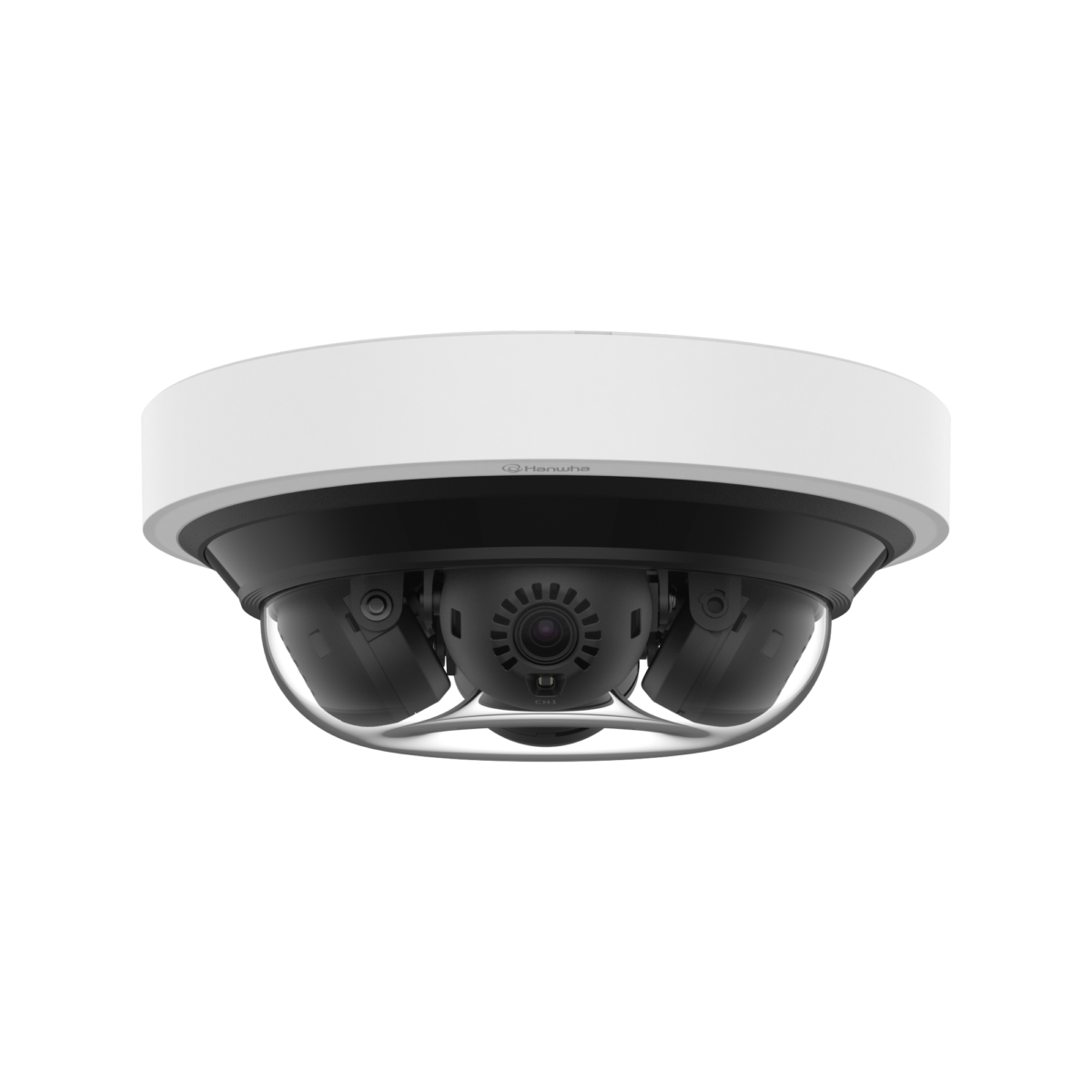

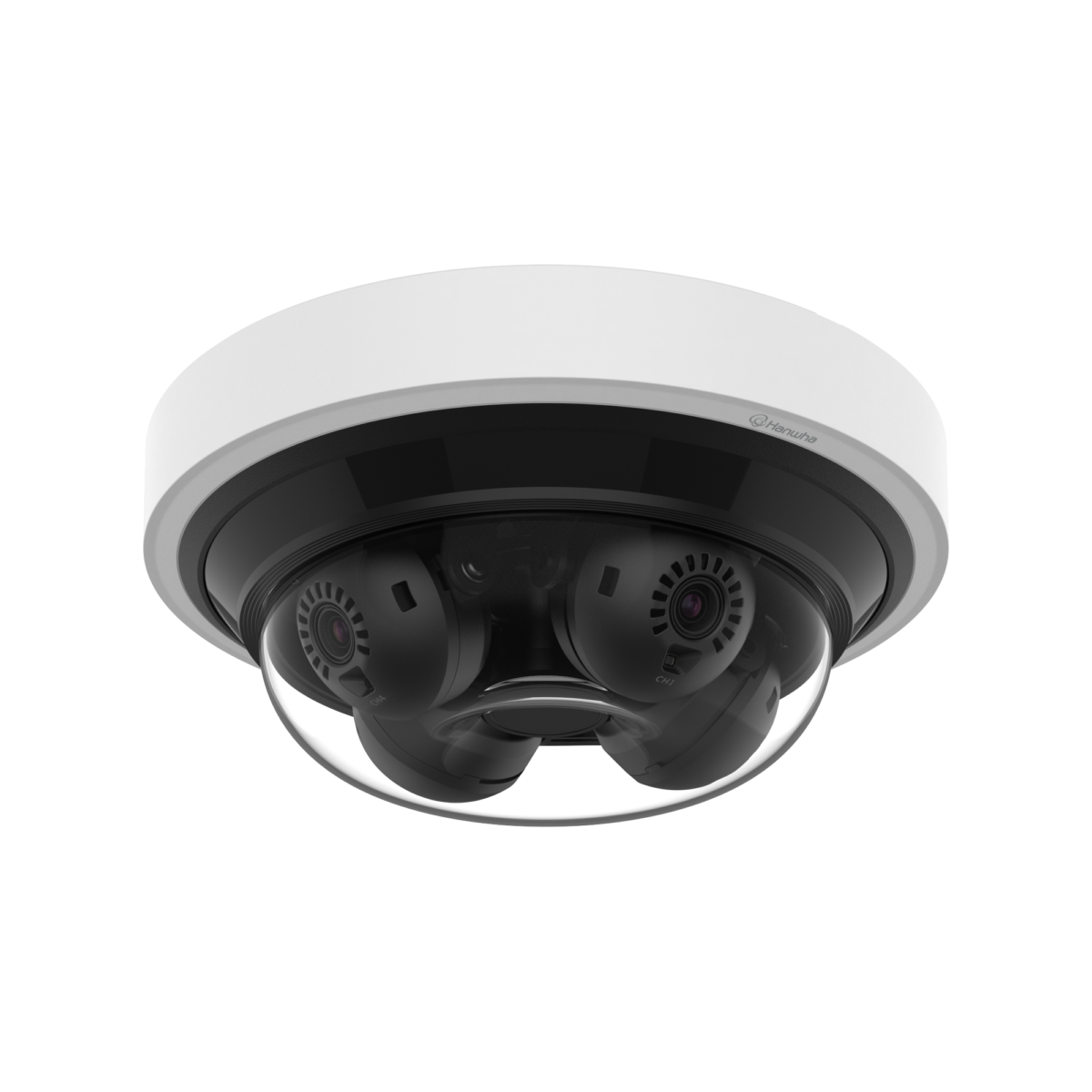

PNM-C16013RVQ

4CH mini AI Camera

Key Features
· 4CH AI based Analytics events :
classified object (Person/Face/Vehicle/License plate)
· AI based loitering detection and line crossing detection
· AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
· IR viewable length 20m (65.6 ft)
· Supports hallway mode
· 15fps@4MP
· 3.19mm fixed lens
· Next level cybersecurity (TPM 2.0, FIPS 140-2 certified)
· Reinforced durability (IP66, NEMA4X, IK09)

["camera","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

The Winner of the 2024 GOVIES Government Security Award

Multi-directional camera (PNM-C16013RVQ) has been recognized as a 2024 GOVIES Government Security Award winner by Security Today in the “Video Surveillance Cameras” category.

Smaller and Lighter Camera

The new camera is 65% smaller in design compared to its previous 4CH multi-directional camera, perfectly blending into any environment where aesthetics are important.

AI based object detection and classification

The camera generates metadata that includes object type (Person, Face, Vehicle, License plate) enhancing the search efficiency and reduces the time spent looking for events.

Compact Size for Indoor and Outdoor

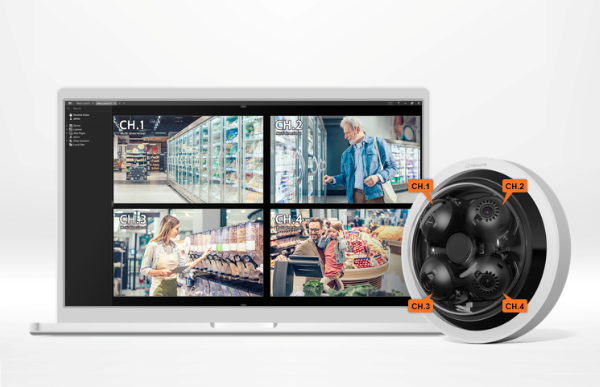

P series mini multi-directional camera offers monitoring with no blind spots and its compact size makes it suitable for both indoor and outdoor installation. It can be used indoors such as banks, retails, schools, or hospitals.

AI camera common features

WiseStreamIII

AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.

Learn more
WiseNRII

AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.

Learn more
Prefer Shutter Control

AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.

Learn more

Product Specification

Video
Imaging Device 1/2.8" CMOS: each CH
Resolution 2592x1520, 1920x1080, 640x360
Max. Framerate H.265/H.264: Max. 15fps/15fps
MJPEG: Max. 15fps(@4MP Max. 5fps)
Min. Illumination Color: 0.05Lux(F1.2, 1/30sec, 30IRE)
BW: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out USB: Micro USB Type B, 2592x1520 for installation
Lens
Focal Length (Zoom Ratio) 3.19mm fixed focal
Max. Aperture Ratio F1.2
Angular Field of View H: 97° / V: 54° / D: 116°
Min. Object Distance 2m(6.56ft)
Focus Control Manual
Lens Type Fixed Iris
Mount Type M12
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~360°(100° per CH)/ 0~75° / 0~90°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 6ea, Rectangular zones
- Color: Gray, Black, White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
Auto Prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°) - Each channel separately
Analytics Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle(Type: Car/Bus/Truck/Motorcycle/Bicycle)
Support DetectionShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events
- Motion detection, Tampering, Virtual area(Appear/Disappear)

* Audio detection, Sound classification(via NW I/O box SPM-4210)
Alarm Triggers Analytics, Network disconnect, App event, Time schedule, MQTT subscription
* Alarm input(via NW I/O Box SPM-4210)
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output(via NW I/O box SPM-4210)
- Handover: PTZ preset, Send message by HTTP/HTTPS/TCP
- MQTT: publication
Audio In via NW I/O box SPM-4210
Audio Out via NW I/O box SPM-4210
IR Viewable Length 20m(65.62ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
Multiple streaming: Up to 4 profiles(include preview profile)
* 4 profiles support different resolutions that are not identical
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/T/M
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Private Root CA)
Secure Storage TPM, SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F)
* Start up should be done at above -35°C
0~95% RH(non-condensing)
Humidity control /w AIR vent
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66, NEMA4X, IK09
Input Voltage PoE+(IEEE802.3at type 2, Class4)
Power Consumption PoE+: Max 23.5W, typical 13W
Mechanical
Color / Material White / Aluminum
Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight ø200x80mm(ø7.87x3.15"), 1380g(3.04 lb)
Compatible Conduit hole / Gangbox None / single, double, 4" octagon, 4" square
Sold separately conduit hole accessory: SBP-060BA
Hanging Mount (Dome) SBP-200HMW
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW/WMW1, SBP-390WMW2
Pole Mount SBP-300PMW2
In-ceiling Mount SHD-2000FPW
Parapet Mount SBP-300LMW, SBP-156LMW1
Corner Mount SBP-300KMW1
Cabinet SBP-300NBW
Conduit Adaptor SBP-060BA
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC 62471
Environment EN IEC 63000
IEC 60529 IP66, IEC 62262 IK09
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 45.9m(150.47ft)
Observe (63PPM/ 19PPF) 18.3m(60.19ft)
Recognize (125PPM/ 38PPF) 9.2m(30.09ft)
Identify (250PPM/ 76PPF) 4.6m(15.05ft)
