Network Cameras

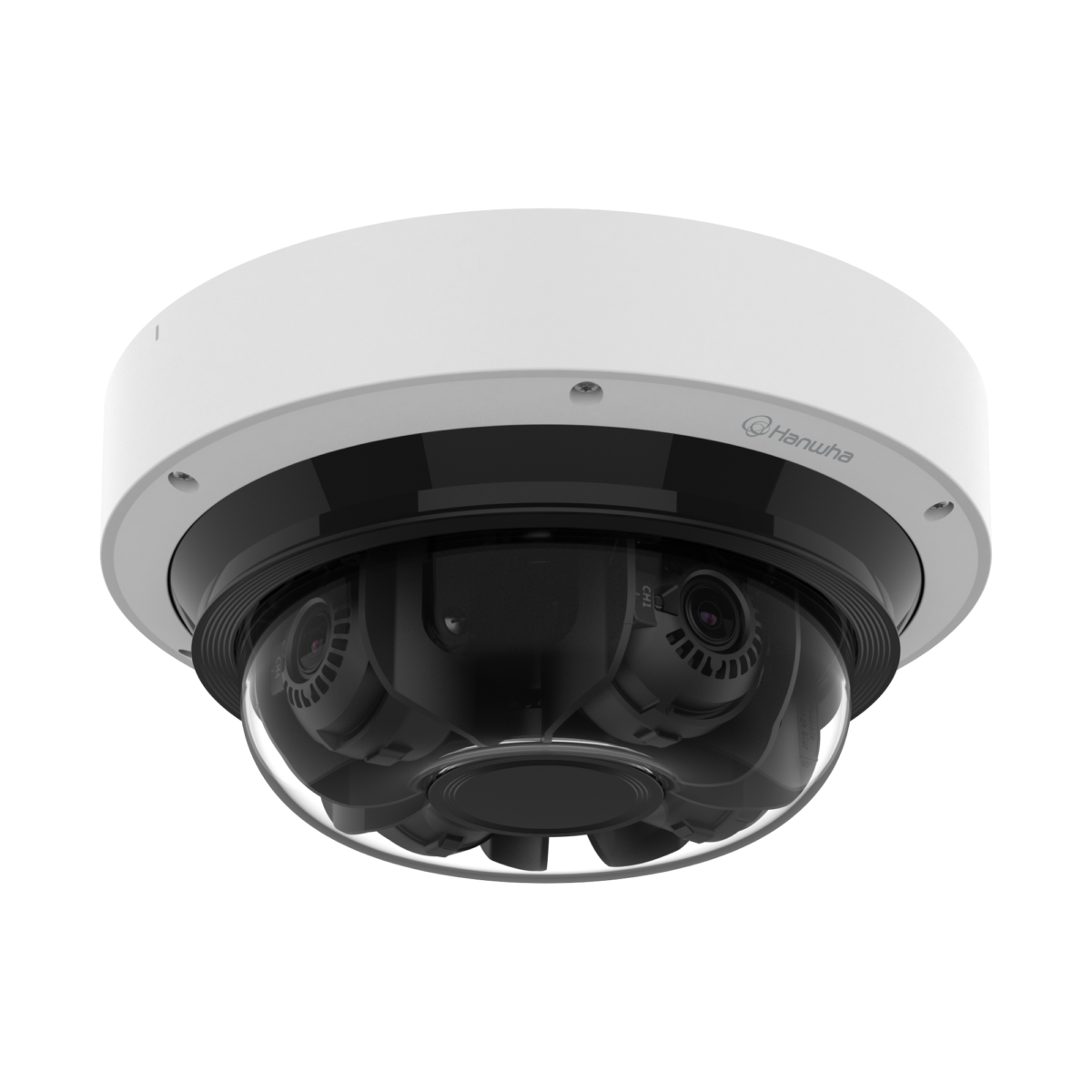

PNM-C32083RVQ
4K x 4ch AI Camera
Key Features
• 360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
• 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
• AI based loitering detection and line crossing detection
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Compact size & semi-modular design
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)
• 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
• AI based loitering detection and line crossing detection
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Compact size & semi-modular design
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
AI based object detection and classification
The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.
4CH AI Multi-directional camera feature set

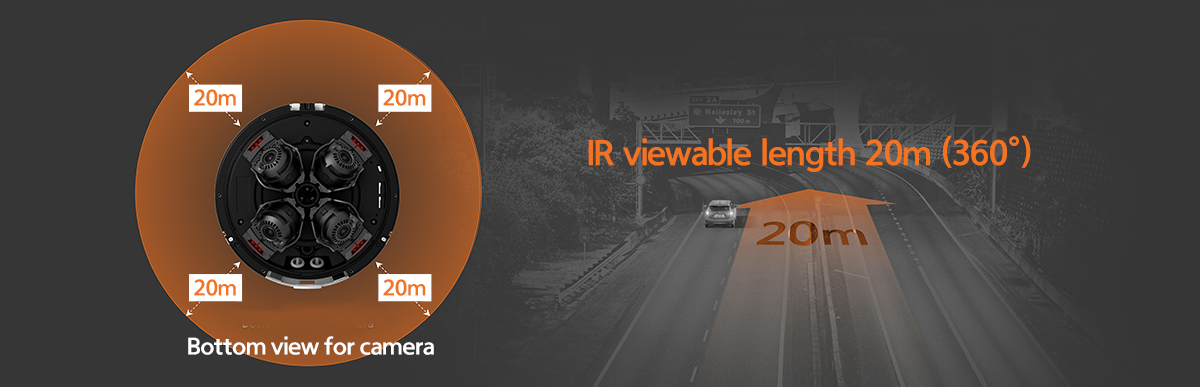

The new 4CH AI Multi-directional camera has four independent IR zones. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby objects.
Compact size and semi-modular design
The new 4CH AI Multi-directional camera provides an intuitive installation. microSD card and reset button are supported by unscrewing one cover and 4CH AI Multi-directional camera design includes an integrated installation plate with gang-box compatibility. Integrated installation plate with Gang box compatibility and ¾” conduit entrance for quick and easy installation.
AI camera common features
WiseStreamIII
AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.
Learn more
AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.
Learn more
WiseNRII
AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.
Learn more
AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.
Learn more
Prefer Shutter Control
AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.
Learn more
AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.
Learn moreProduct Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS x 4CH |
| Resolution | 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | [AI On] H.265/H.264: Max. 15fps/15fps(60Hz/50Hz) MJPEG: Max. 15fps/15fps(@8MP Max. 5fps) [AI Off] H.265/H.264: Max. 20fps/20fps(60Hz/50Hz) MJPEG: Max. 20fps/20fps(@8MP Max. 5fps) |
| Min. Illumination | Color: 0.1Lux(F1.5, 1/30sec, 30IRE) BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~5.7mm(1.7x) motorized varifocal |
| Max. Aperture Ratio | F1.5(Wide)~F1.9(Tele) |
| Angular Field of View | H: 109°(Wide)~56°(Tele) V: 55°(Wide)~31°(Tele) D: 136°(Wide)~65°(Tele) |
| Min. Object Distance | 1.3m(4.27ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~65° / 0°~90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, rectangular zones - Color: Grey/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) |
| Alarm I/O | 2 configurable I/O ports * Support extra alarm I/O via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 15m(49.21ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per channel) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP |
| Access Control | IP address filtering |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | TPM(Trusted platform module) |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 8GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -35°C 0~95% RH(non-condensing) Humidity control /w Air vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66, NEMA4X, IK10 |
| Input Voltage | PoE+(IEEE802.3at Type2, Class4) |
| Power Consumption | PoE+: Max 25.5W, typical 22.0W |
| Mechanical | |
| Color / Material | Body: White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø250x114.2mm(ø9.84x4.50"), 2820g(6.22 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole: 19.1mm(3/4")(M25) Gangbox: Single, Double, 4" Octagon, Square |
| Hanging Mount (Dome) | SBP-250HMW, SBP-276HMW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 54.8m(179.73ft) / Tele: 144.4m(473.88ft) |
| Observe (63PPM/ 19PPF) | Wide: 21.9m(71.89ft) / Tele: 57.8m(189.55ft) |
| Recognize (125PPM/ 38PPF) | Wide: 11.0m(35.95ft) / Tele: 28.9m(94.78ft) |
| Identify (250PPM/ 76PPF) | Wide: 5.5m(17.97ft) / Tele: 14.4m(47.39ft) |
