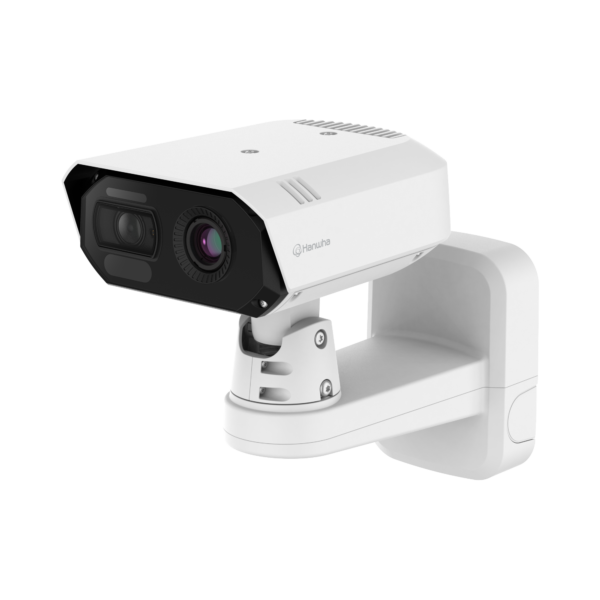

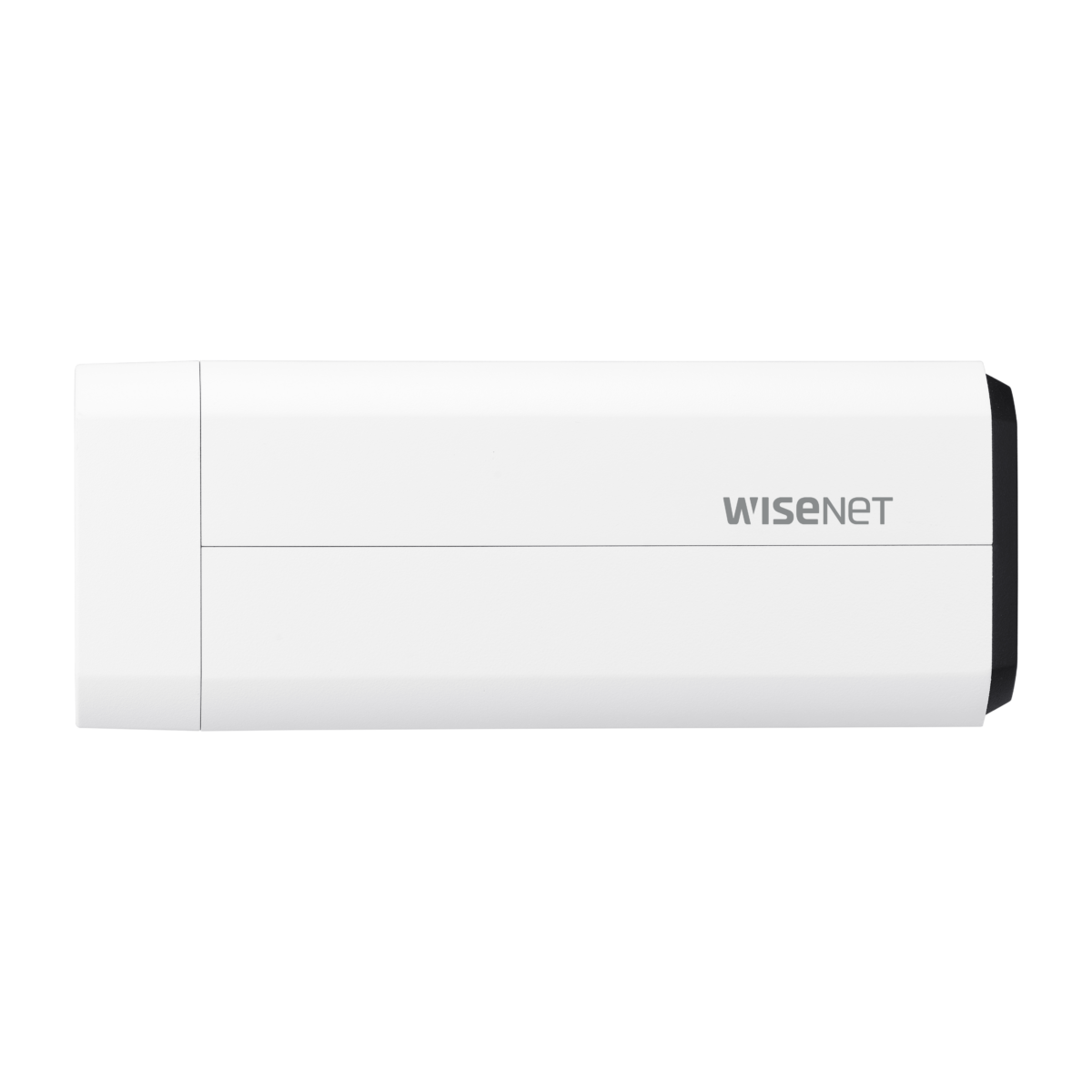

TNM-3620TDY

Temperature detection thermal camera

Key Features
• Bi-spectrum : QVGA thermal & 2MP visible sensor
• Built-in 4.7mm fixed lens (thermal), 4mm fixed lens (visible)
• Two temperature detection modes
- Estimated Body Temperature Mode
: 30~45°C (86~113°F) / ±0.5°C (±0.3°C with blackbody)
- Normal Radiometric mode
: -20~130°C (-4~266°F) / ±5°C(≤100°C), ±20%(>100°C)
• Micro SD/SDHC/SDXC memory 1slot (Max. 256GB)
• PoE+(IEEE802.3at), 12VDC
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Bi-spectrum: QVGA thermal & 2MP visible sensor
TNM-3620TDY provides ‘Visible Image’ and ‘Thermal Image’ simultaneously, allowing users to effectively monitor the objects in an intuitive interface.


Users can choose from the Estimated Body Temperature (EBT) mode and the Normal Radiometric mode for the thermal image.


[EBT mode]


– Detect range: 30~45°C (86~113°F)

– Accuracy: ±0.5°C (±0.3°C w/ blackbody)

* Blackbody sold separately

* To ensure accuracy, following the FDA Guidelines is strongly recommended.

* Make sure to have a medical thermometer prepared for the body temperature check of a person suspected of having a fever.



[Normal Radiometric mode]


– Detect range: -20~130°C (-4~266°F)

– Accuracy: ±5°C (≤100˚C), ±20% (>100˚C)

AI face detection for higher accuracy
TNM-3620TDY utilizes AI to detect the face, and displays the highest temperature from the detected face area. Users can also customize the detection area within the detected face area for the higher accuracy.




Product Introduction and How-to-Use Video

Product Specification

Video Thermal Visible
Imaging Device Uncooled micro bolometer (320x240) 1/2.8" 2MP CMOS
Resolution 1280x960, 640x480, 320x240 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD ＜60mK
Pixel size 12㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB : Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.7mm fixed focal 4mm fixed focal
Max. Aperture Ratio F1.0 F1.6
Angular Field of View H: 50.0°, V: 36.4°, D: 65.3° H: 87.6, V: 46.4°, D: 104.5°
Min. Object Distance 1m(3.28ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Video Rotation Flip, Mirror
Analytics EBT mode : Temperature detection, Blackbody error
Normal mode : Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection
*EBT : Estimated Body Temperature
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover (normal mode only)
Audio playback
Beep alarm (EBT mode only)
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color Palettes EBT Mode (thermal face detection)
: Whitehot
EBT (visible face detection) & Normal mode
: Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range Estimated body temperature mode
: 30~45°C(86°F~113°F)
Normal mode
: -20~+130°C(-4°F~+266°F)
Temperature Accuracy Estimated body temperature mode
: ±0.5°C(±0.3°C with Blackbody)
Normal mode
: ±5°C(≤100°C), ±20%(>100°C)
Temperature Detection 3ea rectanguler (normal mode)
Additional Hybrid palettes (normal mode),
Spot temperature reading (normal mode)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec WiseStreamⅡ Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 6 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 4608MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity EBT mode
: +10°C~+35°C(+50°F~+95°F) / Less than 95% RH
Normal mode
: -10°C~+55°C(+14°F~+131°F) / Less than 95% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / Less than 95% RH
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption PoE+: Max. 17.0W, typical 12.5W
12VDC: Max. 14.5W, typical 11.0W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight 135(W)x75(H)x188.5(D)mm, (5.31x2.95x7.42"), 1.7kg(3.77lb)
Datasheet

Download

Category File Name   Last Updated
Download Selected Items
