Network Cameras

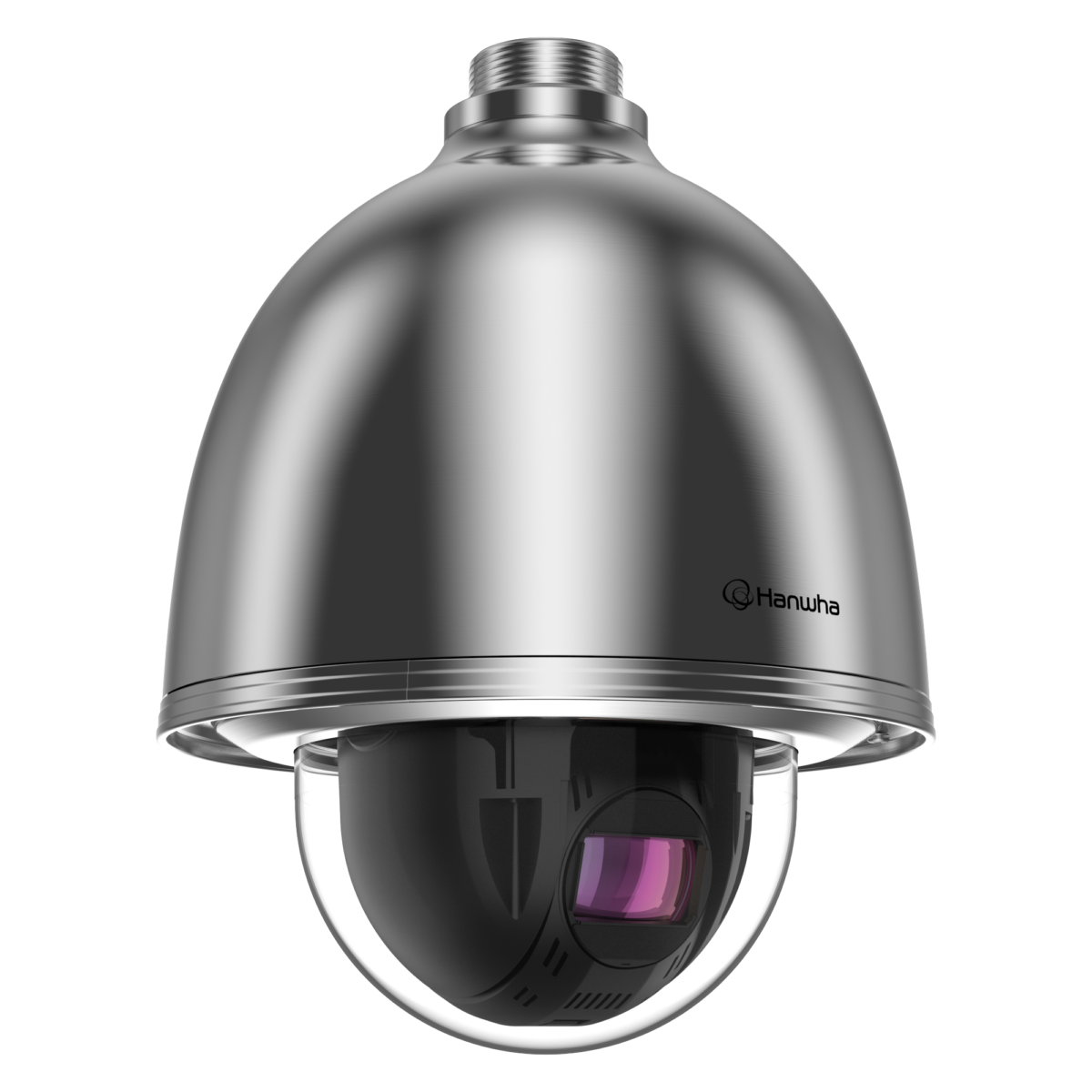

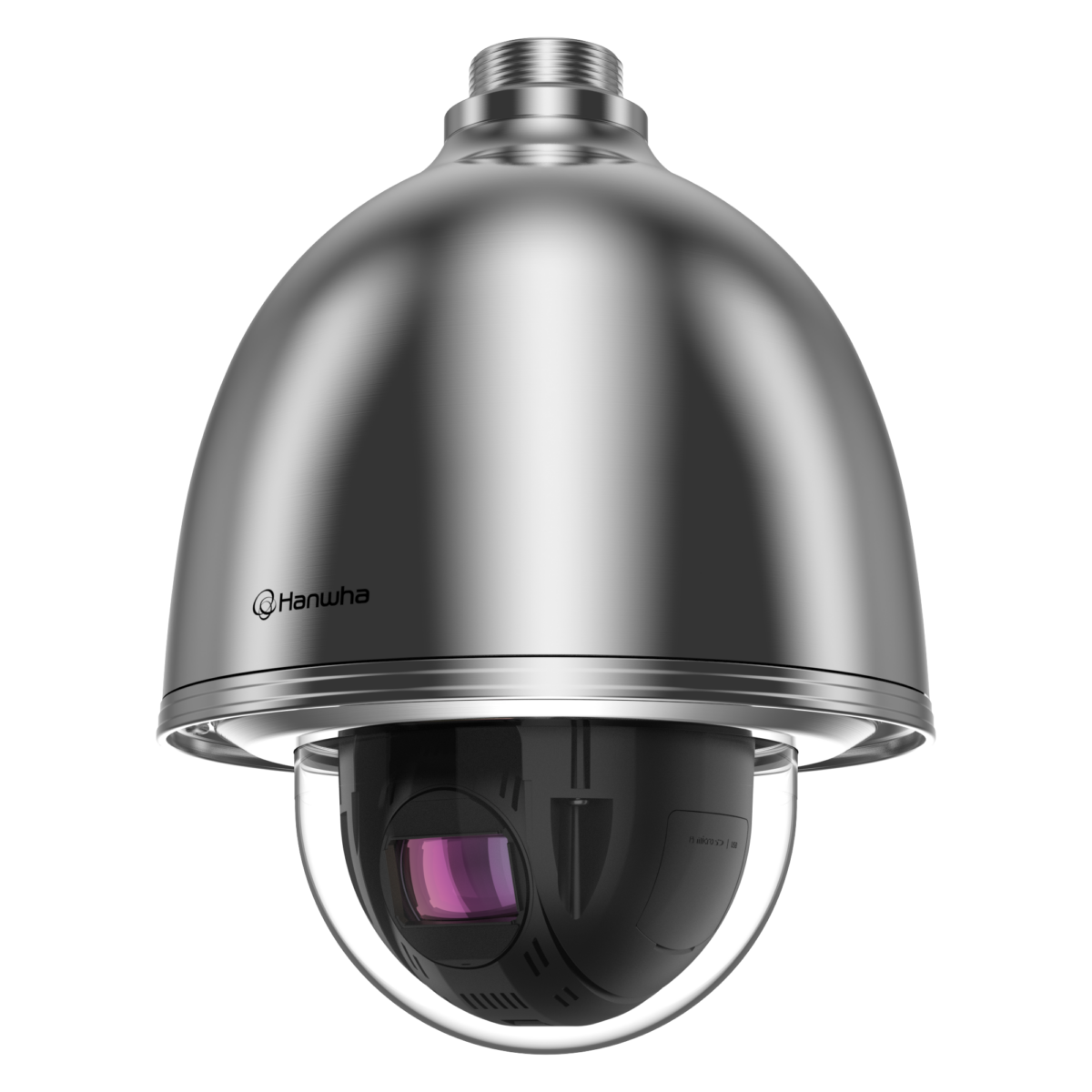

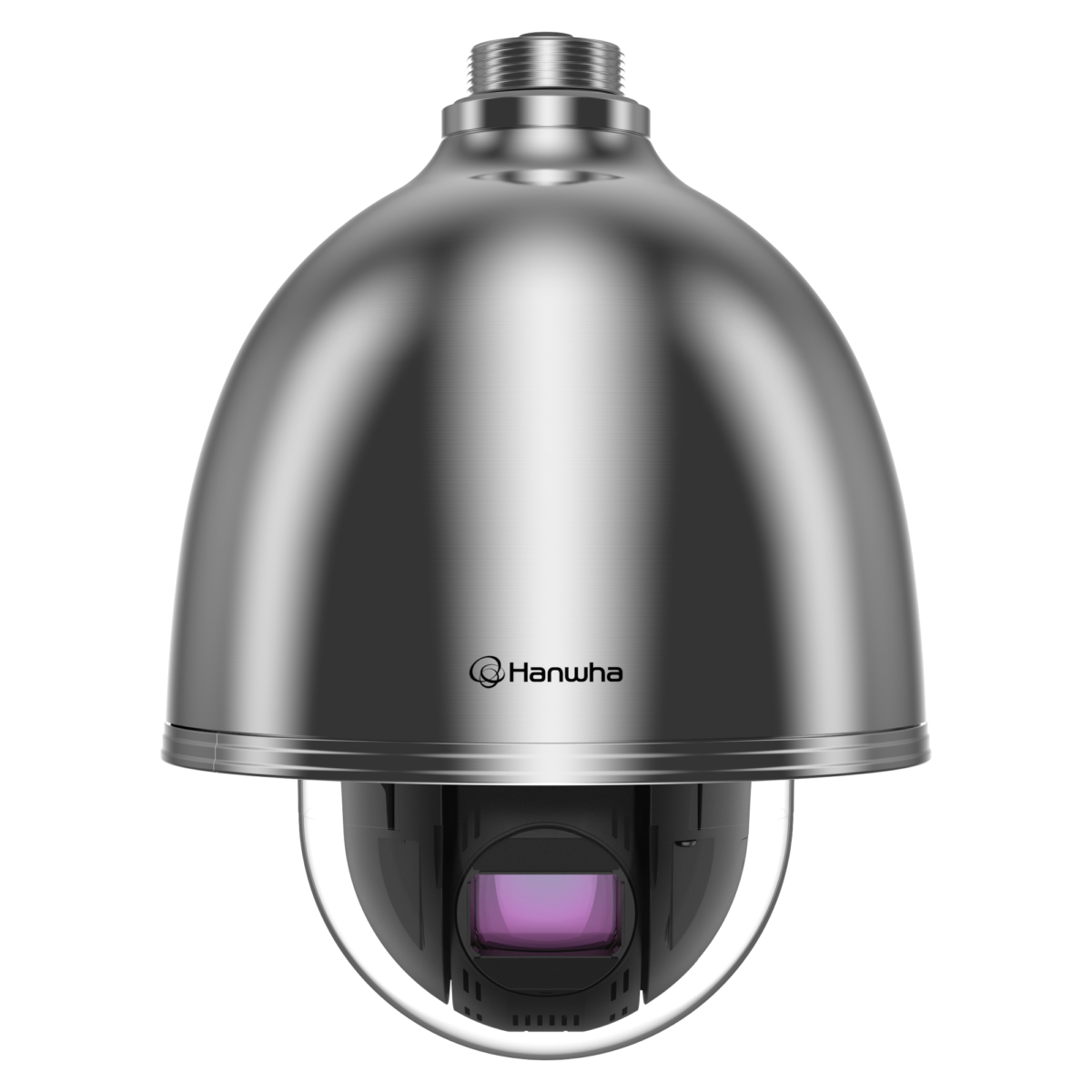

XNP-6320HS

2M H.265 Stainless 32x PTZ Camera

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• 4.44 ~ 142.6 (32x) optical zoom, 32x digital zoom
• H.265, H.264, MJPEG codec support, Multiple streaming
• WiseStreamII,Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking
• Face detection, Tampering, Sound classification
• Motion detection, SD memory slot (Max. 512GB), 24V AC,PoE
• IP67, IP66, NEMA4X, IK10, Material : SUS316L
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)\nMJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)\nB/W: 0.005 Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation\nUSB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range 210°(-15°~195°)
Tilt Speed Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 24ea, polygonal zones\n - Color: Grey/Green/Red/Blue/Black/White\n - Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail \nNotification via e-mail \nSD/SDHC/SDXC or NAS recording at event triggers\nAlarm output\nPTZ Preset
Audio In Selectable(mic in/line in)\nSupply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Auto Tracking Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable\nG.726(ADPCM) 8KHz, G.711 8KHz\nG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps\nAAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR\nMJPEG: VBR
Streaming Unicast(20 users) / Multicast\nMultiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP
Security HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G\nSUNAPI(HTTP API)\nWisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12\nRecommended Browser: Google Chrome\nSupported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity 24VAC: -50°C~+55°C(-58°F~+131°F) / Less than 90% RH\nPoE+: -35°C~+55°C(-31°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4), 24VAC
Power Consumption 24VAC: Max 65W
Mechanical
Color / Material Silver / Stainless(SUS316L)
Product Dimensions / Weight Ø227x296mm(8.94x11.65"), 5.3Kg(11.69 lb)
