Mount

SHD-1370FPW

In-ceiling Mount

Key Features
• Material: Aluminum
• Product dimensions / Weight: ø205x103mm (ø8.07x4.05") / 770g (1.70lb)
※ Ceiling hole size : ø181mm (ø7.12")
• Tile thickness : 10~70mm (0.4~2.8")
• Color : White
Contact Sales Datasheet

["installation-solution","mount"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Mechanical
Color White
Material Aluminum
RAL code RAL9003
Product dimensions / weight ø205x103mm (ø8.07x4.05") / 770g (1.70lb)
※ Ceiling hole size : ø181mm (ø7.12")
Tile thickness 10~70mm (0.4~2.8")
Mount Screw size TR20
Max. load 3kg (6.61lb)
※ Maximum load of ceiling board : 6.5kg (14.30lb)
Conduit hole 12.7mm(1/2") (M20) / 19.1mm(3/4") (M25)
Supported products PNV-A6081R/A9081R, XNV-8082R/9082R, XNV-6083R/8083R/8093R/9083R,

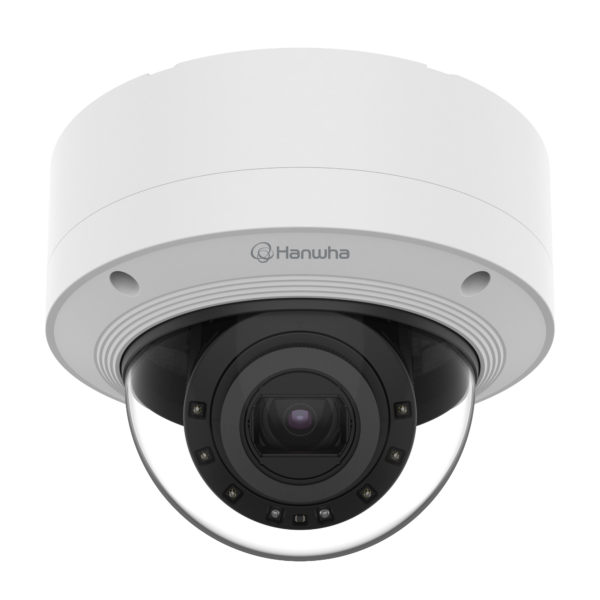

XNV-6123R, XNV-6083Z/8083Z, XNV-6083RZ/8083RZ/9083RZ
