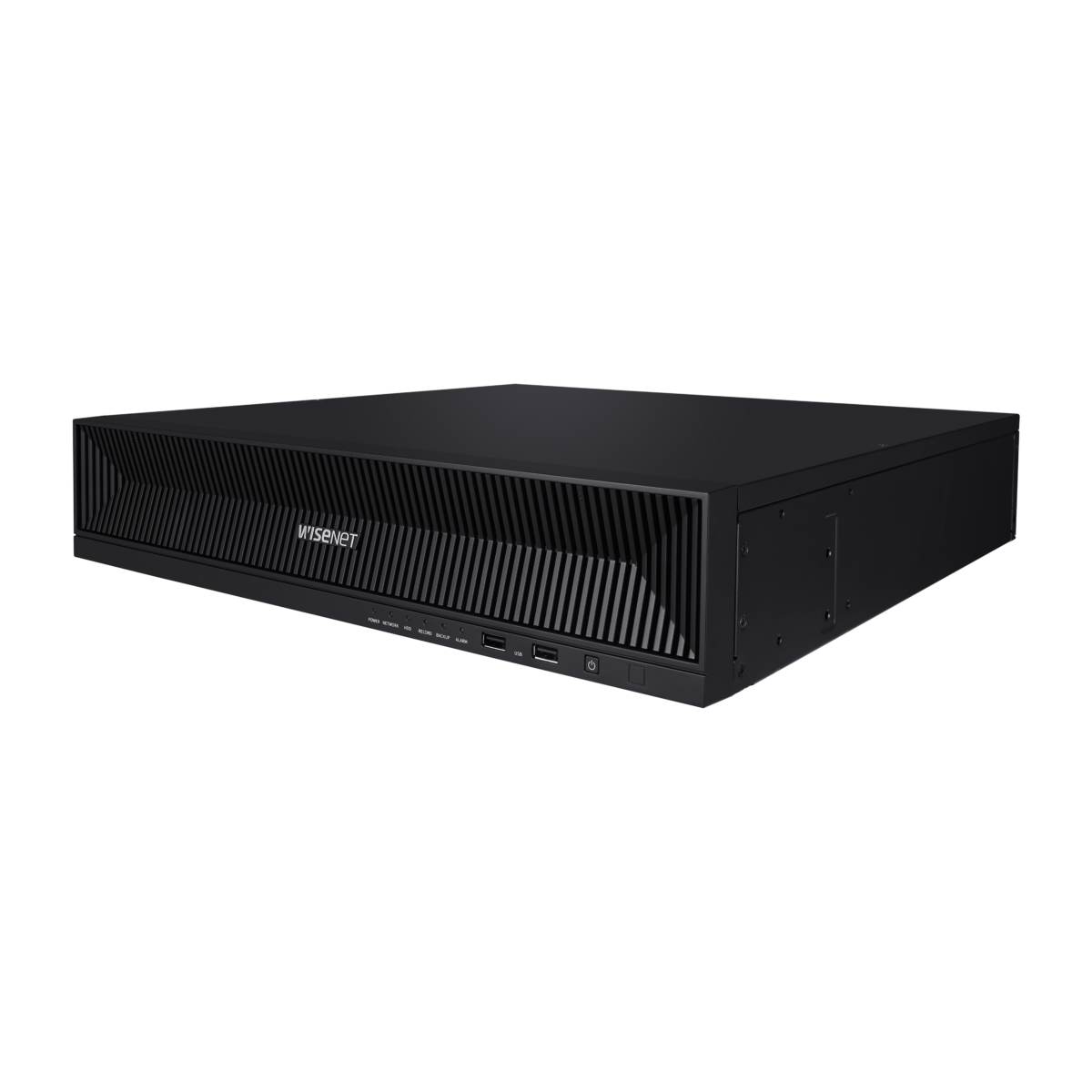

NVR
XRN-3210B2
32CH NVR
Key Features
• Up to 32CH, 32MP Resolution
• Max. 400Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• Bookmark management (Up to 100 set)
• H.265, H.264, MJPEG compression support
• SATA 8ea (Up to 80TB)
• Max. 400Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• Bookmark management (Up to 100 set)
• H.265, H.264, MJPEG compression support
• SATA 8ea (Up to 80TB)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please follow the Hanwha Vision HDD compatibility list.
Overview
Timeline preview and easy channel, event, alarm configuration
When managing multi channels, XRN-6410RB2/3210RB2/6410B2/3210B2 greatly improves search efficiency by allowing users to preview images and videos by simply hovering mouse cursor on the timeline. Moreover, users can configure event and alarm for all channels within a single page.
Supports live monitoring and bookmarks
With the live monitoring feature, XRN-6410RB2/3210RB2/6410B2/3210B2 allow users to view information by channel including real-time videos, system status, recording status and etc. and also offer easy and detailed monitoring with the digital PTZ control.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
AI search working with Wisenet P series AI Cameras
XRN-6410RB2/3210RB2/6410B2/3210B2 support AI search features when using with Wisenet P series AI cameras.
Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color).
Users can search various attributes from AI cameras such as people (gender, age, hat, bag, color of clothes) and vehicle (type, color).
Product Specification
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 32CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
|
| Multi Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 80CH(Local 32CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 8ea(Max. 80TB) | |
| External | iSCSI storage | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | ||
| GUI | 32 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption\nDevice certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile\nSupport SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

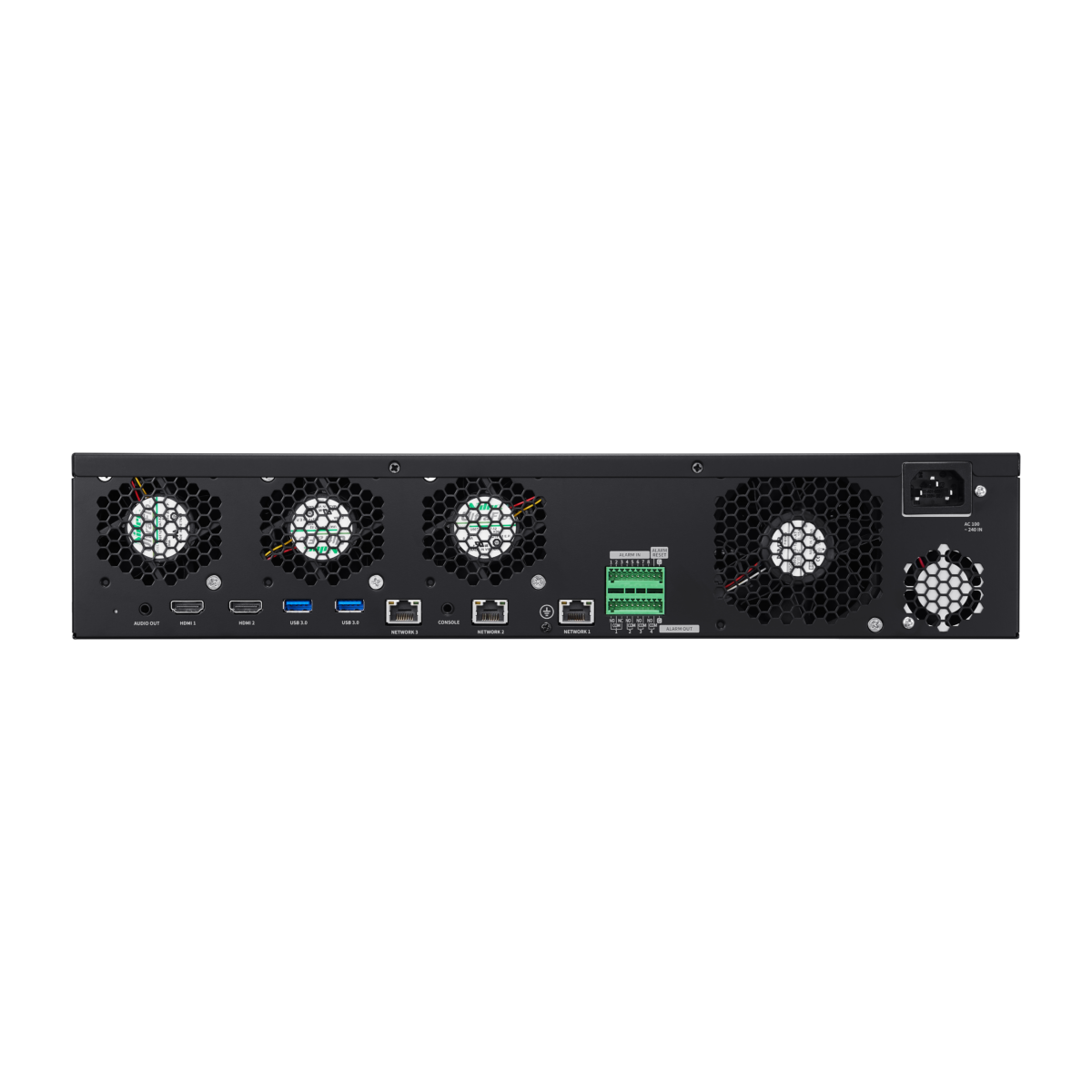

| Interface | ||
| Front | ||
| Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| Reset | OK | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1)\nHDMI1 : 3840x2160 30Hz \nHDMI2 : 1920x1080 60Hz | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A (Single SMPS) | |
| Power Consumption | Max. 138W (with 10TB HDD 8EA) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 438 x 86 x 434.9 mm | |
| Weight | 7.5Kg (16.5 lb, Except HDD) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Compatible for Wisenet AI Camera | |
