4 Channels

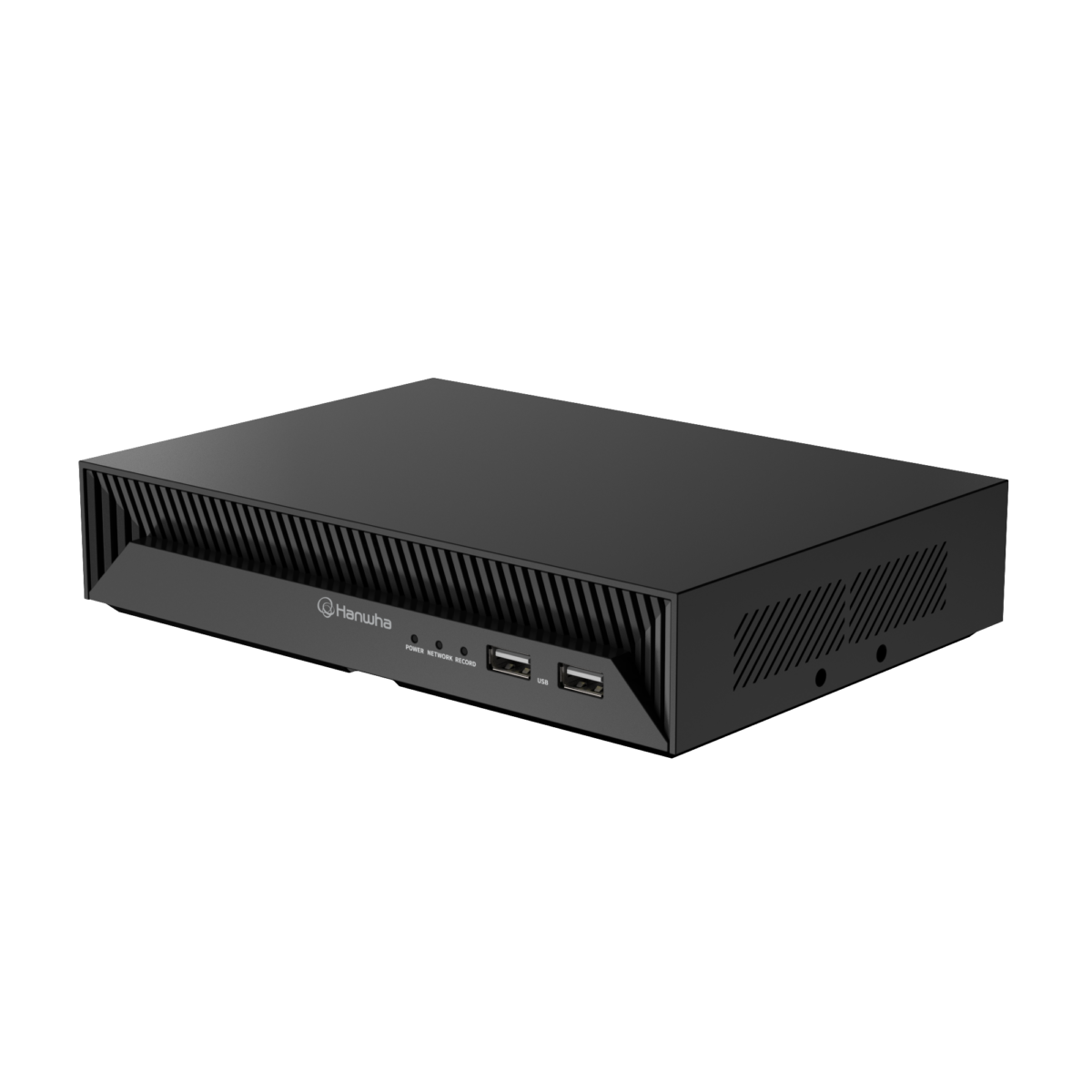

XRN-426S-1T
4CH AI NVR
Key Features
• Up to 4CH, 8MP camera supported
• H.265, H.264, MJPEG codec
• AI Search: Object Attribute (When integrated with Hanwha AI Camera)
• 40Mbps network camera recording
• 4 PoE (LAN, 10/100)
• Pre-installed 1TB SSD
• HDMI local monitor
• ARB supported
• P2P service (QR code connect) support
• H.265, H.264, MJPEG codec
• AI Search: Object Attribute (When integrated with Hanwha AI Camera)
• 40Mbps network camera recording
• 4 PoE (LAN, 10/100)
• Pre-installed 1TB SSD
• HDMI local monitor
• ARB supported
• P2P service (QR code connect) support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 4CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI1: 3840x2160(30Hz) | |
| Multi Screen Display | Dynamic layout, Virtual channel view, Up to 4 Div. [Web] 1/ 2H/ 2V/ 3V/ 4 |
|
| Resolution | [Local Monitor] 8M(30fps), 1080p(4ch@30fps), 720P(4ch@30fps), D1(4ch@30fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Mode | Time/ Event/ Text/ ARB/ Bookmark/ Smart search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Pre-installed 1TB SSD | |
| HDD Slot | M.2 SSD 1EA | |
| Backup | ||
| File backup | Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network) | |
| Function | Multi channel(Up to 4CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | ||
| GUI | 4CH (network)/output (Set) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows10 or higher, macOS 13.5.2 or higher | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

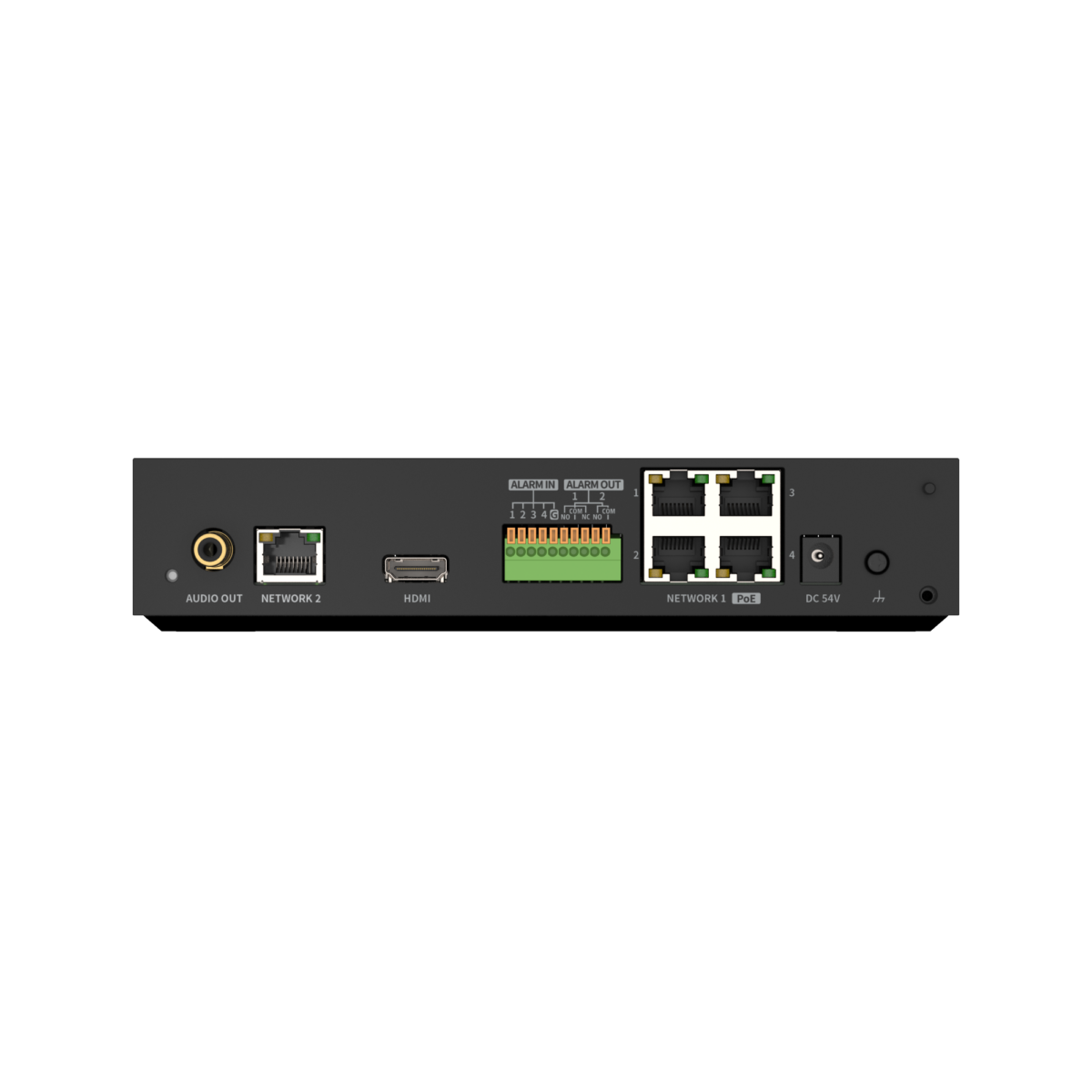

| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| HDMI | 1EA 3840x2160(30Hz) | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | RJ-45(LAN, 10/100) 4ea (Support PoE/PoE+) ,RJ-45 1ea (WAN, 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0), Support for Wi-Fi dongle for Install | |
| Power inlet | DC Adaptor | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse(include wireless), Keyboard(include wireless), Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC/1.67A | |
| Power Consumption | Max 68W(PoE On) | |
| PoE Budget | 50W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 200 x 140 x 42 mm (7.8 x 5.5 x 1.7 inch) | |
| Weight | 660g (1.45 lb) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Compatible with Hanwha AI Camera | |
