Analog Cameras

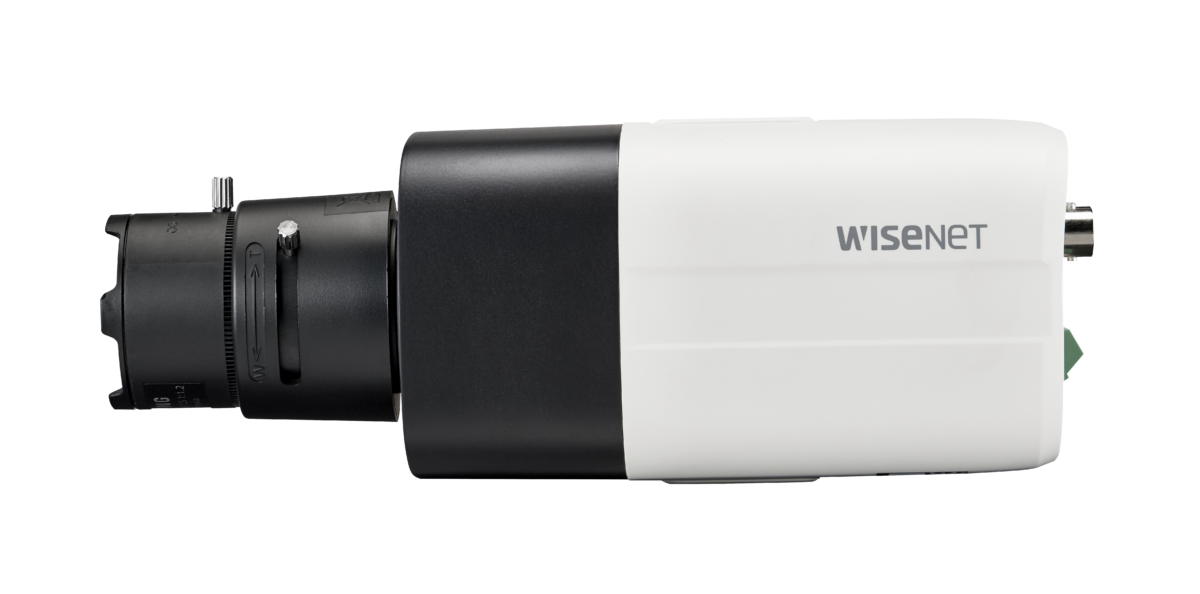

SCB-6005

2MP Analog camera

Key Features
• Full HD(1920 x 1080, 30fps) resolution
• 0.04Lux@F1.2 (Color), 0.004Lux@F1.2(B/W)
• Day & Night(ICR)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
Contact Sales Datasheet

["camera","analog","analog-box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080
Max. Framerate 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.04Lux (F1.2, 1/30sec)
BW: 0.004Lux(F1.2)
Video Out BNC(AHD 2MP,CVBS)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focus Control Manual
Lens Type DC auto iris
Mount Type C/CS
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-REV / V-REV / HV-REV
Analytics Motion detection
Serial Interface RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Alarm I/O Output 1ea, External D/N 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
Coaxial Protocol ACP(AHD Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH
Input Voltage AC 24V~ 50/60Hz ,DC 12V
Power Consumption AC 24V / 0.37A (Max 3.6W)
DC 12V / 0.32A (Max 3.5W)
Mechanical
Color / Material Black, Ivory / Aluminum, Plastic
Product Dimensions / Weight 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65"), 186g(0.41 lb)
