Analog Cameras

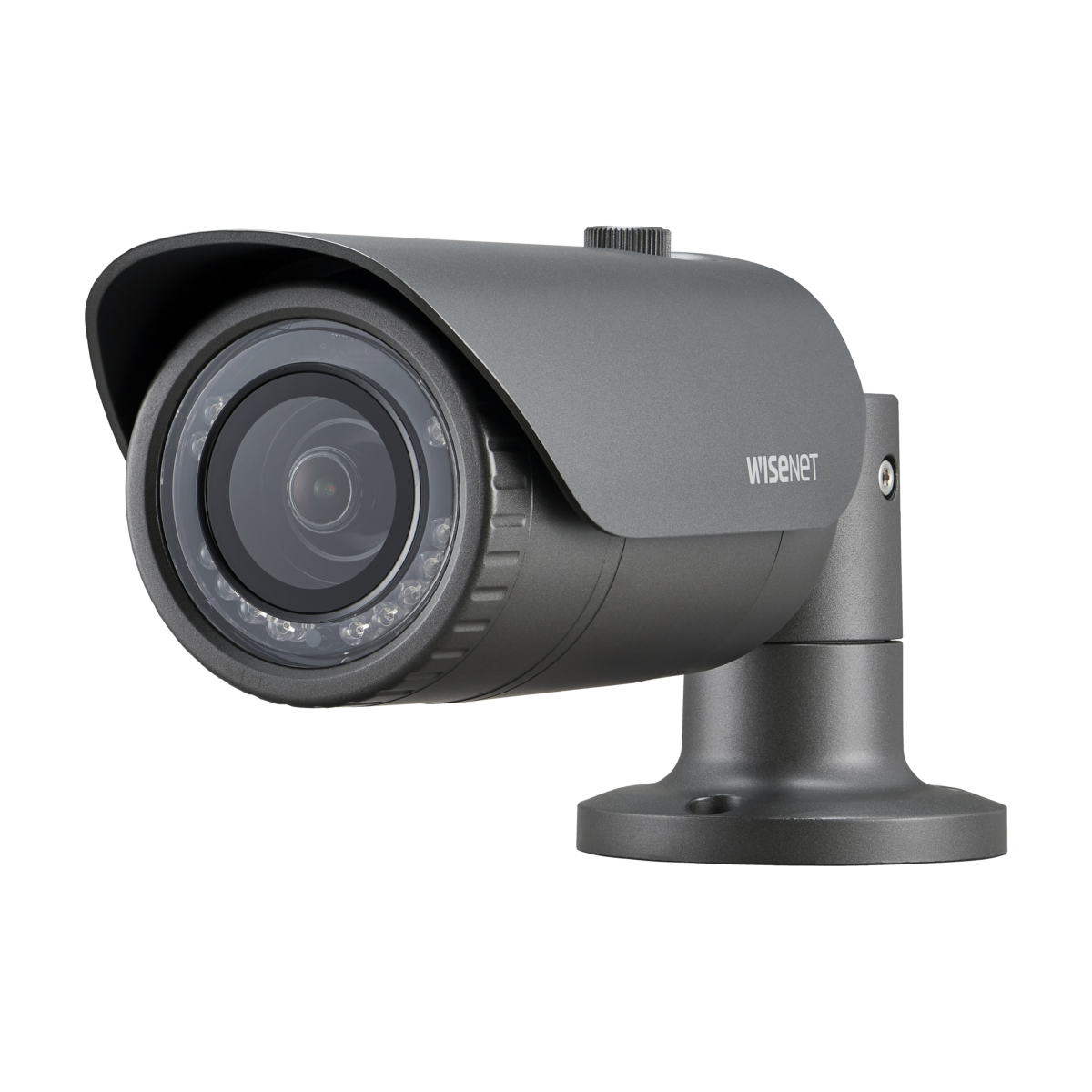

HCO-7010RA

QHD (4MP) Analog IR Bullet Camera

Key Features
• QHD (2560 x 1440, 30fps) resolution
• 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
• Built-in 2.8mm fixed lens
• Day & Night (ICR), DWDR, Motion detection
• IR Viewable Length 20m
• Transmission distance max.500m
• Easy installation (Plug & play), IP66, IK10
Contact Sales Datasheet

["camera","analog","analog-bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" 4MP CMOS
Resolution 2560x1440
Max. Framerate 30fps@4M(N), 25fps@4M(P)
Min. Illumination Color: 0.26Lux(F1.8, 1/30sec)
BW: 0Lux(IR LED on)
Video Out BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 2.8mm fixed
Max. Aperture Ratio F1.8
Angular Field of View H: 107.48°, V: 59.67°, D: 122.01°
Min. Object Distance 0.5m(1.64ft)
Operational
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction 2DDNR
Motion Detection 4 zones
Privacy Masking 2 zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation H-Rev/V-Rev
Analytics Motion detection
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C
Certification IP66, IK10
Input Voltage 12VDC
Power Consumption Max 5W
Mechanical
Color / Material Dark Gray / Aluminum
Product Dimensions / Weight Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)
