Network Cameras

XNV-L6080

2M H.265 Dome Camera

Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Defocus detection
• Motion Detection, Handover
• SD/SDHC/SDXC memory slot (Max. 256GB)
• Hallway view, WiseStreamII support
• IP66, IK10, PoE support
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Difining the new standard of excellence

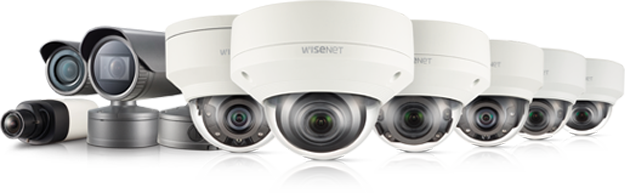

WISENET X series
  • True WDR performance(150dB)
  • Clearer, sharper images in low light environments
  • Digital Image Stabilization with built-in gyro sensor
  • Improve bandwidth by up to 99% using WiseStream II
  • More convenient installation with USB
  • Dual SD slots
  • Enhanced Video and Audio Analytics
  • Minimize Lens Distortion
  • Fog Detection
  • Handover to PTZ
  • Capture details with 2MP 32x optical zoom
  • High performance with discreet design
  • High reliability from rugged design
  • Protection against tough environment

The Most Powerful Chipset WISENET 5

Wisenet X series is supercharged by the most powerful chipset ever incorporated int a full camera range. The Wisenet 5 chip uses an all-new architecture that enables faster processing. That means you get the best video performance just as you need it.

True WDR performance (150dB)

Conventional WDR captures images by taking 2 frames taken at different exposures, whereas Wisenet X series cameras utilize 4 frame capture at different exposure levels to create a combined image. With the development of cutting-edge WDR technology, Wisenet X series cameras address a limitation found in conventional WDR cameras while producing clear and vivid images.

White paper White Paper Demo Video Demo Video

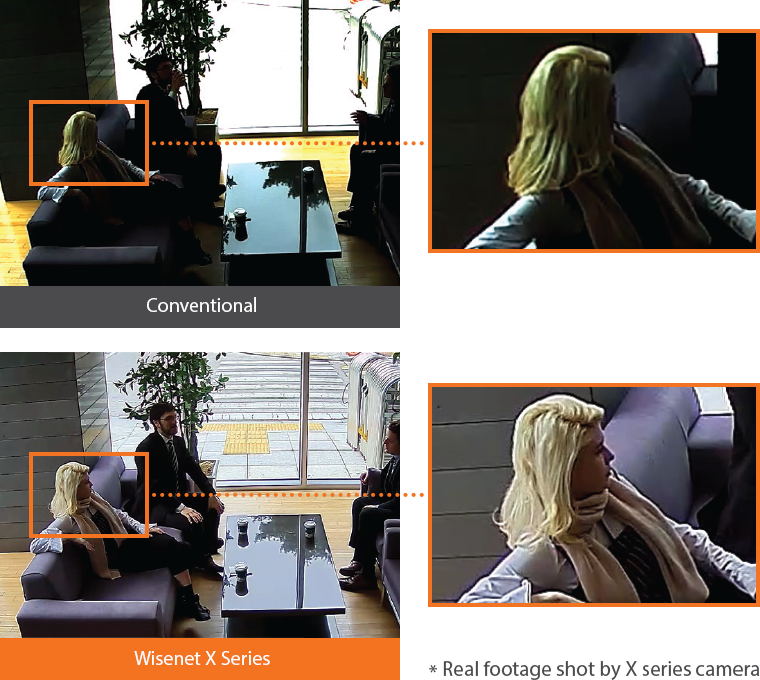

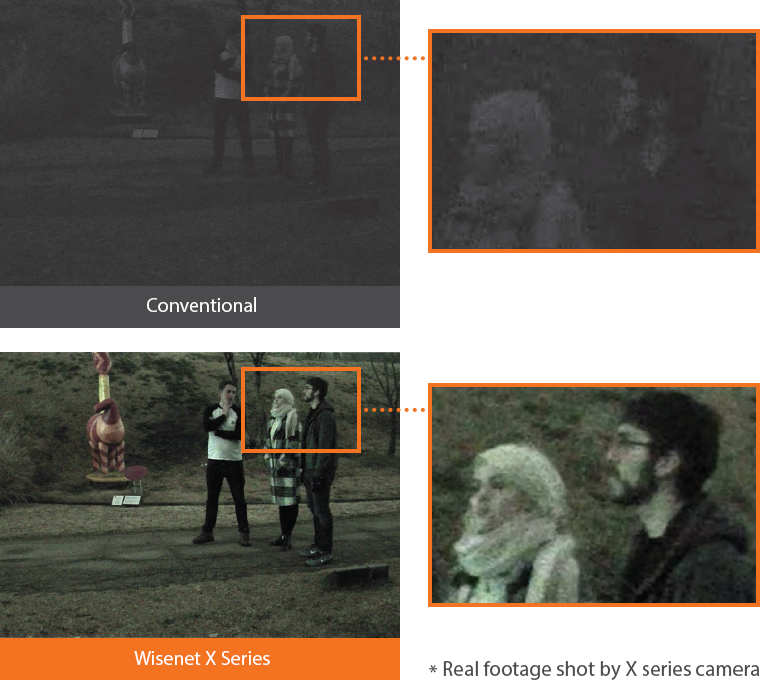

Clearer, sharper images in low light environments

Wisenet X series achieves optimal performance in low-light conditions by capturing and producing crystal-clear images regardless of the environment or time of day. To extend the excellence of Wisenet X series, the new launched extraLUX series is featured with 1/2” CMOS sensor which brings much improved quality making image clearer and sharper. Particularly, Dome and bullet models took F0.94 lens which makes it possible to offer clear and colored image in low light environment.

White paper White Paper Demo Video Demo Video

Digital Image Stabilization with built-in gyro sensor

Advances in Wisenet image stabilization technology allow for the reduction of motion blur caused by wind or vibration. A gyroscopic sensor plus DIS technology is specifically designed and engineered into select Wisenet X series cameras resulting in sharp, stable images.

Demo Video Demo Video

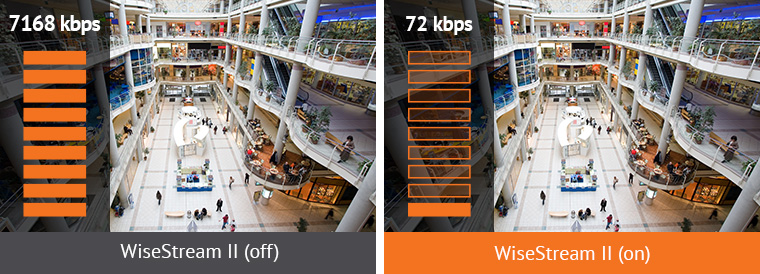

Improve bandwidth by up to 99% using WiseStream II

Using WiseStream II, Hanwha Techwin’s original video compression technology, the Wisenet X series reduces data by up to 99% compared to current H.264 tech-nology. when combined with H.265 compression. System costs are also greatly reduced without comprising image quality.

White paper White Paper Demo Video Demo Video

More convenient installation with USB

Wisenet X series can connect cameras and mobile devices through USB and Wi-Fi. View angles can be checked immediately after installation using a mobile device. No additional devices are required, saving you time and money.

White paper White Paper Demo Video Demo Video

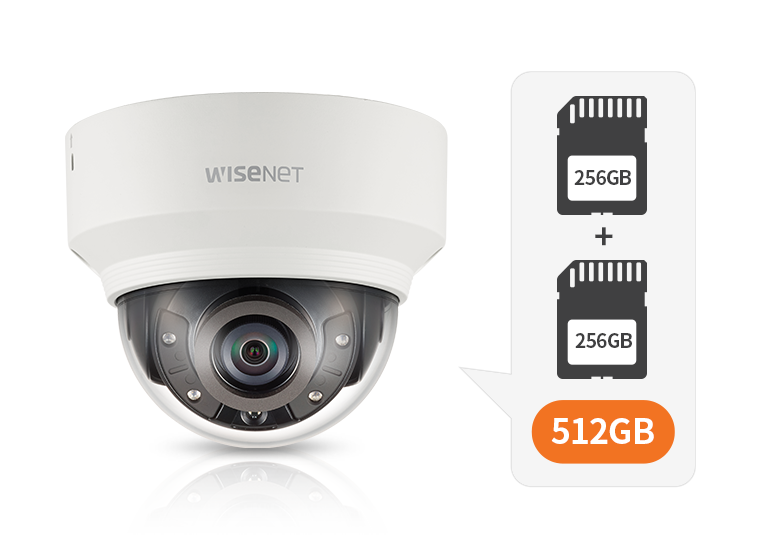

Dual SD slots

Dual SD slots allow up to 512 GB to be saved automatically to the camera, keeping data safe in the event of an unstable network. Obviously this allows to record more video footage than single SD slot.

Enhanced Video and Audio Analytics

Wisenet X series support a variety of exclusive Video and Audio Analytics, providing enhanced monitoring solutions and market intelligence.

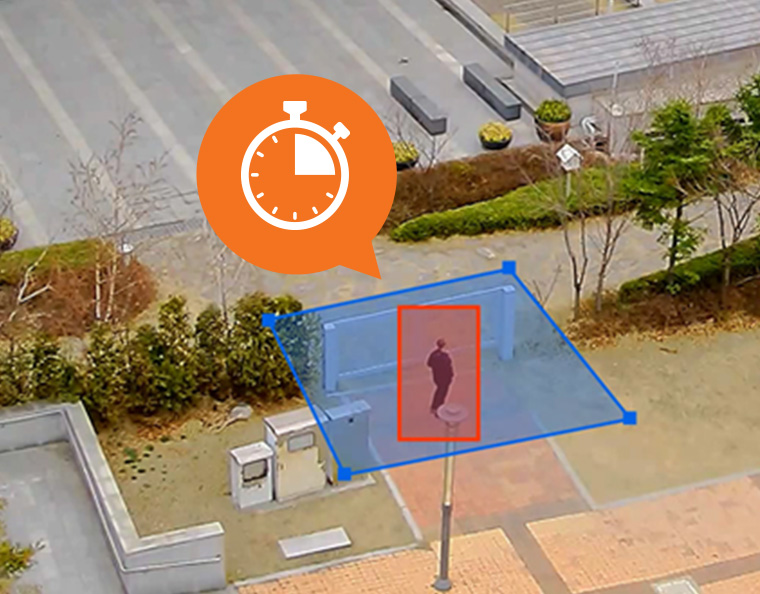

Loitering detection
This feature detects when an object remain in a designated area longer than the time threshold set by user.
Demo Video Demo Video

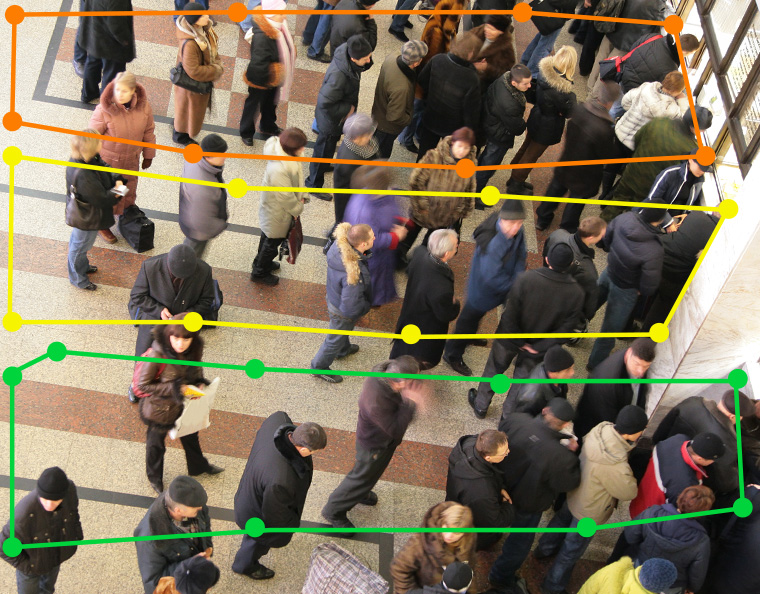

Queue management
This feature provides statistical analysis and measurement for average dwell time and number of people in queues. This insight is critical for business to manage their operations more efficiently, while providing the insight necessary to manage campaigns, displays and promotions throughout retail locations.
Demo Video Demo Video

Sound classification
Wisenet X series camera help user respond immediately in case of situation in danger, so that can classify sound such as gunshot, glass breakage, scream and explosion.
Demo Video Demo Video

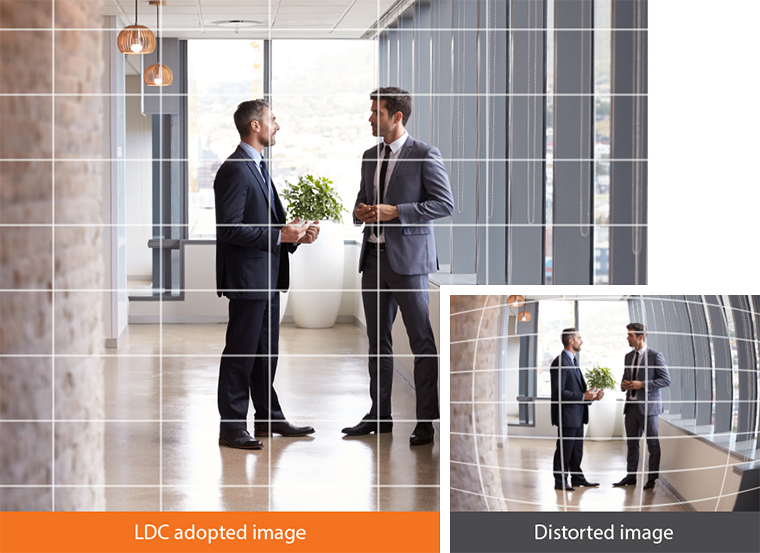

Minimize image distortion by Lens Distortion Correction

Lens Distortion may typically appear in videos causing straight lines close to the edge curve outwards. With the Lens Distortion Correction technology available on the Wisenet X series, imperfections in images can be easily repaired.

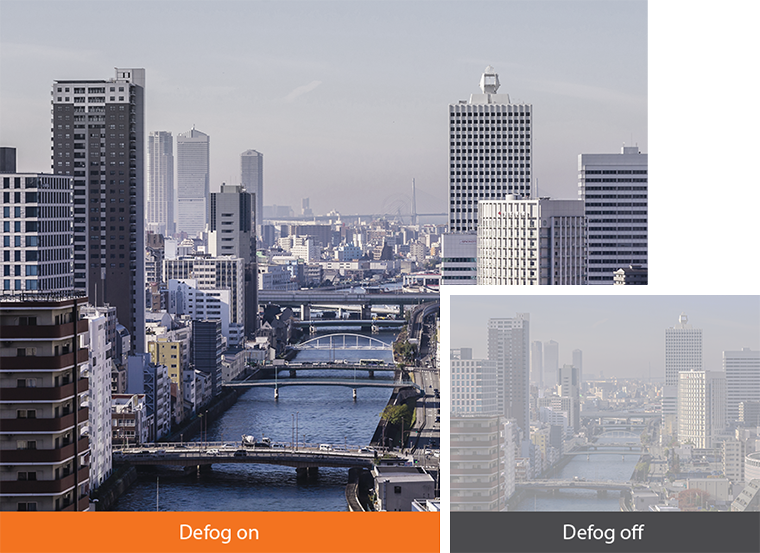

Fog Detection

Wisenet X series delivers outstanding image quality in foggy weather with Fog Detection. Any change in an image is automatically deleted with the defog function to provide a clear image.

White paper White Paper

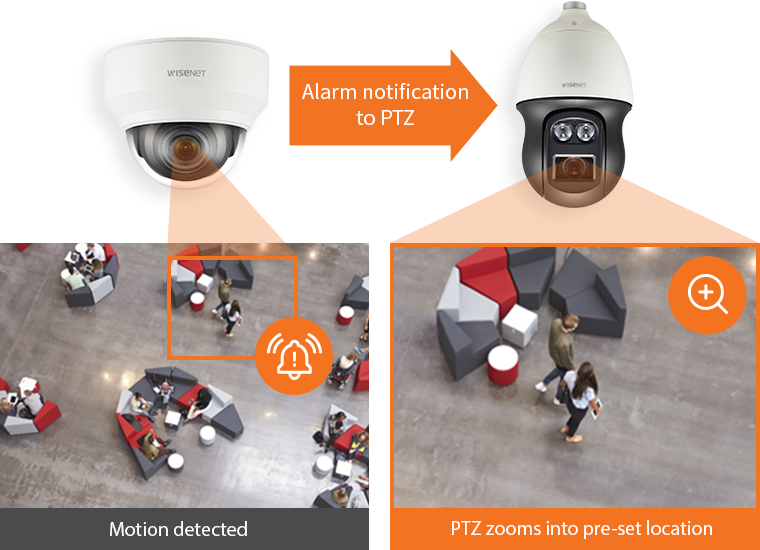

Handover to PTZ

This feature to receive an alarm(motion detection) from Wisenet X series camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. This feature improves the efficiency of the surveillance system by decreasing the reliance on the system operator on tracking events, and by increasing the likelihood that critical events in a surveillance area will be captured and recorded.

Demo Video Demo Video

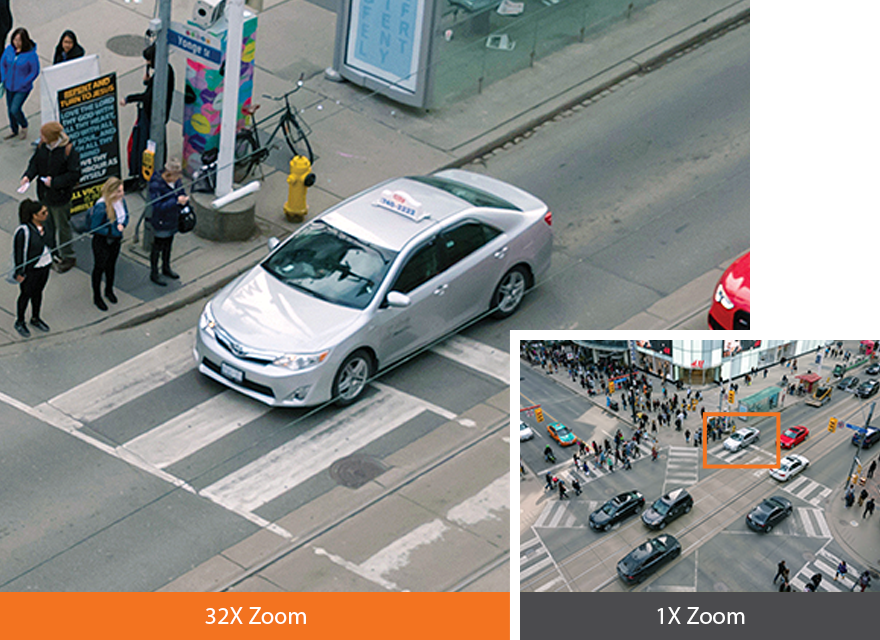

Capture details with 2MP 32x optical zoom

The powerful 2MP optical 32x (4.44~142.6mm) camera is built in the weather proof enclosure. 32x optical zoom and 16x digital zoom helps users to see more further and clearly, capturing everything with sharpness without losing detail.

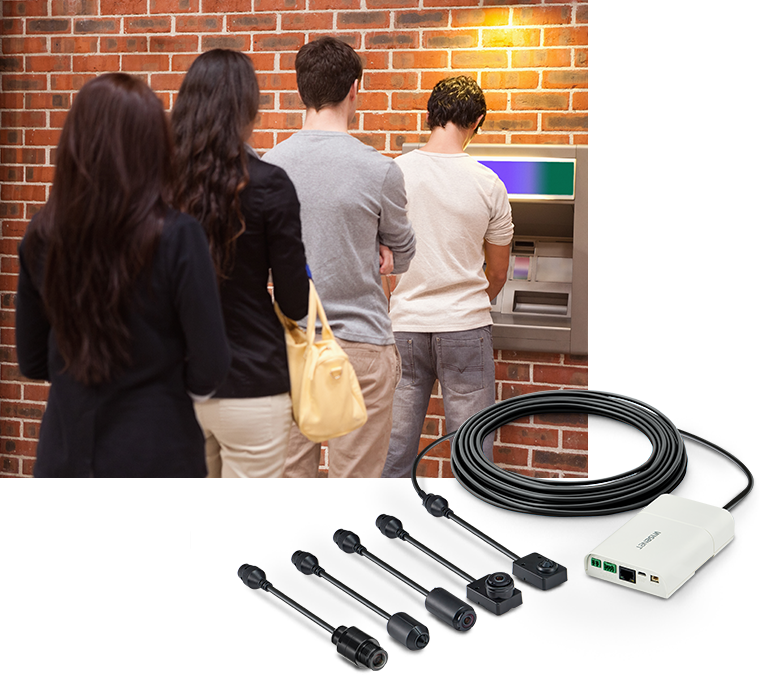

High performance with discreet design

The palm sized XNB-6001 camera has been developed to be used in applications which needs discreet surveillance such as bank, retail stores and museums. The covert camera offers high resolution images, capturing the smallest details while blending into diversified environments.

High reliability from rugged design

All equipment installed on vehicles is required various industrial grade standards. Specially designed video surveillance products for vehicles comply to all necessary industrial standards such like EN 50155 and EN 50121-3-2. Also IP66 and IK10 grade products allow customers to install them for outdoor environment.

Protection against tough environment

Wisenet adopted austenite grade 316L stainless steel that provides high toughness, from elevated temperatures up to 55°C (131°F) to far blow freezing down to -40°C (-40°F) . Wisenet stainless steel cameras provide not only long term value by preventing rapid deterioration and premature replacement, also hygiene conditions and aesthetic appearance.

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.03Lux(F1.6, 1/30sec)
BW: 0.003Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide) ~ F2.9(Tele)
Angular Field of View H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~354° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Motion detection, Tampering
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Handover
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max. 11W, typical 5W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø160x118.5mm(Ø6.3x4.67"), 940g(2.1 lb)
