Network Cameras

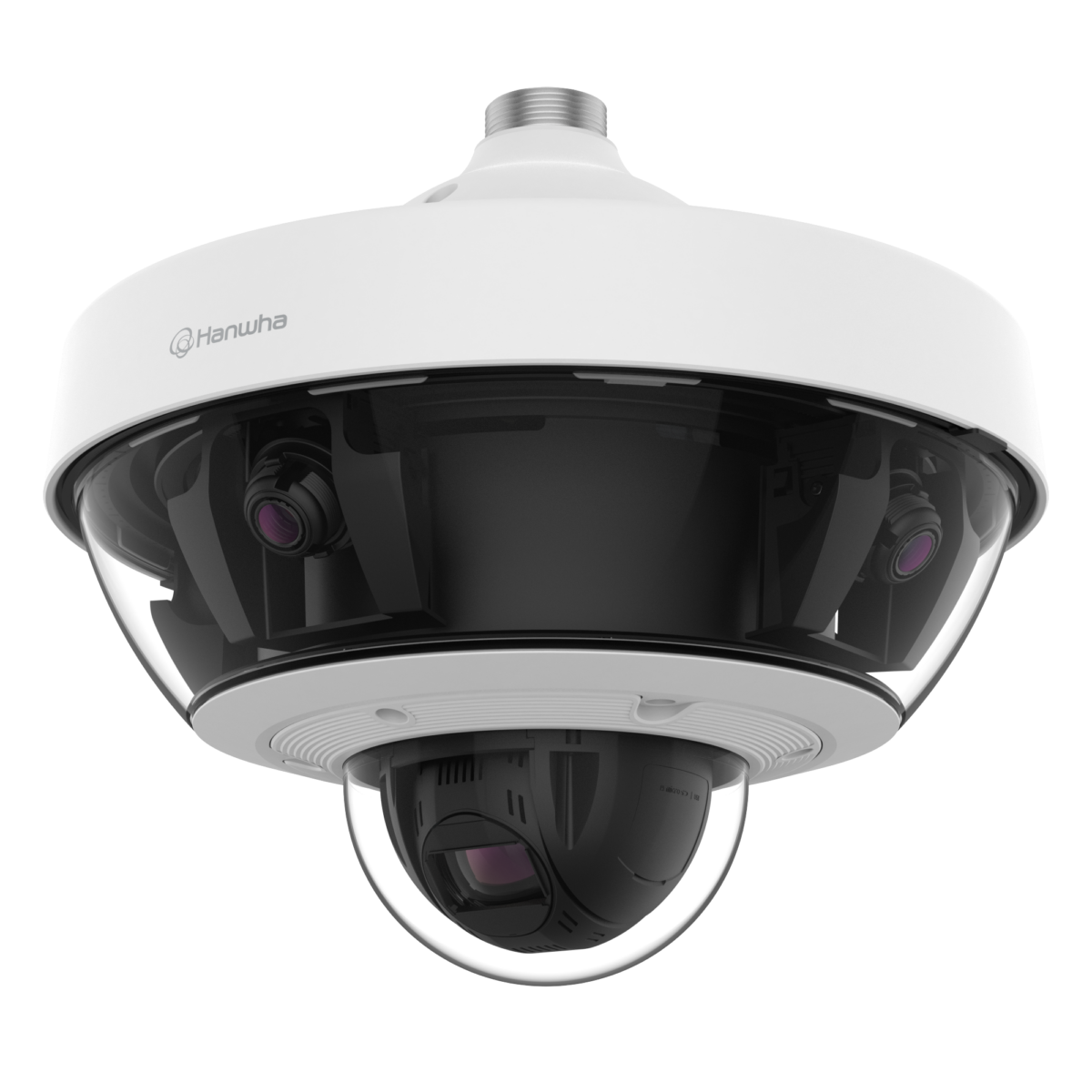

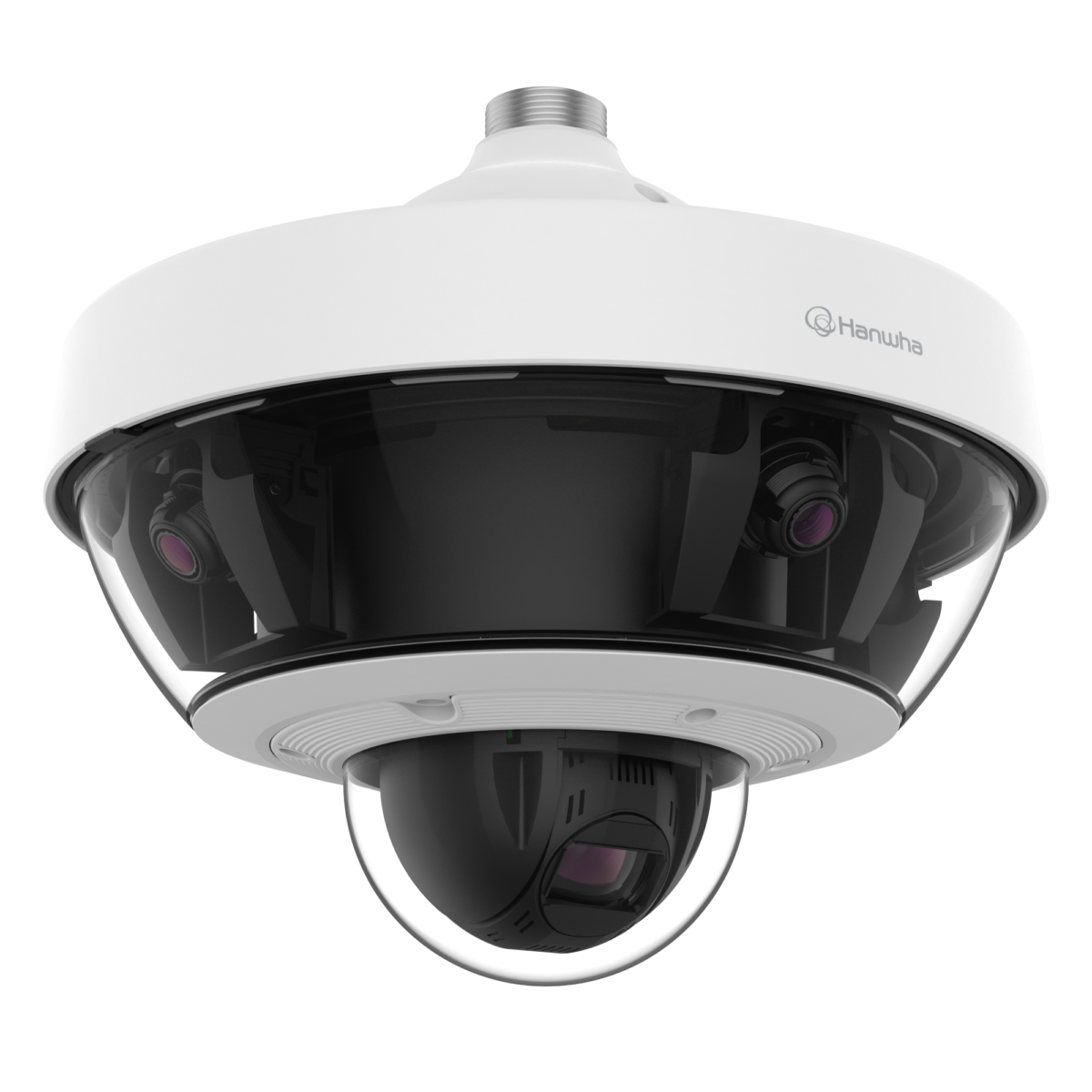

PNM-9322VQP
2MP/5MP x 5CH Multi-directional Camera
Key Features
• Exchangeable 4ea x 2M / 5M lens modules
• 10M to 22M resolution (depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2M, 120dB with 5M lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
• 3.7mm, 4.6mm, 7mm fixed lens (5M module)
• H.265, H.264, MJPEG codec,WiseStreamⅡ
• IP66, IK10, SD / SDHC / SDXC memory 5 slots
• 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)
• New install base design
• 10M to 22M resolution (depend on the combination of lens modules)
• Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)
• WDR 150dB with 2M, 120dB with 5M lens module
• 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)
• 3.7mm, 4.6mm, 7mm fixed lens (5M module)
• H.265, H.264, MJPEG codec,WiseStreamⅡ
• IP66, IK10, SD / SDHC / SDXC memory 5 slots
• 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)
• New install base design
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
Never Miss a thing
Wisenet Multi-directional plus
PTZ camera
PNM-9322VQP
PTZ camera
PNM-9322VQP
4 + 1 cameras in one
Multi-directional plus PTZ camera has five sensors in one camera. When using the camera you can monitor a 360° wide area simultaneously with multi-directional camera while the PTZ camera zooms into the desired area for closer inspection. The four sensors in the multi-directional camera move independently of one another.
Advance handover to PTZ
When the multi-directional camera detects an event, it automatically links to PTZ camera which carries out zoom-in and track functions. When using preset mode, PTZ camera zooms in to the position that the users preset, while smart zoom mode automatically zooms into the area where event is detected.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
True WDR(150dB with 2MP and 120dB with 5MP)
Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.
Hallway View
In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.
A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.
Selectable and changeable multiple lens (PNM-9322VQP only)
Users can choose a wide variety of lenses from 2M 2.4mm to 5M 7.0mm for PNM-9322VQP to create the most optimal field of view for their desired monitoring areas. Choose the 4 lenses of your choice and create a combination of lens module up to 20MP resolution for multi-directional camera.
1/2.8” 2M CMOS
 |
 |
 |
|
| Lens | SLA-2M2400P | SLA-2M2800P | SLA-2M3600P |
| Focal Length (Zoom Ratio) |
2.4mm | 2.8mm | 3.6mm |
| Angular Field of View | H : 135.4˚ V : 71.2˚ D : 161.6˚ |
H : 107.4˚ V : 62.2˚ D : 122.0˚ |
H : 94.8˚ V : 49.3˚ D : 114.3˚ |
 |
 |
||
| Lens | SLA-2M6000P | SLA-2M1200P | |
| Focal Length (Zoom Ratio) |
6mm | 12mm | |
| Angular Field of View | H : 50.4˚ V : 28.8˚ D : 58.1˚ |
H : 26.3˚ V : 14.9˚ D : 30.0˚ |
|
|
|
| Lens | SLA-2M2400P | SLA-2M2800P |
| Focal Length (Zoom Ratio) |
2.4mm | 2.8mm |
| Angular Field of View | H : 135.4˚ V : 71.2˚ D : 161.6˚ |
H : 107.4˚ V : 62.2˚ D : 122.0˚ |
|
|
|
| Lens | SLA-2M3600P | SLA-2M6000P |
| Focal Length (Zoom Ratio) |
3.6mm | 6mm |
| Angular Field of View | H : 94.8˚ V : 49.3˚ D : 114.3˚ |
H : 50.4˚ V : 28.8˚ D : 58.1˚ |
|
||
| Lens | SLA-2M1200P | |
| Focal Length (Zoom Ratio) |
12mm | |
| Angular Field of View | H : 26.3˚ V : 14.9˚ D : 30.0˚ |
1/1.8” 5M CMOS
 |
 |
 |
|
| Lens | SLA-5M3700P | SLA-5M4600P | SLA-5M7000P |
| Focal Length (Zoom Ratio) |
3.7mm | 4.6mm | 7.0mm |
| Angular Field of View | H : 97.5˚ V : 71.9˚ D : 126.2˚ |
H : 77.9˚ V : 57.9˚ D : 98.7˚ |
H : 50.7˚ V : 37.8˚ D : 63.8˚ |
|
|
|
| Lens | SLA-5M3700P | SLA-5M4600P |
| Focal Length (Zoom Ratio) |
3.7mm | 4.6mm |
| Angular Field of View | H : 97.5˚ V : 71.9˚ D : 126.2˚ |
H : 77.9˚ V : 57.9˚ D : 98.7˚ |
|
||
| Lens | SLA-5M7000P | |
| Focal Length (Zoom Ratio) |
7.0mm | |
| Angular Field of View | H : 50.7˚ V : 37.8˚ D : 63.8˚ |
Product Specification
| Video | |
|---|---|
| Imaging Device | 1~4CH: Optional lens / 5CH: 1/2.8" CMOS |
| Resolution | [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz), 5MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1~4CH: Optional lens / 5CH: 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | 1~4CH: Optional lens / 5CH: F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | 1~4CH: Optional lens / 5CH: H 61.8°(Wide)~2.19°(Tele), V 36.2°(Wide)~1.24°(Tele) |
| Min. Object Distance | 1~4CH: Optional lens / 5CH: Wide:1.5m, Tele:2m |
| Focus Control | 1~4CH: Optional lens / 5CH: Oneshot AF |
| Optional Lens | SLA-2M2400P(2MP 2.4mm) SLA-2M2800P(2MP 2.8mm) SLA-2M3600P(2MP 3.6mm) SLA-2M6000P(2MP 6.0mm) SLA-2M1200P(2MP 12mm) SLA-5M3700P(5MP 3.7mm) SLA-5M4600P(5MP 4.6mm) SLA-5M7000P(5MP 7.0mm) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 1~4CH: Optional lens / 5CH: 360° Endless / 190˚ (-5˚~185˚) |
| Pan Speed | 5CH: Preset:700°/sec, Manual:0.024°/sec~200°/sec |
| Tilt Speed | 5CH: Preset:700°/sec, Manual:0.024°/sec~200°/sec |
| Sequence | 5CH: Preset(300ea), Swing, Group(128ea), Trace(4ea), Tour, Auto run, Schedule |
| Preset Accuracy | 5CH: ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | 1~4CH: Auto(Electrical), 5CH: Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 2MP 150dB, 5MP 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 1~4CH: 32ea, 4point quadrangle zones / 5CH: rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) - PTZ(CH5) only Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms - PTZ(CH5) only |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, NEMA 4X, IK10 |
| Input Voltage | HPoE(IEEE802.3bt, Class 8) |
| Power Consumption | HPoE: Max 65W, Typical 34W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø367.8x335.7mm(Ø144.8"x132.2") / 7.05kg(15.54lb) |
Compatible lenses
| Video | SLA-2M2800P | SLA-2M2400P | SLA-2M3600P | SLA-2M1200P | SLA-5M3700P | SLA-5M4600P | SLA-5M7000P | SLA-2M6000P |
|---|---|---|---|---|---|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | 1/2.8" 2MP CMOS | 1/2.8" 2MP CMOS | 1/2.8" 2MP CMOS | 1/2.8" 5MP CMOS | 1/2.8" 5MP CMOS | 1/2.8" 5MP CMOS | 1/2.8" 2MP CMOS |
| Effective Pixels | 1945(H)x1109(V) | 1945(H)x1109(V) | 1945(H)x1109(V) | 1945(H)x1109(V) | 2616(H) x 1976(V) | 2616(H) x 1976(V) | 2616(H) x 1976(V) | 1945(H)x1109(V) |
| Min. Illumination | Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
Color: 0.16Lux(F2.0, 1/30sec) B/W: 0.16Lux(F2.0, 1/30sec) |
Color: 0.16Lux(F2.0, 1/30sec) B/W: 0.16Lux(F2.0, 1/30sec) |
Color: 0.16Lux(F2.0, 1/30sec) B/W: 0.16Lux(F2.0, 1/30sec) |
Color: 0.055Lux(F2.0, 1/30sec) B/W: 0.055Lux(F2.0, 1/30sec) |
| Lens | ||||||||
| Focal Length (Zoom Ratio) | 2.8mm fixed focal | 2.4mm fixed focal | 3.6mm fixed focal | 12.0mm fixed focal | 3.7mm fixed focal | 4.6mm fixed focal | 7.0mm fixed focal | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 | F2.0 | F2.0 | F2.0 | F1.6 | F1.6 | F1.6 | F2.0 |
| Angular Field of View | H:107.4°, V:62.2°, D:122.0° | H:135.4°, V:71.2°, D:161.6° | H:94.8°, V:49.3°, D:114.3° | H: 26.3° V: 14.9° D: 30.0° | H: 97.5˚, V: 71.9˚, D: 126.2˚ | H: 77.9˚, V: 57.9˚, D: 98.7˚ | H: 50.7˚, V: 37.8˚, D: 63.8˚ | H:50.4°, V:28.8°, D:58.1° |
| Focus Control | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Pan / Tilt / Rotate | ||||||||
| Pan / Tilt / Rotate Range | -90°~+90° / +26~+80° / -180°~+180° | -90°~+90° / +52~+56° / -180°~+180° | -90°~+90° / +22~+84° / -180°~+180° | -90°~+90° / +10~+97° / -180°~+180° | -90˚~+90˚ / +36˚~+73˚ / -180˚~+180˚ | -90˚~+90˚ / +21˚~+85˚ / -180˚~+180˚ | -90˚~+90˚ / +12˚~+93˚ / -180˚~+180˚ | -90°~+90° / +10~+95° / -180°~+180° |
| Mechanical | ||||||||
| Color / Material | Black / Plastic | Black / Plastic | Black / Plastic | Black / Plastic | Black / Plastic | Black / Plastic | Black / Plastic | Black / Plastic |
| Product dimensions / weight | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g | Ø35.5x35.9mm, 30g |
Related Products
SLA-2M2800P
2M Lens Module for PNM-9320VQP
SBP-300PM
Pole Mount
SBP-300KM
Corner Mount for SBP-300WM
SLA-2M2400P
2M Lens Module for PNM-9320VQP
SLA-2M3600P
2M Lens Module for PNM-9320VQP
SLA-2M1200P
2M Lens Module for PNM-9320VQP
SLA-5M3700P
5M Lens Module for PNM-9320VQP
SLA-5M4600P
5M Lens Module for PNM-9320VQP
SLA-5M7000P
5M Lens Module for PNM-9320VQP
SLA-2M6000P
2M Lens Module for PNM-9320VQP
SBP-390WM2
Wall Mount
Series | P series
PNM-C16013RVQ
4CH mini AI Camera
PNM-C34404RQPZ
4K 4Ch PTRZ + 2MP 40x PTZ AI Camera
PNM-C9022RV
8MP IR Panoramic Camera

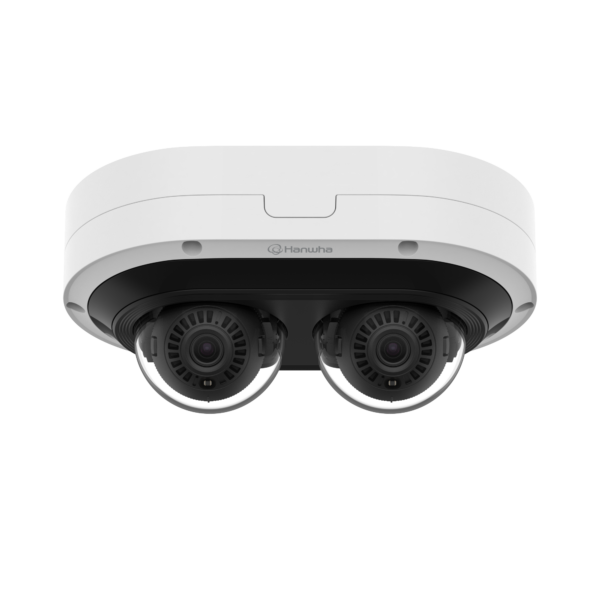

PNM-12082RVD
6MP x 2CH Multi-directional Camera
PNM-7082RVD
2MP x 2CH Multi-directional Camera

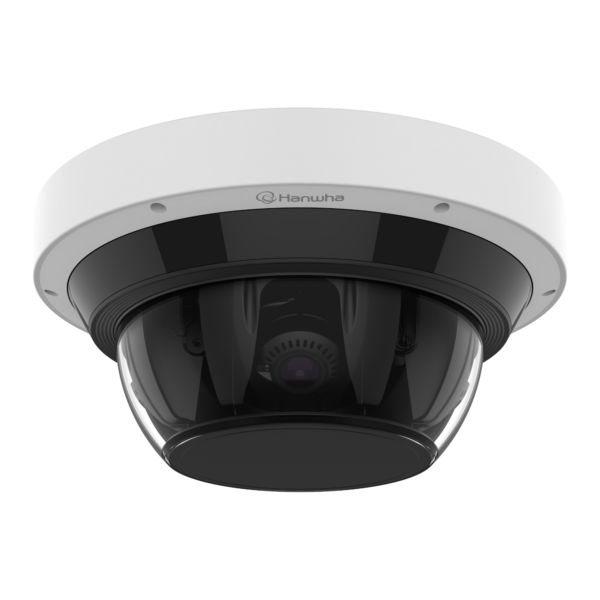

PNM-9085RQZ1
5MP x 4CH IR PTRZ Multi-directional Camera
PNM-9084RQZ1
2MP x 4CH IR PTRZ Multi-directional Camera
PNM-9084QZ1
2MP x 4CH PTRZ Multi-directional Camera
PNM-C12083RVD
6MP x 2CH AI Multi-directional Camera
PNM-C7083RVD
2MP x 2CH AI Multi-directional Camera
PNM-9022V
2MP Panoramic Camera
PNM-9000QB
2MP x 4CH Remote Head Camera
PNM-8082VT
2MP x 3ch Multi-directional Camera
PNM-9002VQ
2MP/5MP x 4CH Multi-directional Camera
PNM-9000VD
5MP x 2CH Multi-directional Camera

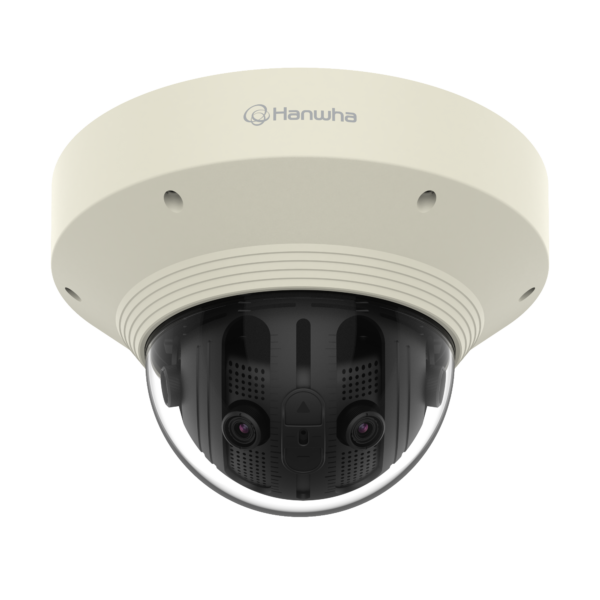

PNM-9030V
