Network Cameras

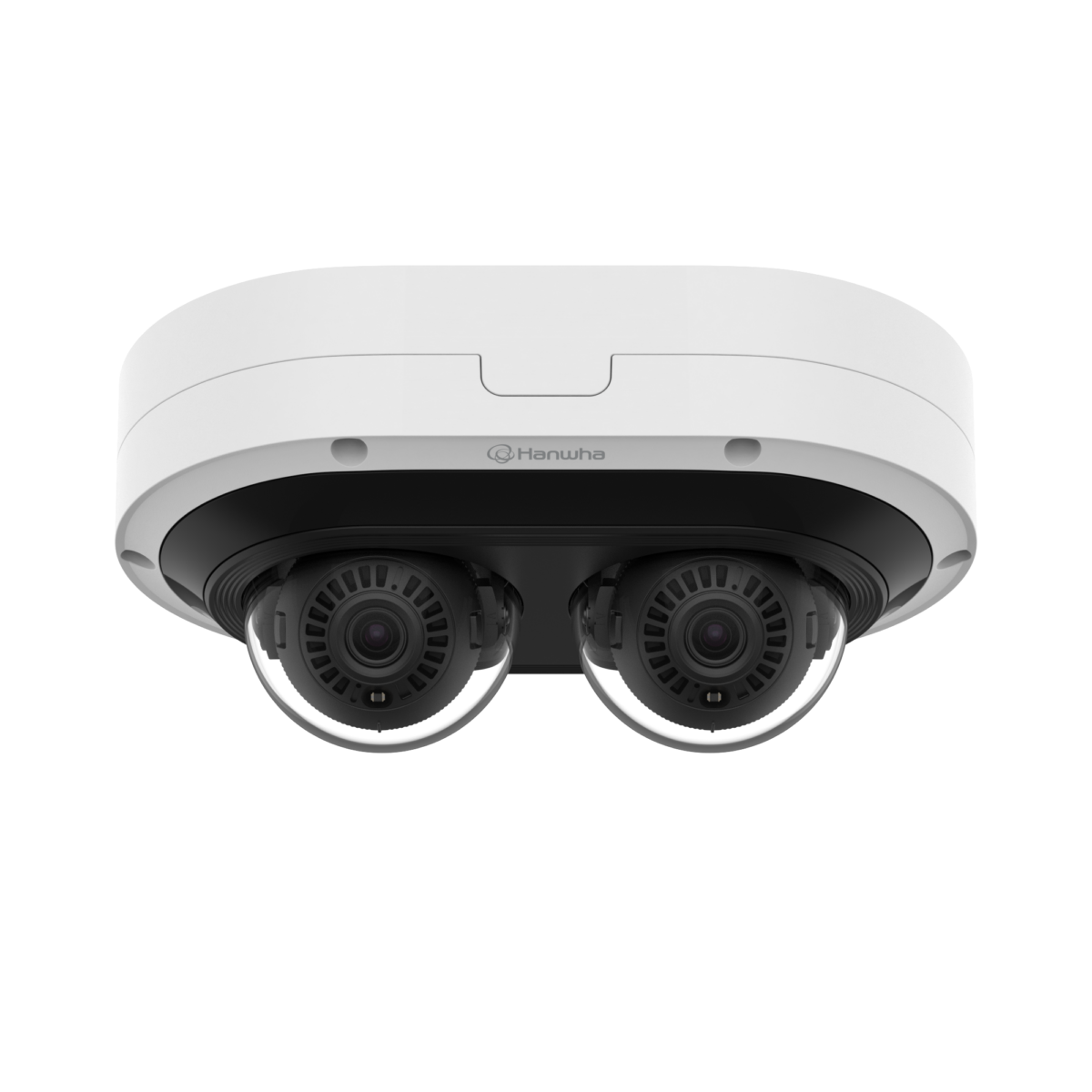

PNM-C12083RVD

6MP x 2CH AI Multi-directional Camera

Key Features
• Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License plate)
Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
Support BestShot
• WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
• Maximum 3328x1872 resolution
• Maximum 15fps@6M
• Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3.54~6.69mm motorized varifocal, 78° tilt angle
• IR viewable length: IR 25m(82ft) based on scene
• TPM 2.0(FIPS 140-2 certified)
• IP66, IK10, NEMA4X
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS x 2CH
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: 6MP Max.15fps
MJPEG: Max.15fps
Min. Illumination Color: 0.16lux(F1.67, 1/30sec, 30IRE)
BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on)
Video Out USB: micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.54~6.69mm(1.9x) motorized varifocal
Max. Aperture Ratio F1.67(Wide)~F2.64(Tele)
Angular Field of View H: 96˚(Wide)~47˚(Tele)
V: 51˚(Wide)~26˚(Tele)
D: 113˚(Wide)~54˚(Tele)
Min. Object Distance 1.5m(4.92ft)
Focus Control Simple focus
Lens Type Fixed IRIS
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~355° / 0~78° / 0~180°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 6ea, Quadrangle zones
- Color : Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Auto prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view (90°/270°) - Each channel separately
Analytics Classified object type : Person/Face/Vehicle/License plate
Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support Bestshot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events*
- Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)

* Support Audio detection, Sound classification via optional SPM-4210 I/O box
Alarm I/O * Support Alarm via optional SPM-4210 I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Alarm output via optional SPM-4210 I/O box
Audio In * Audio in via optional SPM-4210 I/O box
Audio Out * Audio out via optional SPM-4210 I/O box
IR Viewable Length 15m(49ft)
25m(82ft) based on scene
Network
Ethernet Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
5 profiles per channel
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure by default certificate
Secure OS/Boot/Storage, Verify firmware forgery
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66/IP67, NEMA4X, IK10
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 21W, typical 16.5W
Mechanical
Color / Material White / Aluminum
Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g
Compatible Conduit hole / Gangbox 1/2" (M20)
single, double, 4" octagon, 4" square
Hanging Mount (Dome) SBP-215HMW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft)
Observe (63PPM/ 19PPF) Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft)
Recognize (125PPM/ 38PPF) Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft)
Identify (250PPM/ 76PPF) Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft)
