Network Cameras NEW

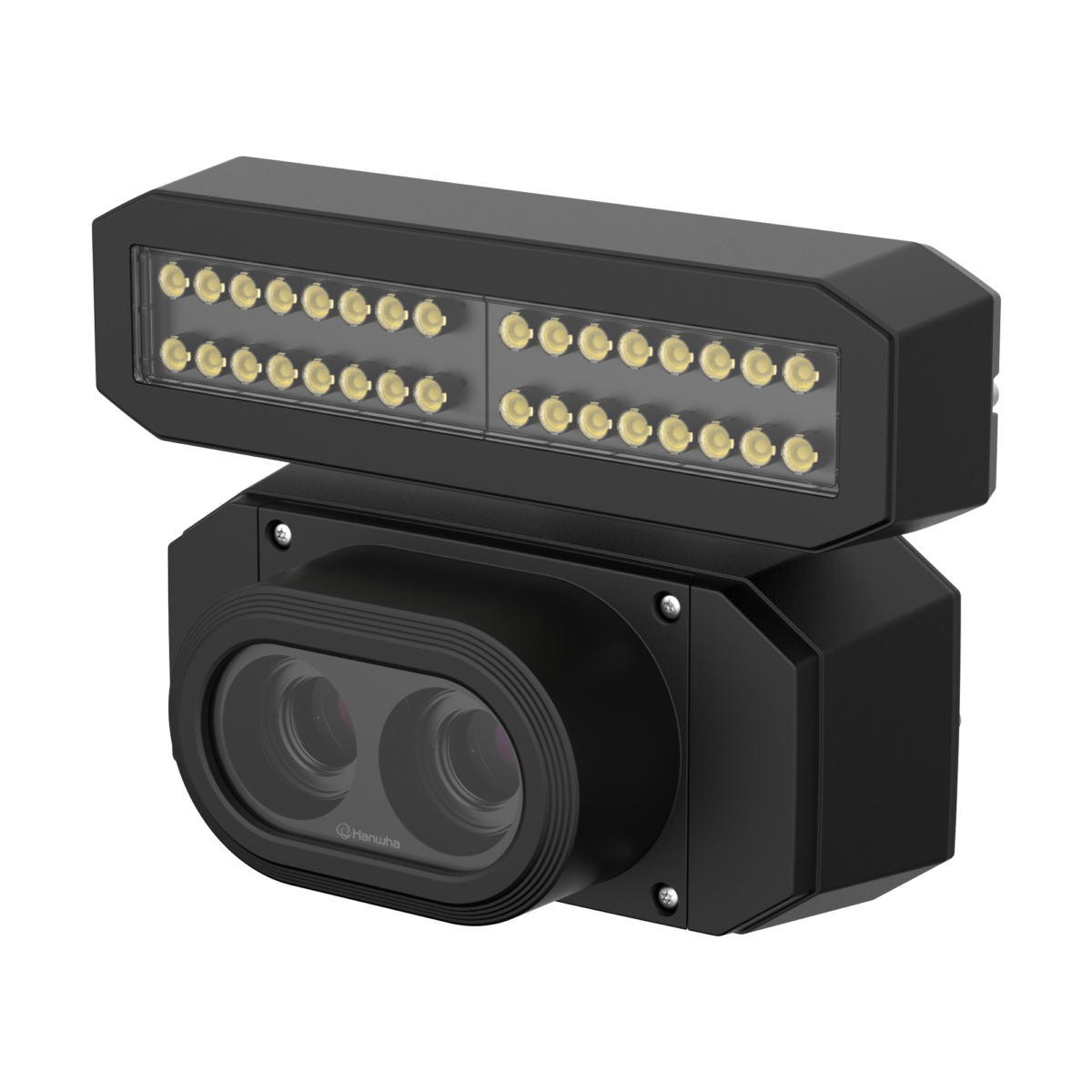

TNS-9040IBC

Dual Sensor BCR camera

Key Features
• Dual Global Sensor for Barcode Reading and Video Monitoring
- MONO 4K 1” + COLOR 4K 1”
• 16mm Fixed (Ultra-Wide FoV)
• AI barcode location search
- Track barcodes on high speed conveyor belt moving at 2m/s(6.5ft/s)
• 1D Code is available (Code128 / Code93/ Codabar / Interleaved 2 of 5 / UPC / EAN)
• Reinforced durability
- IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
- Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
- EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Barcodes and video are provided in real-time from one camera

TNS-9040IBC, Dual Lens BCR Camera

Barcode reading cameras, fixed mount

Accurate barcode recognition, even on high-speed conveyors.
Logistics automation offers greater reliability and reduced mis-delivery as well as increased parcel capacity and optimized resources. Combining barcode data and videos provides efficient parcel tracking and management.

Integration with High-resolution video

Combining video surveillance with barcode-based logistics systems enables users to track the entire logistics process, preventing parcel incidents such as loss, damage, etc.

  • Scan barcodes from a single camera and record high-resolution video at the same time.
  • With high-resolution videos and precise time synchronization, verify the status and journey of parcels.
  • Manage the movement history and footage of parcels via Vision Logistics Tracking Software

Vision Logistics Tracking Software

Product Specification

Video
Imaging Device Global Shutter Mono 1" CMOS
Global Shutter Color 1" CMOS
Resolution Mono: Max 4096x2160
Color: Max 4096x2160
Max. Framerate Mono: Max 20fps
Color: Max 20fps
Pixel size 3.45μm(H)×3.45μm(V)
Lens
Focal Length (Zoom Ratio) 16mm
Max. Aperture Ratio Mono: F8.0
Color: F8.0
Angular Field of View Mono: H47.5° / V26.9° / D53.2°
Color: H47.5° / V26.9° / D53.2°
Min. Object Distance 0.15m (0.49ft)
Focus Control Manual
Lens Type Manual
Mount Type C Mount
Operational
Camera Title Displayed up to 85 characters
Digital Noise Reduction SSNRⅤ
Gain Control - Manual
- 0~48dB
White Balance AWC / Manual
Electronic Shutter Speed - Manual
- 1/10,000~1/30s (100us ~ 33.33ms)
Video Rotation Flip, Mirror
Analytics Barcode recognition
- Barcode type: 1D Code, Code128 / CODE39 / CODE93 / Codabar / ITF(Interleaved 2 of 5) / UPC / EAN
Light Type White LED 32ea
Network
Ethernet M12 8pin connector (10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast

Mono:
(1) 4096x2160 @ 15/18/20fps all codec
Color:
(1) 4096x2160 @ 15/18/20fps all codec
(2) 640x360 @ 15/18/20fps all codec
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour,
SRTP (TCP, UDP Unicast)
Security OS / Firmware Protect: Secure boot, Verify firmware forgery, Firmware encryption
User authentication: Digest Authentication, Privent brut-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Websocket secure)
Access Control: IP address filtering
Data Protect: Authentication information encryption, ZIP compression encryption
Audit: User Access/System/Event log
Device ID: Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure Storage: HTPM(Hanwha Trusted Platform Module)
Secure by default
Application Programming Interface SUNAPI(HTTP API)
Wisenet Open Platform
Security
OS / Firmware Protect Secure boot, Signed firmware, Firmware encryption
User authentication Digest Authentication, Privent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control IP address filtering
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log
Device ID Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure Storage HTPM (Hanwha Trusted Platform Module)
Security Certificate Secure by default
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese,
Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Support
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH
* Start up should be done at above -30°C
NEMA TS-2: 74°C - / 0~95% RH
Storage Temperature / Humidity -40°C ~ +60°C(-40°F ~ +140°F) / Less than 95% RH
Certification IP67, IP66, IK10(Exclude Window), NAME 4X
Input Voltage 24VDC
Power Consumption Max 28.6W, Typical 13.7W
* Max: LED On
Typical: LED Off
Mechanical
Color / Material Black / Aluminum
RAL Code RAL9005
Product Dimensions / Weight Camera: 218x104.1x127.1mm, 1897g
LED: 255.8x73.8x49.8mm, 996g
Total: 255.8x181x127.1mm, 3438g(with install bracket)
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
KS C 9832 Class A, KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment EN 60068-2-6 (variation resistance)
EN 60068-2-27 (shock resistance)
NEMA TS-2 2.2.9 (shock resistance)
IEC/EN 60529 IP67, IP66
IEC/EN 62262 IK10
