TNS-9050IBC
Dual Sensor BCR Camera
- MONO 4K 1” + COLOR 4K 1”
• 25mm Fixed (Wide FoV)
• AI barcode location search
- Track barcodes on high speed conveyor belt moving at 2m/s(6.5ft/s)
• 1D Code is available (Code128 / Code93/ Codabar / Interleaved 2 of 5 / UPC / EAN)
• Reinforced durability
- IP66, IP67, IK10, NEMA TS-2 2.2.9, M12 8pin Ethernet connect
- Humidity control with AIR vent, EN 60068-2-6(vibration resistance)
- EN 60068-2-27 (shock resistance), Operating temperature -40°C ~ + 55°C
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
TNS-9050IBC, Dual Lens BCR Camera
Barcode reading cameras, fixed mount
Accurate barcode recognition, even on high-speed conveyors.
Logistics automation offers greater reliability and reduced mis-delivery as well as increased parcel capacity and optimized resources. Combining barcode data and videos provides efficient parcel tracking and management.
Integration with High-resolution video
Combining video surveillance with barcode-based logistics systems enables users to track the entire logistics process, preventing parcel incidents such as loss, damage, etc.
- Scan barcodes from a single camera and record high-resolution video at the same time.
- With high-resolution videos and precise time synchronization, verify the status and journey of parcels.
- Manage the movement history and footage of parcels via Vision Logistics Tracking Software
Product Specification
Video | |
---|---|
Imaging Device | Global Shutter Mono 1" CMOS Global Shutter Color 1" CMOS |
Resolution | Mono: Max 4096x2160 Color: Max 4096x2160 |
Max. Framerate | Mono: Max 20fps Color: Max 20fps |
Pixel size | 3.45μm(H)×3.45μm(V) |
Lens | |
Focal Length (Zoom Ratio) | 25mm |
Max. Aperture Ratio | Mono: F2.8 ~ F16.0 Color: F2.8 ~ F16.0 |
Angular Field of View | Mono: H30.4° / V16.6° / D34.2° Color: H30.4° / V16.6° / D34.2° |
Min. Object Distance | 0.15m (0.492126ft) |
Focus Control | Manual |
Lens Type | Manual |
Mount Type | C Mount |
Operational | |
Camera Title | Displayed up to 85 characters |
Digital Noise Reduction | SSNRⅤ |
Gain Control | - Manual - 0~48dB |
White Balance | AWC / Manual |
Electronic Shutter Speed | - Manual - 1/10,000~1/30s (100us ~ 33.33ms) |
Video Rotation | Flip, Mirror |
Analytics | Barcode recognition - Barcode type: 1D Code, Code128 / CODE39 / CODE93 / Codabar / ITF(Interleaved 2 of 5) / UPC / EAN |
Light Type | White LED 32ea |
Network | |
Ethernet | M12 8pin connector (10/100/1000BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Mono: (1) 4096x2160 @ 15/18/20fps all codec Color: (1) 4096x2160 @ 15/18/20fps all codec (2) 640x360 @ 15/18/20fps all codec |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast) |
Security | OS / Firmware Protect: Secure boot, Verify firmware forgery, Firmware encryption User authentication: Digest Authentication, Privent brut-force attack Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication: HTTPS, SRTP, WSS(Websocket secure) Access Control: IP address filtering Data Protect: Authentication information encryption, ZIP compression encryption Audit: User Access/System/Event log Device ID: Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure Storage: HTPM(Hanwha Trusted Platform Module) Secure by default |
Application Programming Interface | SUNAPI(HTTP API) Wisenet Open Platform |
Security | |
OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
User authentication | Digest Authentication, Privent brute-force attack |
Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
Access Control | IP address filtering |
Data Protect | Authentication information encryption, ZIP compression encryption |
Audit | User Access/System/Event log |
Device ID | Device Certificate(Hanwha Techwin Root CA, pre-installed) |
Secure Storage | HTPM (Hanwha Trusted Platform Module) |
Security Certificate | Secure by default |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Web Viewer | Support |
Memory | 4GB RAM, 512MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH * Start up should be done at above -30°C NEMA TS-2: 74°C - / 0~95% RH |
Storage Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 95% RH |
Certification | IP67, IP66, IK10(Exclude Window), NAME 4X |
Input Voltage | 24VDC |
Power Consumption | Max 28.6W, Typical 13.7W * Max: LED On Typical: LED Off |
Mechanical | |
Color / Material | Black / Aluminum |
RAL Code | RAL9005 |

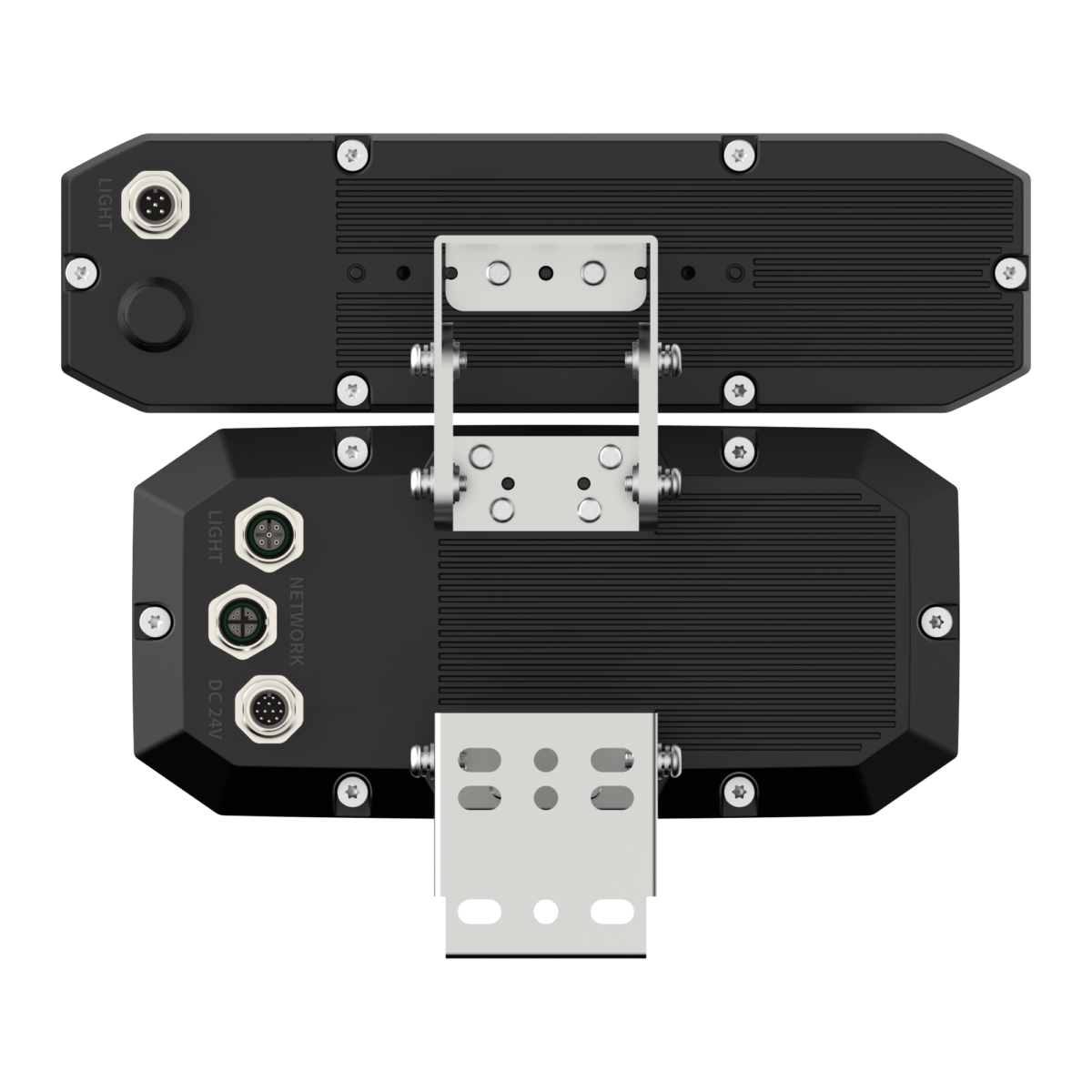

Product Dimensions / Weight | Camera: 218x104.1x127.1mm, 1897g LED: 255.8x73.8x49.8mm, 996g Total: 255.8x181x127.1mm, 3438g(with install bracket) |
Certifications & Standards | |
EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 KS C 9832 Class A, KS C 9835 |
Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
Environment | EN 60068-2-6 (variation resistance) EN 60068-2-27 (shock resistance) NEMA TS-2 2.2.9 (shock resistance) IEC/EN 60529 IP67, IP66 IEC/EN 62262 IK10 |
