Network Cameras

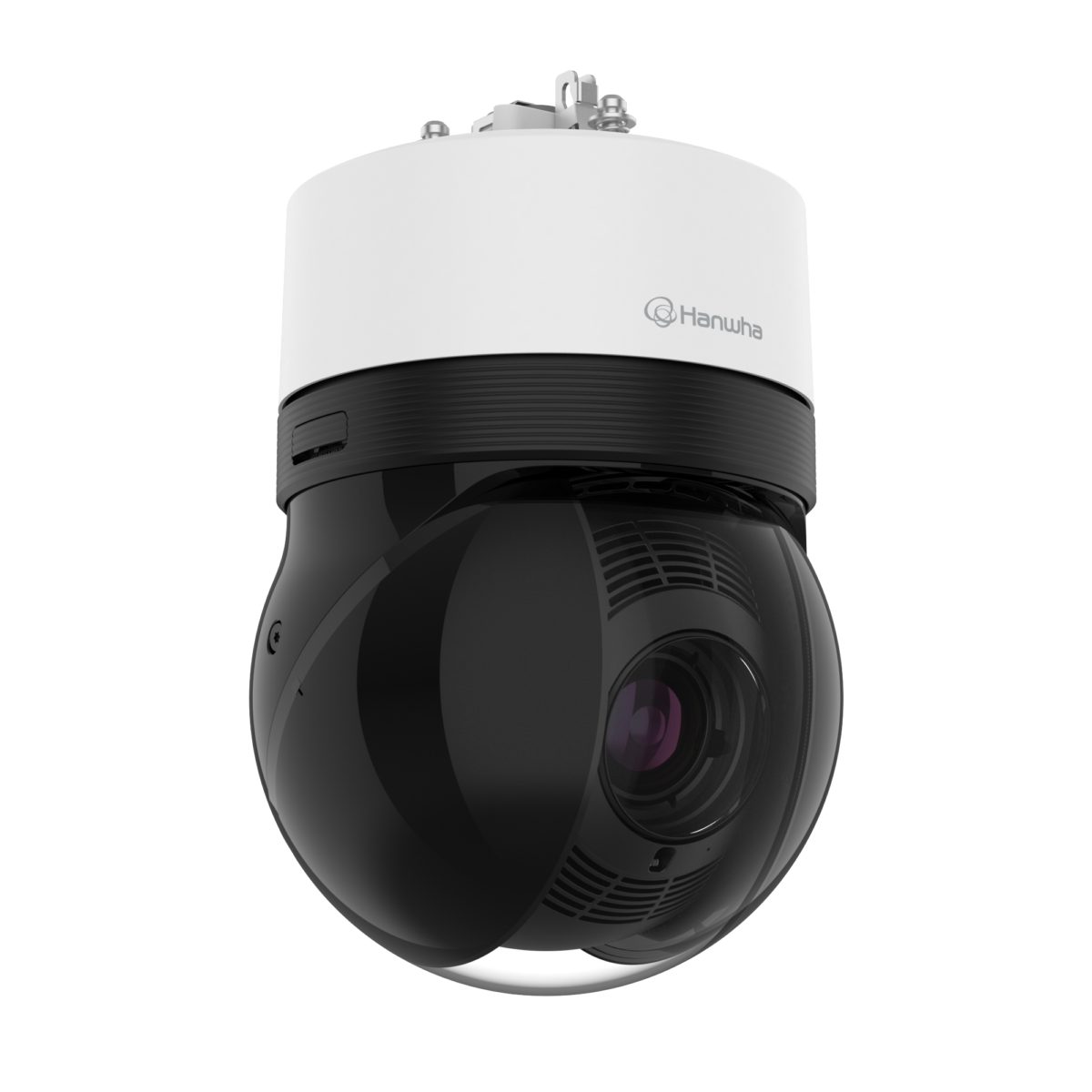

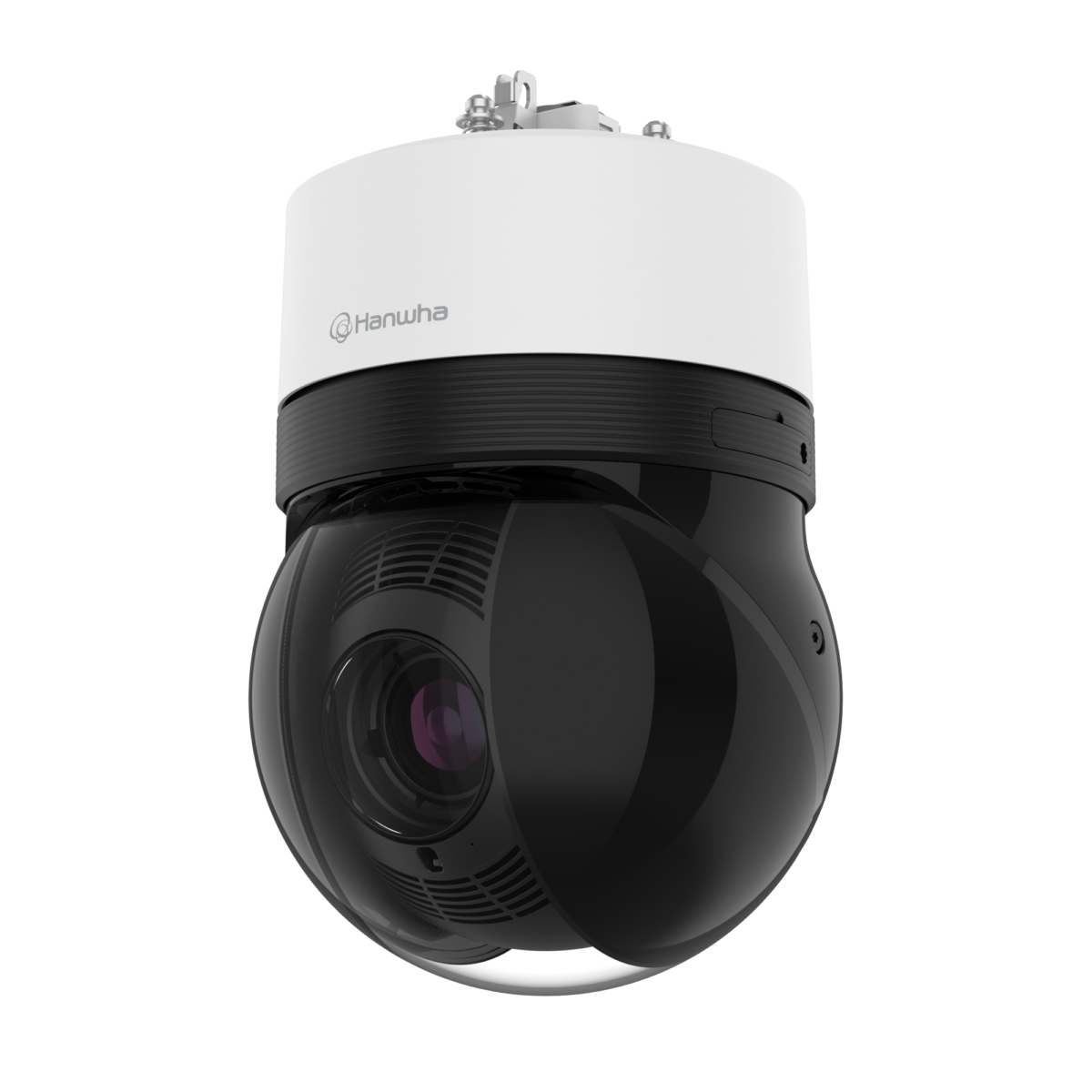

XNP-C9310R
4K 31x AI IR PTZ Camera
Key Features
• Maximum 4K resolution
• 6.91 ~ 214.7mm(31x) motorised varifocal
• IR viewable length Wise IR 250m(820ft)
• Color: 0.06 Lux(F1.36, 1/30sec, 30 IRE) / BW: 0.006 Lux(F1.36, IR LED Off), 0Lux (IR LED On)
• Day & Night(ICR), WDR(120dB), WiseNRⅡ (Using AI engine), prefer shutter
• H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• DIS with built-in Gyro sensor
• Reinforced durability (IP66/IP67, IK10, NEMA4X)
• ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
• Next level cybersecurity (TPM with FIPS 140-2 level2)
• 6.91 ~ 214.7mm(31x) motorised varifocal
• IR viewable length Wise IR 250m(820ft)
• Color: 0.06 Lux(F1.36, 1/30sec, 30 IRE) / BW: 0.006 Lux(F1.36, IR LED Off), 0Lux (IR LED On)
• Day & Night(ICR), WDR(120dB), WiseNRⅡ (Using AI engine), prefer shutter
• H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• DIS with built-in Gyro sensor
• Reinforced durability (IP66/IP67, IK10, NEMA4X)
• ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
• Next level cybersecurity (TPM with FIPS 140-2 level2)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Enhanced PTZ zoom performance with Quick Zoom and Focus Preset
Leveraging AI, AI Focus PTZ cameras retain focus across multiple preset groups, enabling rapid zoom and smooth autofocus transitions during scene changes. This intelligent system utilizes AI to detect human faces and calculate their distance, allowing for immediate focus adjustments.
Elevated PTZ zoom performance with AI Focus Scan
The AI Focus PTZ cameras pre-store information for user-defined primary monitoring areas, and split zones empowers the camera to achieve instant optimal focus upon entering a scanned area. This eliminates focus delays and guarantees consistent visual clarity.
Clear Image Quality with a 1/1.8” sensor
Featuring a 1/1.8” sensor, the AI Focus PTZ camera ensures exceptional image clarity and sharpness even in low-light conditions compared to conventional PTZ cameras using 1/3” sensors. A 1/1.8” sensor can collect much more light than the smaller sensors typically used in conventional PTZ cameras. This means the image noise is reduced and the sharpness is improved in low-light conditions.
AI camera common features
WiseStreamIII
AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.
Learn more
AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.
Learn more
WiseNRII
AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.
Learn more
AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.
Learn more
Prefer Shutter Control
AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.
Learn more
AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.
Learn moreProduct Specification
| Video | |
|---|---|
| Imaging Device | 1/1.8" CMOS |
| Resolution | 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps) |
| Min. Illumination | Color: 0.06 Lux(F1.36, 1/30sec, 30 IRE) BW: 0.006 Lux(F1.36, IR LED Off), 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 6.91 ~ 214.7mm(31x) zoom (digital 32x, total 992x zoom) Support Quick zoom |
| Optical Zoom | 31x |
| Max. Aperture Ratio | F1.36(Wide)~F4.6(Tele) |
| Angular Field of View | H : 60.6°(Wide)~2.59°(Tele) V : 35.1°(Wide)~1.45°(Tele) D : 68.8°(Wide)~2.97°(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Oneshot AF, Focus save, Focus scan, Wise auto focus |
| Lens Type | P-iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 550°/sec, Manual: 0.024°/sec~200°/sec |
| Tilt Range | 110° (90° ~ -20°) |
| Tilt Speed | Preset: 550°/sec, Manual: 0.024°/sec~200°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.05° (±20°C by temperature at preset setting) |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip&Mirror |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events -Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear) * Audio detection, Sound classification(Via optional I/O box SPM-4210) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP - FIle upload(video clip): FTP/SFTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication * Alarm output / Audio clip playback(Via optional I/O box SPM-4210) |
| Light Type | IR LED (850nm) |
| IR Viewable Length | Wise IR 250m(820ft) |
| Water Removal | Support(Spin dry, Lens heater) |
| Auto Tracking | Support Object auto tracking(Person/Vehicle) Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authentication, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB (512MBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | Normal : -50°C~+55°(-58°F ~ +131°F)/ +74°C(165°F)(Max) based on NEMA TS-2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control /w AIR vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67, IK10, NEMA4X Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC) NEMA-TS 2(2.2.7, 2.2.8, 2.2.9) |
| Input Voltage | HPoE(IEEE802.3bt type4, Class8, Injector included) |
| Power Consumption | HPoE: Max 62W, typical 23W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø188x264.9mm(ø7.40x10.47") / 4400g (9.70lb) |
| Hanging Mount (Dome) | SBP-156HMW |
| Ceiling Mount (Assy) | SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI |
| Wall Mount | SBP-156WMW, SBP-390WMW2 |
| Pole Mount | SBP-300PMW2 |
| Parapet Mount | SBP-156LMW, SBP-300LMW |
| Corner Mount | SBP-156KMW, SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9) NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 131.4m(431.19ft) / Tele: 3397.3m(11146.16ft) |
| Observe (63PPM/ 19PPF) | Wide: 52.6m(172.48ft) / Tele: 1358.9m(4458.46ft) |
| Recognize (125PPM/ 38PPF) | Wide: 26.3m(86.24ft) / Tele: 679.5m(2229.23ft) |
| Identify (250PPM/ 76PPF) | Wide: 13.1m(43.12ft) / Tele: 339.7m(1114.62ft) |
