Analog Cameras

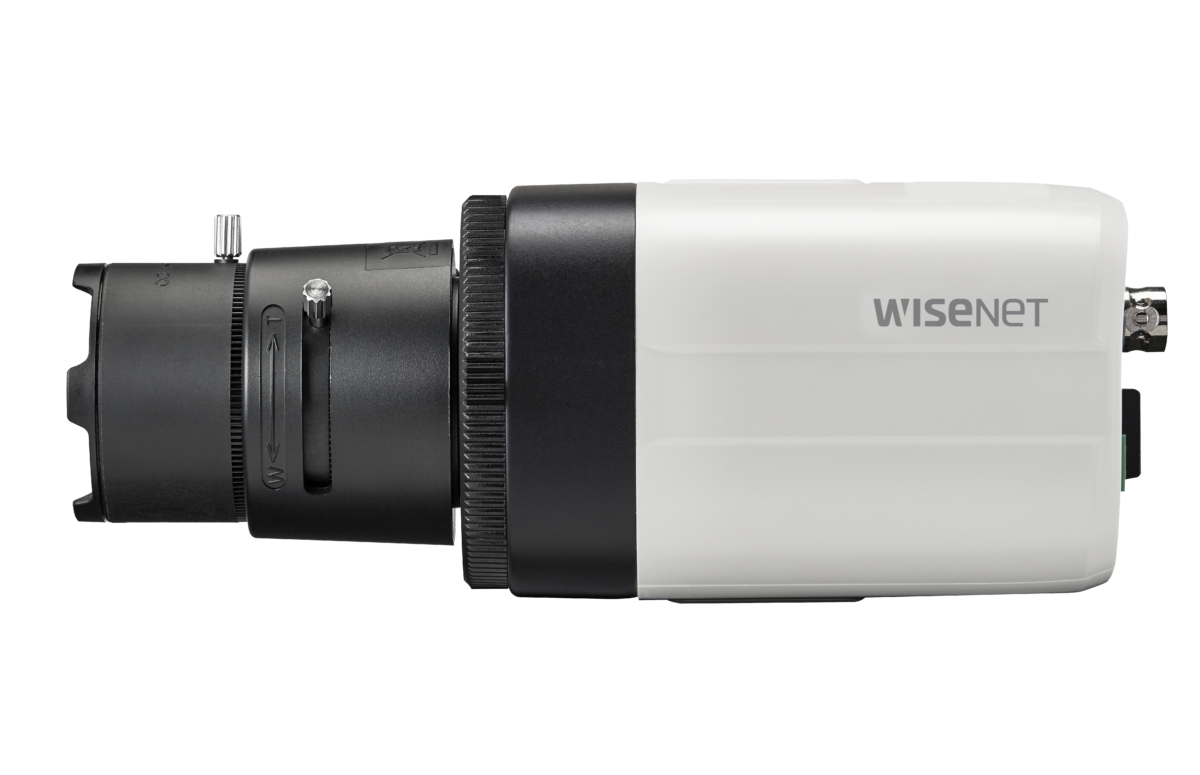

HCB-6000
1080p Analog HD Camera
Key Features
• Full HD resolution
• 0.09 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W )
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power, RS-485
• 0.09 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W )
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power, RS-485
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Resolution | 1920x1080 | |
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) | |
| Min. Illumination | Color: 0.09Lux(F1.2, 1/30sec)\nBW: 0.009Lux(F1.2, 1/30sec) | |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) | |
| Video Transmission Distance | 500m(5C2V Coaxial Cable)\n300m(5C2V Coaxial Cable) | |
| Lens | ||
| Focus Control | Manual | |
| Lens Type | DC auto iris | |
| Mount Type | C mount, CS mount | |
| Operational | ||
| Camera Title | Displayed up to 15 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅣ | |
| Defog | Support | |
| Motion Detection | 4ea | |
| Privacy Masking | 8ea, rectangular zones | |
| Gain Control | Low / Middle / High / Very High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | 1 ~ 1/12,000sec | |
| Video Rotation | H-Rev / V-Rev | |
| Analytics | Motion detection | |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) | |
| Alarm I/O | MD output 1ea, External D/N 1ea | |
| Alarm Triggers | Analytics | |
| Alarm Events | Alarm output | |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol)\nCVBS: Pelco-C(Coaxitron) | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH | |
| Input Voltage | 24VAC, 12VDC | |
| Power Consumption | Max 3.5W | |
| Mechanical | ||
| Color / Material | Black / Aluminum, Ivory / Plastic | |
| Product Dimensions / Weight | 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65"), 186g(0.41 lb) | |
