Analog Cameras

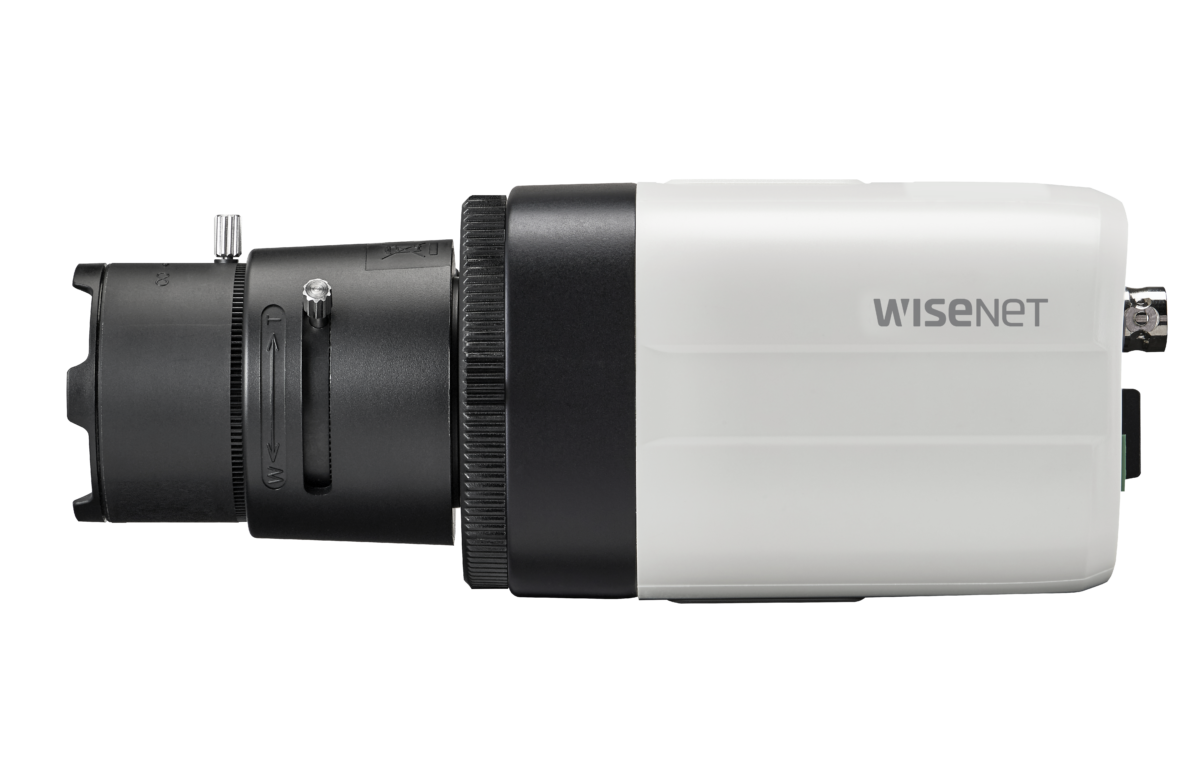

HCB-7000A
QHD (4MP) Analog Box Camera
Key Features
• QHD (2560 x 1440, 30fps) resolution
• 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
• 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
• Day & Night (ICR), DWDR, Motion detection
• Transmission distance Max. 500m
• Easy installation (Plug & play), Dual power
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Min. Illumination | Color: 0.16Lux(F1.2, 1/30sec) BW: 0.009Lux(F1.2, 1/30sec) |
| Video Out | BNC(AHD), additional CVBS for installation |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Mount Type | C mount, CS mount |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P) |
| Alarm I/O | MD Output 1ea |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 3.6W |
| Mechanical | |
| Color / Material | Black / Aluminum, Ivory / Plastic |
| Product Dimensions / Weight | 59.6(W)×68.4(H)×92.7(D)mm (2.35"×2.69"×3.65"), 186g(0.41 lb) |
