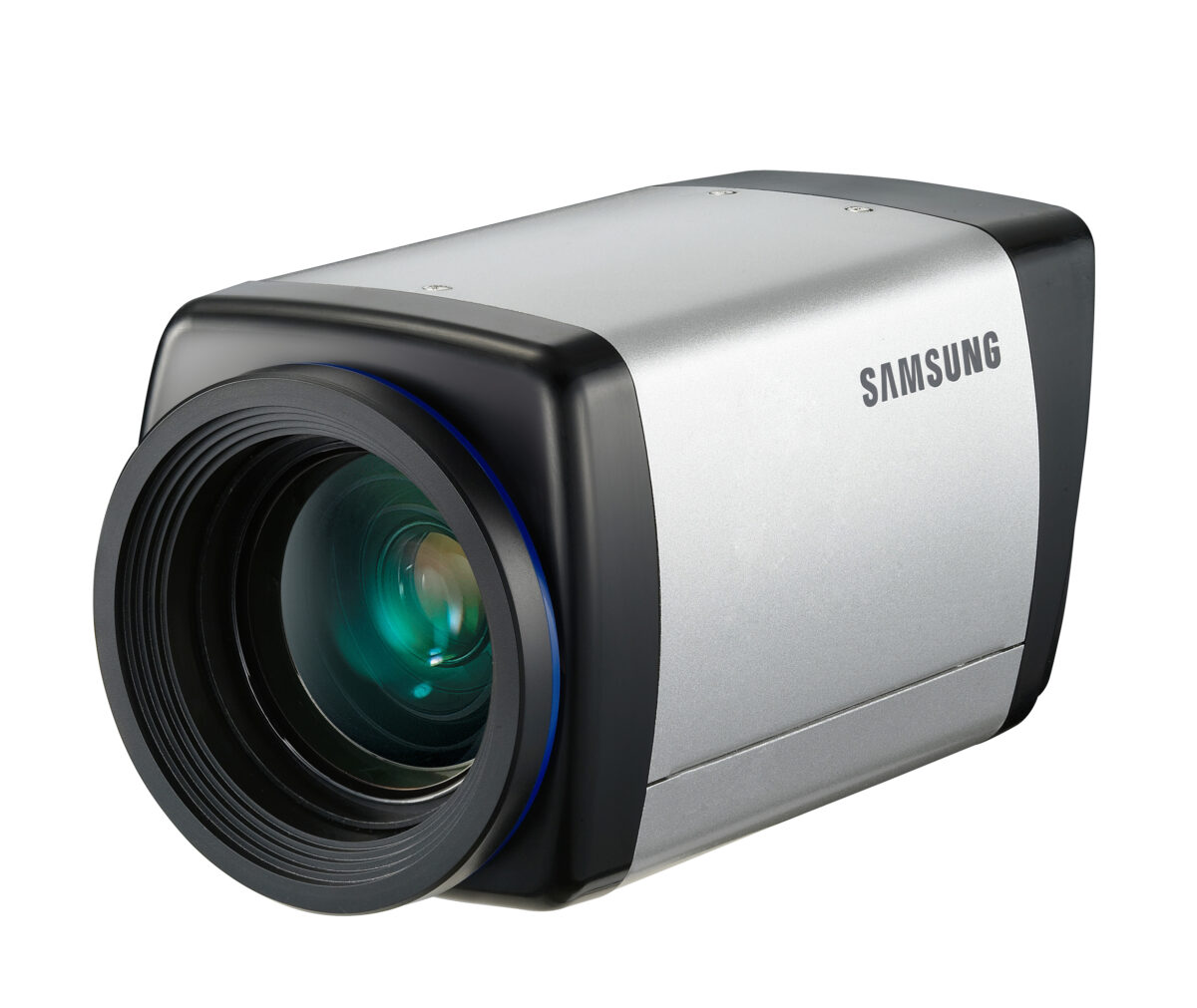

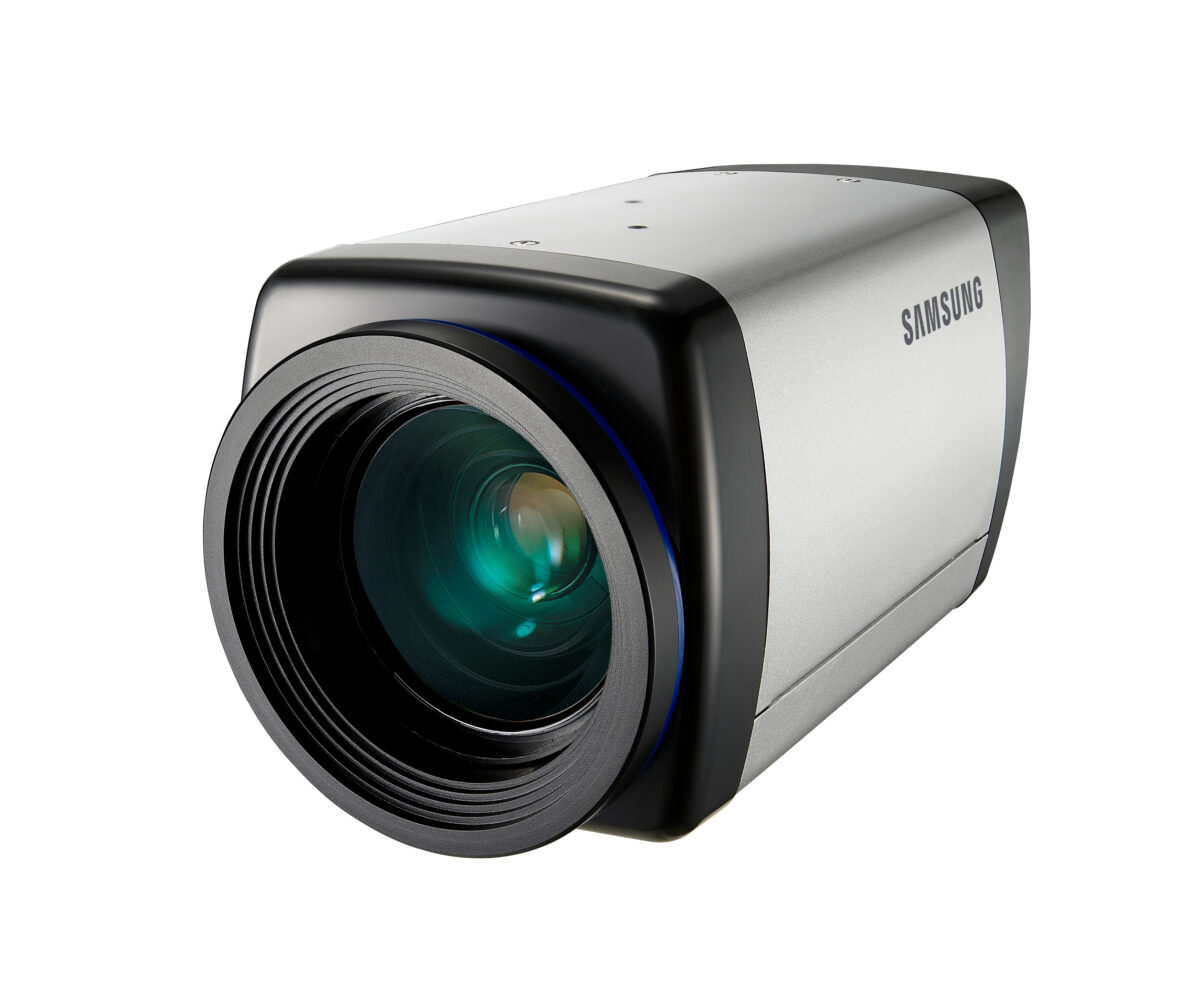

SCZ-2273
960H High Resolution 27x Zoom Camera
Key Features
• High resolution of 680TV lines (ER mode)
• Min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W)
• Powerful 27x zoom (3.5 ~ 94.5mm), Digital 16x
• Day & Night (ICR), SSNRIII, MD
• Coax, RS-485 control
• Min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W)
• Powerful 27x zoom (3.5 ~ 94.5mm), Digital 16x
• Day & Night (ICR), SSNRIII, MD
• Coax, RS-485 control
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/4" Sony 960H Ex-view HAD CCD II |
| NETD | 2 : 1 Interlace |
| Pixel Size | Color : 680TV lines (ER mode) |
| Min. Illumination | 0.2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
| Lens | |
| Focal Length (Zoom Ratio) | 3.5 ~ 129.5mm |
| Max. Aperture Ratio | 1 : 1.6(Wide) ~ 3.9(Tele) |
| Angular Field of View | H : 56.26°(Wide) ~ 1.62°(Tele) / V : 43.28°(Wide) ~ 1.22°(Tele) / D : 67.56°(Wide) / 2.02°(Tele) |
| Min. Object Distance | 1.5m (4.92ft) |
| Operational | |
| Motion Detection | Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD |
| Privacy Masking | Pelco-C (Coaxitron) |
| Gain Control | Motion Detection |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
| Storage Temperature / Humidity | Less than 90% RH |
| Input Voltage | Dual (24V AC & 12V DC ±10%) |
| Mechanical | |
| Color / Material | Black, Silver |
| RAL Code | Plastic, Steel |
