Analog Cameras
Discontinued
SCD-5082

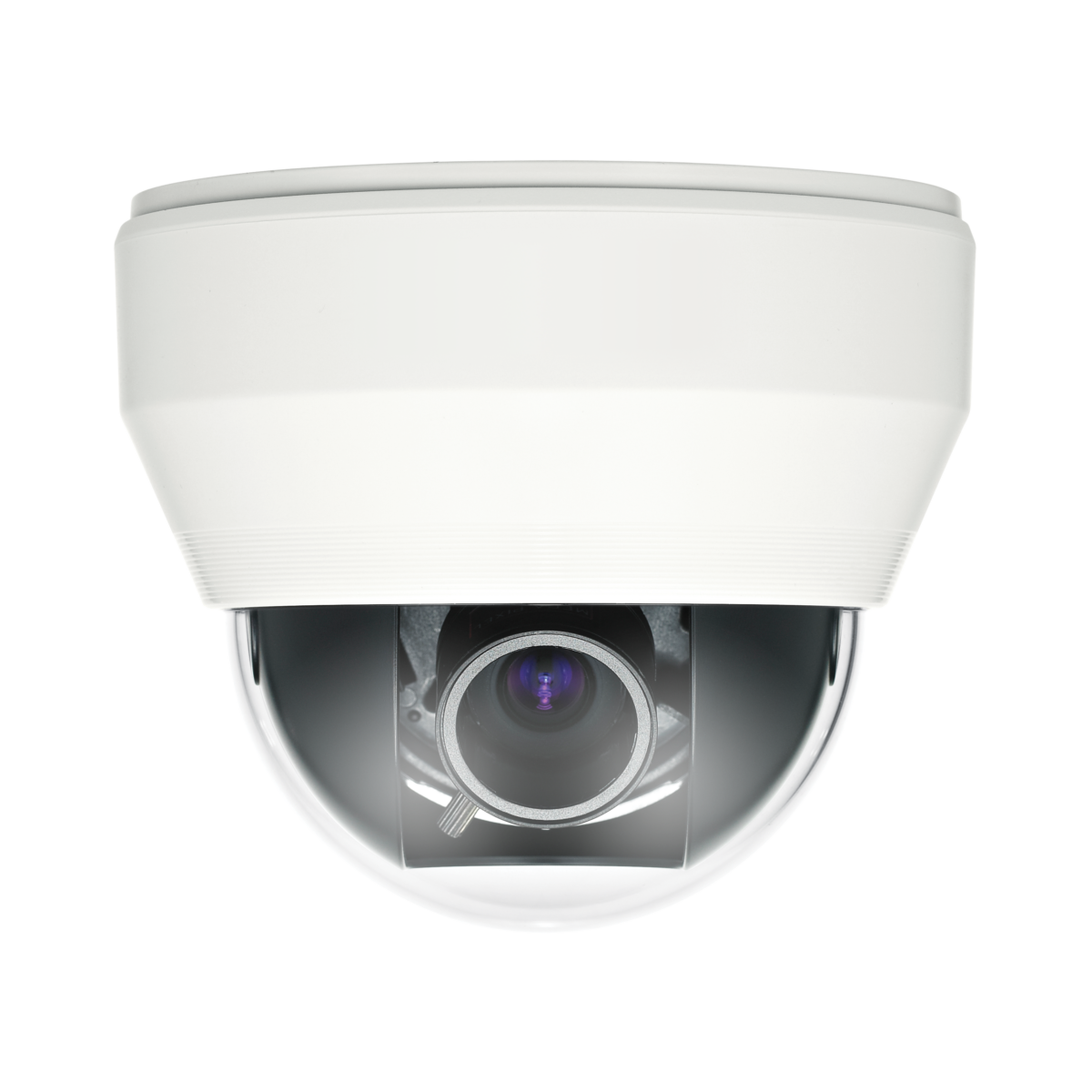

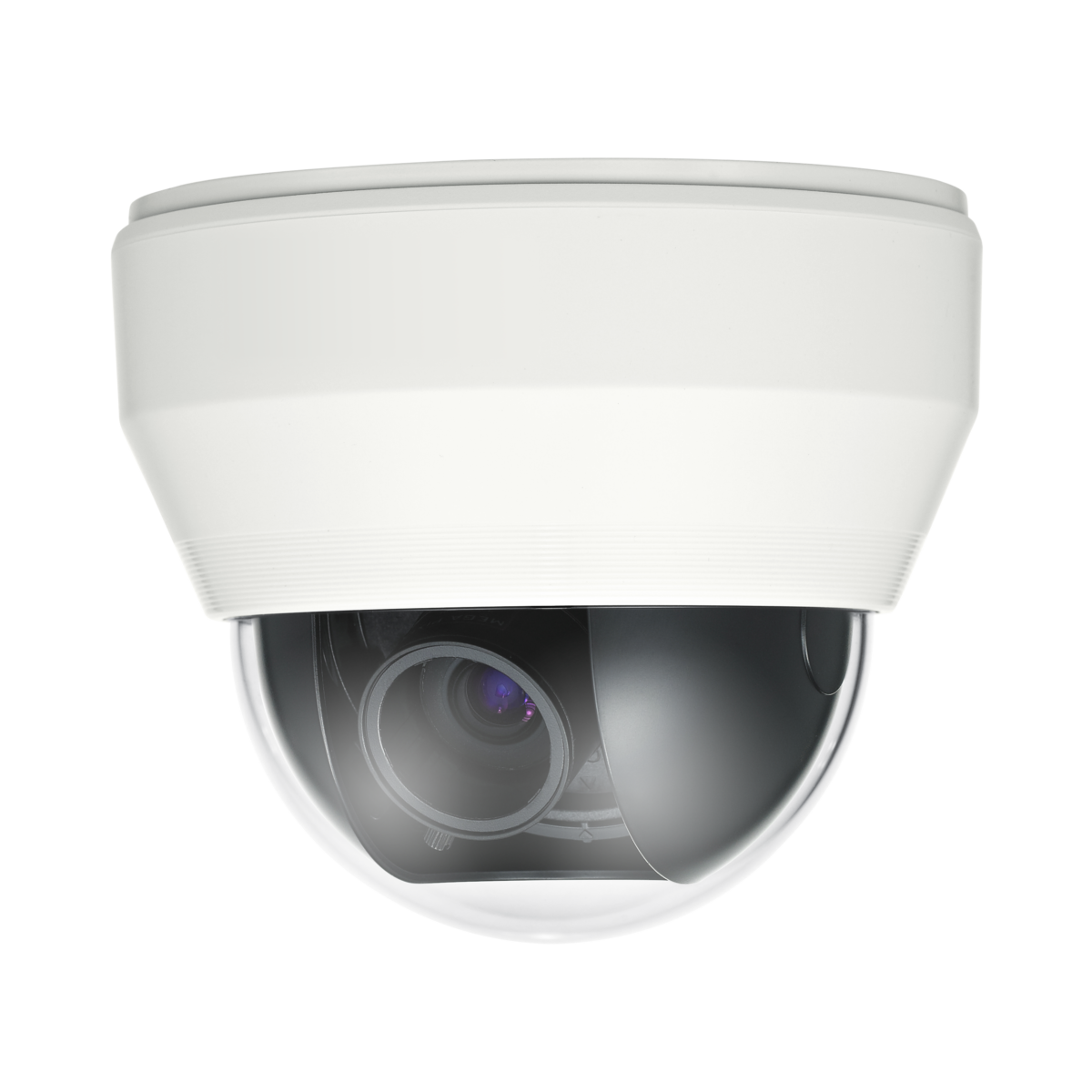

1000TVL (1280H) Varifocal Dome Camera
Key Features
• High resolution of 1000TV lines (Color), 1000TV lines (B/W)
• 0.05Lux@F1.4, 50IRE (Color), 0.005Lux@F1.4 50IRE (B/W) 0.02Lux@F1.4, 30IRE (Color), 0.002Lux@F1.4 30IRE (B/W)
• 3.3x varifocal lens (3 ~ 10mm)
• Day & Night (ICR), SSDR, SSNRIV, Defog
• Coax : Pelco-C (Coaxitron), Dual power
• 0.05Lux@F1.4, 50IRE (Color), 0.005Lux@F1.4 50IRE (B/W) 0.02Lux@F1.4, 30IRE (Color), 0.002Lux@F1.4 30IRE (B/W)
• 3.3x varifocal lens (3 ~ 10mm)
• Day & Night (ICR), SSDR, SSNRIV, Defog
• Coax : Pelco-C (Coaxitron), Dual power
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/3" 1.3M CMOS | |
| NETD | Progressive | |
| Pixel Size | Color : 1000 TVL, B/W : 1000 TVL | |
| Min. Illumination | 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE) | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite | |
| Lens | ||
| Focal Length (Zoom Ratio) | 3~10mm | |
| Max. Aperture Ratio | F1.4 | |
| Angular Field of View | H: 82.0°(Wide)~26.5°(Tele), V: 59.7°(Wide)~19.9°(Tele) | |
| Min. Object Distance | 0.5m (1.64ft) | |
| Lens Type | DC Auto Iris | |
| Mount Type | Board type | |
| Operational | ||
| Privacy Masking | Pelco-C (Coaxitron) | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) | |
| Storage Temperature / Humidity | Less than 90% RH | |
| Input Voltage | Dual (24V AC & 12V DC ±10%) | |
| Mechanical | ||
| Color / Material | Ivory | |
| RAL Code | Aluminum, Plastic | |
