Analog Cameras
Discontinued

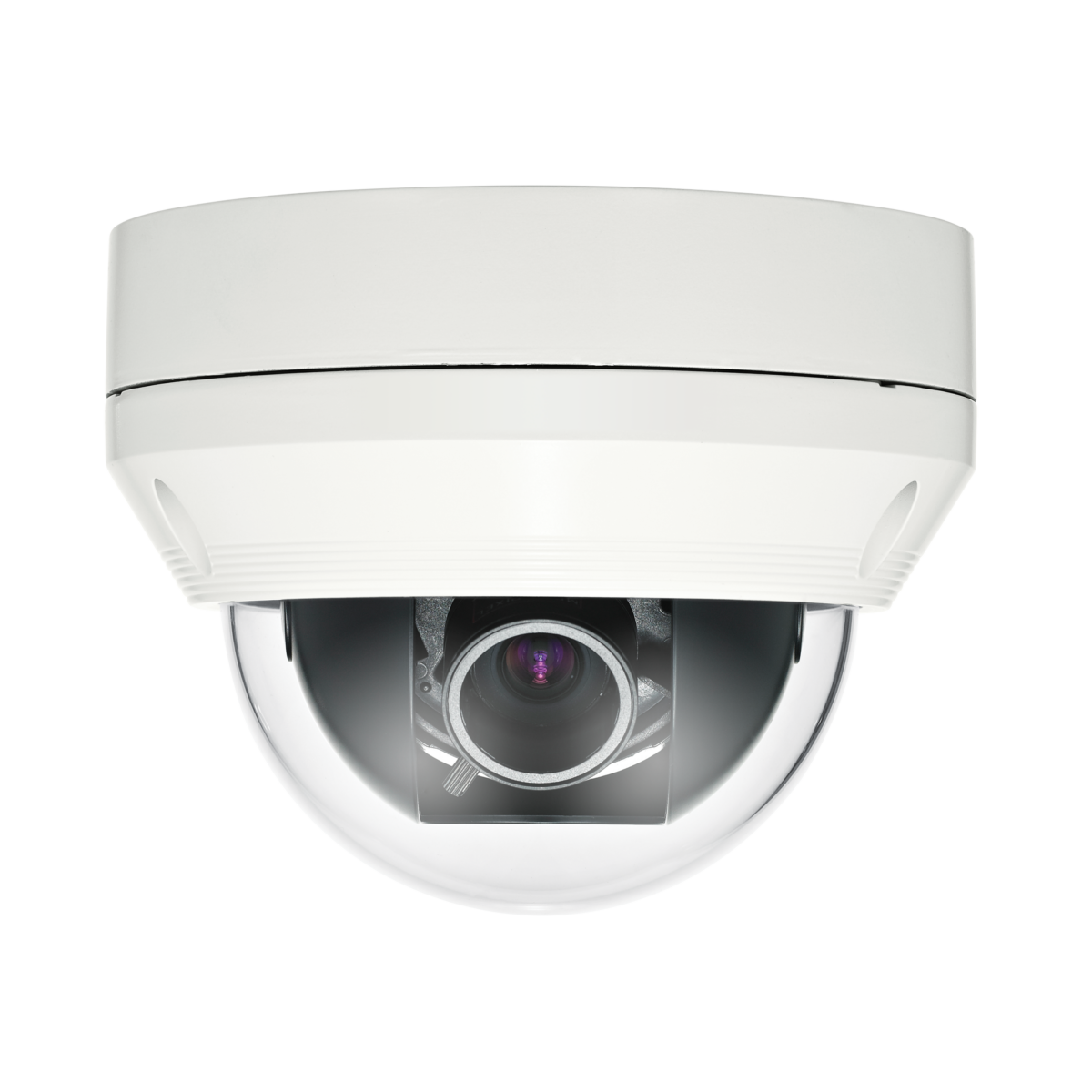

SCV-5083
1280H WDR Dome Camera
Key Features
• 1000TV lines high resolution
• 120dB WDR, Day & Night (ICR)
• 2.8x Varifocal Lens (2.8 ~ 10.5mm)
• SSDR, SSNR IV, Defog
• Video analytics : Fixed/Moved, Fence, Tracking, Detection, Counting, Tampering
• Privacy masking 24 zones (4 point ploygonal)
• 120dB WDR, Day & Night (ICR)
• 2.8x Varifocal Lens (2.8 ~ 10.5mm)
• SSDR, SSNR IV, Defog
• Video analytics : Fixed/Moved, Fence, Tracking, Detection, Counting, Tampering
• Privacy masking 24 zones (4 point ploygonal)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/3" 1.3M CMOS |
| NETD | Progressive |
| Pixel Size | Color : 1000 TVL, B/W : 1000 TVL |
| Min. Illumination | 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~10.5 mm |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 91.5°(Wide)~27.7°(Tele), V: 68.3°(Wide)~20.8°(Tele) |
| Min. Object Distance | 0.5m |
| Lens Type | DC Auto Iris |
| Mount Type | Board-in type |
| Operational | |
| Privacy Masking | Pelco-C (Coaxitron) |
| Gain Control | Fence, Apear_Disappear, Counting ( Off / On ) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
| Storage Temperature / Humidity | Less than 90% RH |
| Input Voltage | Dual (24V AC & 12V DC ±10%) |
| Mechanical | |
| Color / Material | Ivory |
| RAL Code | Aluminum |
