Analog Cameras
Discontinued
SCV-5085

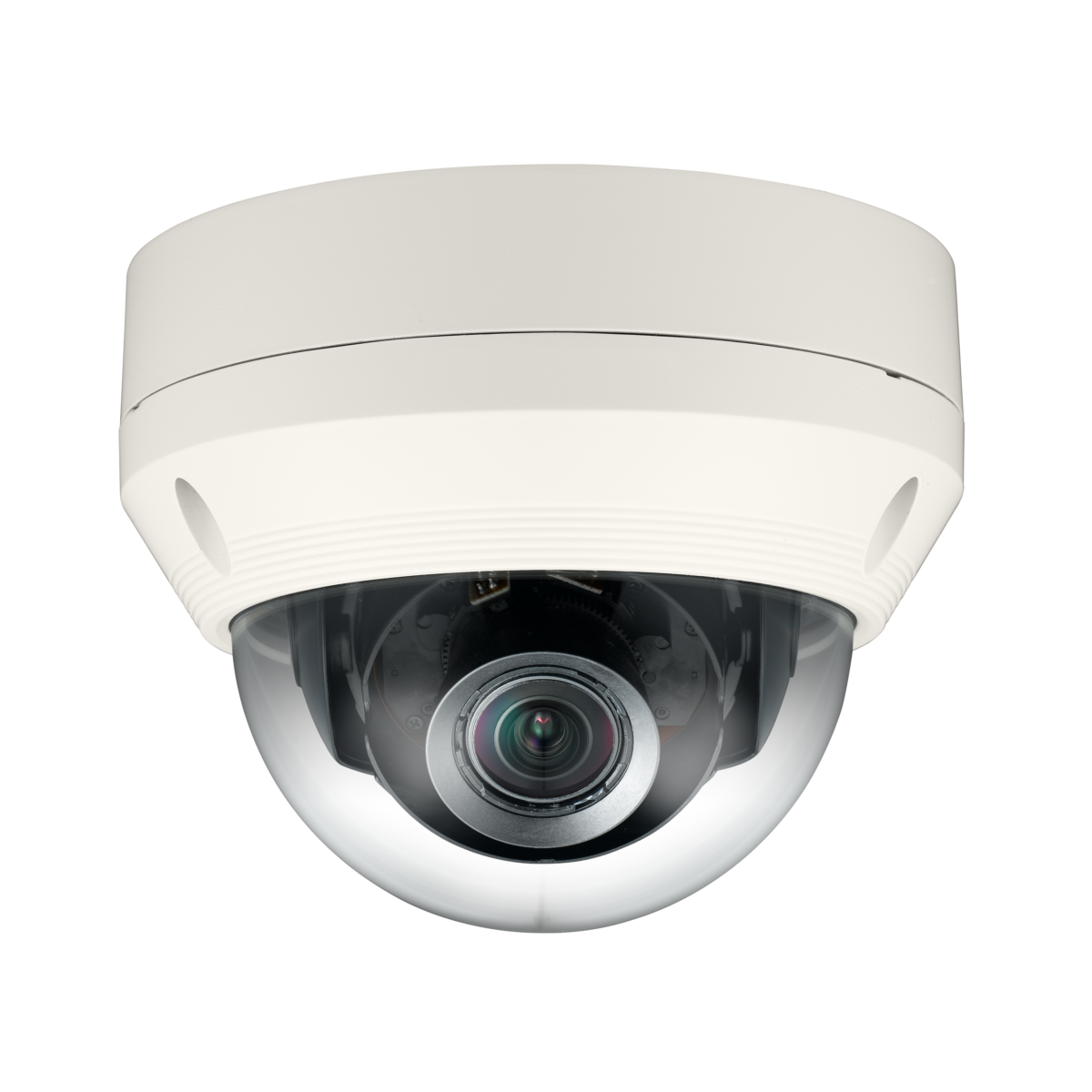

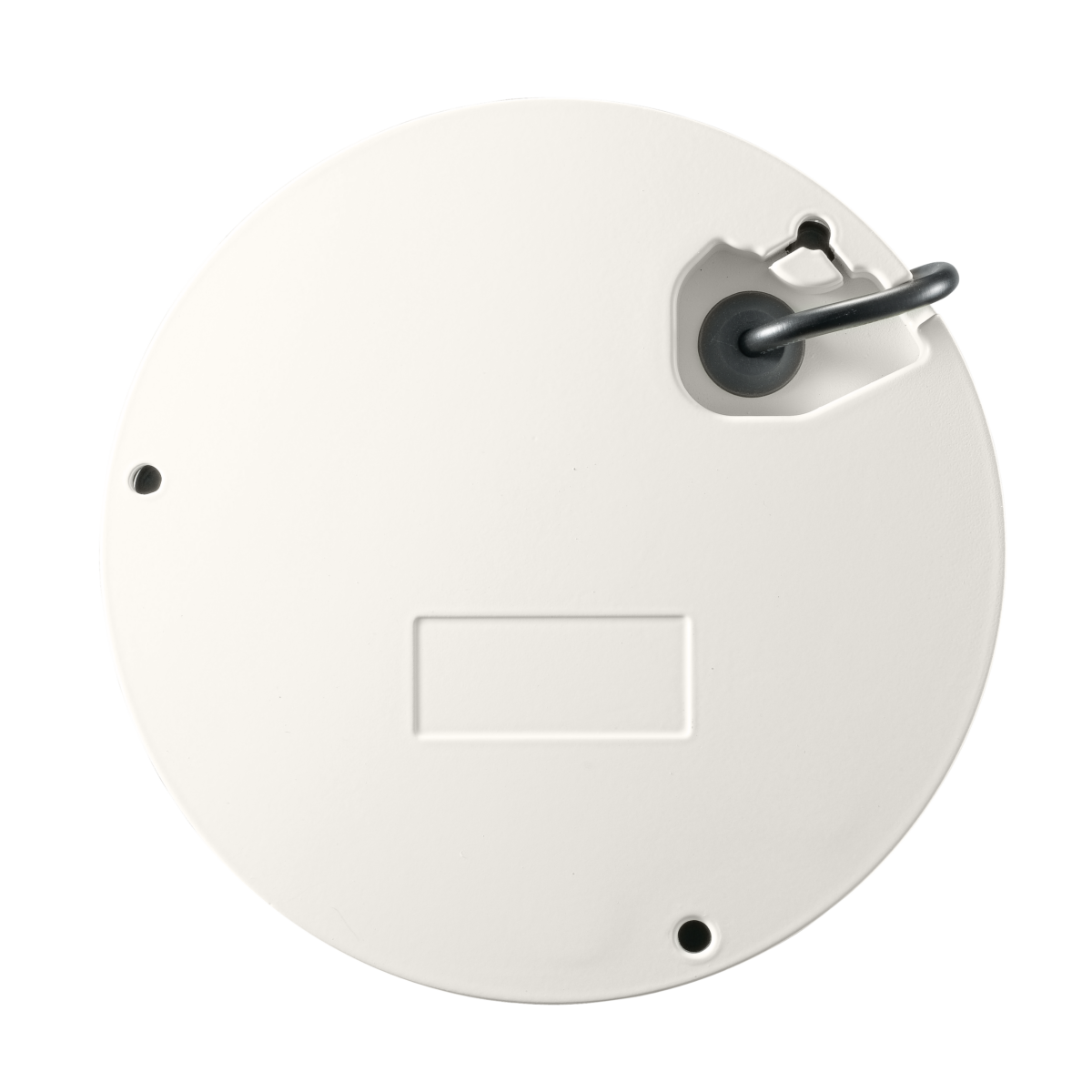

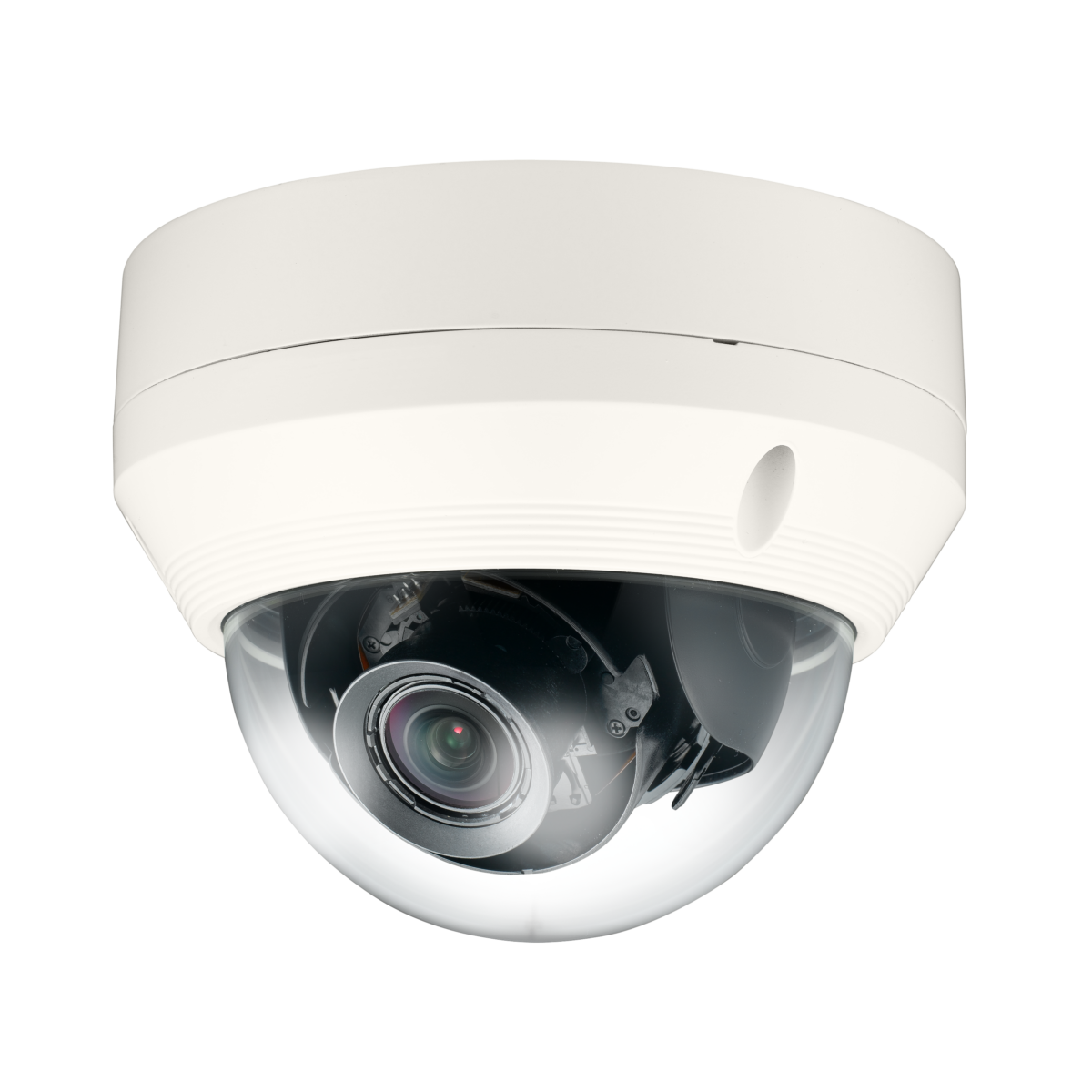

1000TVL (1280H) WDR Vandal-Resistant Dome Camera
Key Features
• High resolution of 1000TV lines (Color), 1000TV lines (B/W)
• 0.03Lux@F1.2, 50IRE (Color),
0.003Lux@F1.2 50IRE (B/W)
0.01Lux@F1.2, 30IRE (Color),
0.001Lux@F1.2 30IRE (B/W)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens
• 120dB WDR, Day & Night (ICR)
• 0.03Lux@F1.2, 50IRE (Color),
0.003Lux@F1.2 50IRE (B/W)
0.01Lux@F1.2, 30IRE (Color),
0.001Lux@F1.2 30IRE (B/W)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens
• 120dB WDR, Day & Night (ICR)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/3" 1.3M CMOS |
| NETD | Progressive |
| Pixel Size | Color : 1000 TVL, B/W : 1000 TVL |
| Min. Illumination | 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
| Lens | |
| Focal Length (Zoom Ratio) | 3 ~ 8.5 mm |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 105.5°(Wide) ~ 37.1°(Tele), V: 57.5°(Wide) ~ 21°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Lens Type | DC Auto Iris |
| Mount Type | Board type |
| Operational | |
| Privacy Masking | Pelco-C (Coaxitron) |
| Gain Control | Fence, (Dis)Appear, Counting ( Off / On ) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) |
| Storage Temperature / Humidity | Less than 90% RH |
| Input Voltage | Dual (24V AC & 12V DC ±10%) |
| Mechanical | |
| Color / Material | Ivory |
| RAL Code | Aluminum |
