Analog Cameras

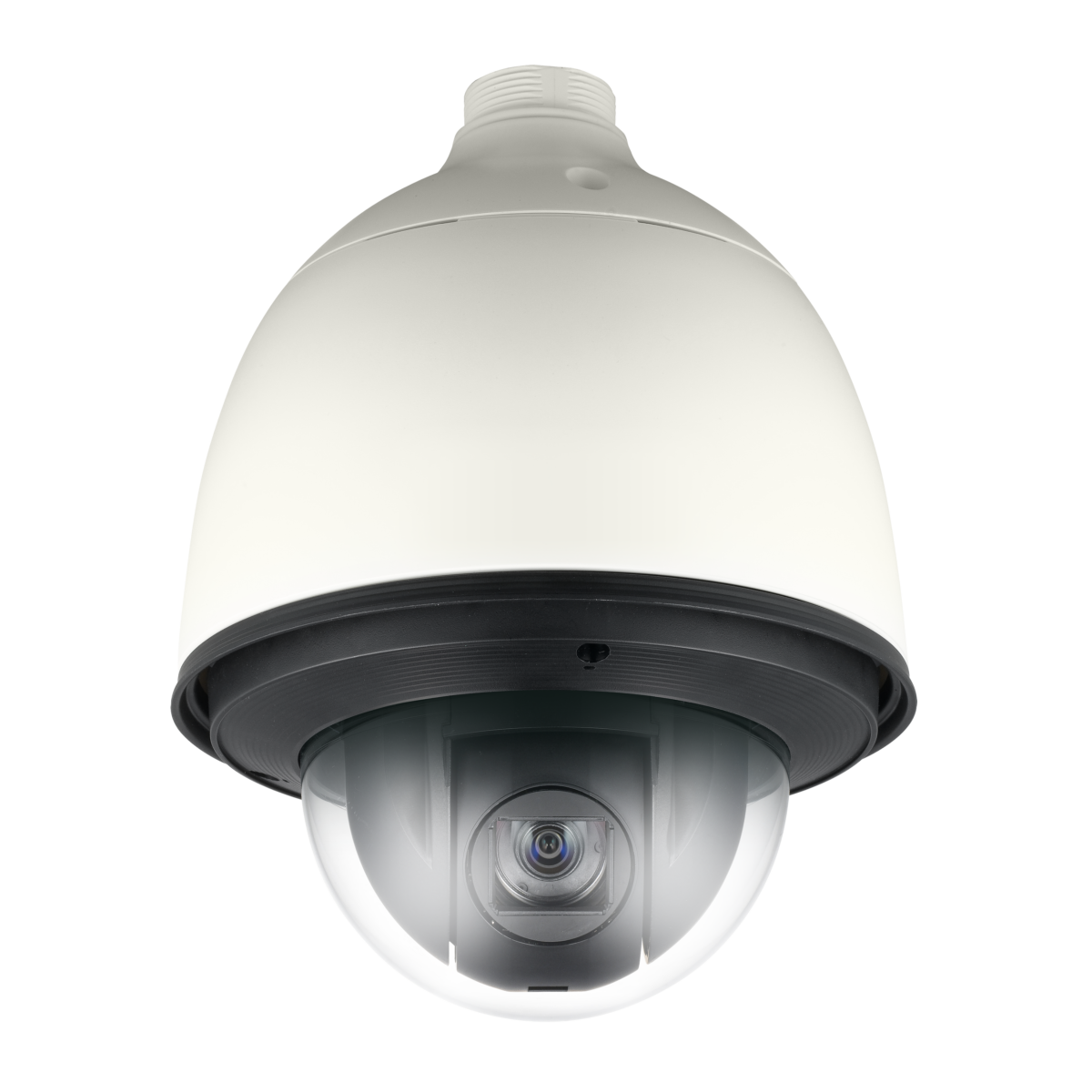

HCP-6320H
1080p Analog HD 32x PTZ Dome Camera
Key Features
• Full HD (1920 x 1080, 30fps) resolution
• 0.2Lux@F1.6, B/W : 0.01Lux@F1.6
• Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
• Day & Night (ICR), Defog, WDR (120dB), SSNRIII
• Preset 700°/sec, Azimuth
• IP66 / IK10 (HCP-6320H)
• RS-485, 24V AC
• 0.2Lux@F1.6, B/W : 0.01Lux@F1.6
• Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
• Day & Night (ICR), Defog, WDR (120dB), SSNRIII
• Preset 700°/sec, Azimuth
• IP66 / IK10 (HCP-6320H)
• RS-485, 24V AC
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps |
| Min. Illumination | Color:0.2Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec) |
| Video Out | BNC(AHD / CVBS) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H: 62.8°(Wide)~2.23°(Tele) / V: 36.8°(Wide)~1.26°(Tele) |
| Min. Object Distance | Wide: 1.4m(4.59ft), Tele: 1.9m(6.23ft) |
| Focus Control | Auto, Manual, One push |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 700°/sec, Manual: 0.024°/sec~200°/sec |
| Tilt Range | 210°(-15°~195°) |
| Tilt Speed | Preset: 700°/sec, Manual: 0.024°/sec~200°/sec |
| Sequence | Preset(255ea) |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅢ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 4ea, rectangular zones |
| Privacy Masking | 32ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | 2~1/12,000sec |
| Video Rotation | Flip, Mirror |
| Analytics | Tempering, Virtual line, Enter/Exit, (Dis)Appear, Motion detection |
| Serial Interface | RS-485(Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55°C (-58°F ~ +131°F) / Less than ~ 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, Safety(UL), EMC(FCC, CE) |
| Input Voltage | 24VAC |
| Power Consumption | Max 24W(Heater off), 65W(Heater on) |
| Mechanical | |
| Color / Material | Ivory / Plastic + Aluminum |
