Analog Cameras Discontinued

SCD-6021

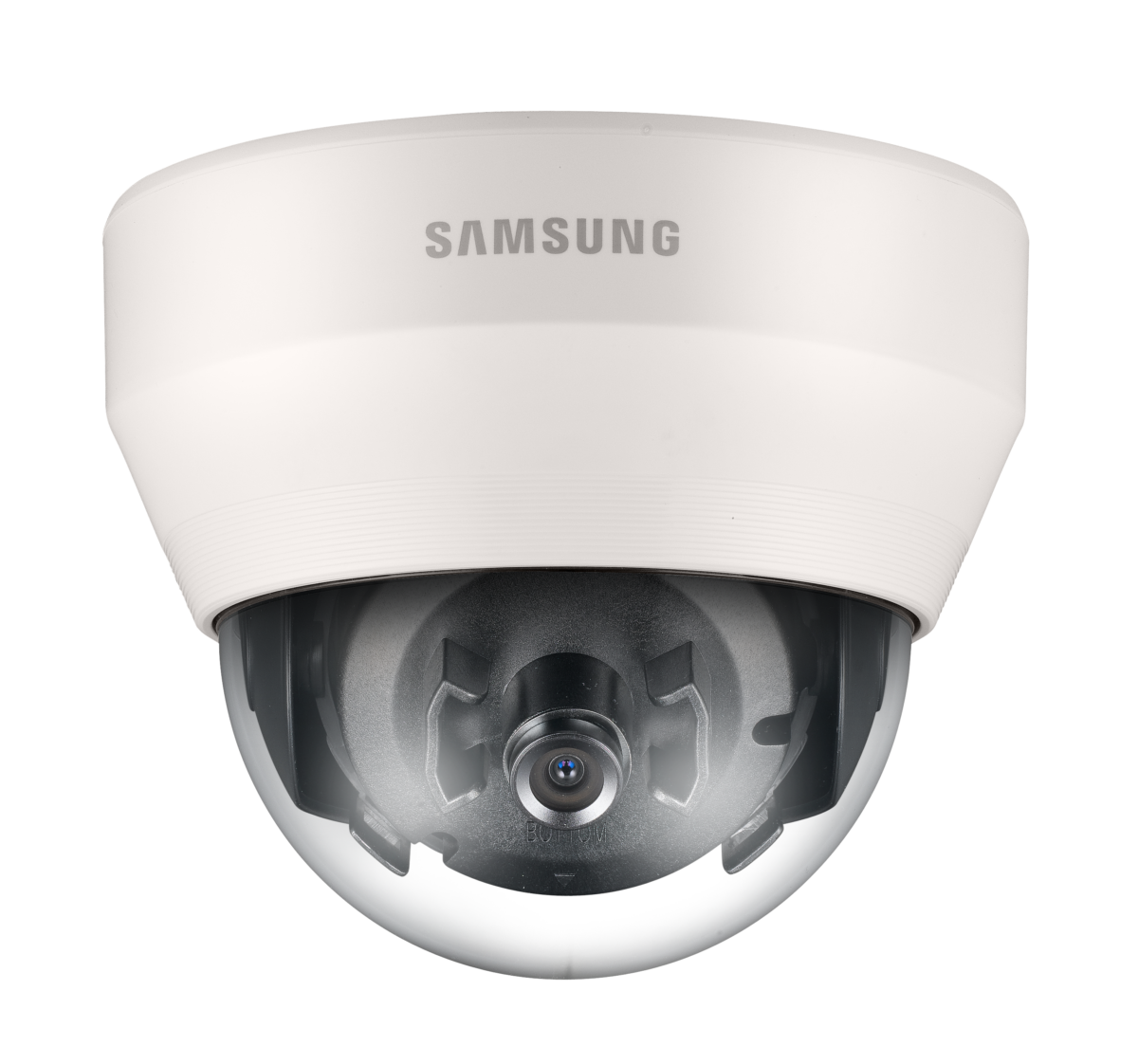

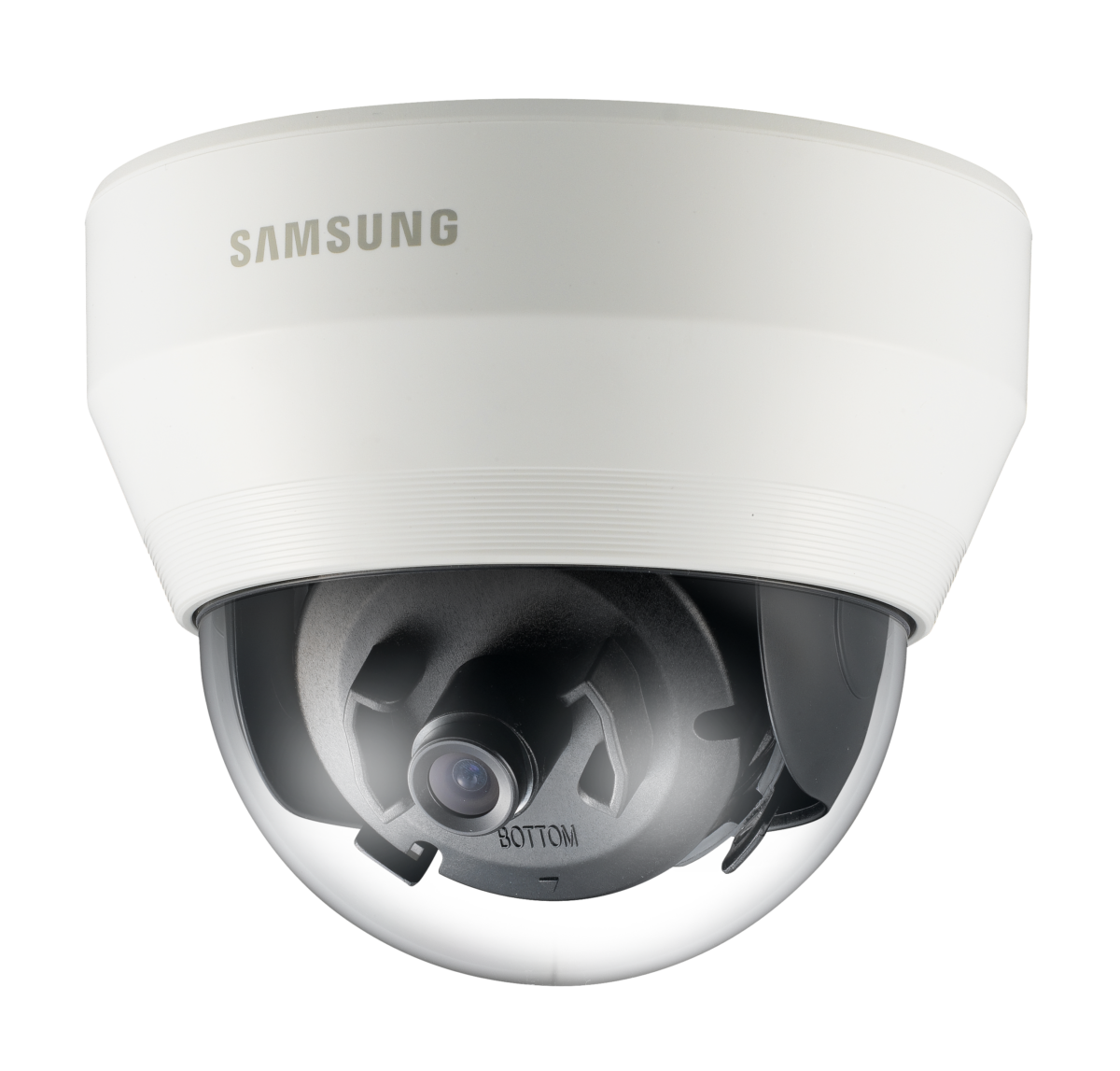

2Megapixel HD-SDI Dome Camera

Key Features
• Max 2M (1920 x 1080), Full HD(1080p) resolution
• HD-SDI (High Definition Serial Digital Interface)
• Enhanced WDR (100dB)
• Min. Illumination 0.5Lux@F2.0 (Color)
• Built-in 3.8mm fixed lens
• Tampering, Motion Detection
• Day & Night(S/W), RS-485, SSNR III, 12V DC
Contact Sales Datasheet

["camera","analog","hd-sdi"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/3" Progressive scan CMOS
NETD Progressive
Min. Illumination 0.5Lux (F2.0, 50IRE), 0.0025Lux (F2.0, Sen-up 60x, 50IRE)
Video Out SMPTE292M (HD-SDI)
Lens
Focal Length (Zoom Ratio) 3.8mm
Max. Aperture Ratio F2.0
Angular Field of View H : 84.5° / V : 45.8° / D : 98°
Min. Object Distance 0.5m (1.64ft)
Mount Type Board-in type
Operational
Motion Detection Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Gain Control Motion Detection
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage Dual (24V AC & 12V DC ±10%)
Mechanical
Color / Material Ivory
RAL Code Plastic
