Network Cameras

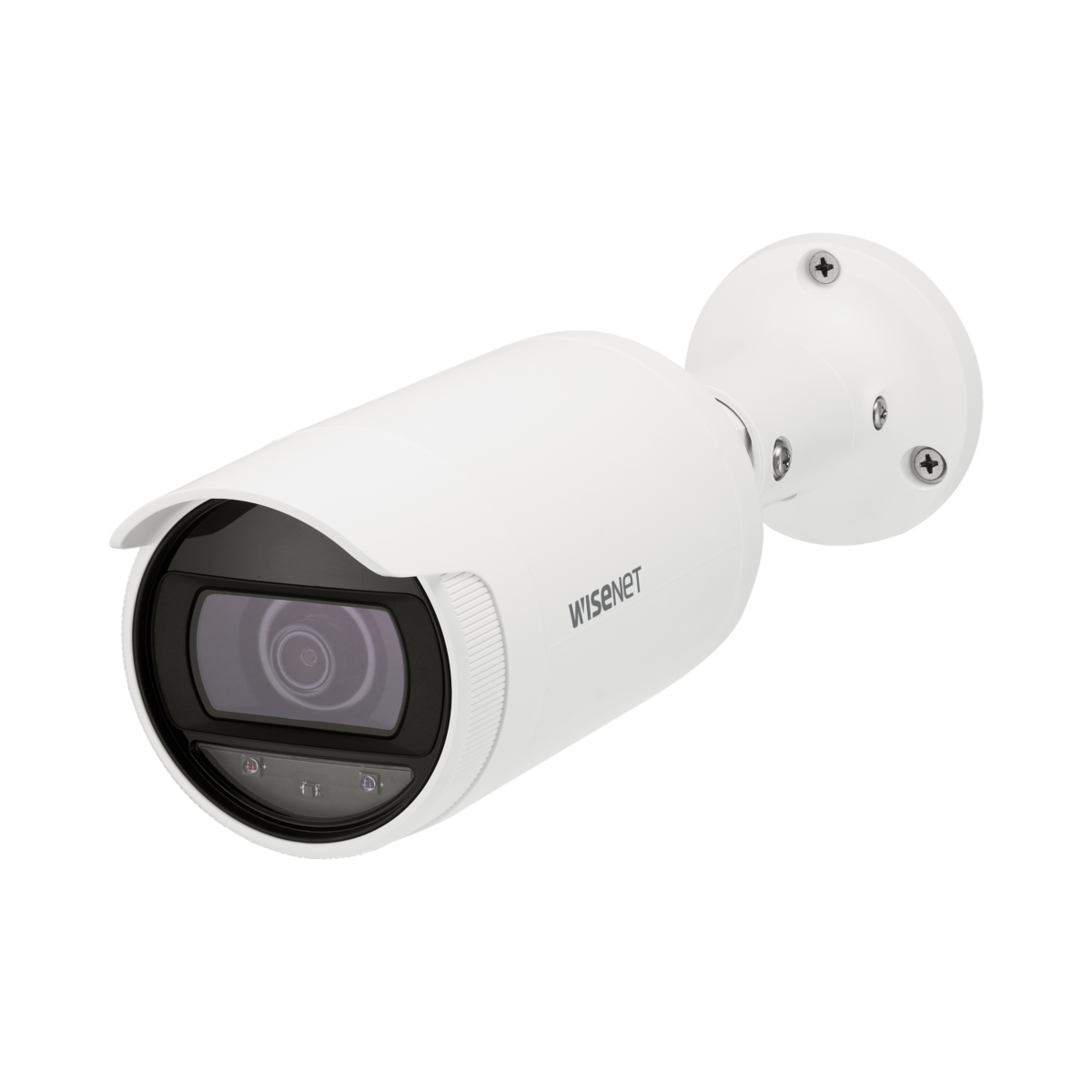

ANO-L6022R
2MP IR Bullet Camera
Key Features
• 2 megapixel (1920 x 1080) resolution
• 4mm lens w/ 84.3° HFoV
• 30fps@ all resolutions (H.265/H.264)
• H.265/H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
• Micro SD/SDHC memory slot (Max. 32GB), PoE
• Hallway view, WiseStream II support
• IR viewable length 30m
• IP66 support
• 4mm lens w/ 84.3° HFoV
• 30fps@ all resolutions (H.265/H.264)
• H.265/H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
• Micro SD/SDHC memory slot (Max. 32GB), PoE
• Hallway view, WiseStream II support
• IR viewable length 30m
• IP66 support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
NDAA and FCC Compliant Camera and NVR Solutions
A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
A series camera features
A series cameras offer clear and accurate imaging with a variety of options including essential form factors, 4MP and 2MP resolutions, H.265 compression, and lens types to meet your unique security challenges and circumstances.
WiseStream II + H.265 Compression
Reduce bandwidth and storage costs through efficient data transmission
120dB True WDR
Backlight compensation provides clear imaging under any lighting conditions
LDC Lens Distortion Correction
Corrects video distortion when using wide-angle lenses
30fps, H.265 Codec
Smooth 30fps video transmission with H.265 compression technology
IVA (Intelligent Video Analytics)
Increases situational awareness and alerts operators to abnormal activities in real-time
Hallway View 270° Rotation Support
Supports vertical FoV for monitoring narrow scenes with 90°, 180°, and 270° rotation
Affordable high quality NVR solutions
A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections, the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.
UHD Monitoring
4K HDMI Output
H.265
Advanced compression technology
P2P Connection
Easily connect with QR code
Wisenet Mobile App
Remote monitoring with Android or iOS devices
Wisenet Viewer Compatible
Easy system monitoring on Windows or Mac PCs
PoE
Power over ethernet
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 10fps(@2MP Max. 2fps) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 85° / V: 46° / D: 99° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | Max 6.4W, Typical 5.0W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø78.0x262.0mm(ø3.07x10.31”), 390g(0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 42.4m(139.17ft) |
| Observe (63PPM/ 19PPF) | 17.0m(55.67ft) |
| Recognize (125PPM/ 38PPF) | 8.5m(27.83ft) |
| Identify (250PPM/ 76PPF) | 4.2m(13.92ft) |
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
