Network Cameras

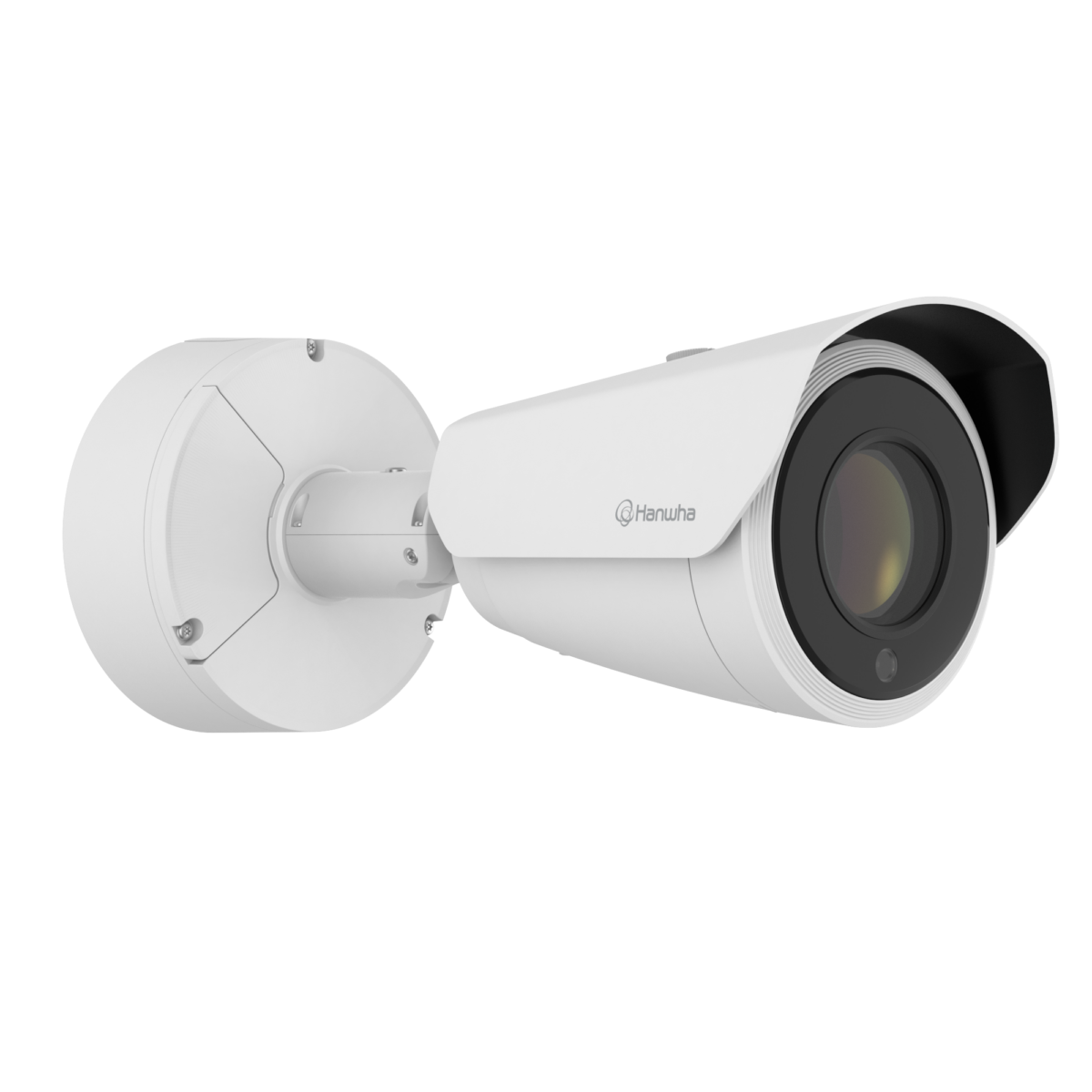

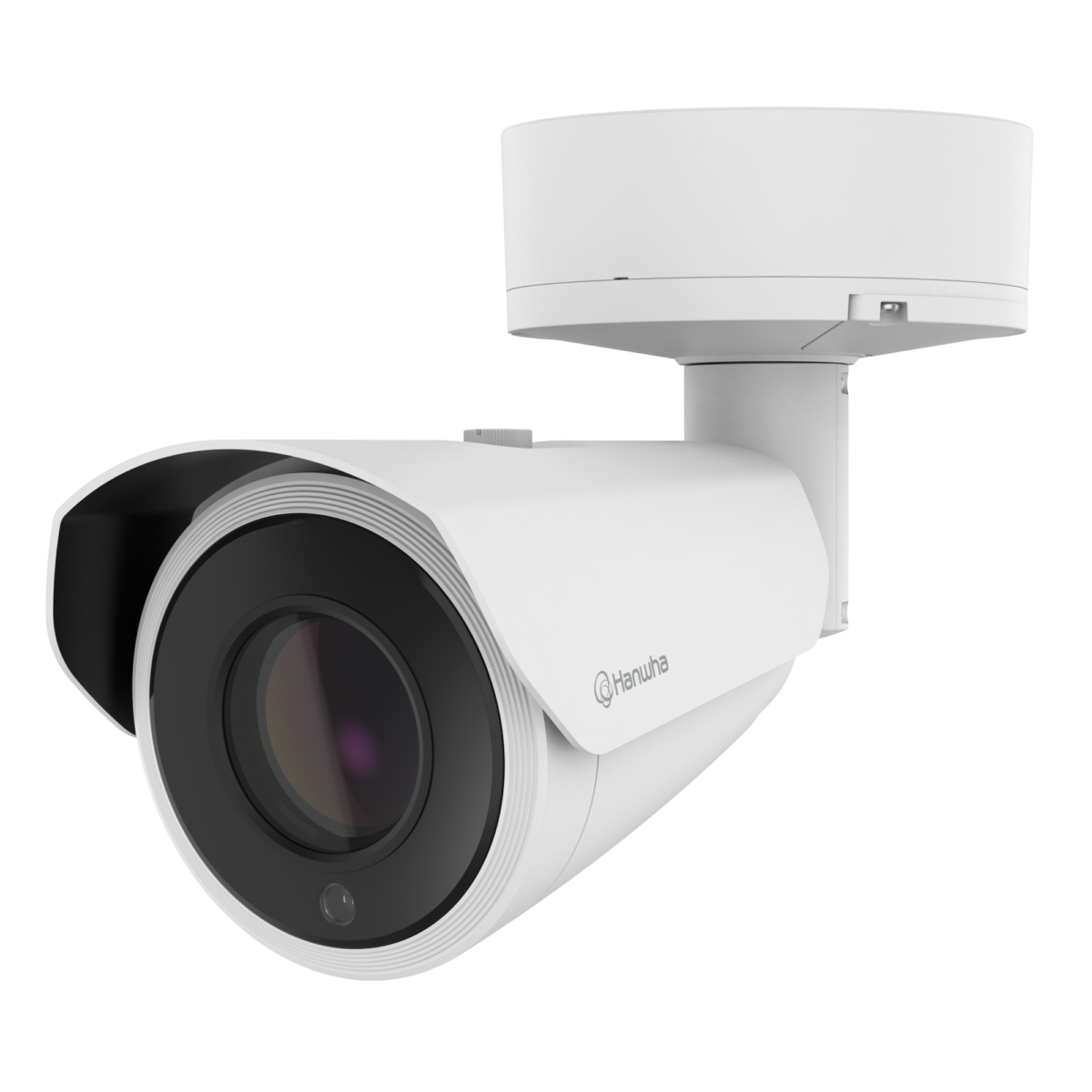

PNO-A9311RLP
4K 31x Zoom LPR/ANPR/MMCR IR Bullet Camera
Key Features
• Maximum 4K resolution
• 6.91~214.7mm (31x) zoom
• IR viewable length 70m(229.66ft)
• 0.075Lux@F1.36 (Color), 0.0075Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Reinforced durability (IP66/IP67, IK10, NEMA4X)
• ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
• Next level cybersecurity (TPM with FIPS 140-2 level2)

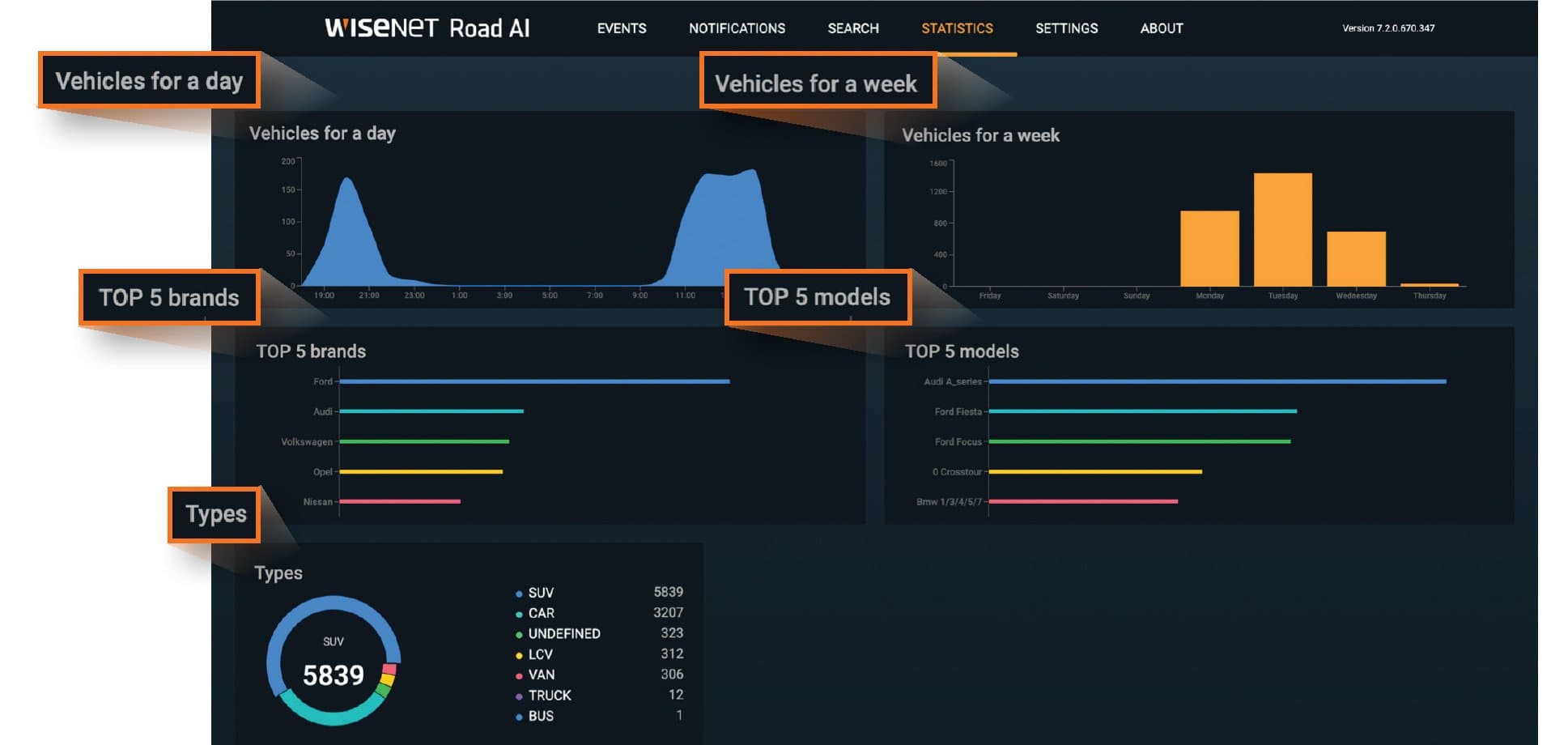

• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification

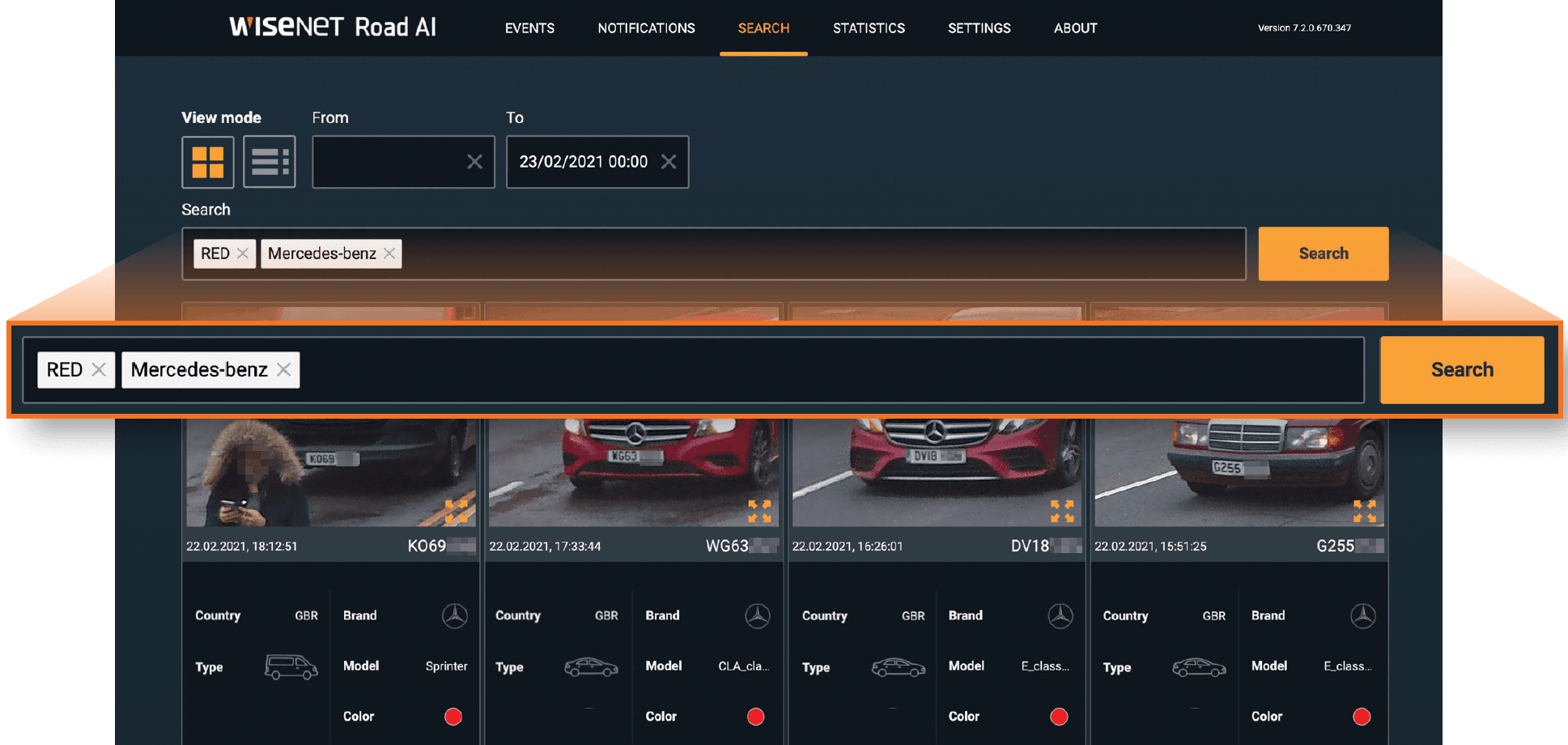

- Smart Search (LP/NP, Country, brand, model, color)
• 6.91~214.7mm (31x) zoom
• IR viewable length 70m(229.66ft)
• 0.075Lux@F1.36 (Color), 0.0075Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Reinforced durability (IP66/IP67, IK10, NEMA4X)
• ONVIF Profile S/G/T/M, SUNAPI(HTTP API), Wisenet open platform
• Next level cybersecurity (TPM with FIPS 140-2 level2)
• Wisenet Road AI application (Pre-installed)
- License/Number Plate Recognition
- Make/Model/Color Recognition
- Black/White list notification
- Smart Search (LP/NP, Country, brand, model, color)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/1.8" CMOS | |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
|
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps |
|
| Min. Illumination | Color: 0.075Lux(F1.36, 1/30sec, 30IRE) BW: 0.0075Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 6.91~214.7mm (31x) motorized varifocal | |
| Max. Aperture Ratio | F1.36(Wide)~F4.6(Tele) | |
| Angular Field of View | H: 60.92°(Wide)~2.2°(Tele) V:35.26°(Wide)~1.24°(Tele) D:69.18°(Wide)~2.52°(Tele) |
|
| Min. Object Distance | 3m(9.84ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 3ea, rectangle zones - Color: Gray/Black/White |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus/ Motion/ Tampering/ Audio/ Shock detection, Sound classification | |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
|
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED (850nm) | |
| IR Viewable Length | WiseIR 70m(229.66ft) | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM 2.0 with FIPS 140-2 level2 Secure boot, Verify firmware forgery |
|
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
|
| Security | ||
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware | |
| User authentication | Digest Authenticaton, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS (WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate (Hanwha Techwin Root CA) | |
| Secure Storage | TPM, SDcard partition encrypt | |
| Security Certificate | TPM with FIPS 140-2 level 2 | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot (32GB Card preinstalled) | |
| Memory | 4096MB RAM, 1024MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
|
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66/IP67, IK10, NEMA4X | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+: Max 25.5W, typical 14.0W 12VDC: Max 24.0W, typical 12.7.W |
|
| Mechanical | ||
| Color / Material | White / Aluminum Hard-coated window |
|
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | ø136.2x358.7mm(ø5.36x14.12")(Without sunshield), 3200g(7.05lb) * backbox: ø160mm(ø6.30") |
|
| Compatible Conduit hole / Gangbox | 19.1mm(3/4")(M25) single, double, 4" octagon, 4" square |
|
| Certifications & Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
|
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
|
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 |
|
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 130.6m(428.4ft) / Tele: 4,000m(13,122ft) | |
| Observe (63PPM/ 19PPF) | Wide: 52.2m(171.4ft) / Tele: 1600m(5,249ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 26.1m(85.7ft) / Tele: 800m(2,625ft) | |
| Identify (250PPM/ 76PPF) | Wide: 13.1m(42.8ft) / Tele: 400m(1,312ft) | |
| Wisenet Road AI LPR/ANPR/MMCR | ||
| Solution | City Traffic | |
| Speed Description | High Speed | |
| Lane Coverage | Up to 2 lanes (5m/18ft Wide) | |
| Speed limit | Up to 100kmh (65mph) | |
| Min. Forward Distance | 18m (60ft) | |
| Max. Forward Distance | 75m (250ft) | |
| Max. Horizontal Angle | 25° | |
| Max. Vertical Angle | 25° | |
| Horizontal Offset | Up to 12m (24ft) | |
| Camera Height | Up to 12m (24ft) | |
| Vehicle Recognition | Make : 70+ Makes Model : 600+ models Color : 11 colors |
|
| Available Countries | United States of America, Canada, Peru(LPR only), Columbia(LPR only), Albania, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Gibraltar, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Kosovo, Kazakhstan, Kyrgyzstan, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Mongolia, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russian Federation, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Tajikistan, Turkey, Turkmenistan, Ukraine, United Kingdom, Uzbekistan, Australia (LPR only), Newziland (LPR only) Bahrain, Kuwait, Oman, Qatar, KSA, UAE, South Africa | |
