Network Cameras

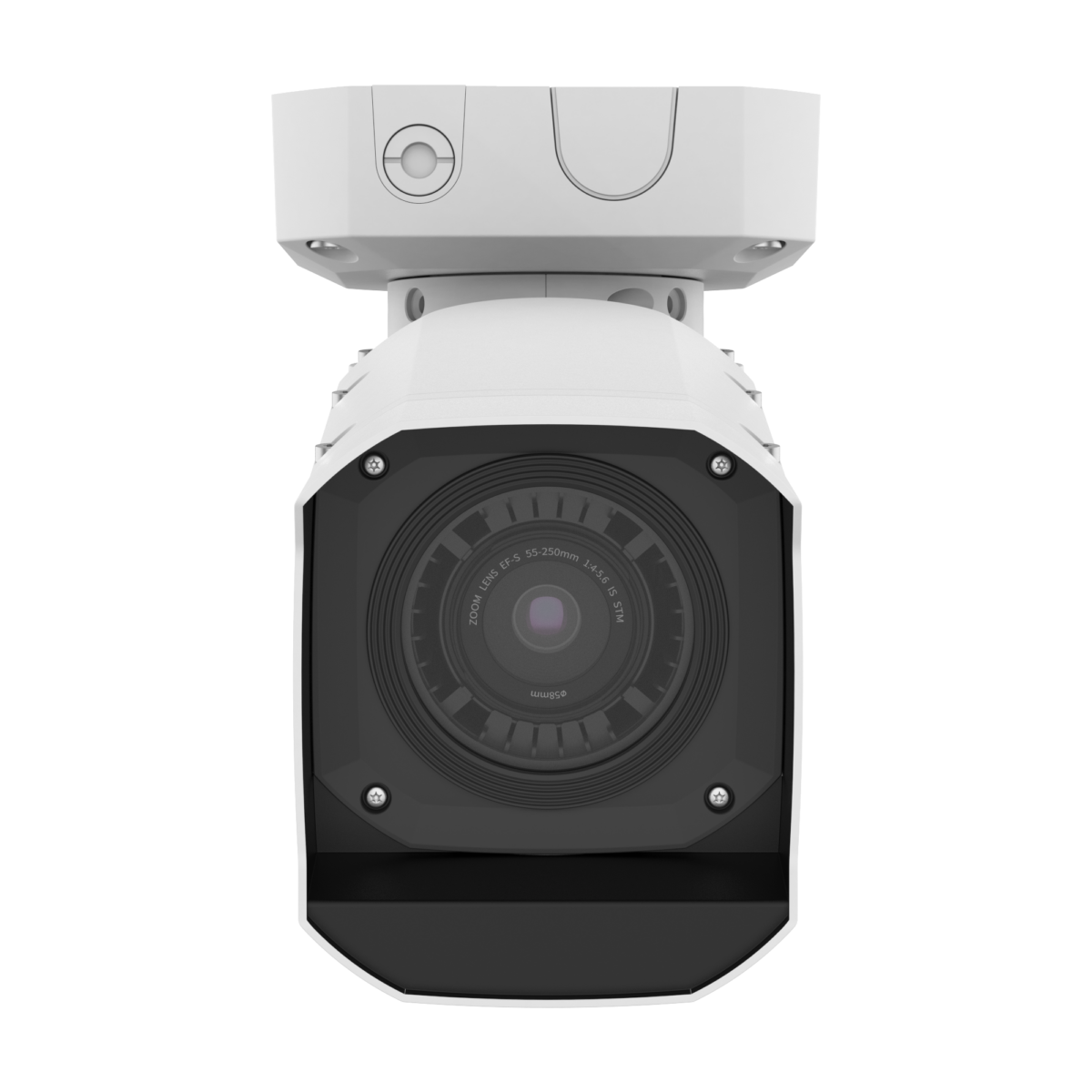

TNO-A26081
Ultra-resolution 26MP T AI camera
Key Features
• High resolution 26MP(max. resolution 6240x4160)
• Max. 30fps @ all resolutions (H.265, H.264, MJPEG)
• Diagonal 28.3mm 1.8" CMOS
• 55~250mm(4.54x) manual varifocal lens
• AI enabled features(Object detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit),
Motion detection, Bestshot per object
• Hallway View, WiseStreamⅢ (Based on AI engine)
• PoE++(IEEE802.3bt type3, Class6), 12VDC
• IP66/IP67, IK10, NEMA4X
• TPM with FIPS 140-3 level 3
• Max. 30fps @ all resolutions (H.265, H.264, MJPEG)
• Diagonal 28.3mm 1.8" CMOS
• 55~250mm(4.54x) manual varifocal lens
• AI enabled features(Object detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit),
Motion detection, Bestshot per object
• Hallway View, WiseStreamⅢ (Based on AI engine)
• PoE++(IEEE802.3bt type3, Class6), 12VDC
• IP66/IP67, IK10, NEMA4X
• TPM with FIPS 140-3 level 3
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | Diagonal 28.3mm 1.8" CMOS |
| Resolution | 6240x4160(WiseAI off 30fps, WiseAI on 20fps), 3840x2160, 2880x1920, 1920x1280, 1600x1200, 1440x960, 1280x800, 1024x768, 1280x720, 720x480, 640x480 |
| Max. Framerate | H.265/H.264: Max. 30fps MJPEG: Max. 30fps(@26MP Max. 1fps) |
| Min. Illumination | Color : 0.2Lux(F4.0, 1/30sec) TBD B/W : 0.02Lux(F4.0, 1/30sec) TBD |
| Video Out | USB: Micro USB Type C, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 55~250mm(4.54x) manual varifocal |
| Max. Aperture Ratio | F4(Wide)~F5.6(Tele) |
| Angular Field of View | H: 24°(Wide)~5.4°(Tele) V: 16°(Wide)~3.6°(Tele) D: 29°(Wide)~6.5°(Tele) |
| Min. Object Distance | 0.85m (2.8ft) |
| Focus Control | Simple focus |
| Lens Type | Canon EF-S 55~250mm F4-5.6 IS STM |
| Mount Type | Canon EF-S |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, SSDR |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine)(revision) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, Rectangular - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Support |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type:car/bus/truck/motorcycle/bicycle and Color) Support Bestshot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Defocus detection, Tampering, Audio detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Queue management, Heatmap, Vehicle counting |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image/video clip): e-mail/FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, SMTPS ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-3 level 3 |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB |
| Memory | 8GB RAM, 16GB EMMC |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F~+131°F) / 0~100% RH(condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing) |
| Input Voltage | PoE++(IEEE802.3bt type3, Class6, Injector not included), DC12V |
| Power Consumption | PoE++ : Max 44.3W, Typical 24.9W 12VDC : Max 35.4W, Typical 19.6W |
| Mechanical | |
| Color / Material | White / Aluminum, PC(Polycarbonate) |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 193.5x193.5x532mm(7.62"x7.62"x20.94"), 8100g(17.86lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 587.1m(1,926.3ft) / Tele: 2,646.4m(8,682.3ft), TBD |
| Observe (63PPM/ 19PPF) | Wide: 234.9m(770.5ft) / Tele: 1,058.6m(3,472.9ft), TBD |
| Recognize (125PPM/ 38PPF) | Wide: 117.4m(385.3ft) / Tele: 529.3m(1,736.5ft), TBD |
| Identify (250PPM/ 76PPF) | Wide: 58.7m(192.6ft) / Tele: 264.6m(868.2ft), TBD |
