Network Cameras
NEW

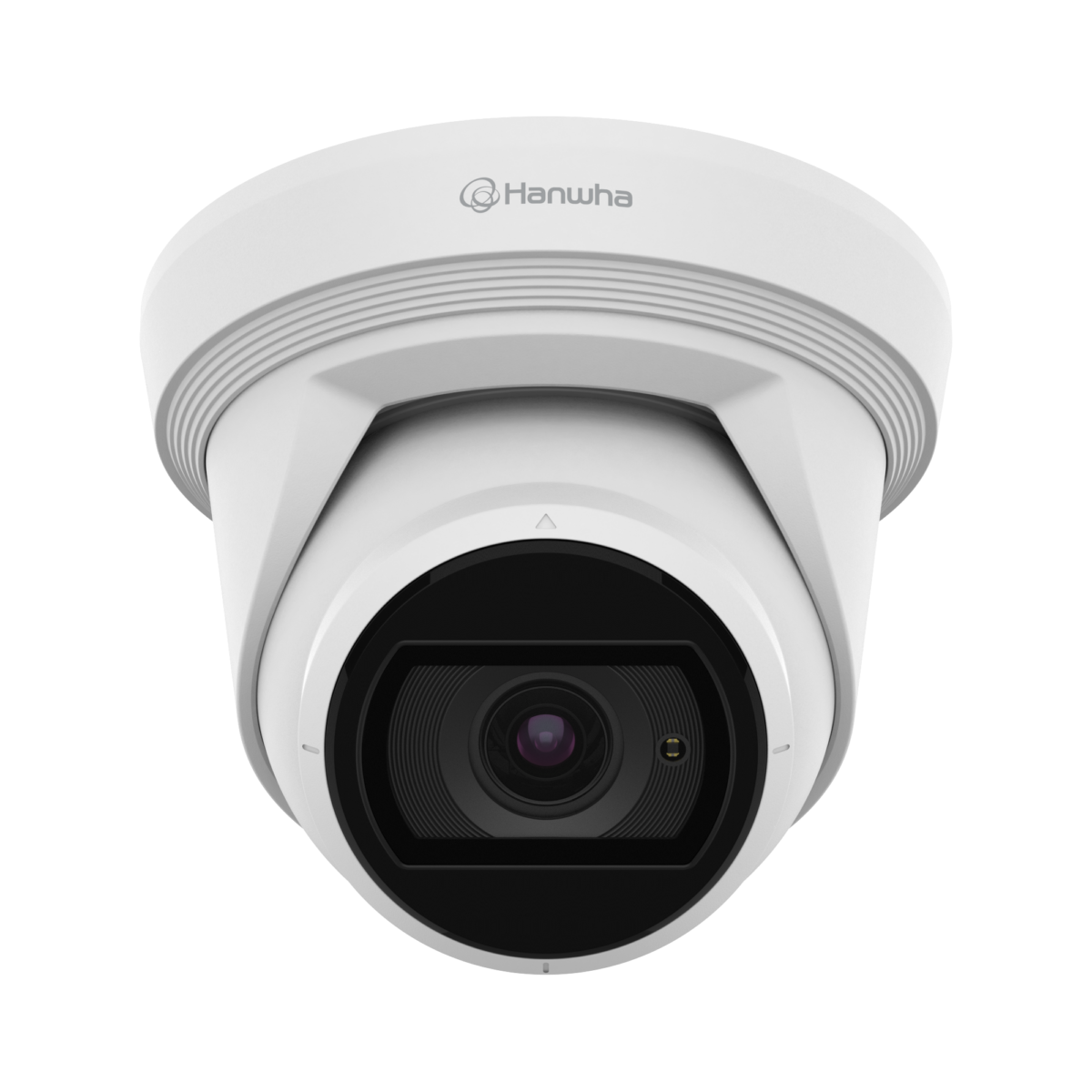

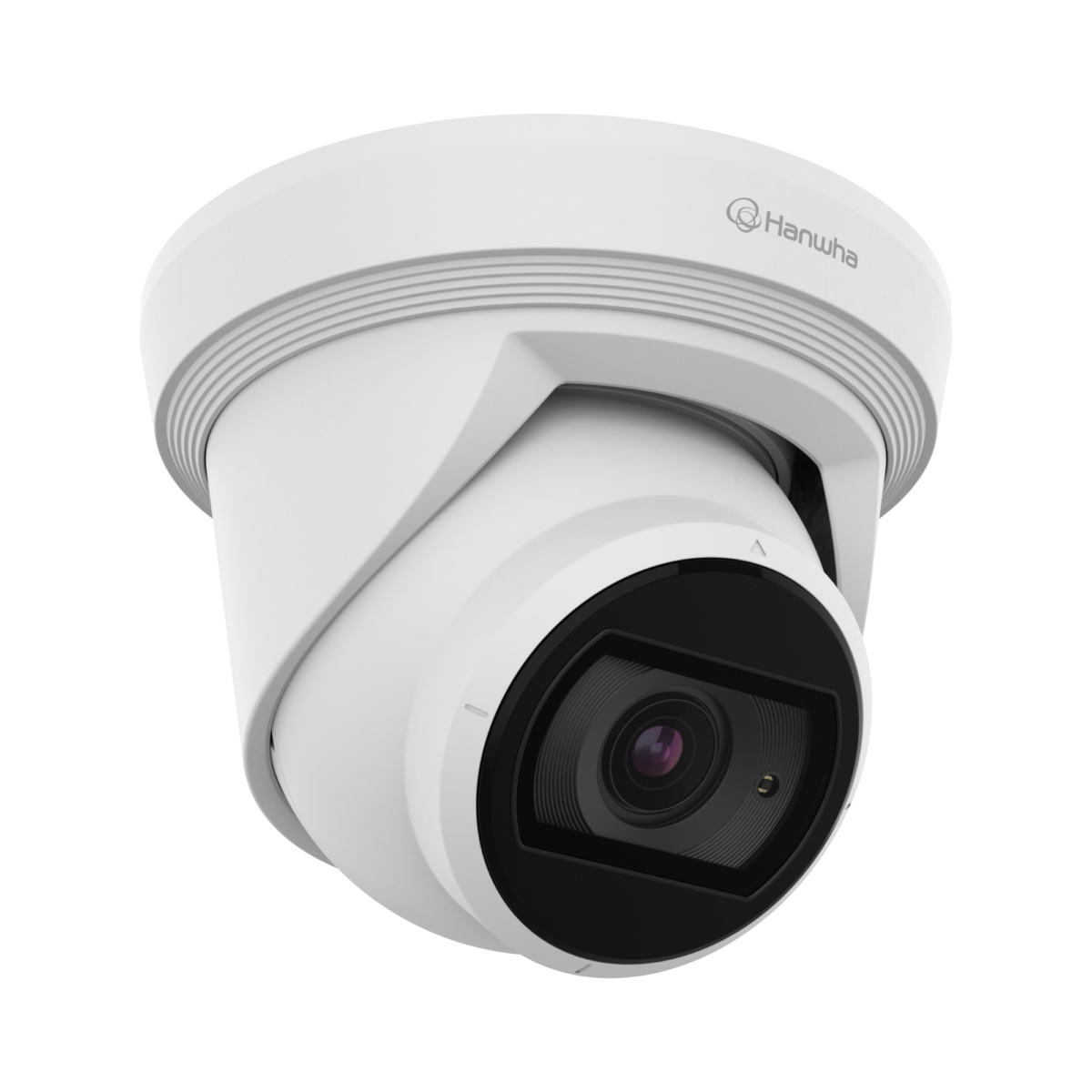

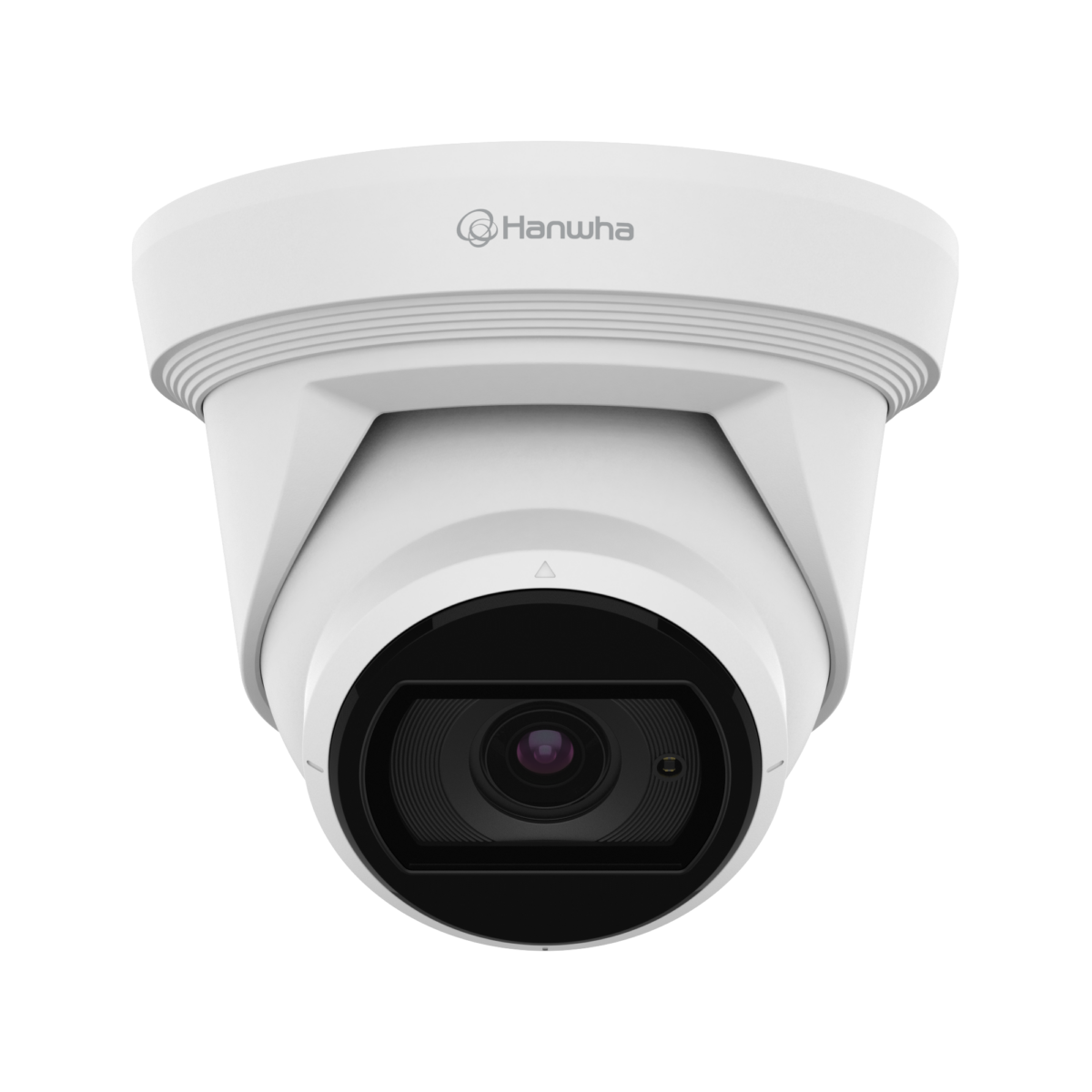

ANE-L8082R
5MP H.265 IR Flateye Camera
Key Features
• Max. 5MP (2592 x 1944) resolution
• 3.3~10.3mm (3.1x) motorized varifocal
• 0.04Lux (Color), 0Lux (B/W IR LED on)
• H.265, H.264, MJPEG, Multiple streaming supported
• Day & Night (ICR) ,WDR (120dB)
• Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction)
• Hallway view (90°/270°), LDC support, WiseStreamⅡ
• IP66, IP67, IK10
• 3.3~10.3mm (3.1x) motorized varifocal
• 0.04Lux (Color), 0Lux (B/W IR LED on)
• H.265, H.264, MJPEG, Multiple streaming supported
• Day & Night (ICR) ,WDR (120dB)
• Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction)
• Hallway view (90°/270°), LDC support, WiseStreamⅡ
• IP66, IP67, IK10
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)(WDR off) H.265/H.264: Max. 15fps/12fps(60Hz/50Hz)(WDR on) MJPEG: Max. 15fps(@5MP Max. 2fps) |
| Min. Illumination | Color: 0.04Lux(F1.6, 1/30sec, 30IRE) BW: 0.004Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~10.3mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide) ~ F3.3(Tele) |
| Angular Field of View | H: 97°(Wide)~29°(Tele) V: 70°(Wide)~21°(Tele) D: 130°(Wide)~36°(Tele) |
| Min. Object Distance | 1m |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR Corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Handover: PTZ preset |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.42ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device certificate(Hanwha private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~95% RH(Non-condensing) * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.4W, typical 5.2W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160.0x124.1mm(ø6.3x4.89"), 1060g(2.34 lb) |
| Compatible Conduit hole / Gangbox | SBP-060BA (Sold seperately), Single, Double |
| Hanging Mount (Dome) | SBP-160HMW1 |
| Backbox | SBV-180BW |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS, SBP-140CMT |
| Wall Mount | SBP-300WMW, SBP-300WMW1, SBP-400WMW, SBP-160WMW1, SBP-250WMW |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1, SBP-156KMW |
| Cabinet | SBP-300NBW |
| Conduit Adaptor | SBP-060BA |
| Certifications & Standards | |
| EMC | RCM AS/NZS CISPR 32 Class A |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 46m(151ft) / Tele: 200.5m(657.65ft) |
| Observe (63PPM/ 19PPF) | Wide: 18.4m(60.4ft) / Tele: 80.2m(263.06ft) |
| Recognize (125PPM/ 38PPF) | Wide: 9.2m(30.2ft) / Tele: 40.1m(131.53ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.6m(15.1ft) / Tele: 20m(65.76ft) |
