Network Cameras Discontinued

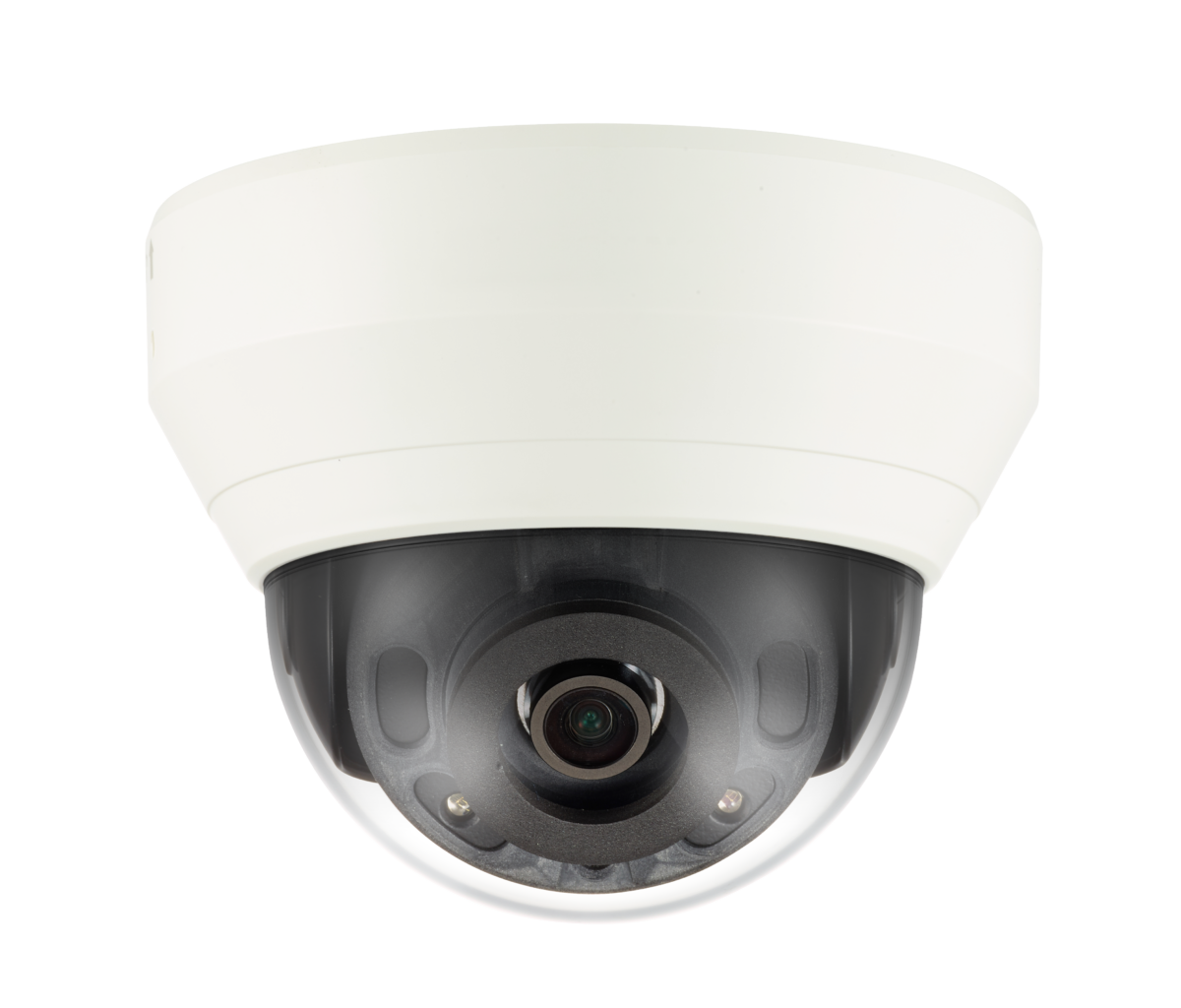

QND-6020R

2M H.265 IR Dome Camera

Key Features
• Max. 2M (1920 x 1080) resolution
• Built-in 2.8mm 3.6mm fixed lens
• Max. 30fps@all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• microSD (128GB) memory slot, PoE / 12V DC
• IR viewable length 20m, IK08
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Compact cameras
with essential qualities

Affordable product line offers professional qualities ideal
for securing small to medium sized applications

Wisenet-Q-Series-Hero Wisenet-Q-Series-Hero
Wisenet-Q-Series-Camera
  • 2Megapixel and 4Megapixel resolution
  • Framerate Max. 20fps@4M, 30fps@2M
  • Hallway view, Lens Distortion Correction
  • True WDR (120dB)
  • IP66/IK10 for Outdoor cameras
  • H.265, H.264, MJPEG
  • Motion and Defocus detection, Tampering
  • WiseStream
  • Edge storage
  • Compact design

Improved bandwidth efficiency with WiseStream, H.265

Improved bandwidth efficiency with WiseStream, H.265

WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.

Defocus detection

Defocus detection

Defocus detection helps recognizing images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network (4MP Varifocal product), reducing the installation time of the camera.

Various lens options

Fixed Lens

Varifocal Lens

Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

The 2.8 ~ 12mm varifocal lens, created by Hanwha Techwin’s own advanced technology, supports True H : 109.7° (Wide) ~ 26.0° (Tele) with more flexibility in field of view.
Demo Video
Demo Video
Hallway View for monitoring vertical shaped areas

Hallway View for monitoring vertical shaped areas

In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

Minimize image distortion by Lens Distortion Correction

Minimize image distortion by Lens Distortion Correction

Lens Distortion is typically shown in video on the straight lines near to edges of a image making the straight lines look curved outward. With Lens Distortion Correction technology imperfections in images are easily removed.

Perfect for small to medium sized applications

Perfect for small to medium sized applications

By using the Wisenet Q series cameras along with NVRs, create a perfect solution for small to medium sized applications and save installation cost and time.



Product Specification

Video
Imaging Device 1/2.9" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 720x576, 720x480, 640x480, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.15Lux(F1.8, 1/30sec)
BW: 0Lux(IR LED on)
Lens
Focal Length (Zoom Ratio) 3.6mm fixed focal
Max. Aperture Ratio F1.8
Angular Field of View H: 86.5° / V: 46.2° / D: 102.0°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 20 characters per line(Max.5 lines)
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Motion detection, Tampering
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio In Built-in mic
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec WiseStreamⅠ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 256MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IK08
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 6.50W
12VDC: Max 5.43W

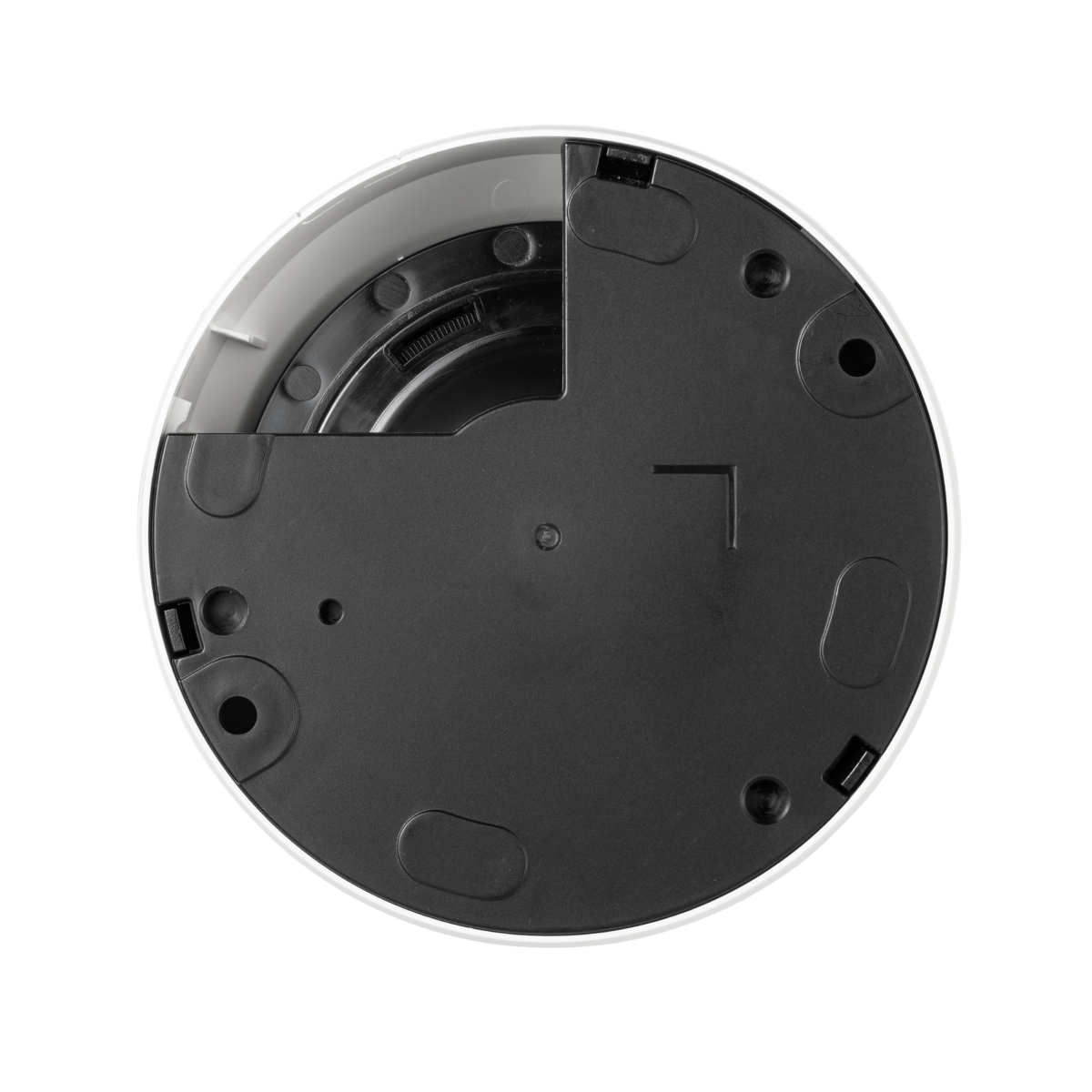

Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø110.0x86.0mm(Ø4.33x3.39"), 290g(0.64 lb)
