Network Cameras

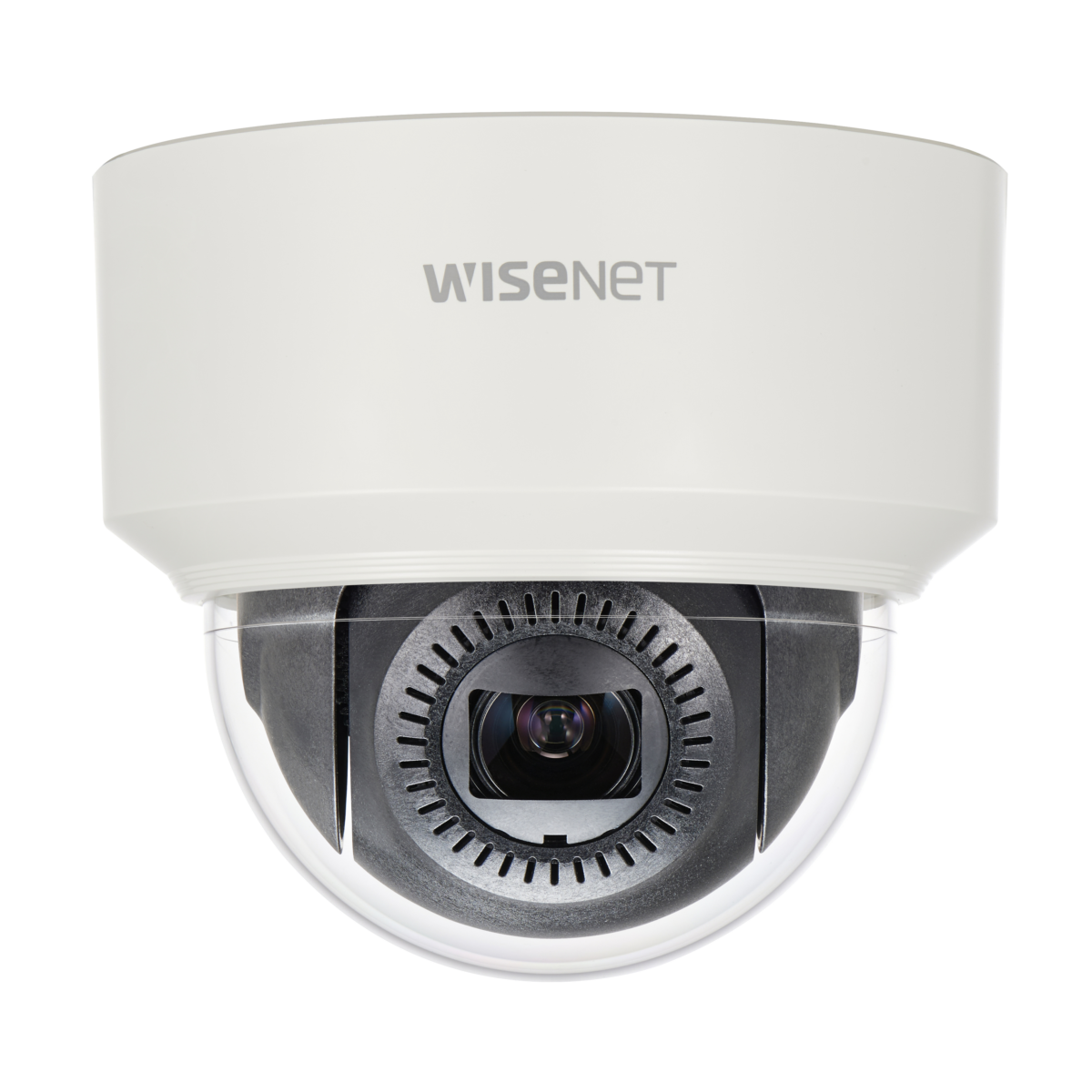

XND-6085V

2M H.265 Camera (extraLUX)

Key Features
• Max. 2Megapixel (1920 x 1080) resolution
• H.265, H.264, MJPEG codec Supported, Multiple streaming
• 4.1 ~ 16.4mm (4x) motorized varifocal lens
• 0.004 Lux@F0.94 (Color), 0.0004 Lux@F0.94 (B/W)
• Day & Night (ICR), WDR (150dB), Defog
• Loitering, Directional, Fog detection, Audio detection
• Digital auto tracking, Sound classification, Tampering
• SD / SDHC / SDXC memory slot (Max. 512GB)
• Hallway View, WiseStreamII Support
• LDC, PoE / 24V AC / 12V DC, Bi-directional audio
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.004Lux(F0.94, 1/30sec)
BW: 0.0004Lux(F0.94, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.1~16.4mm(4x) motorized varifocal
Max. Aperture Ratio F0.94(Wide)~F2.4(Tele)
Angular Field of View H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele)
Min. Object Distance 0.7m(2.30ft)
Focus Control Simple focus
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
-175°~175° / -73°~73° / -175°~175°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ preset
Audio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C
Storage Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Certification IK08
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE : Max 10.2W
12VDC : Max. 8.6W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø160x140.0mm(6.3"x5.51"), 1.25kg(2.76 lb)
