TNO-6320E
2M H.264 Explosion-proof Camera
• Max. 60fps@2M all resolutions
• 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
• 0.15Lux@F1.6(color), 0.015Lux@F1.6(B/W)
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460 EX II 2 GD Ex d IIC T6 Gb IP67 Ex tb IIIC T85°C Db
• Stainless 316L, Built-in Wiper
• IP67, IK10
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
Explosion-proof cameras
for Hazardous area
TNO-6320E / TNU-6320E
- Max. 2MP (1920 x 1080) resolution
- 4.44~142.6mm (32x) optical zoom
- ATEX certification, Built-in wiper
- Max. 60fps@2MP at all resolution
- 0.15 Lux@F1.6 (Color), 0.015 Lux@F1.6@ (B/W)
Explosion proof cameras for hazardous environments
Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series explosion proof camera satisfy both requirements by the powerful network cameras and stainless steel housing enclosure surrounding it.
Stainless steel 316L enclosure to prevent explosions
T series explosion proof cameras are designed to be safely operated in hazardous areas with the special enclosure made of stainless steel 316L housing. The ATEX certified enclosure has the ability to contain any internal explosions or prevent sparks from escaping the device which may lead to a disaster.
Capture details with 2MP 32x optical zoom
The powerful 2MP optical zoom 32x (4.44 ~ 142.6mm) camera SNZ-6320 is built in the explosion proof enclosure. 32x Optical zoom and 16x digital zoom helps users to see more further and clearly, capturing everything with sharpness without losing detail.
Defog technology to improve image clarity
Defog function is an image processing technology which helps increase image clarity in poor weather conditions such as fog or yellow dust. The visibility of the cameras can be enhanced in any weather condition so that users can monitor full-time.
360˚ endless pan rotation and 255 preset mode
TNU-6320E is capable of monitoring a broad range, with its 360˚ endless pan and 180˚ tilt feature moving at 1 ~ 50˚ /sec preset speed. In addition, the camera’s flexibility is increased by 255 preset positions, allowing users to save settings for pan/tilt functions and automatically view the location desired.
True WDR(120dB)
The true WDR function built into the explosion-proof camera provides enhanced picture quality, by resolving different brightness in a scene.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.264: Max. 60fps/50fps(60Hz/50Hz)\nMJPEG: Max. 30fps/25fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec)\nB/W: 0.015Lux(F1.6, 1/30sec) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 4.44~142.6mm(32x) zoom | |
| Max. Aperture Ratio | F1.6 (Wide)~F4.4 (Tele) | |
| Angular Field of View | H: 62.8°(Wide)~2.23°(Tele) / V: 36.80°(Wide)~1.26°(Tele) | |
| Min. Object Distance | 1.5m(59.06ft) | |
| Focus Control | Oneshot AF | |
| Lens Type | DC auto iris | |
| Operational | ||
| Camera Title | Displayed up to 45 characters | |
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅢ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | 4ea, rectangular zone | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Face detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail\nNotification via e-mail \nNAS recording at event triggers\nAlarm output | |
| Water Removal | Support | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual(5ea area) | |
| Bitrate Control | H.264: CBR or VBR\nMJPEG: VBR | |
| Streaming | Unicast(10 users) / Multicast\nMultiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access Log\n802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | SUNAPI (HTTP API)\nSVNP 1.2\nWisenet open platform | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, \nRussian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Memory | 512MB RAM, 128MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / Less than 90% RH \n* Start up should be done at above -30°C | |
| Storage Temperature / Humidity | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH | |
| Certification | IP67, IK10\nCE2460, EX II 2 GD, Ex d IIC T6 Gb IP67\nEx tb IIIC T80°C Db | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC: Max 28W | |
| Mechanical | ||
| Color / Material | Silver / Stainless(SUS316L) | |
| Product Dimensions / Weight | Ø162 x 244mm(Ø6.38 x 9.61"), 7Kg(15.43 lb) | |
Product Demo
Related Products

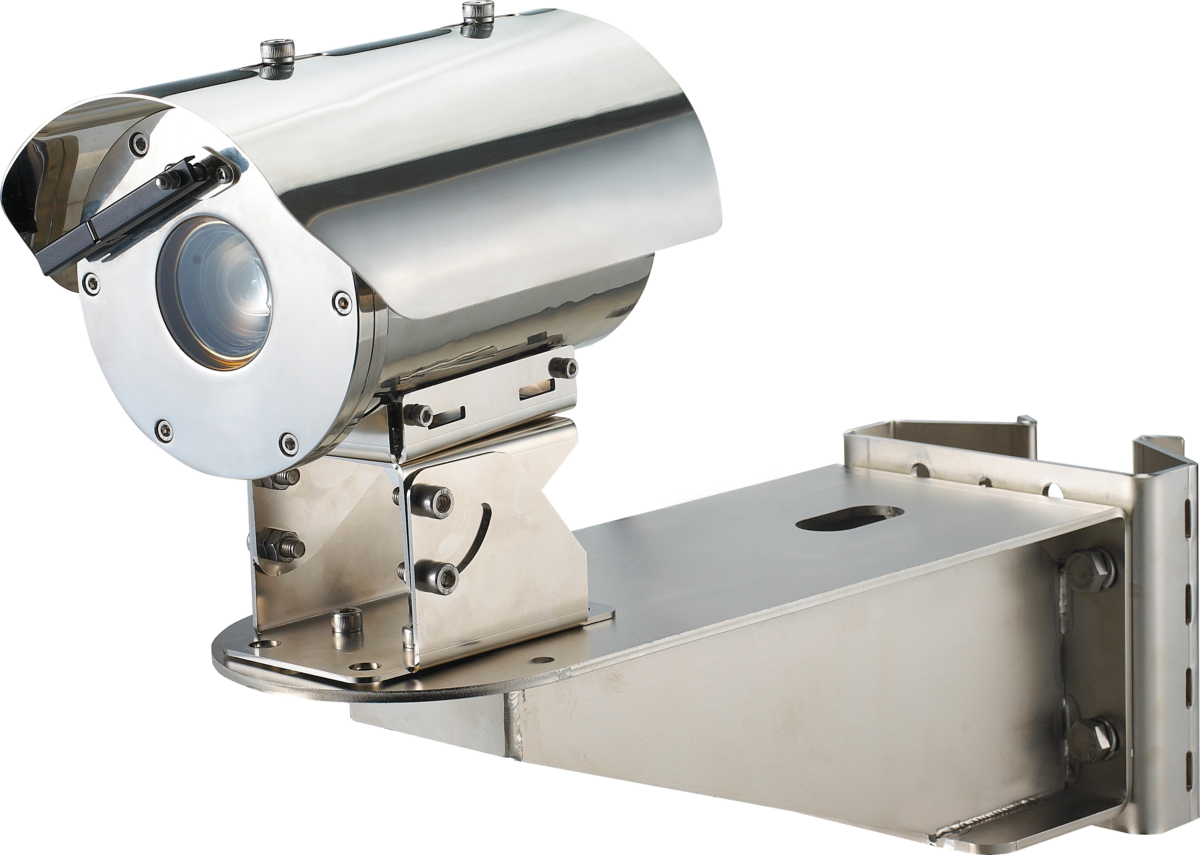

SBE-100PM
Pole Mount for Explosion-proof Camera

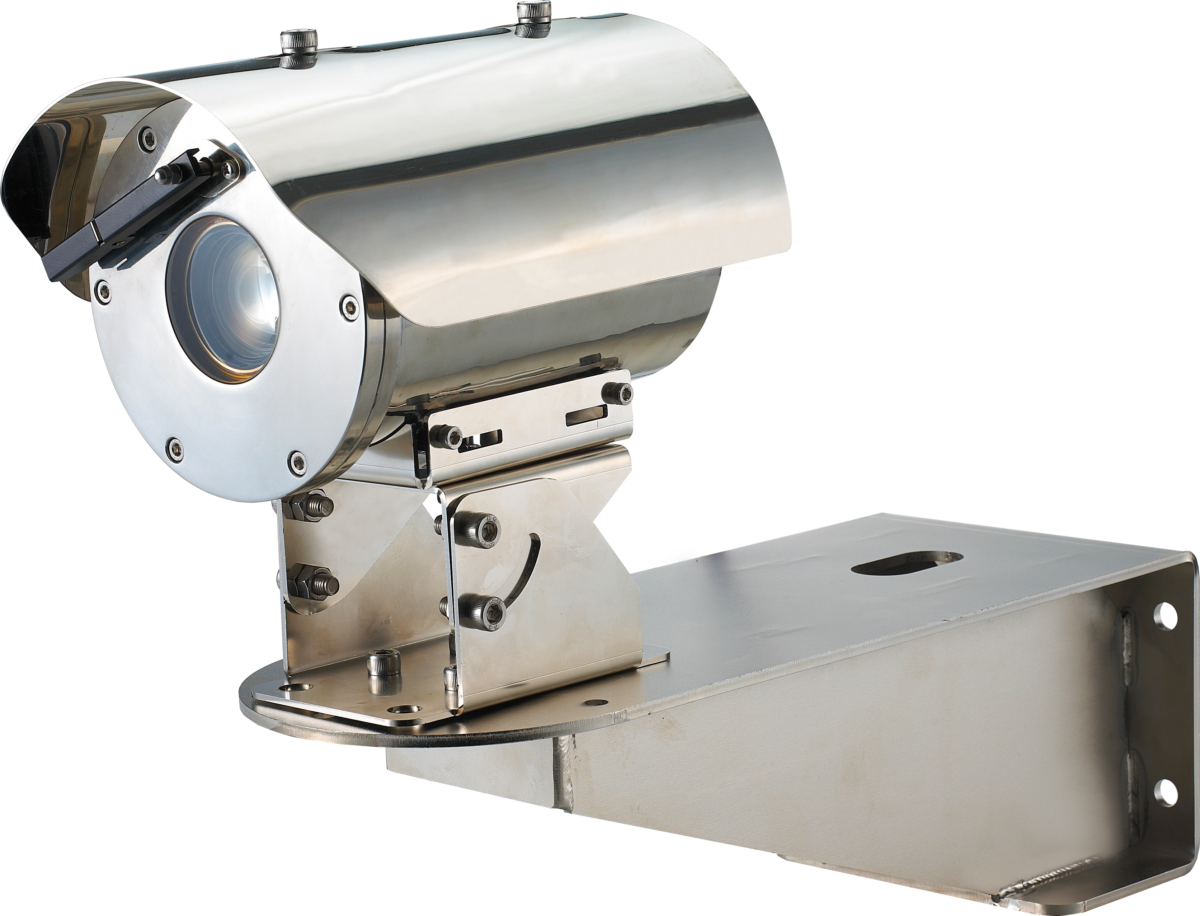

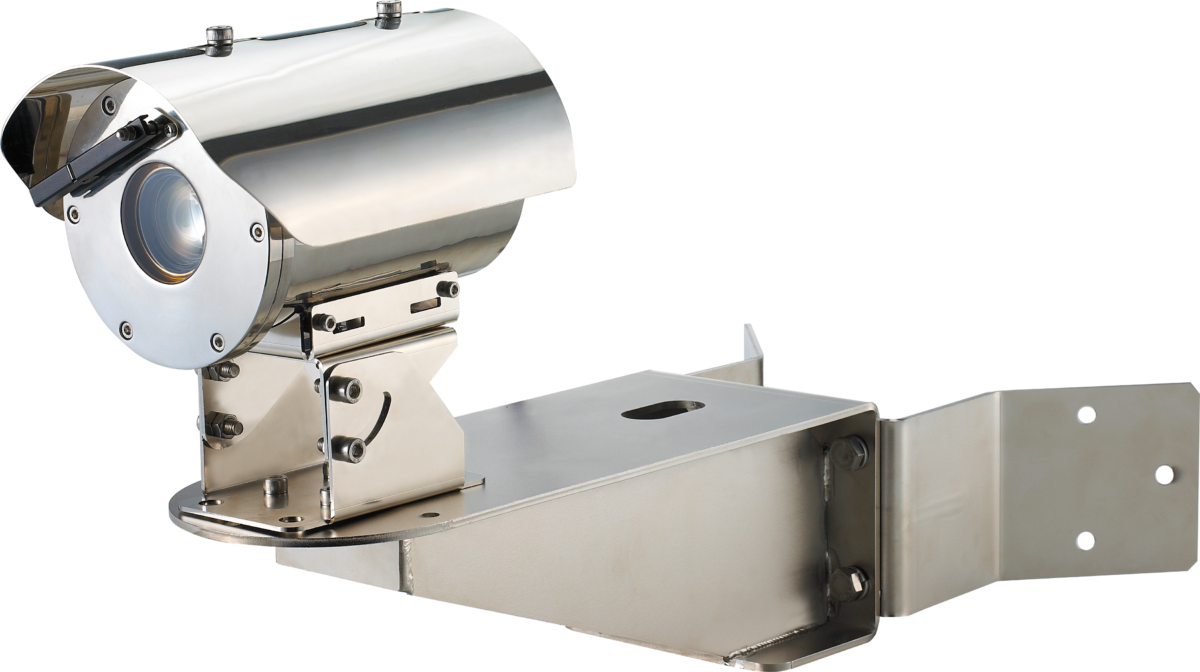

SBE-100WM
